Задние кресла TOYOTA PLATZ, 1999/08 - 2005/11, 1 литр, 16 клапанов DOHC, EFI, 3900CC:F TYPE, SCP11, автомат

Каталог

Япония

Модель

PLATZ

Двигатель

1 литр, 16 клапанов DOHC, EFI

Класс

3900CC:F TYPE

Фрейм

SCP11

Трансмиссия

автомат

Опции

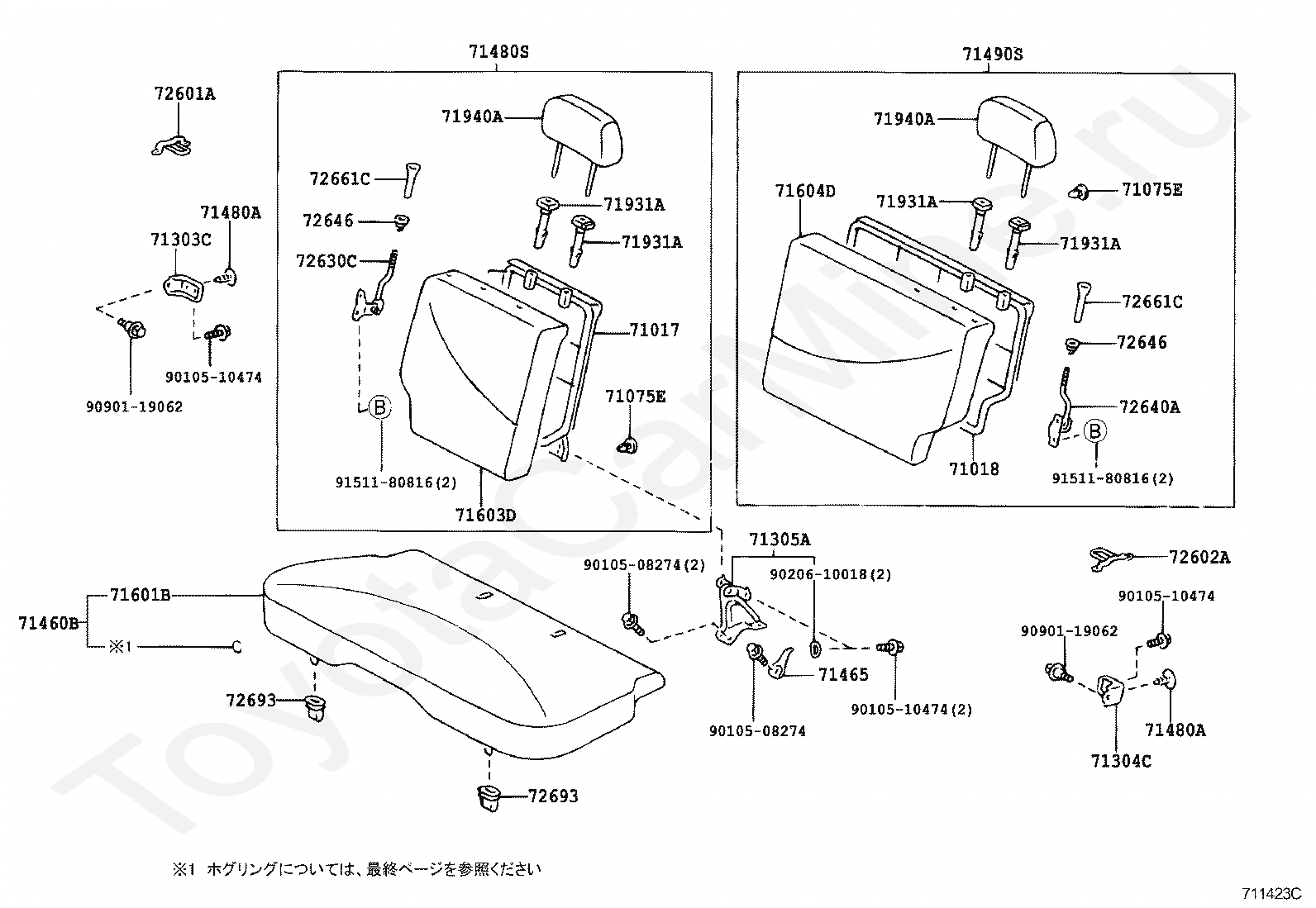

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075E

CLIP(FOR REAR SEAT)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71465

SPRING, REAR SEAT CUSHION, NO.5

71480A

CLIP (FOR REAR SEAT BACK)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71601B

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH

71604D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72601A

STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

9010508274

Крепеж

9010510474

Крепеж

9020610018

Крепеж

9090119062

Крепеж

9151180816

Крепеж

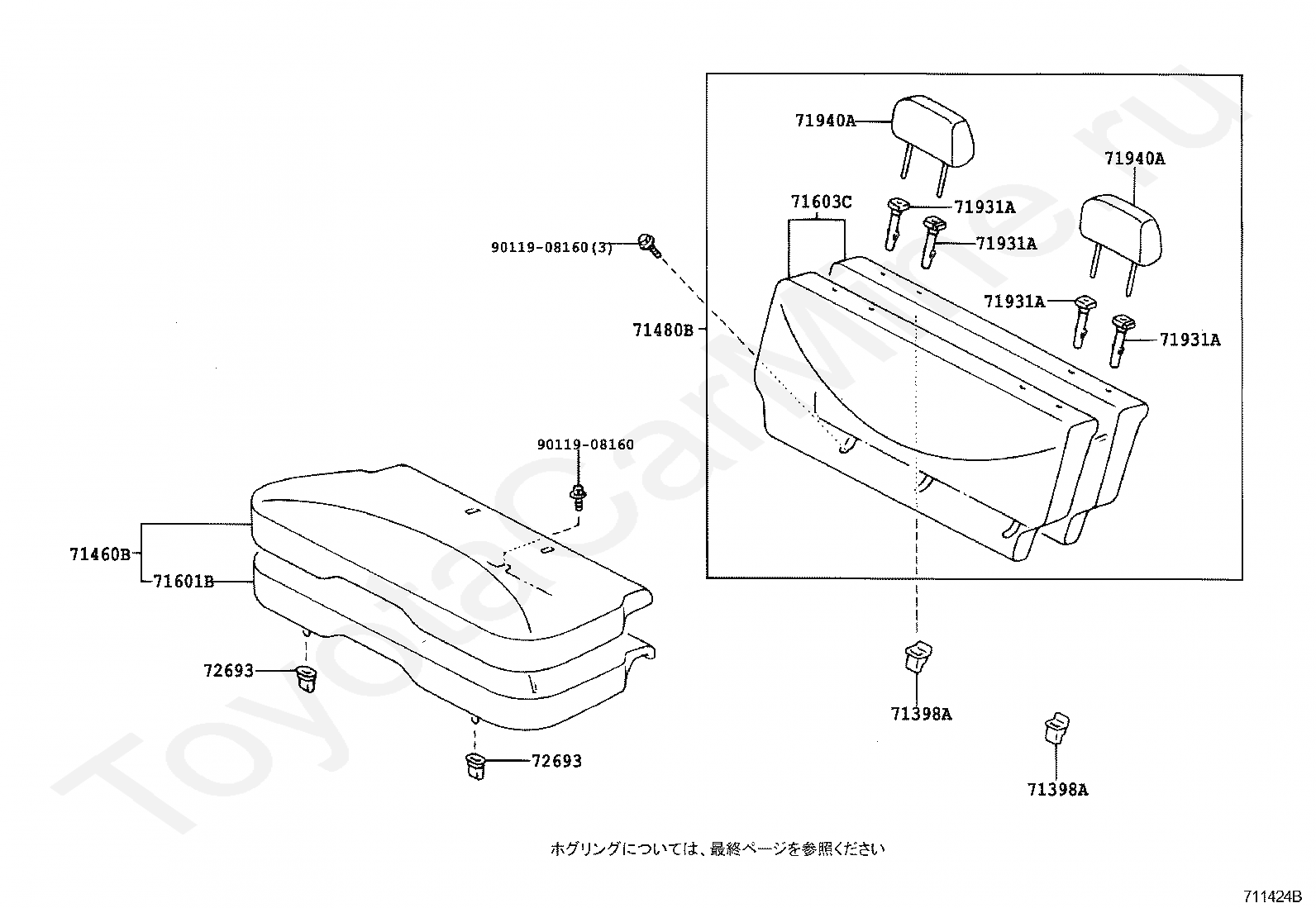

Код

Описание

71398A

HOLDER, REAR SEAT BACK

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71601B

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603C

PAD SUB-ASSY, REAR SEAT BACK W/COVER

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72693

HOOK, REAR SEAT CUSHION LOCK

9011908160

Крепеж

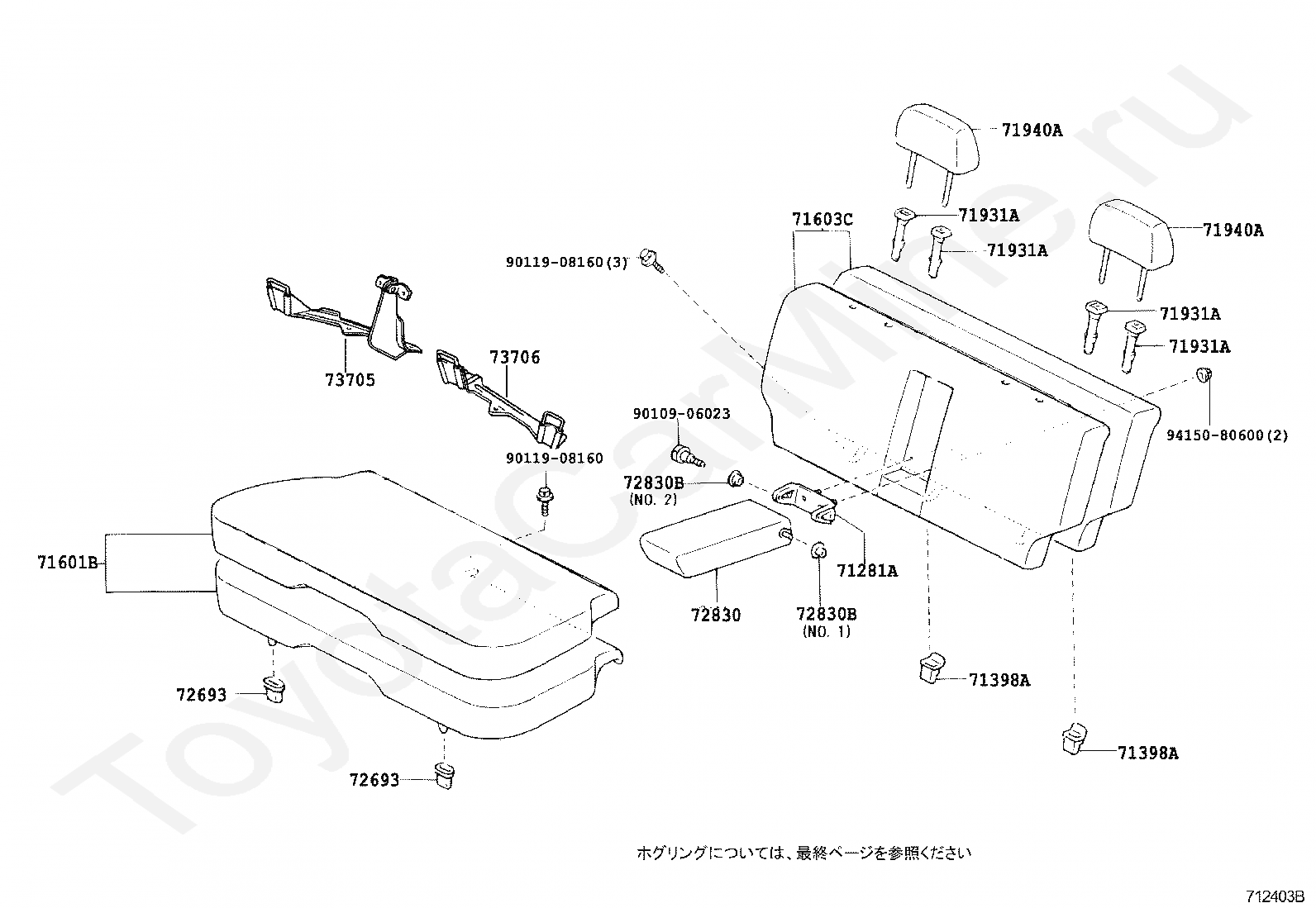

Код

Описание

71281A

HINGE, REAR SEAT CENTER ARMREST

71398A

HOLDER, REAR SEAT BACK

71601B

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603C

PAD SUB-ASSY, REAR SEAT BACK W/COVER

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010906023

Крепеж

9011908160

Крепеж

9415080600

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA PLATZ, 1999/08 - 2005/11, 1 литр, 16 клапанов DOHC, EFI, 3900CC:F TYPE, SCP11, автомат
