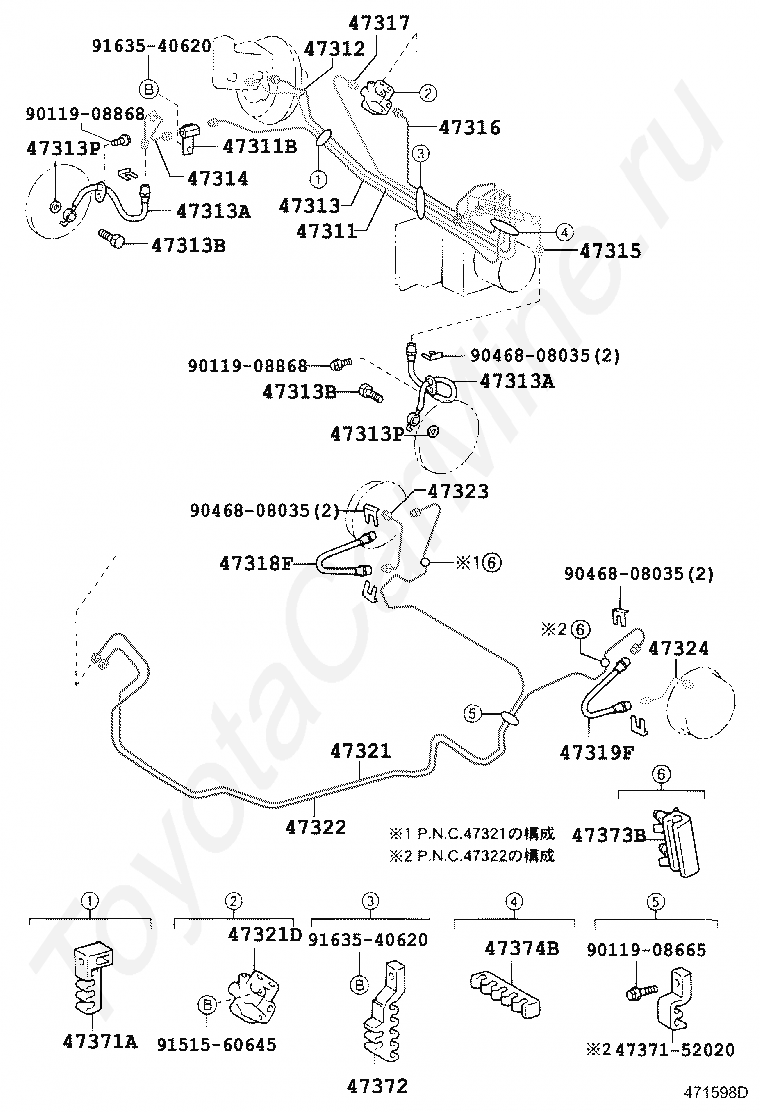

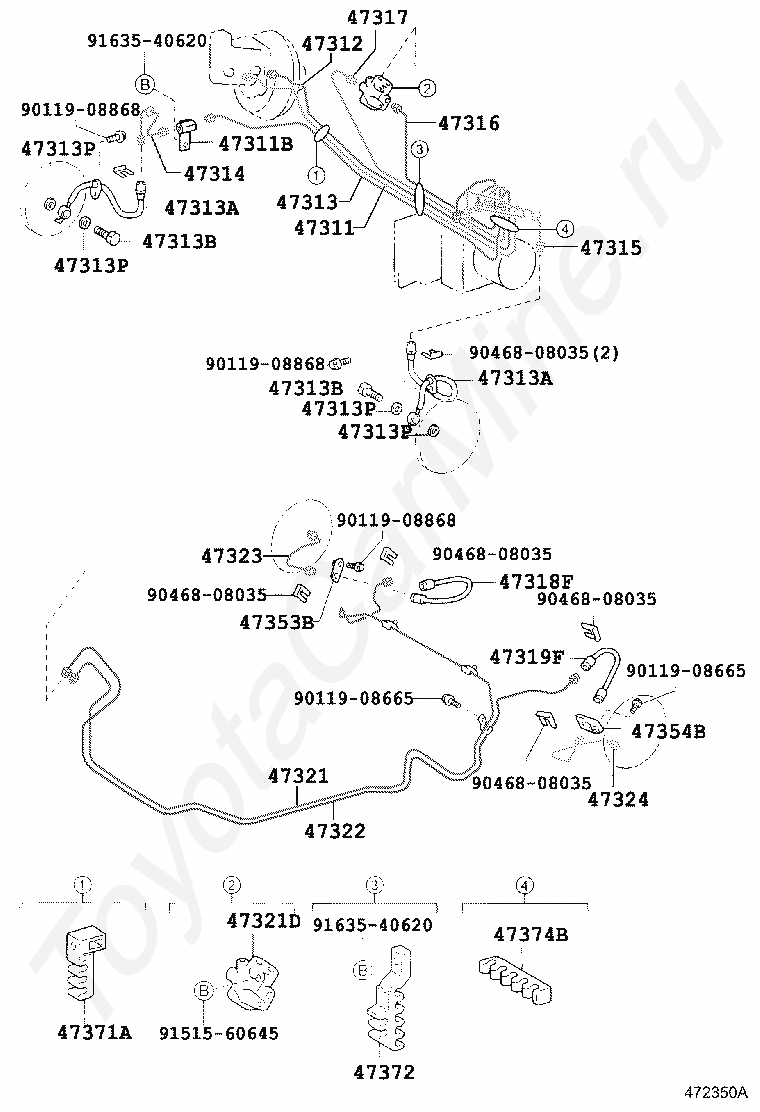

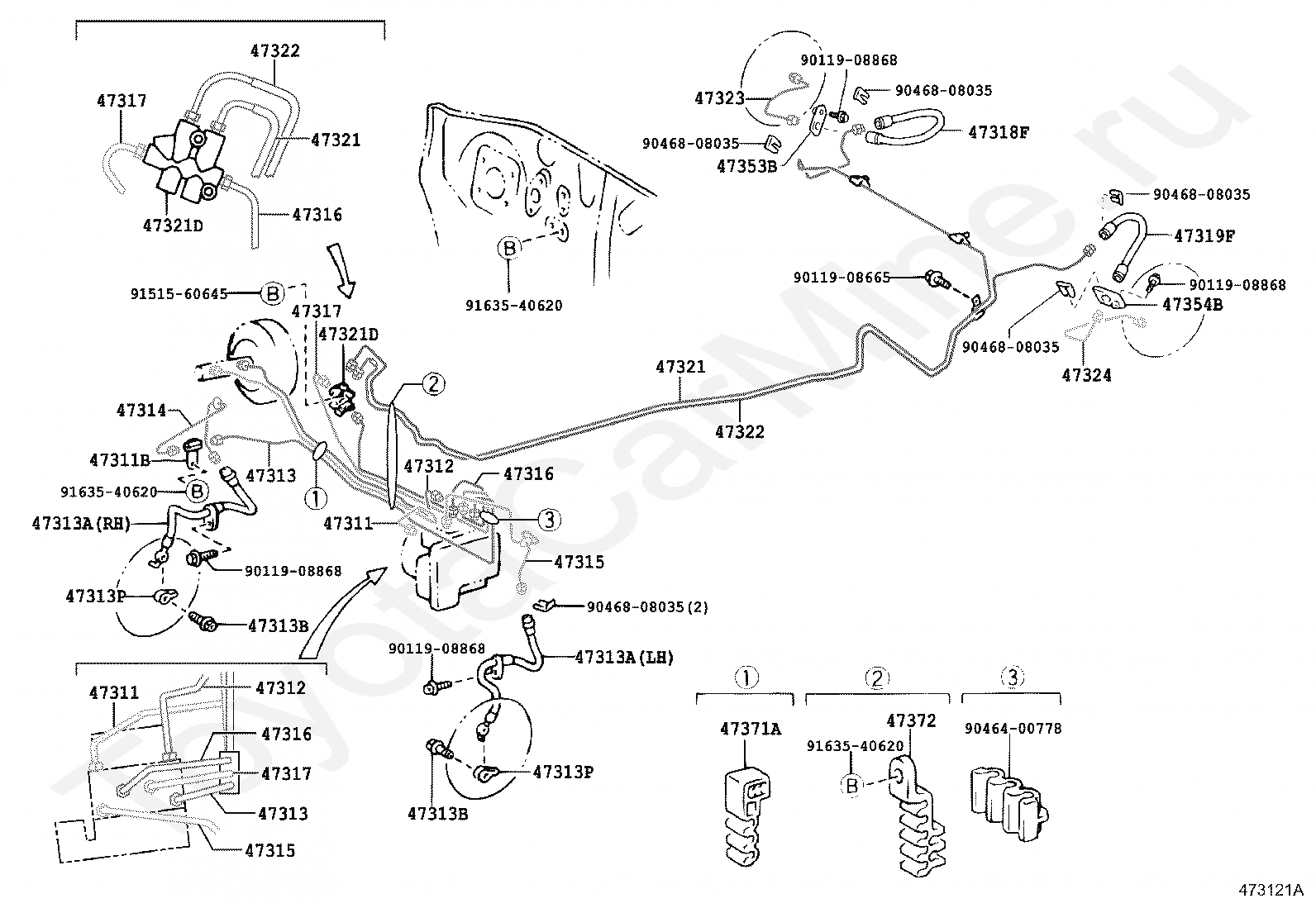

Тормозная магистраль TOYOTA PLATZ, 1999/08 - 2005/11, 1 литр, 16 клапанов DOHC, EFI, 3900CC:F TYPE, SCP11, автомат

Каталог

Япония

Модель

PLATZ

Двигатель

1 литр, 16 клапанов DOHC, EFI

Класс

3900CC:F TYPE

Фрейм

SCP11

Трансмиссия

автомат

Опции

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47373B

CLAMP, BRAKE TUBE, NO.3

9011908665

Крепеж

9011908868

Крепеж

9046808035

Крепеж

9151560645

Крепеж

9163540620

Крепеж

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

9011908665

Крепеж

9011908868

Крепеж

9046808035

Крепеж

9151560645

Крепеж

9163540620

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

4737152020

Крепеж

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

9011908665

Крепеж

9011908868

Крепеж

9046808035

Крепеж

9151560645

Крепеж

9163540620

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47374B

CLAMP, BRAKE TUBE, NO.4

9011908665

Крепеж

9011908868

Крепеж

9046808035

Крепеж

9151560645

Крепеж

9163540620

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9011908665

Крепеж

9011908868

Крепеж

9046400778

Крепеж

9046808035

Крепеж

9151560645

Крепеж

9163540620

Крепеж

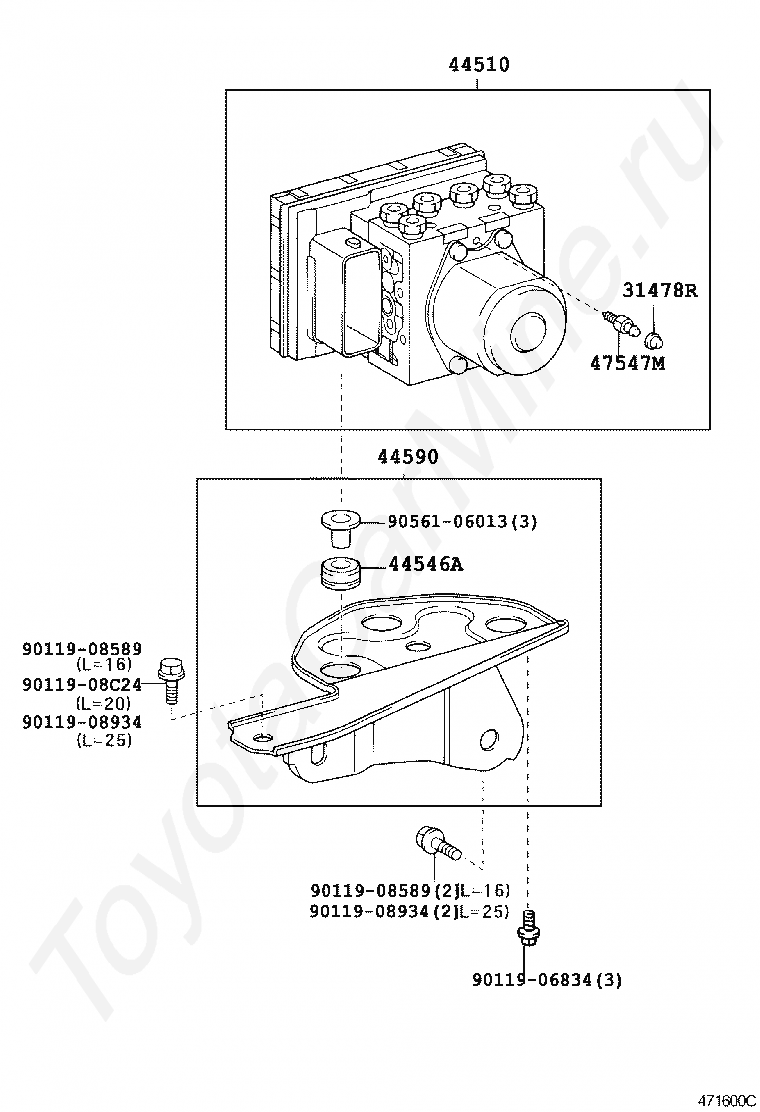

Код

Описание

31478R

CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR)

44510

ACTUATOR ASSY, BRAKE

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

47547M

PLUG, BLEEDER(FOR BRAKE ACTUATOR)

9011906834

Крепеж

9011908589

Крепеж

9011908934

Крепеж

9011908C24

Крепеж

9056106013

Крепеж

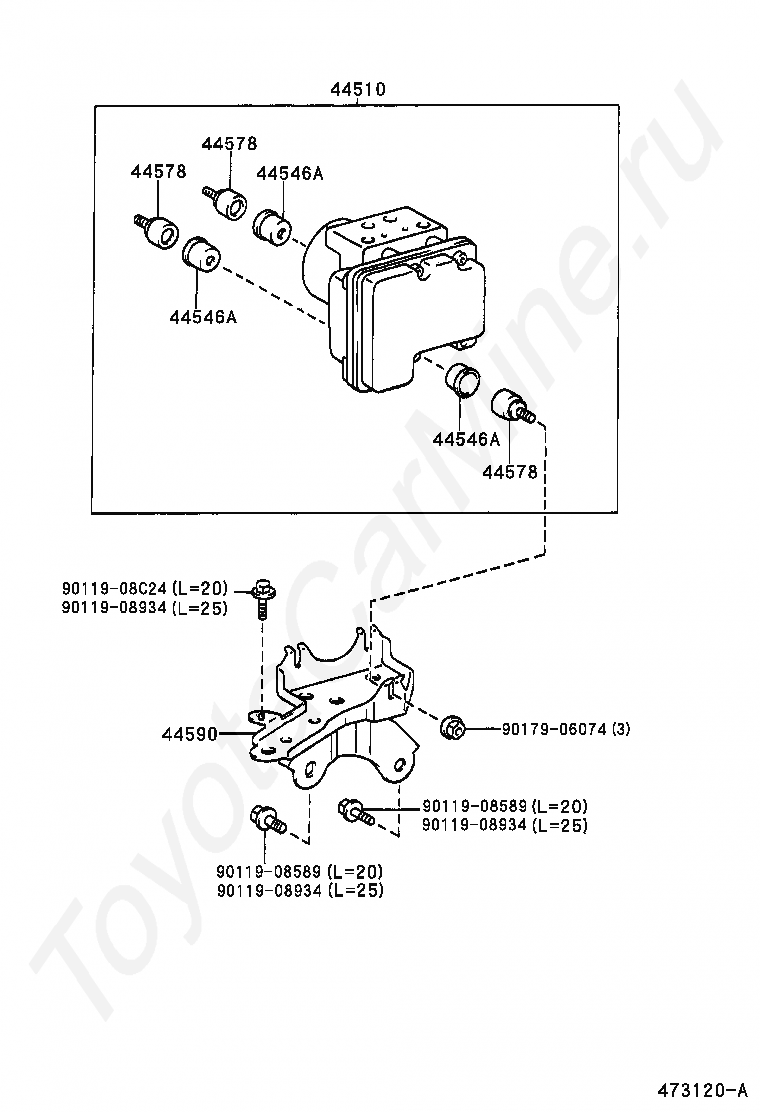

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44546A

CUSHION, BRAKE ACTUATOR BOLT

44578

BOLT, BRAKE ACTUATOR CUSHION

44590

BRACKET ASSY, BRAKE ACTUATOR

9011908589

Крепеж

9011908934

Крепеж

9011908C24

Крепеж

9017906074

Крепеж
