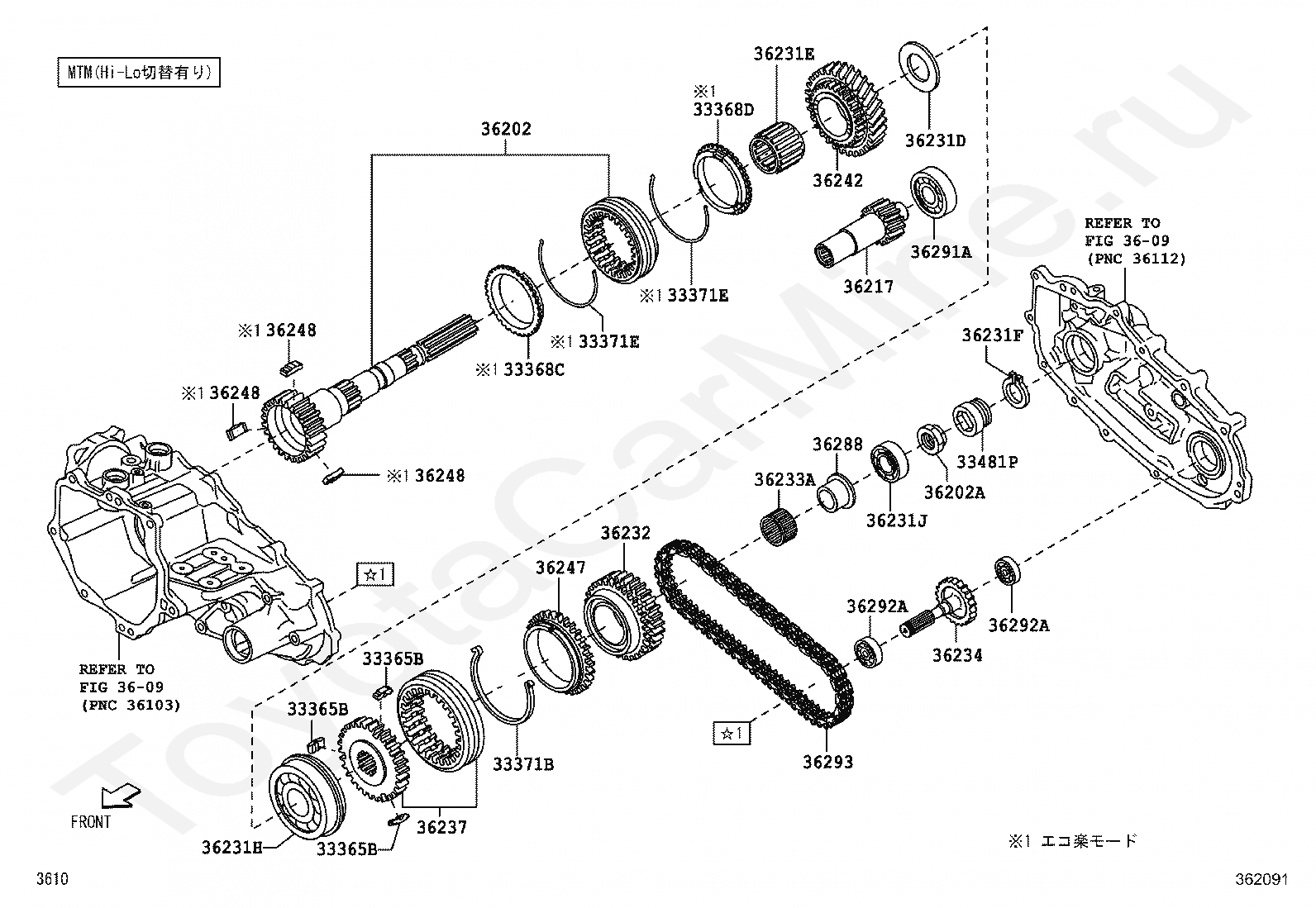

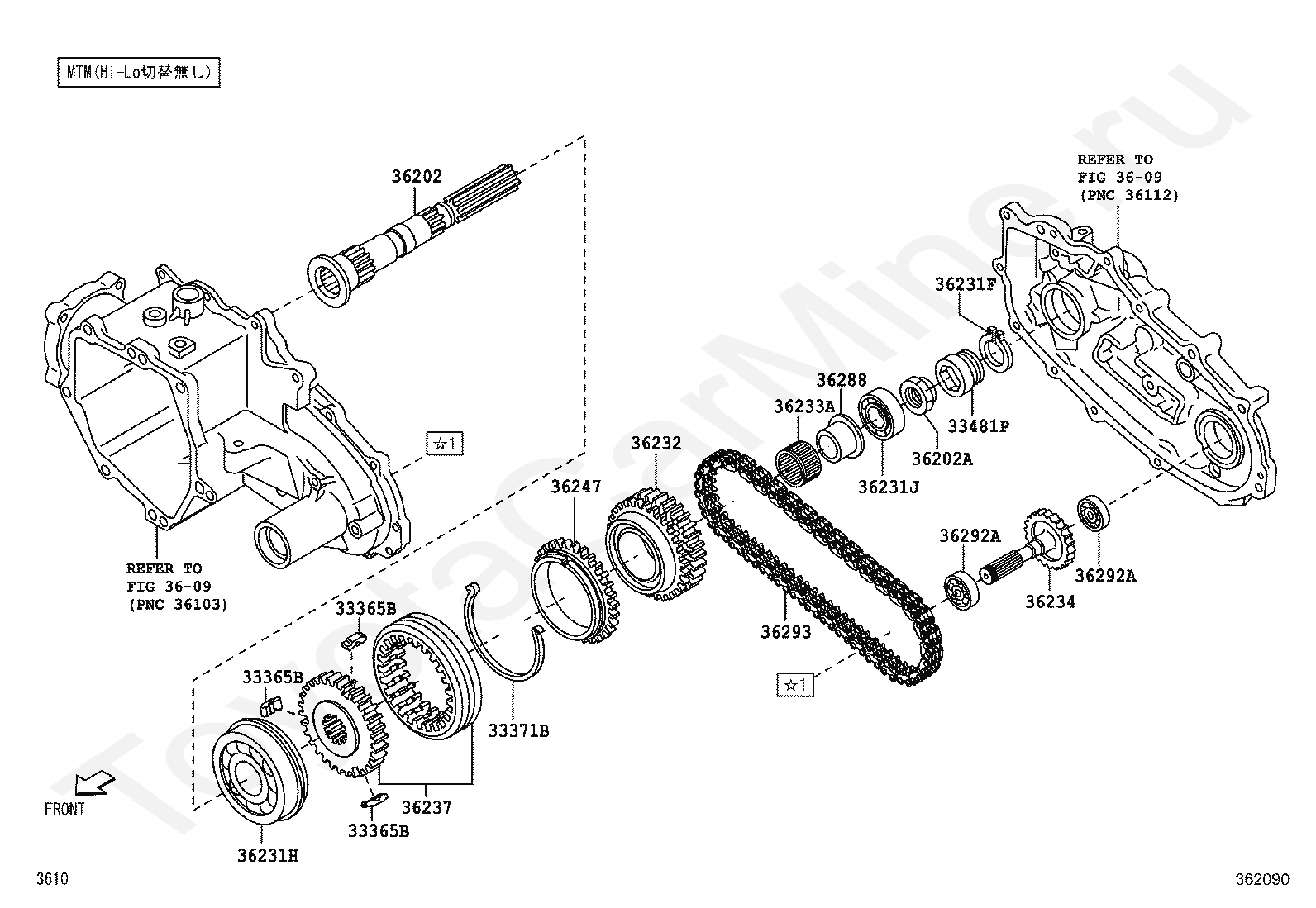

TRANSFER GEAR TOYOTA PIXIS TRUCK, 2020/09 - 2025, 0,66 литра, TRUCK (EXCLUDING DUMP TRUCK), EXTRA INTERIOR, S510U, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

PIXIS TRUCK

Двигатель

0,66 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Класс

EXTRA INTERIOR

Фрейм

S510U

Трансмиссия

механика МКПП, 5 скоростей

Опции

STANDARD ROOF полный привод PS3 D94G

Код

Описание

33365B

KEY, SYNCHROMESH SHIFTING, NO.1

33371B

SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

3609

переход к группе запчастей

36202

SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR

36202A

NUT(FOR TRANSFER OUTPUT REAR SHAFT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36231H

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

36231J

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

36232

GEAR, TRANSFER FRONT DRIVE

36233A

BEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)

36234

SHAFT, TRANSFER OUTPUT, FRONT

36237

HUB, TRANSFER CLUTCH

36247

RING, TRANSFER SYNCHRONIZER

36288

RACE, TRANSFER THRUST BEARING, NO.1

36292A

BEARING (FOR TRANSFER DRIVEN SPROCKET)

36293

CHAIN, TRANSFER FRONT DRIVE

Код

Описание

33365B

KEY, SYNCHROMESH SHIFTING, NO.1

33368C

RING, SYNCHRONIZER, NO.2 (FOR TRANSFER)

33368D

RING, SYNCHRONIZER, NO.2

33371B

SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)

33371E

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

3609

переход к группе запчастей

36202

SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR

36202A

NUT(FOR TRANSFER OUTPUT REAR SHAFT)

36217

GEAR, TRANSFER LOW SPEED INPUT

36231D

WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
