Каталог
ЯпонияМодель
PIXIS TRUCKДвигатель
0,66 литраКузов
TRUCK (EXCLUDING DUMP TRUCK)Класс
EXTRA INTERIORФрейм
S510UТрансмиссия
механика МКПП, 5 скоростейОпции
STANDARD ROOF полный привод PS3 D94G

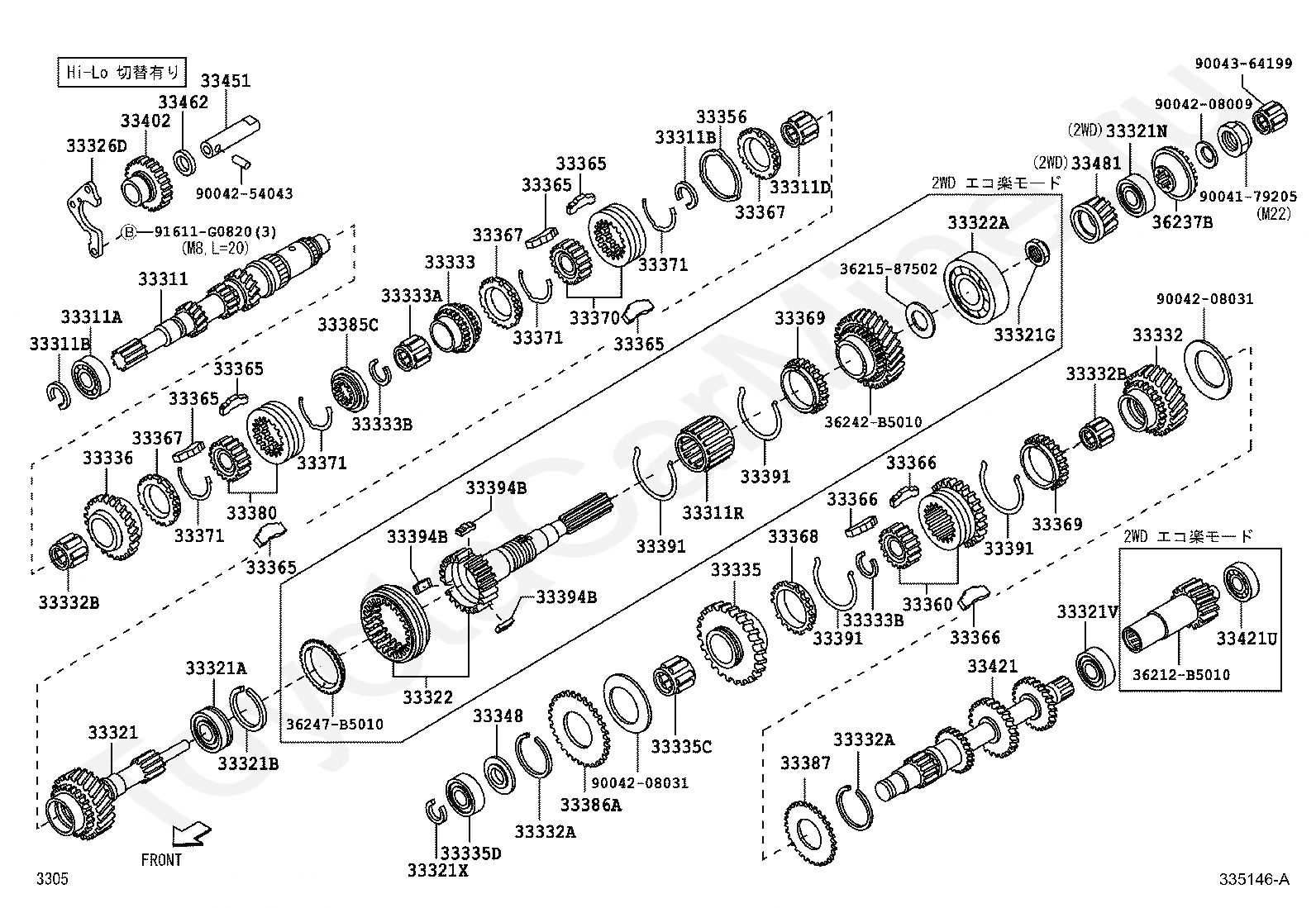

Код
Описание
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311D
BEARING, INPUT SHAFT
33321
SHAFT, OUTPUT
33321A
BEARING (FOR OUTPUT SHAFT REAR)
33321B
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321N
BEARING (FOR OUTPUT SHAFT FRONT)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33321X
RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33326D
PLATE, INPUT SHAFT BEARING LOCK
33332
GEAR, 2ND
33332A
RING, SHAFT SNAP (FOR 2ND GEAR)
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33333A
BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333B
RING, SHAFT SNAP (FOR 3RD REAR)
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33335D
BEARING(FOR 1ST GEAR)
33336
GEAR, 5TH
33348
WASHER, 1ST GEAR THRUST
33356
SPRING, WAVE
33360
HUB ASSY, SYNCHRONIZER, NO.1
33365
KEY, SYNCHROMESH SHIFTING, NO.1
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33367
RING, SYNCHRONIZER, NO.1
33368
RING, SYNCHRONIZER, NO.2
33369
RING, SYNCHRONIZER, NO.3
33370
HUB ASSY, SYNCHRONIZER, NO.2
33371
SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380
HUB ASSY, SYNCHRONIZER, NO.3
33385C
STOPPER, HUB SLEEVE
33386A
SUB-GEAR, 1ST
33387
SUB-GEAR, NO.2
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402
GEAR SUB-ASSY, REVERSE IDLER
33421
GEAR, COUNTER
33451
SHAFT, REVERSE IDLER GEAR
33462
WASHER, REVERSE IDLER THRUST
33481
GEAR, SPEEDOMETER DRIVE (MTM)
9004179244
Крепеж
9004208031
Крепеж
9004254043
Крепеж
91611G0820
Крепеж

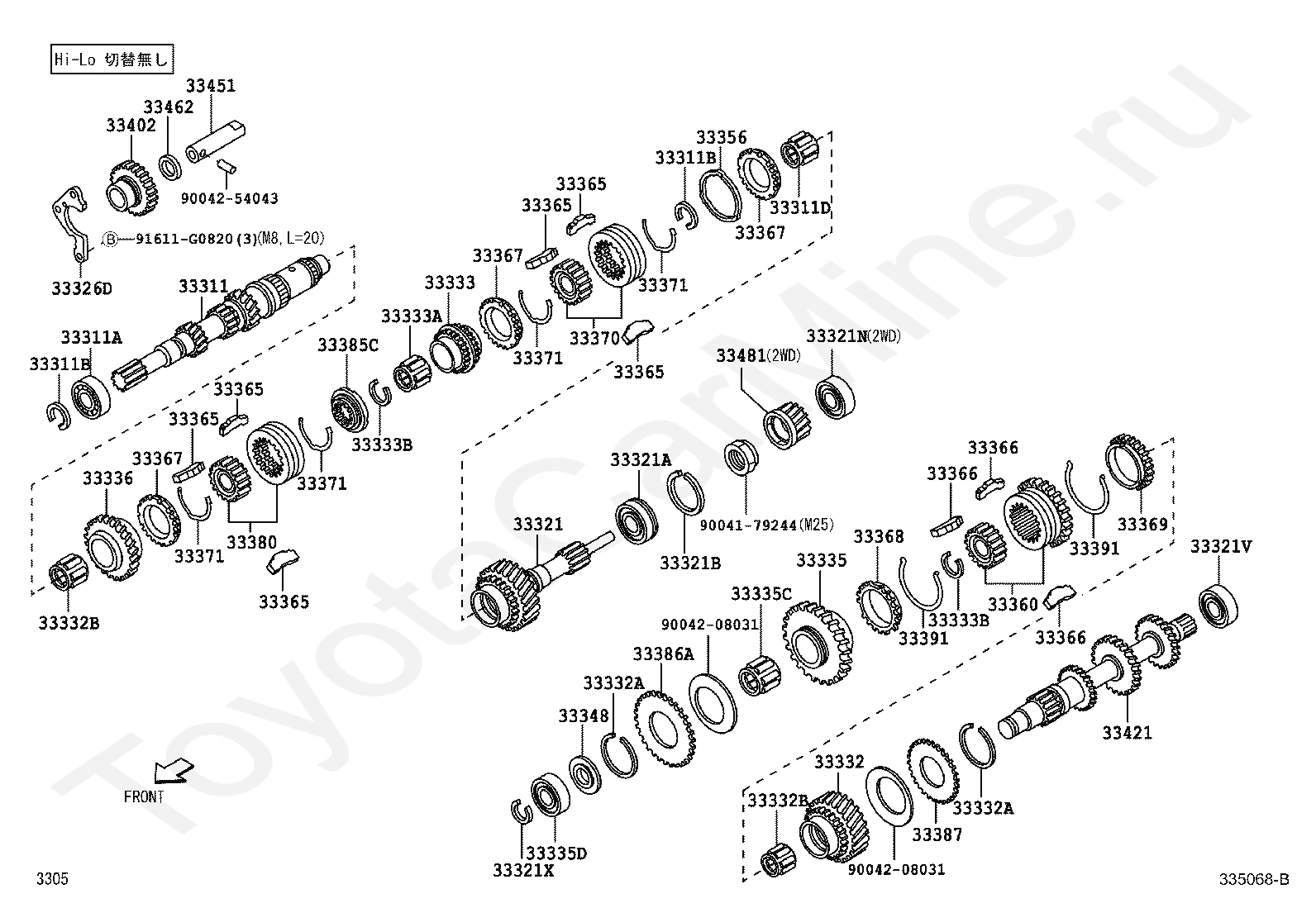

Код
Описание
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311D
BEARING, INPUT SHAFT
33311R
BEARING, NEEDLE ROLLER
33321
SHAFT, OUTPUT
33321A
BEARING (FOR OUTPUT SHAFT REAR)
33321B
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321G
NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321N
BEARING (FOR OUTPUT SHAFT FRONT)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33321X
RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33322
SHAFT, OUTPUT, NO.2
33322A
BEARING (FOR OUTPUT SHAFT NO.2 REAR)
33326D
PLATE, INPUT SHAFT BEARING LOCK
33332
GEAR, 2ND
33332A
RING, SHAFT SNAP (FOR 2ND GEAR)
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33333A
BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333B
RING, SHAFT SNAP (FOR 3RD REAR)
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33335D
BEARING(FOR 1ST GEAR)
33336
GEAR, 5TH
33348
WASHER, 1ST GEAR THRUST
33356
SPRING, WAVE
33360
HUB ASSY, SYNCHRONIZER, NO.1
33365
KEY, SYNCHROMESH SHIFTING, NO.1
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33367
RING, SYNCHRONIZER, NO.1
33368
RING, SYNCHRONIZER, NO.2
33369
RING, SYNCHRONIZER, NO.3
33370
HUB ASSY, SYNCHRONIZER, NO.2
33371
SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380
HUB ASSY, SYNCHRONIZER, NO.3
33385C
STOPPER, HUB SLEEVE
33386A
SUB-GEAR, 1ST
33387
SUB-GEAR, NO.2
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33394B
KEY, SYNCHROMESH SHIFTING, NO.3
33402
GEAR SUB-ASSY, REVERSE IDLER
33421
GEAR, COUNTER
33421U
BEARING(FOR COUNTER GEAR)
33451
SHAFT, REVERSE IDLER GEAR
33462
WASHER, REVERSE IDLER THRUST
33481
GEAR, SPEEDOMETER DRIVE (MTM)
36212B5010
Крепеж
3621587502
Крепеж
36237B
HUB, TRANSFER INPUT
36242B5010
Крепеж
36247B5010
Крепеж
9004179205
Крепеж
9004208009
Крепеж
9004208031
Крепеж
9004254043
Крепеж
9004364199
Крепеж
91611G0820
Крепеж
