Задние кресла TOYOTA PIXIS JOY, 2017/10 - 2025, 0,66 литра, FX, LA250A, вариатор

Каталог

Япония

Модель

PIXIS JOY

Двигатель

0,66 литра

Класс

Фрейм

LA250A

Трансмиссия

вариатор

Опции

двухколесный привод PS2 D01H

Код

Описание

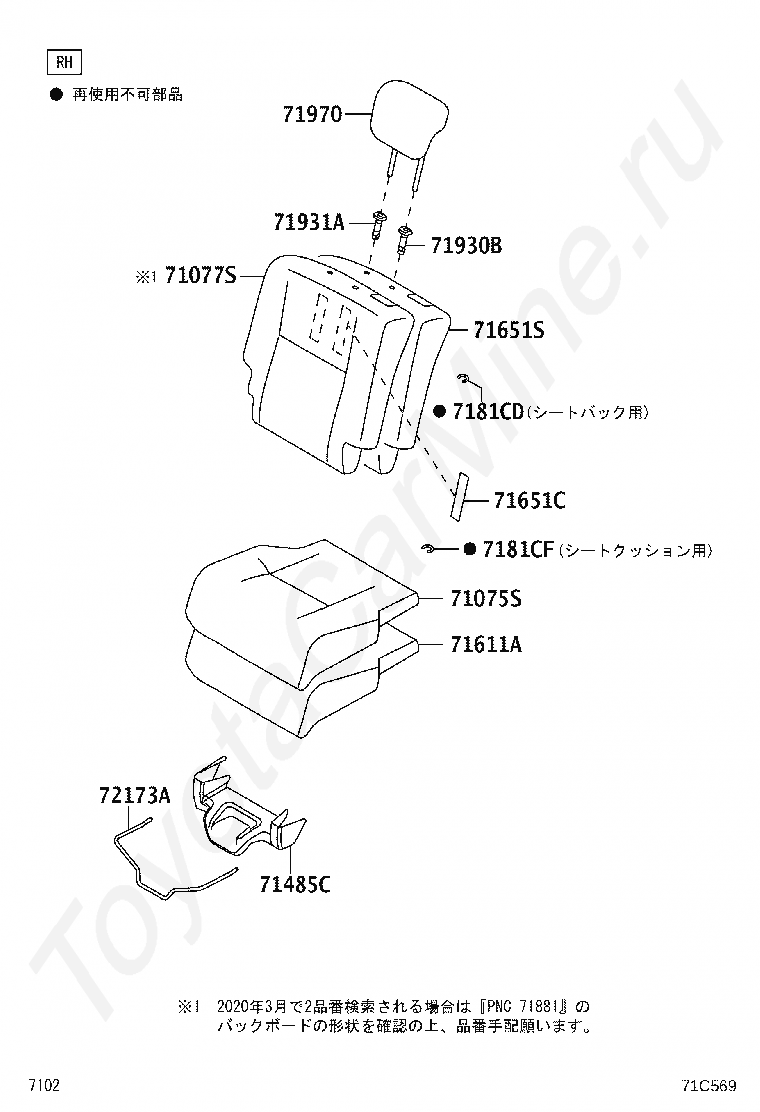

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71485C

COVER, REAR SEAT HINGE, RH

71611A

PAD, REAR SEAT CUSHION, RH

71651C

PAD, REAR SEAT BACK, A

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

7181CD

RING, HOG, SMALL (FOR REAR SEAT BACK)

7181CF

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72173A

HANDLE, REAR SEAT TRACK ADJUSTING, RH

Код

Описание

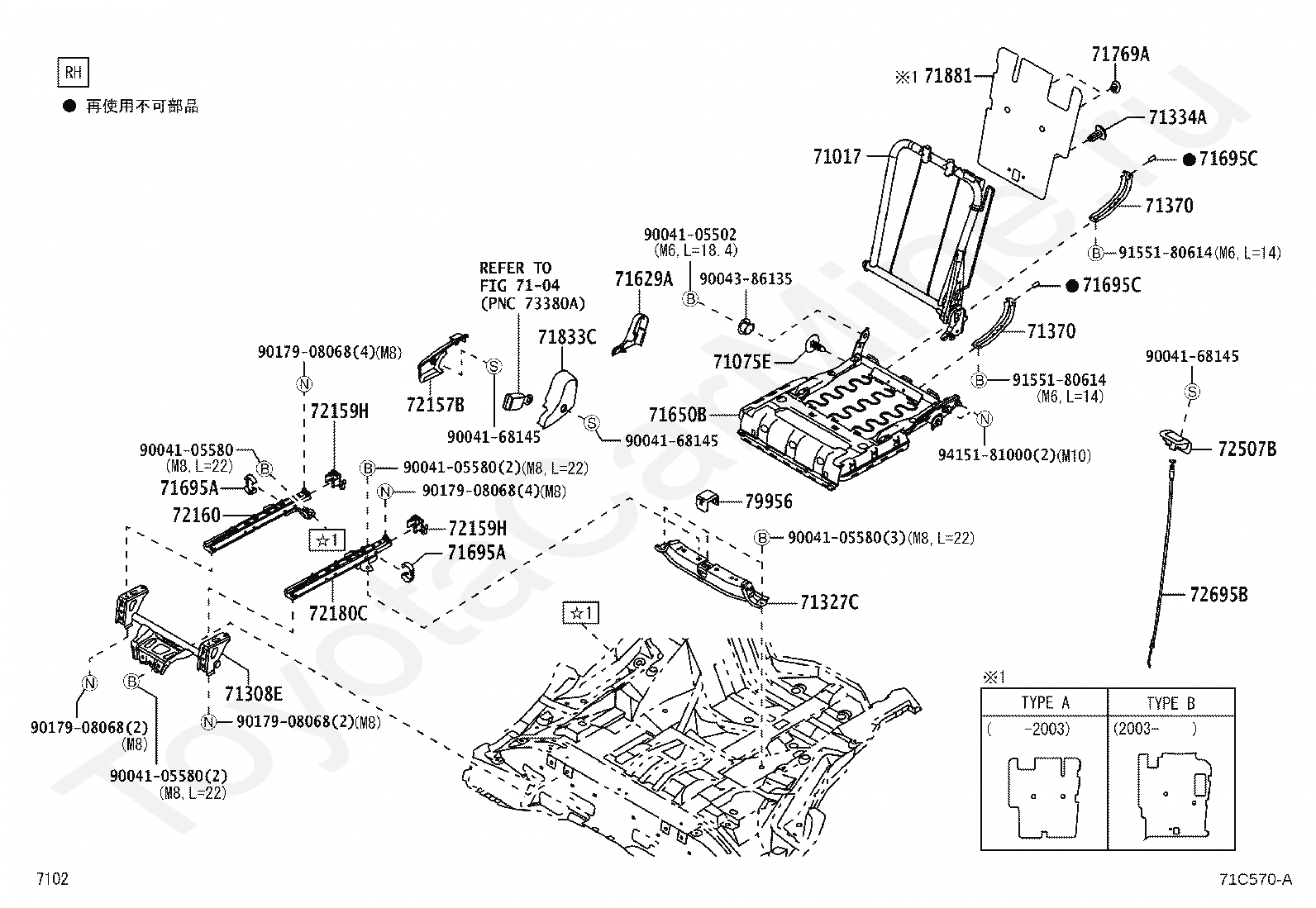

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71308E

LEG SUB-ASSY, REAR SEAT, RH

71327C

BRACKET, REAR SEAT CUSHION

71334A

STOPPER, REAR SEAT LEG

71370

BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71650B

SPRING ASSY, REAR SEAT CUSHION, RH

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695C

PROTECTOR, REAR SEAT, NO.1

71769A

CLIP, REAR SEAT BACK BOARD

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71881

BOARD, REAR SEAT BACK, RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72159H

COVER, REAR SEAT TRACK BRACKET

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

79956

COVER, REAR SEAT LEG BRACKET

9004105502

Крепеж

9004105580

Крепеж

9004168145

Крепеж

9004386135

Крепеж

9017908068

Крепеж

9155180614

Крепеж

9415181000

Крепеж

Код

Описание

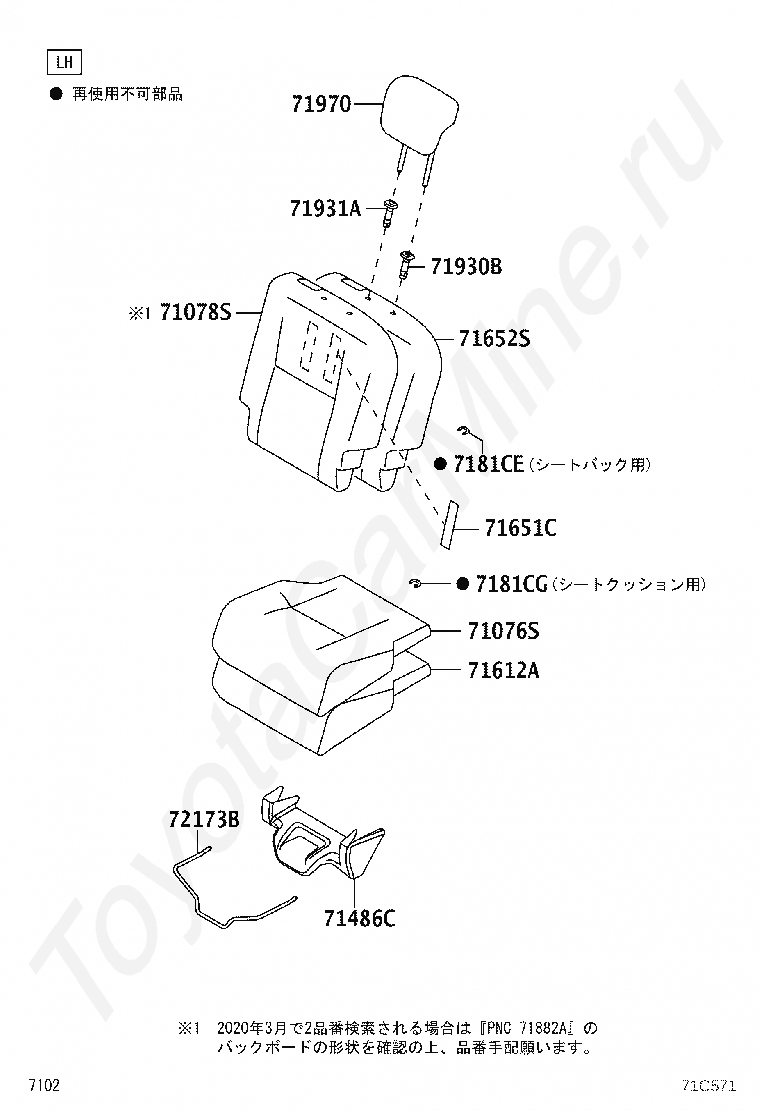

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71486C

COVER, REAR SEAT HINGE, LH

71612A

PAD, REAR SEAT CUSHION, LH

71651C

PAD, REAR SEAT BACK, A

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

7181CE

RING, HOG, SMALL (FOR REAR SEAT BACK)

7181CG

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72173B

HANDLE, REAR SEAT TRACK ADJUSTING, LH

Код

Описание

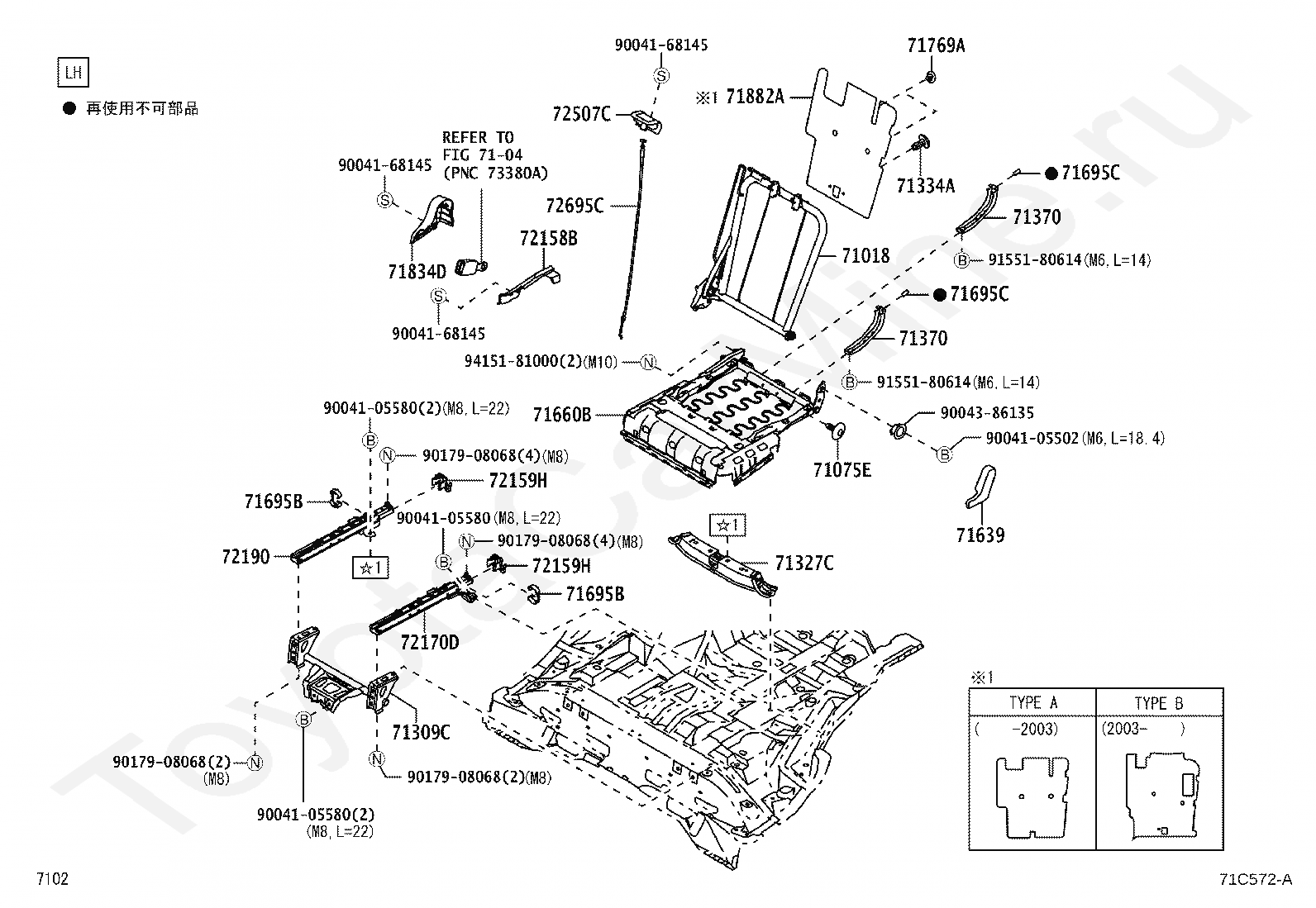

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71309C

LEG SUB-ASSY, REAR SEAT, REAR LH

71327C

BRACKET, REAR SEAT CUSHION

71334A

STOPPER, REAR SEAT LEG

71370

BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER

71639

COVER, REAR SEAT CUSHION HINGE, LH

71660B

SPRING ASSY, REAR SEAT CUSHION, LH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71695C

PROTECTOR, REAR SEAT, NO.1

71769A

CLIP, REAR SEAT BACK BOARD

71834D

COVER, REAR SEAT RECLINING, LH

71882A

BOARD, REAR SEAT BACK, LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72159H

COVER, REAR SEAT TRACK BRACKET

72170D

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

9004105502

Крепеж

9004105580

Крепеж

9004168145

Крепеж

9004386135

Крепеж

9017908068

Крепеж

9155180614

Крепеж

9415181000

Крепеж

Задние кресла TOYOTA PIXIS JOY, 2017/10 - 2025, 0,66 литра, FX, LA250A, вариатор
