Задние кресла TOYOTA PICNIC, 1996/09 - 2001/05, 2 литра, 16 клапанов, DOHC, EFI, SXM10, механика

Каталог

Европа

Модель

PICNIC

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Фрейм

SXM10

Трансмиссия

механика

Опции

левый руль 6-местный

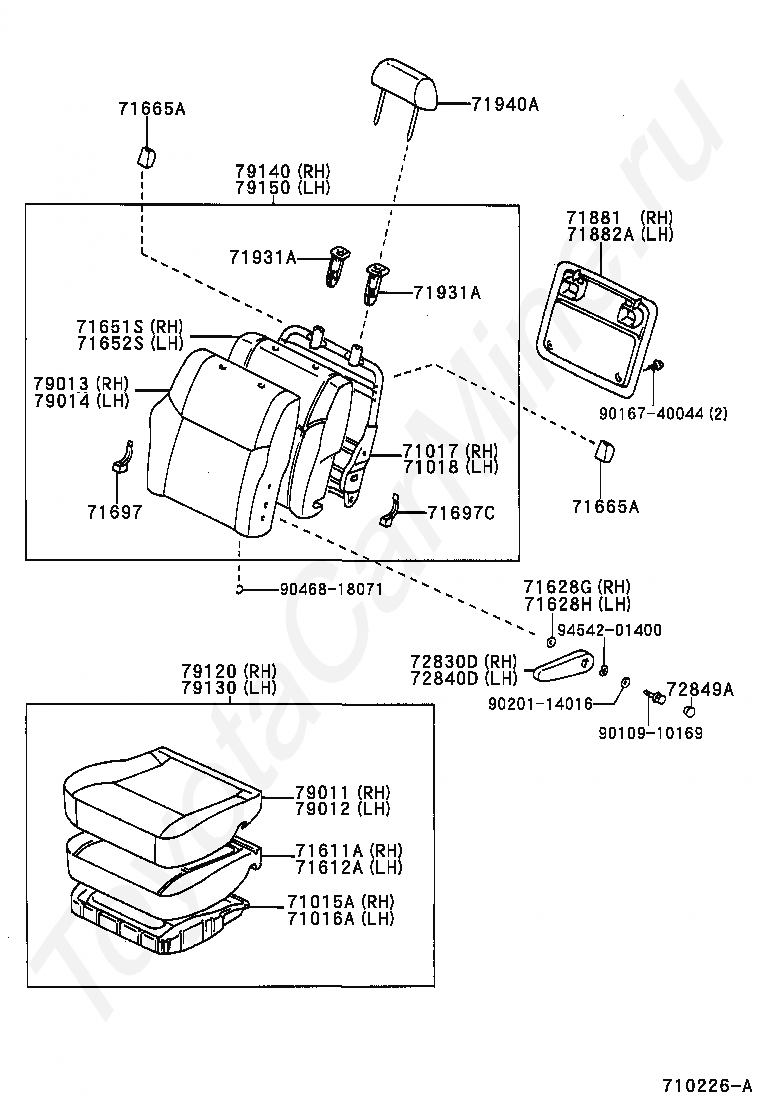

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71628G

SPACER, REAR SEAT CUSHION, RH

71628H

SPACER, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71665A

PAD, REAR SEAT BACK, SIDE A

71697

PROTECTOR, REAR SEAT BACK EDGE

71697C

PROTECTOR, REAR SEAT BACK EDGE LH

71881

BOARD, REAR SEAT BACK, RH

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72830D

ARMREST ASSY, REAR SEAT, RH

72840D

ARMREST ASSY, REAR SEAT, LH

72849A

CAP, SEAT ARMREST, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

9010910169

Крепеж

9016740044

Крепеж

9020114016

Крепеж

9046818071

Крепеж

9454201400

Крепеж

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71628G

SPACER, REAR SEAT CUSHION, RH

71628H

SPACER, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71665A

PAD, REAR SEAT BACK, SIDE A

71697

PROTECTOR, REAR SEAT BACK EDGE

71697C

PROTECTOR, REAR SEAT BACK EDGE LH

71881

BOARD, REAR SEAT BACK, RH

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72830D

ARMREST ASSY, REAR SEAT, RH

72840D

ARMREST ASSY, REAR SEAT, LH

72849A

CAP, SEAT ARMREST, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

9010910169

Крепеж

9016740044

Крепеж

9020114016

Крепеж

9046818071

Крепеж

9454201400

Крепеж

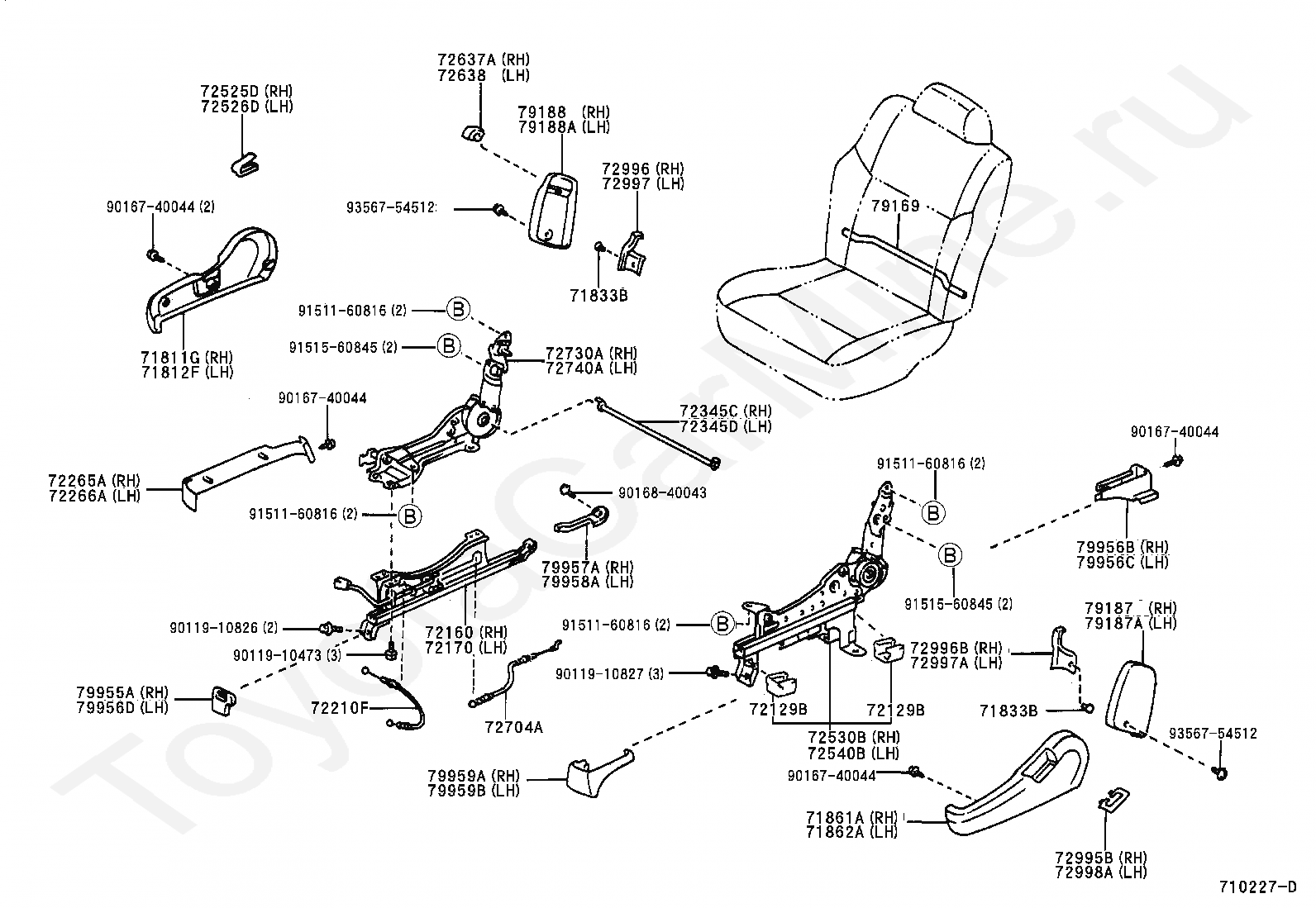

Код

Описание

71811G

SHIELD, REAR SEAT CUSHION, RH

71812F

SHIELD, REAR SEAT CUSHION, LH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71861A

SHIELD, REAR SEAT CUSHION, INNER RH

71862A

SHIELD, REAR SEAT CUSHION, INNER LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72345C

PIPE,RECLINING CONNECTING, RH

72345D

PIPE, RECLINING CONNECTING, LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

72530B

ADJUSTER ASSY, RECLINING SEAT, INNER RH

72540B

ADJUSTER ASSY, RECLINING SEAT, INNER LH

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72704A

CABLE, REAR SEAT RECLINING CONTROL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72995B

COVER, NO.1 SEAT CUSHION, RH

72996

COVER, REAR SEAT BACK, RH

72996B

COVER, REAR SEAT BACK, INNER RH

72997

COVER, REAR SEAT BACK, LH

72997A

COVER, REAR SEAT BACK, INNER LH

72998A

COVER, NO.1 SEAT CUSHION, LH

79169

ROD, REAR SEAT HINGE CONNECTOR

79187

COVER, NO.1 SEAT INNER BRACKET

79187A

COVER, NO.1 SEAT INNER BRACKET, LH

79188

COVER, NO.1 SEAT OUTER BRACKET

79188A

COVER, NO.1 SEAT OUTER BRACKET, LH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956D

COVER, REAR SEAT FRONT BRACKET, LH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958A

COVER, REAR SEAT REAR BRACKET, LH

79959A

COVER, REAR SEAT LEG, RH

79959B

COVER, REAR SEAT LEG, LH

9011910473

Крепеж

9011910826

Крепеж

9011910827

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9151160816

Крепеж

9151560845

Крепеж

9356754512

Крепеж

Код

Описание

71811G

SHIELD, REAR SEAT CUSHION, RH

71812F

SHIELD, REAR SEAT CUSHION, LH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71861A

SHIELD, REAR SEAT CUSHION, INNER RH

71862A

SHIELD, REAR SEAT CUSHION, INNER LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72345C

PIPE,RECLINING CONNECTING, RH

72345D

PIPE, RECLINING CONNECTING, LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

72530B

ADJUSTER ASSY, RECLINING SEAT, INNER RH

72540B

ADJUSTER ASSY, RECLINING SEAT, INNER LH

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72704A

CABLE, REAR SEAT RECLINING CONTROL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72995B

COVER, NO.1 SEAT CUSHION, RH

72996

COVER, REAR SEAT BACK, RH

72996B

COVER, REAR SEAT BACK, INNER RH

72997

COVER, REAR SEAT BACK, LH

72997A

COVER, REAR SEAT BACK, INNER LH

72998A

COVER, NO.1 SEAT CUSHION, LH

79169

ROD, REAR SEAT HINGE CONNECTOR

79187

COVER, NO.1 SEAT INNER BRACKET

79187A

COVER, NO.1 SEAT INNER BRACKET, LH

79188

COVER, NO.1 SEAT OUTER BRACKET

79188A

COVER, NO.1 SEAT OUTER BRACKET, LH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956D

COVER, REAR SEAT FRONT BRACKET, LH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958A

COVER, REAR SEAT REAR BRACKET, LH

79959A

COVER, REAR SEAT LEG, RH

79959B

COVER, REAR SEAT LEG, LH

9011910473

Крепеж

9011910826

Крепеж

9011910827

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9151160816

Крепеж

9151560845

Крепеж

9356754512

Крепеж

Код

Описание

71324G

CUSHION, REAR NO.2 SEAT

71453A

KNOB, REAR SEAT HINGE

71665C

PAD, REAR NO.2 SEAT BACK, SIDE

71931A

SUPPORT, REAR SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72658D

KNOB, REAR SEAT LOCK HANDLE

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79220A

CUSHION ASSY, NO.2 SEAT

79230

CUSHION ASSY, NO.2 SEAT, LH

79235D

PAD, NO.2 SEAT CUSHION, RH

79240

BACK ASSY, NO.2 SEAT, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79250

BACK ASSY, NO.2 SEAT, LH

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

9016740044

Крепеж

9016840124

Крепеж

9046818071

Крепеж

Код

Описание

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72345E

PIPE, RECLINING CONNECTING

72613D

STRIKER, REAR SEAT LOCK, FRONT OUTER

72613E

STRIKER, REAR SEAT LOCK, FRONT INNER

72613F

STRIKER, REAR SEAT LOCK, REAR OUTER

72613G

STRIKER, REAR SEAT LOCK, REAR INNER

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

9014940012

Крепеж

9016840124

Крепеж

9090119019

Крепеж

9151281018

Крепеж

9151581020

Крепеж

9161160612

Крепеж

Задние кресла TOYOTA PICNIC, 1996/09 - 2001/05, 2 литра, 16 клапанов, DOHC, EFI, SXM10, механика
