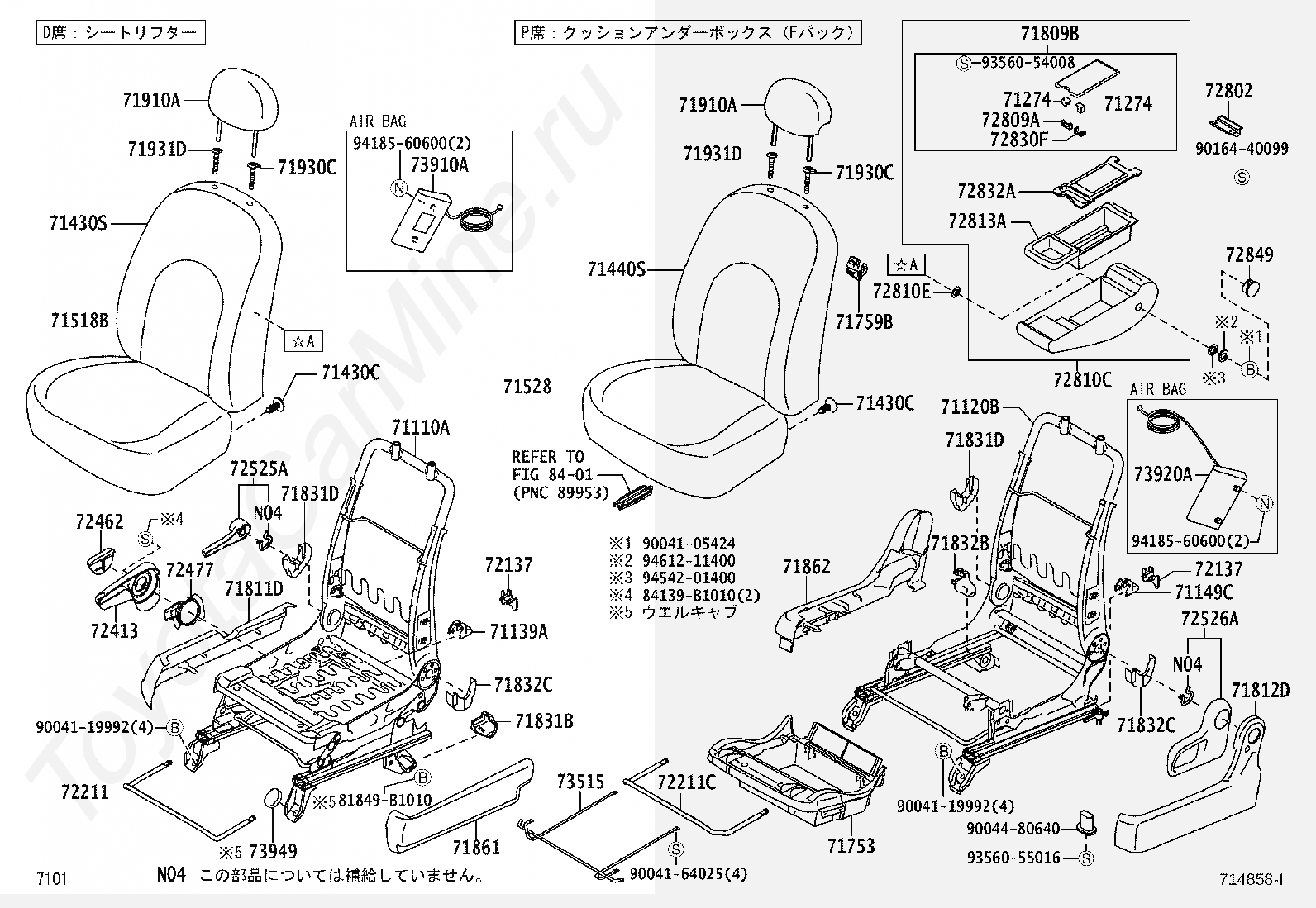

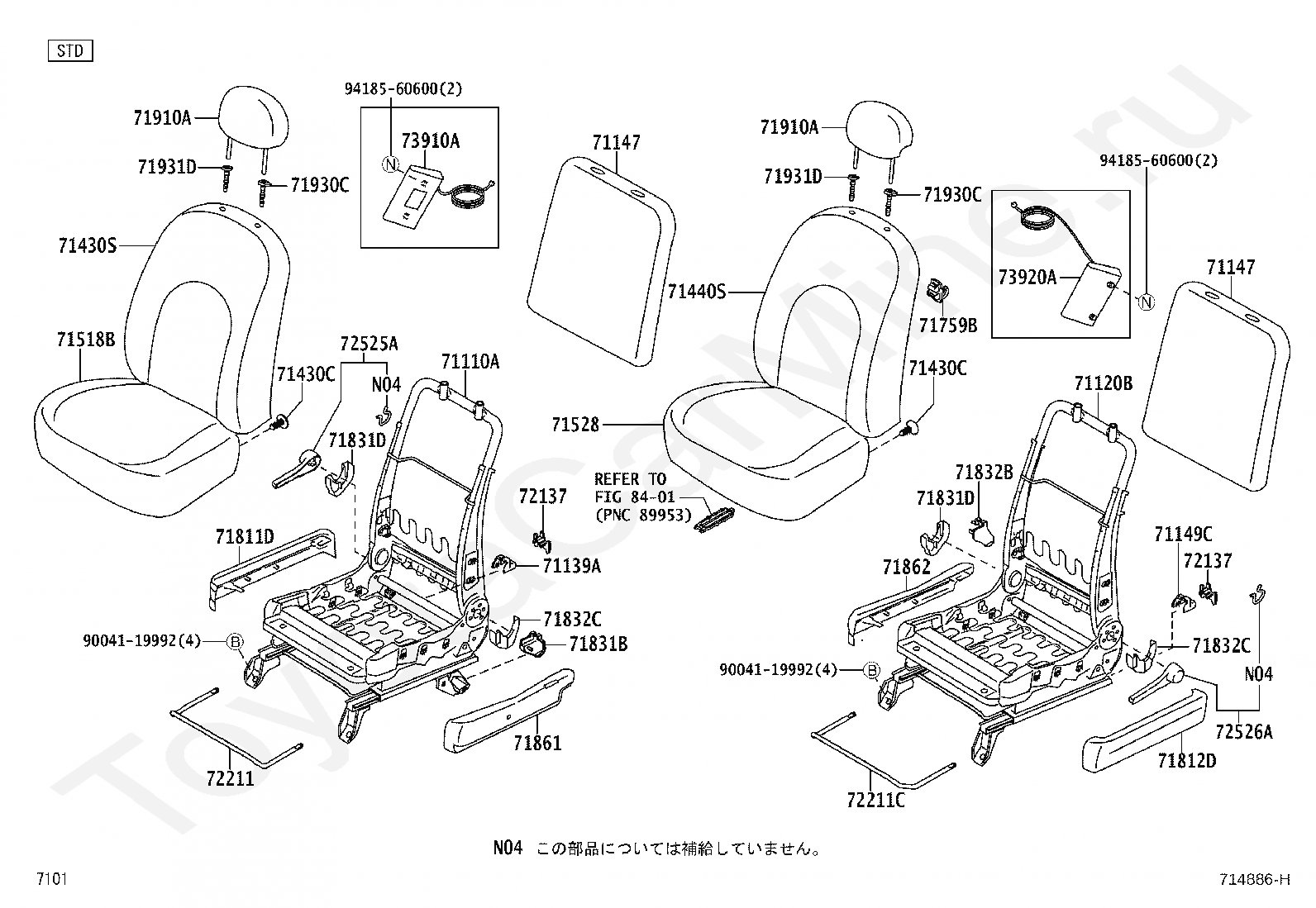

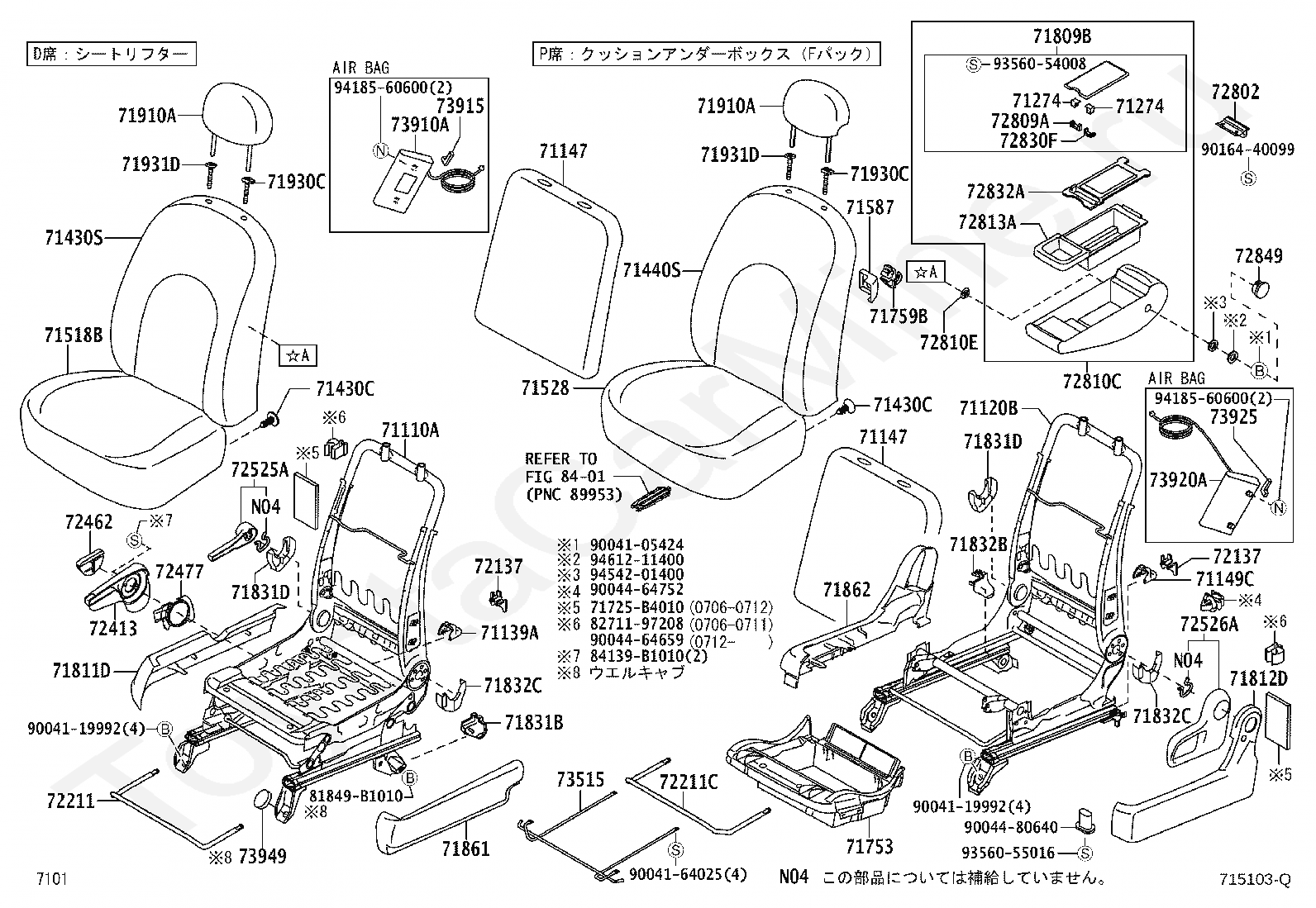

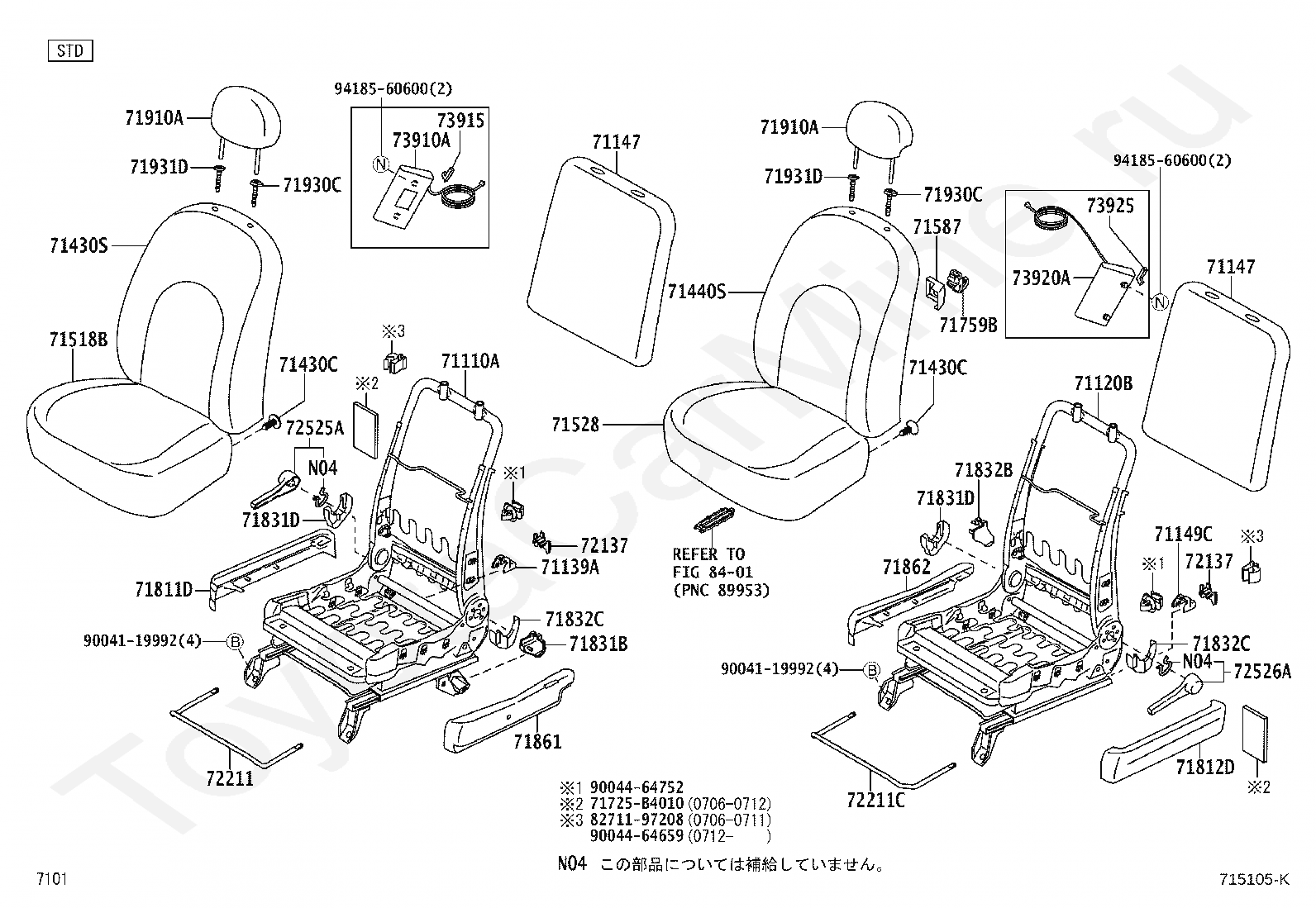

Передние кресла TOYOTA PASSO, 2006/12 - 2010/02, 1 литр, 12 клапанов DOHC, EFI, RACY TYPE, KGC15, автомат, АКПП, 4 ступени, на руле

Каталог

Япония

Модель

PASSO

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

RACY TYPE

Фрейм

KGC15

Трансмиссия

автомат АКПП, 4 ступени, на руле

Опции

D36G

Код

Описание

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71430C

CLIP

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831B

COVER, FRONT SEAT HINGE, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71832C

COVER, FRONT LH SEAT HINGE

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930C

SUPPORT, FRONT SEAT HEADREST, LH

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72211C

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73910A

AIR BAG ASSY, FRONT SEAT, RH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8401

переход к группе запчастей

9004119992

Крепеж

9418560600

Крепеж

Код

Описание

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71430C

CLIP

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71725B4010

Крепеж

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831B

COVER, FRONT SEAT HINGE, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71832C

COVER, FRONT LH SEAT HINGE

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930C

SUPPORT, FRONT SEAT HEADREST, LH

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72211C

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73910A

AIR BAG ASSY, FRONT SEAT, RH

73915

COVER, SEAT AIR BAG NO.1, RH

73920A

AIR BAG ASSY, FRONT SEAT, LH

73925

COVER, SEAT AIR BAG NO.1, LH

8271197208

Крепеж

8401

переход к группе запчастей

9004119992

Крепеж

9004464659

Крепеж

9004464752

Крепеж

9418560600

Крепеж

Код

Описание

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71139A

COVER, FRONT SEAT LEG, NO.1

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71274

KNOB, FRONT SEAT HINGE

71430C

CLIP

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71809B

COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831B

COVER, FRONT SEAT HINGE, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71832C

COVER, FRONT LH SEAT HINGE

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930C

SUPPORT, FRONT SEAT HEADREST, LH

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72211C

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72802

HINGE SUB-ASSY, ARMREST CONSOLE

72809A

LOCK SUB-ASSY, CENTER ARMREST

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72810E

BUSH, FRONT SEAT ARMREST, NO.1

72813A

BOX, FRONT SEAT CENTER ARMREST

72830F

LOCK SUB-ASSY, FRONT SEAT ARMREST

72832A

PLATE, NO.1 SEAT ARMREST

72849

CAP, SEAT ARMREST, NO.2

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

73920A

AIR BAG ASSY, FRONT SEAT, LH

73949

CAP

81849B1010

Крепеж

8401

переход к группе запчастей

84139B1010

Крепеж

9004105424

Крепеж

9004119992

Крепеж

9004164025

Крепеж

9004480640

Крепеж

9016440099

Крепеж

9356054008

Крепеж

9356055016

Крепеж

9418560600

Крепеж

9454201400

Крепеж

9461211400

Крепеж

Код

Описание

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71274

KNOB, FRONT SEAT HINGE

71430C

CLIP

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71725B4010

Крепеж

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71809B

COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831B

COVER, FRONT SEAT HINGE, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71832C

COVER, FRONT LH SEAT HINGE

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930C

SUPPORT, FRONT SEAT HEADREST, LH

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72211C

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72802

HINGE SUB-ASSY, ARMREST CONSOLE

72809A

LOCK SUB-ASSY, CENTER ARMREST

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72810E

BUSH, FRONT SEAT ARMREST, NO.1

72813A

BOX, FRONT SEAT CENTER ARMREST

72830F

LOCK SUB-ASSY, FRONT SEAT ARMREST

72832A

PLATE, NO.1 SEAT ARMREST

72849

CAP, SEAT ARMREST, NO.2

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

73915

COVER, SEAT AIR BAG NO.1, RH

73920A

AIR BAG ASSY, FRONT SEAT, LH

73925

COVER, SEAT AIR BAG NO.1, LH

73949

CAP

81849B1010

Крепеж

8271197208

Крепеж

8401

переход к группе запчастей

84139B1010

Крепеж

9004105424

Крепеж

9004119992

Крепеж

9004164025

Крепеж

9004464659

Крепеж

9004464752

Крепеж

9004480640

Крепеж

9016440099

Крепеж

9356054008

Крепеж

9356055016

Крепеж

9418560600

Крепеж

9454201400

Крепеж

9461211400

Крепеж

Передние кресла TOYOTA PASSO, 2006/12 - 2010/02, 1 литр, 12 клапанов DOHC, EFI, RACY TYPE, KGC15, автомат, АКПП, 4 ступени, на руле
