Каталог
ЯпонияМодель
NOAH/VOXY/ESQUIREДвигатель
2 литра, 16 клапанов, DOHC, EFIКласс
ZS TYPEФрейм
ZRR80Трансмиссия
вариаторОпции
VOXY 8-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) CHASSIS WITH FLAT FACE 575W

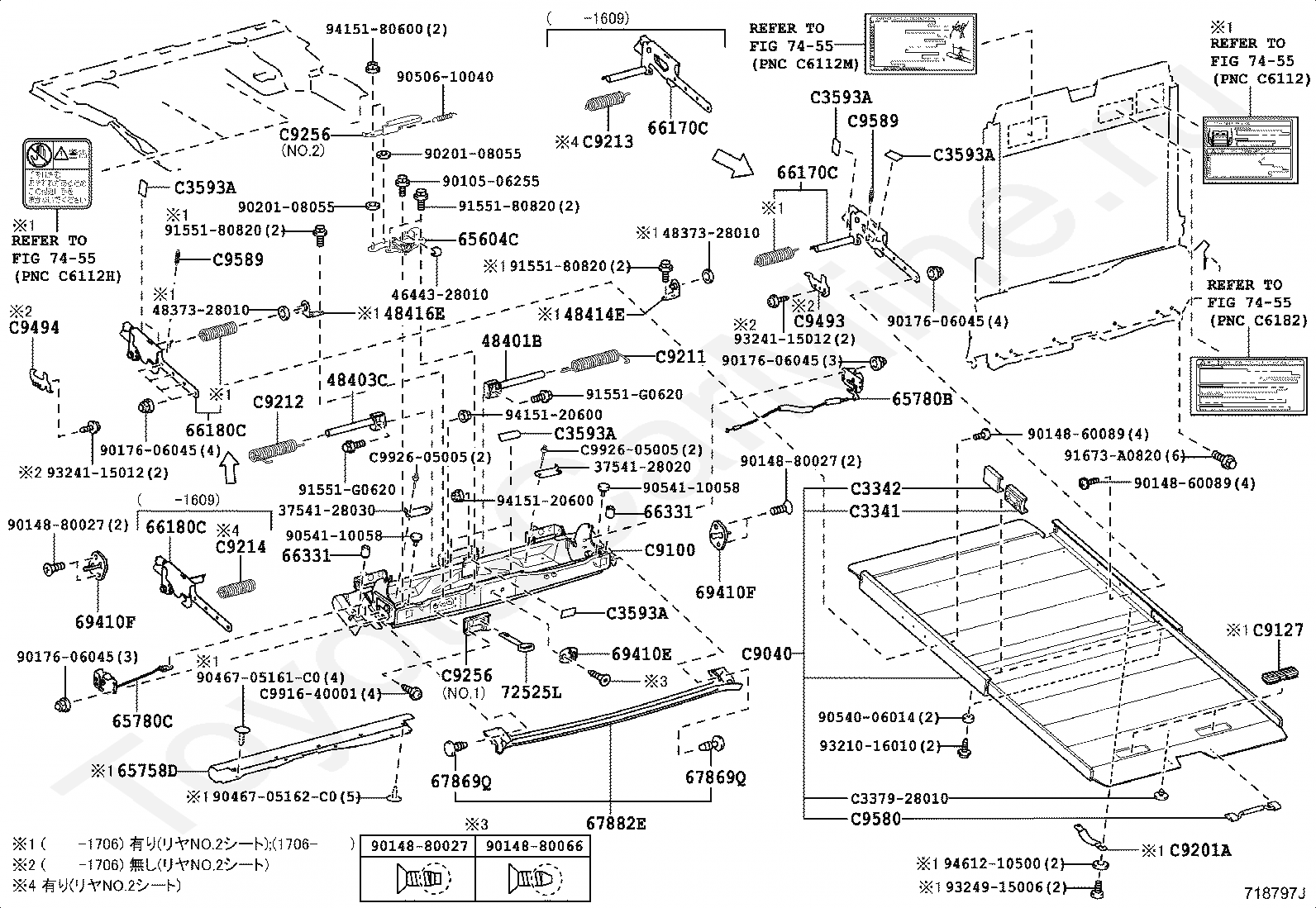

Код
Описание
3754128020
Крепеж
3754128030
Крепеж
4644328010
Крепеж
4837328010
Крепеж
48401B
BRACKET SUB-ASSY, SPRING, RH
48403C
BRACKET SUB-ASSY, SPRING, LH
48414E
BRACKET, SPRING, NO.3
48416E
BRACKET, SPRING, NO.4
65604C
LINK SUB-ASSY, TAIL GATE LOCK CONNECTING
65758D
COVER, TAIL GATE, INNER
65780B
LOCK ASSY, TAIL GATE, RH
65780C
LOCK ASSY, TAIL GATE, LH
66170C
LATCH ASSY, TAIL GATE, RH
66180C
LATCH ASSY, TAIL GATE, LH
66331
CUSHION, GATE
67869Q
CLIP
67882E
WEATHERSTRIP, TAIL GATE
69410E
PLATE ASSY, DOOR LOCK STRIKER
69410F
PLATE ASSY, LOCK STRIKER
72525L
HANDLE, RECLINING ADJUSTER RELEASE, RH
7455
переход к группе запчастей
9010506255
Крепеж
9014860089
Крепеж
9014880027
Крепеж
9014880066
Крепеж
9017606045
Крепеж
9020108055
Крепеж
9046705161C0
Крепеж
9046705162C0
Крепеж
9050610040
Крепеж
9054006014
Крепеж
9054110058
Крепеж
9155180820
Крепеж
91551G0620
Крепеж
91673A0820
Крепеж
9321016010
Крепеж
9324115012
Крепеж
9324915006
Крепеж
9415120600
Крепеж
9415180600
Крепеж
9461210500
Крепеж
C3341
SUPPORT, SLIDE FLOOR PANEL, NO.1
C3342
SUPPORT, SLIDE FLOOR PANEL, NO.2
C337928010
Крепеж
C3593A
SILENCER, REAR FLOOR, NO.3
C9040
SLOPE ASSY, REAR GATE
C9100
GATE ASSY, TAIL
C9127
COVER, TAIL GATE TOP RAIL
C9201A
HANDLE SUB-ASSY, TAIL GATE
C9211
SPRING, TAIL GATE NO.1
C9212
SPRING, TAIL GATE NO.2
C9213
SPRING, TAIL GATE NO.3
C9214
SPRING, TAIL GATE NO.4
C9256
COVER, TAIL GATE LOCK
C9493
STOPPER, REAR SLOPE, RH
C9494
STOPPER, REAR SLOPE, LH
C9580
HANDLE ASSY, PLATFORM LOCK
C9589
SPRING, PLATFORM LOCK HANDLE
C991640001
Крепеж
C992605005
Крепеж

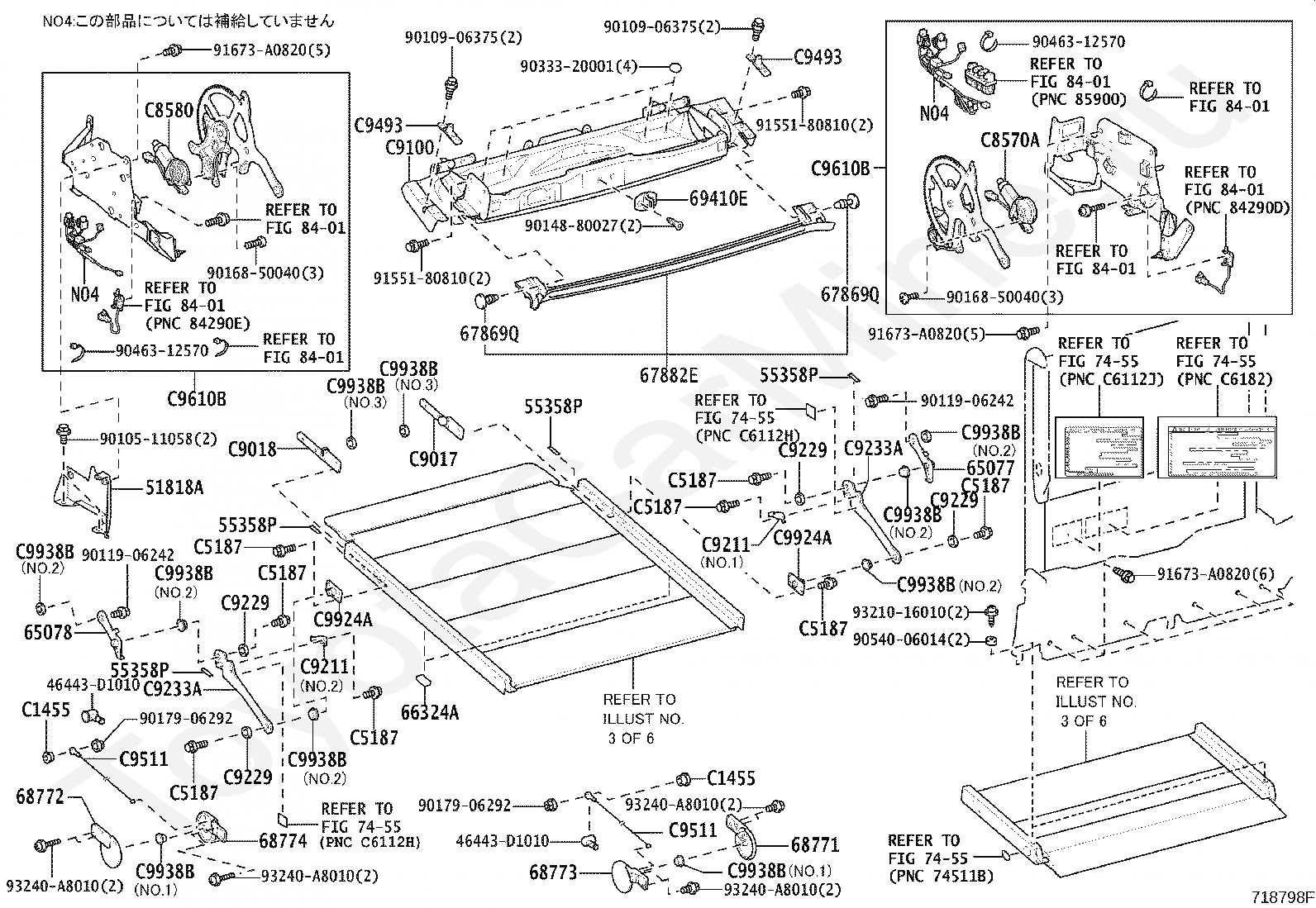

Код
Описание
46443D1010
Крепеж
51818A
BRACKET, MOTOR SUPPORT, LH
55358P
PROTECTOR, EDGE
65077
LINK SUB-ASSY, TAIL GATE LOCK, REAR RH
65078
LINK SUB-ASSY, TAIL GATE LOCK, REAR LH
66324A
CUSHION, TAIL GATE SIDE
67869Q
CLIP
67882E
WEATHERSTRIP, TAIL GATE
68771
HINGE, REAR DOOR LOWER MALE, RH
68772
HINGE, REAR DOOR LOWER MALE, LH
68773
HINGE, REAR DOOR LOWER FEMALE, RH
68774
HINGE, REAR DOOR LOWER FEMALE, LH
69410E
PLATE ASSY, DOOR LOCK STRIKER
7455
переход к группе запчастей
8401
переход к группе запчастей
9010511058
Крепеж
9010906375
Крепеж
9011906242
Крепеж
9014880027
Крепеж
9016850040
Крепеж
9017906292
Крепеж
9033320001
Крепеж
9046312570
Крепеж
9054006014
Крепеж
9155180810
Крепеж
91673A0820
Крепеж
9321016010
Крепеж
93240A8010
Крепеж
C1455
BUSH
C5187
BOLT, GATE RAIL LOCK
C8570A
MOTOR, POWER LIFT, RH
C8580
MOTOR, POWER LIFT, LH
C9017
RETAINER SUB-ASSY, POWER LIFT BASE, RH
C9018
RETAINER SUB-ASSY, POWER LIFT BASE, LH
C9100
GATE ASSY, TAIL
C9211
SPRING, TAIL GATE NO.1
C9229
SPACER, TAIL GATE LINK
C9233A
LINK, POWER LIFT ARM, NO.1
C9493
STOPPER, REAR SLOPE, RH
C9511
CABLE, SLOPE
C9610B
MOTOR ASSY, POWER LIFT
C9924A
PIN
C9938B
COLLAR

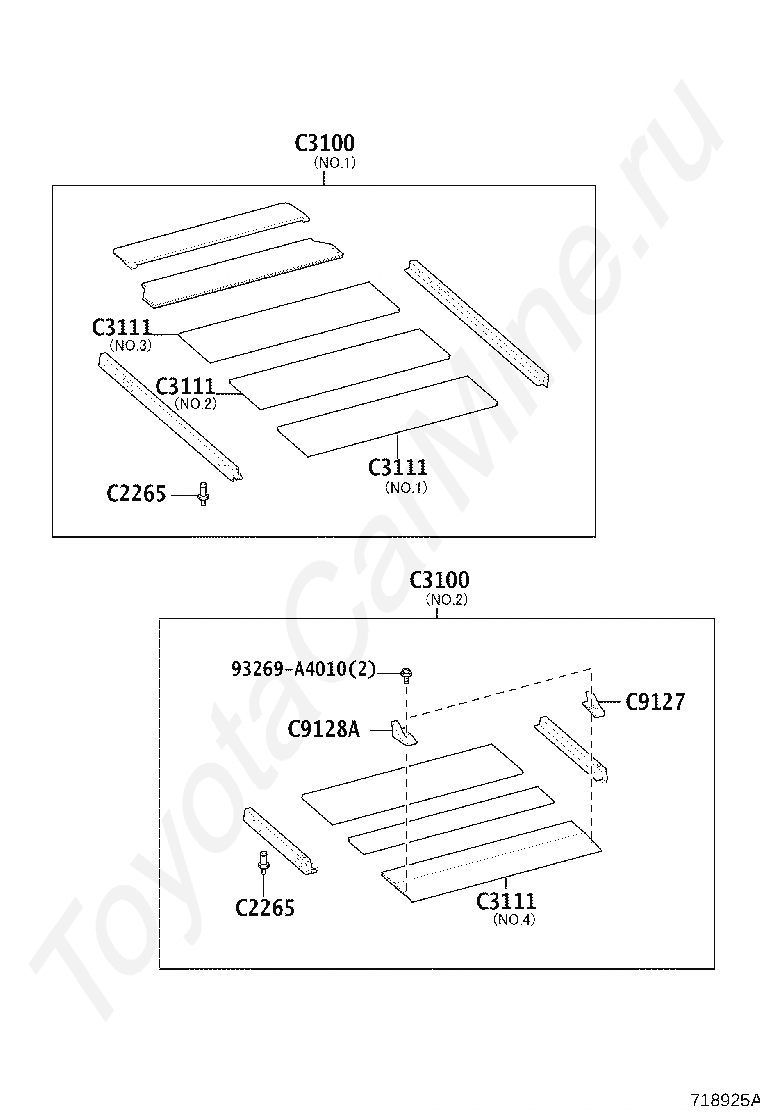

Код
Описание
93269A4010
Крепеж
C2265
LOCK, REAR STEP
C3100
FLOOR ASSY, TECS, REAR
C3111
PANEL, REAR FLOOR, NO.1
C9127
COVER, TAIL GATE TOP RAIL
C9128A
COVER, TAIL GATE TOP RAIL, NO.2

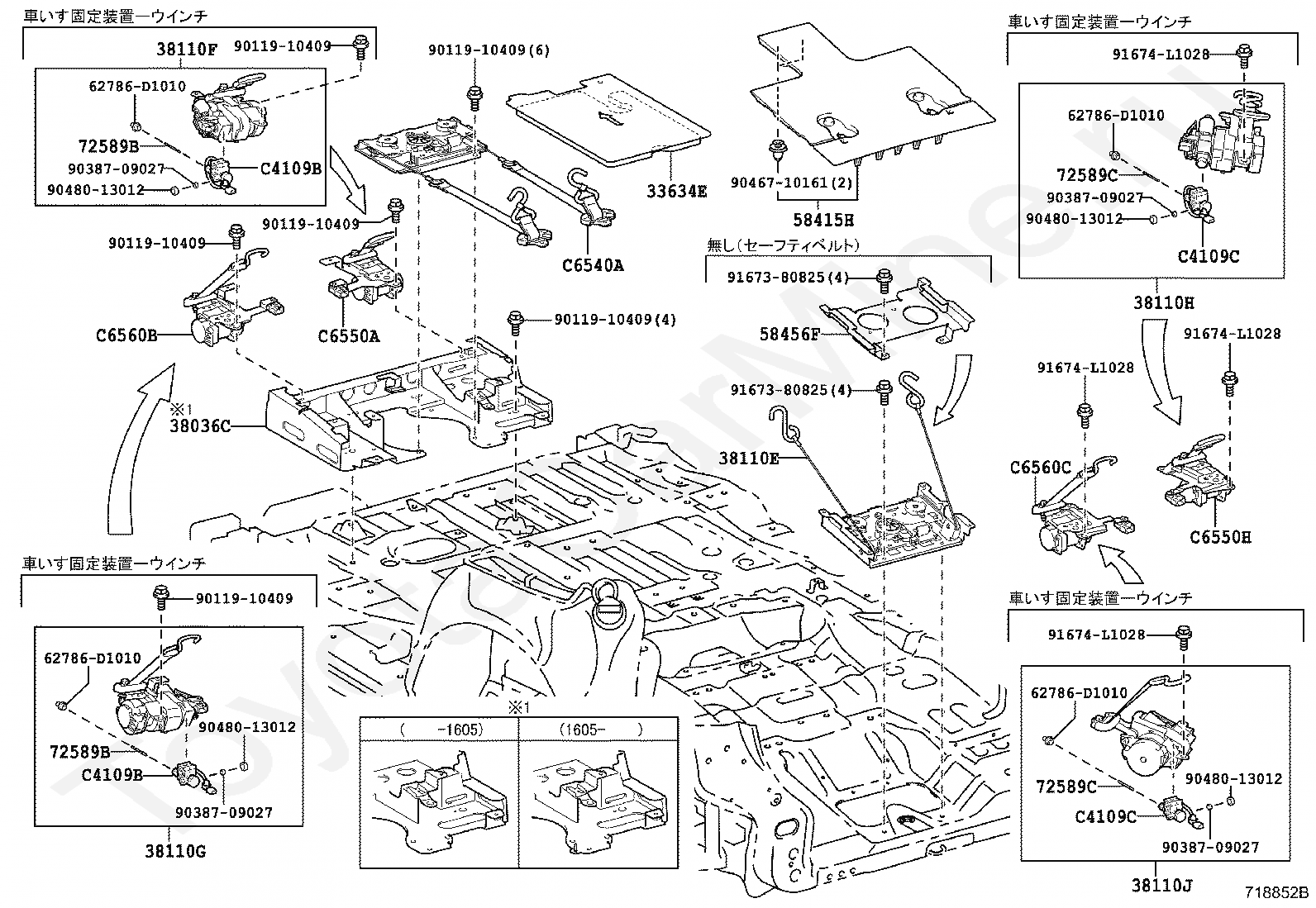

Код
Описание
33634E
PROTECTOR, WIRE
38036C
BRACKET SUB-ASSY, WINCH ROLLER
38110E
WINCH ASSY, W/BASE
38110F
WINCH ASSY NO.1
38110G
WINCH ASSY NO.2
38110H
WINCH ASSY NO.3
38110J
WINCH ASSY NO.4
58415H
BOARD, REAR FLOOR, NO.1
58456F
BRACKET, REAR FLOOR MAT SUPPORT
62786D1010
Крепеж
72589B
CABLE, RECLINING REMOTE CONTROL, NO.1
72589C
CABLE, RECLINING REMOTE CONTROL, NO.2
9011910409
Крепеж
9038709027
Крепеж
9046710161
Крепеж
9048013012
Крепеж
9167380825
Крепеж
91674L1028
Крепеж
C4109B
HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR NO.1
C4109C
HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR NO.2
C6540A
HOLDER ASSY, WHEEL CHAIR SET
C6550A
BELT ASSY, WHEEL CHAIR SET, NO.1
C6550H
BELT ASSY, WHEEL CHAIR SET, NO.1
C6560B
BELT ASSY, WHEEL CHAIR SET, NO.2
C6560C
BELT ASSY, WHEEL CHAIR SET, NO.2

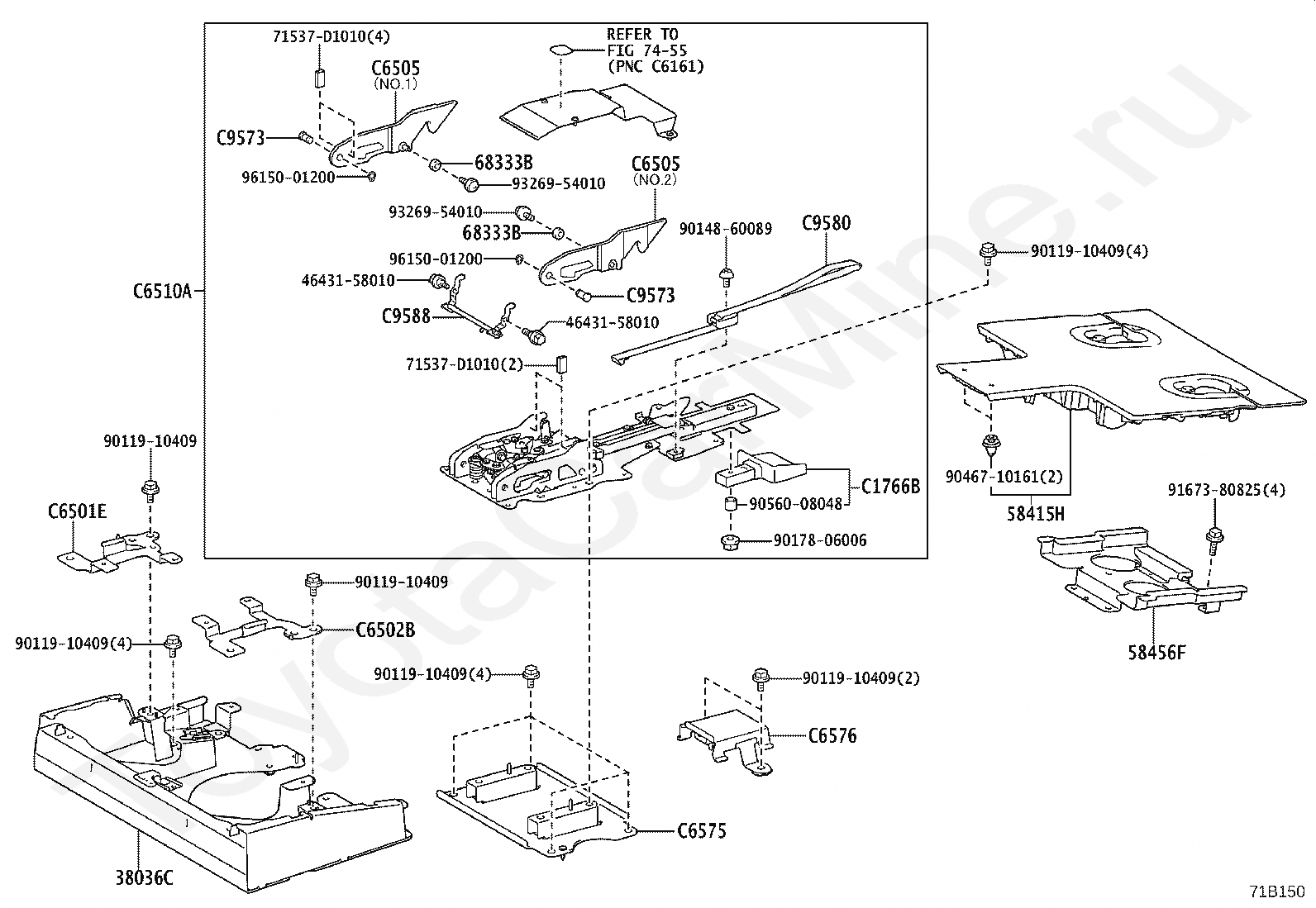

Код
Описание
38036C
BRACKET SUB-ASSY, WINCH ROLLER
4643158010
Крепеж
58415H
BOARD, REAR FLOOR, NO.1
58456F
BRACKET, REAR FLOOR MAT SUPPORT
68333B
ROLLER, SLIDE(FOR WHEEL CHAIR HOLDER LOCK)
71537D1010
Крепеж
7455
переход к группе запчастей
9011910409
Крепеж
9014860089
Крепеж
9017806006
Крепеж
9046710161
Крепеж
9056008048
Крепеж
9167380825
Крепеж
9326954010
Крепеж
9615001200
Крепеж
C1766B
LEVER, ARM LOCK RELEASE
C6501E
SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, FRONT RH
C6502B
SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, FRONT LH
C6505
LOCK SUB-ASSY, WHEEL CHAIR HOLDER
C6510A
HOLDER ASSY, WHEEL CHAIR
C6575
REINFORCEMENT, WELCAB WHEEL CHAIR, NO.1
C6576
REINFORCEMENT, WELCAB WHEEL CHAIR, NO.2
C9573
SHAFT, PLATFORM LOCK MALE
C9580
HANDLE ASSY, PLATFORM LOCK
C9588
HOLDER, PLATFORM LOCK HANDLE, NO.2
Код
Описание
C6500
WHEEL CHAIR ASSY
C6550C
WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT
C6560E
WHEEL ASSY, WELCAB WHEEL CHAIR, REAR
C6590A
HEADREST ASSY, WHEEL CHAIR
C7604
CUSHION SET, SEAT FLAT

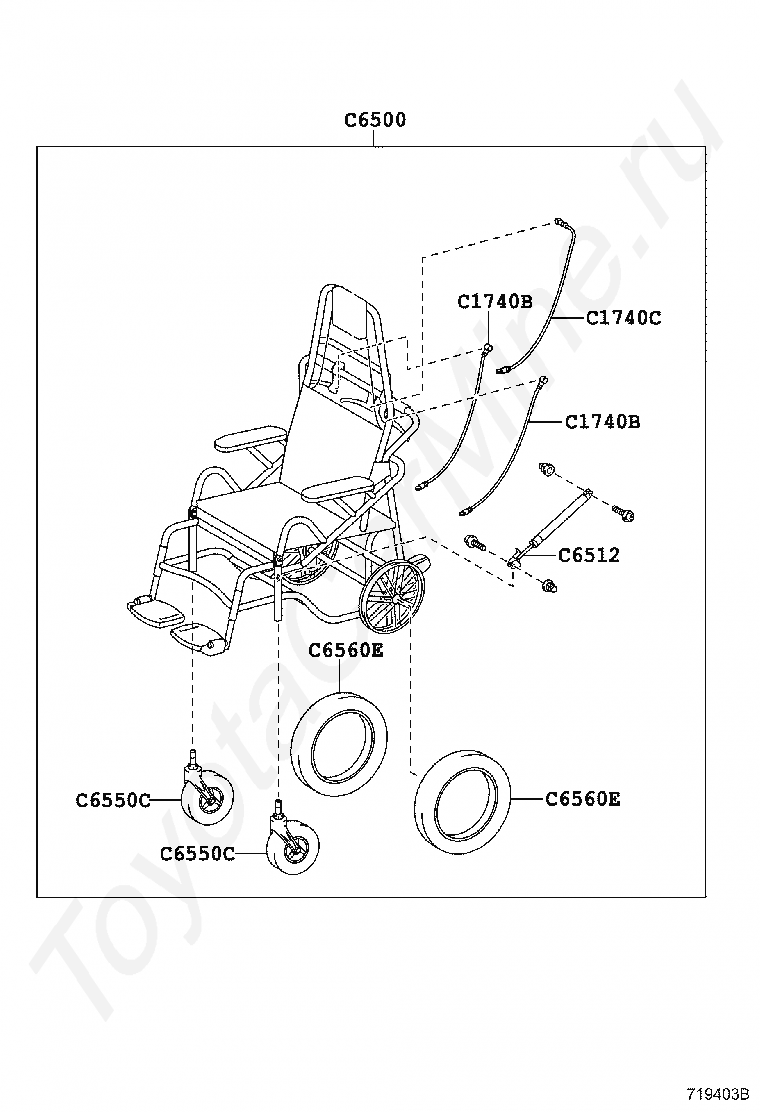

Код
Описание
C1740B
CABLE ASSY, BRAKE CONTROL, NO.1
C1740C
CABLE ASSY, BRAKE CONTROL, NO.2
C6500
WHEEL CHAIR ASSY
C6512
STAY, WHEEL CHAIR HOLDER,REAR
C6550C
WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT
C6560E
WHEEL ASSY, WELCAB WHEEL CHAIR, REAR

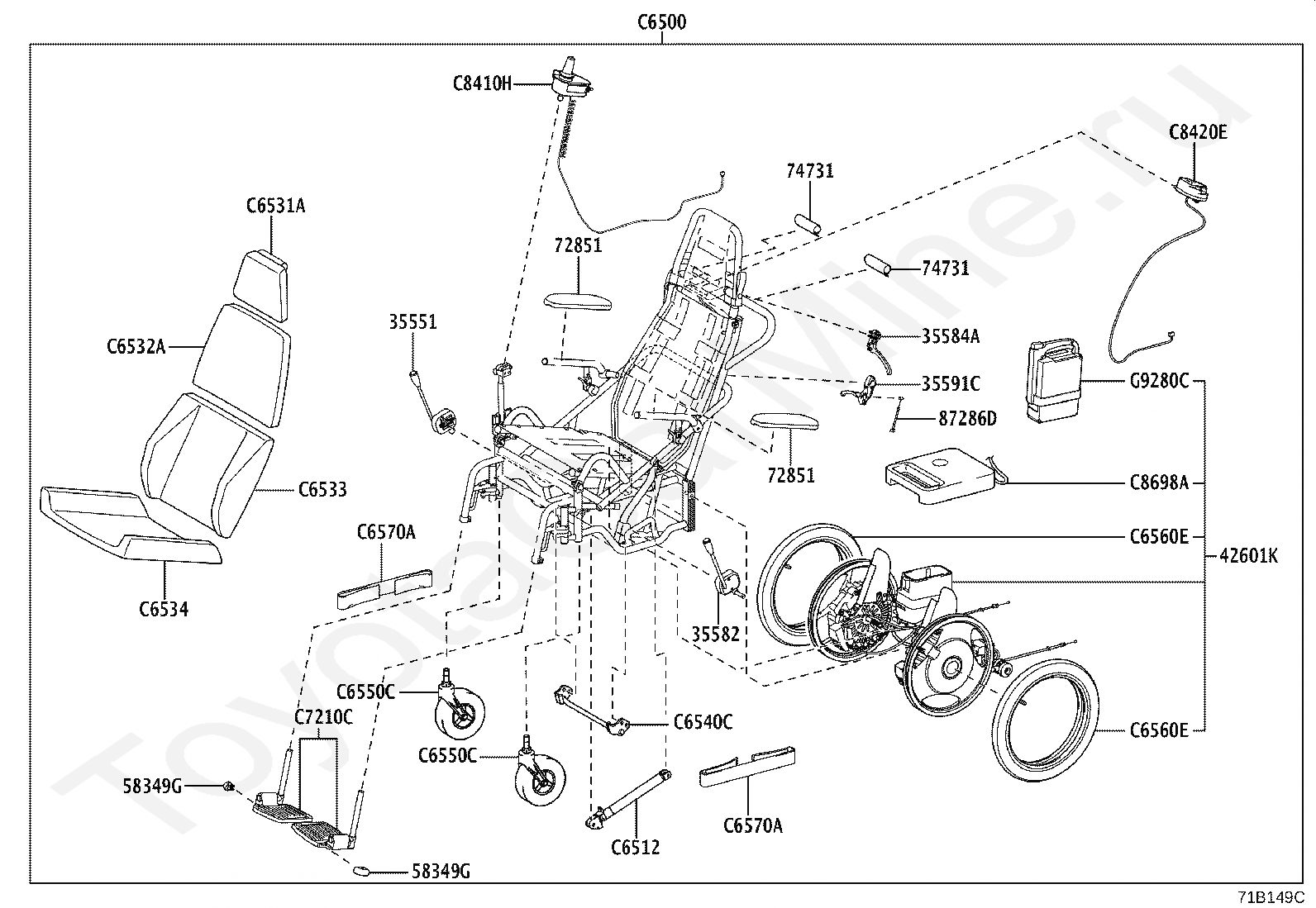

Код
Описание
35551
LEVER, PARKING LOCK, NO.1
35582
LEVER, PARKING LOCK, NO.2
35584A
LEVER, PARKING LOCK, NO.3
35591C
LEVER, TOGGLE
42601K
WHEEL SUB-ASSY, DISC
58349G
PROTECTOR, FOOTREST
72851
PAD, ARM SUPPORT
74731
PIPE, HAND GRIP, NO.1
87286D
CABLE, CONTROL
C6500
WHEEL CHAIR ASSY
C6512
STAY, WHEEL CHAIR HOLDER,REAR
C6531A
CUSHION, HEADREST
C6532A
CUSHION, SHOULDER
C6533
CUSHION, LUMBER
C6534
CUSHION, WHEEL CHAIR SEAT
C6540C
STRIKER ASSY, WHEEL CHAIR SET
C6550C
WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT
C6560E
WHEEL ASSY, WELCAB WHEEL CHAIR, REAR
C6570A
BELT ASSY, WHEEL CHAIR SET, NO.3
C7210C
FOOTREST ASSY, WELCAB SEAT
C8410H
SWITCH ASSY, CONTROL, NO.1
C8420E
SWITCH ASSY, CONTROL, NO.2
C8698A
CHARGER, BATTERY
G9280C
BATTERY ASSY, WHEEL CHAIR
Код
Описание
64008
BELT SET, WHEEL CHAIR
C6521
PLATE, WHEEL CHAIR LOCK HOLDER
C6550B
BELT ASSY, WHEEL CHAIR SET, NO.1
C6550D
BELT ASSY, WHEEL CHAIR SET, NO.1
C6550E
BELT ASSY, WHEEL CHAIR SET, NO.2
C6550G
BELT ASSY, WHEEL CHAIR SET, NO.1
C991322003
Крепеж
