FRONT SEAT & SEAT TRACK TOYOTA NEW MODEL, 2021/12 - 2025, 3500CC 24-VALVE DOHC, VJA310, автомат, ATM, 10-SPEED FLOOR SHIFT

Каталог

Япония

Модель

NEW MODEL

Двигатель

3500CC 24-VALVE DOHC

Фрейм

VJA310

Трансмиссия

автомат ATM, 10-SPEED FLOOR SHIFT

Опции

811W

Код

Описание

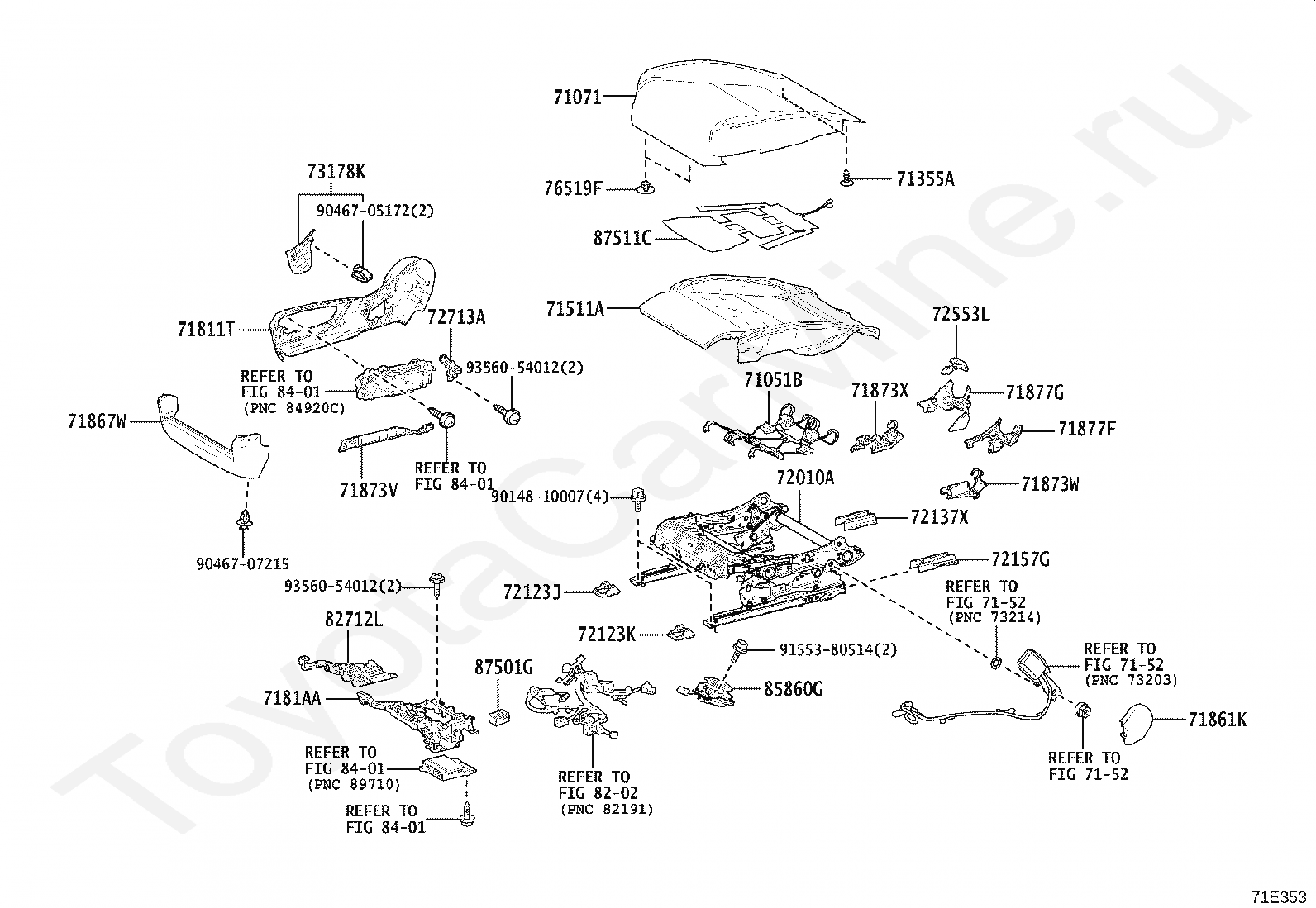

71051B

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71355A

CLIP

71511A

PAD, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

71811T

SHIELD, FRONT SEAT CUSHION, RH

7181AA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71867W

SHIELD, FRONT SEAT CUSHION, FRONT RH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873W

SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER

71873X

SHIELD, FRONT SEAT CUSHION, LOWER RH, INNER

71877F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

71877G

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

72010A

ADJUSTER ASSY, FRONT SEAT, RH

72123J

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123K

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137X

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157G

COVER, SEAT TRACK BRACKET, INNER REAR RH

72553L

PROTECTOR, RECLINING COVER, RH

72713A

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

73178K

CAP, SEAT BELT ANCHOR COVER, RH

76519F

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

82712L

SUPPORT, WIRING HARNESS

8401

переход к группе запчастей

85860G

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

87501G

CONTROL SUB-ASSY, SEAT HEATER, RH

87511C

HEATER ASSY, FRONT SEAT CUSHION, RH

9014810007

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9155380514

Крепеж

9356054012

Крепеж

Код

Описание

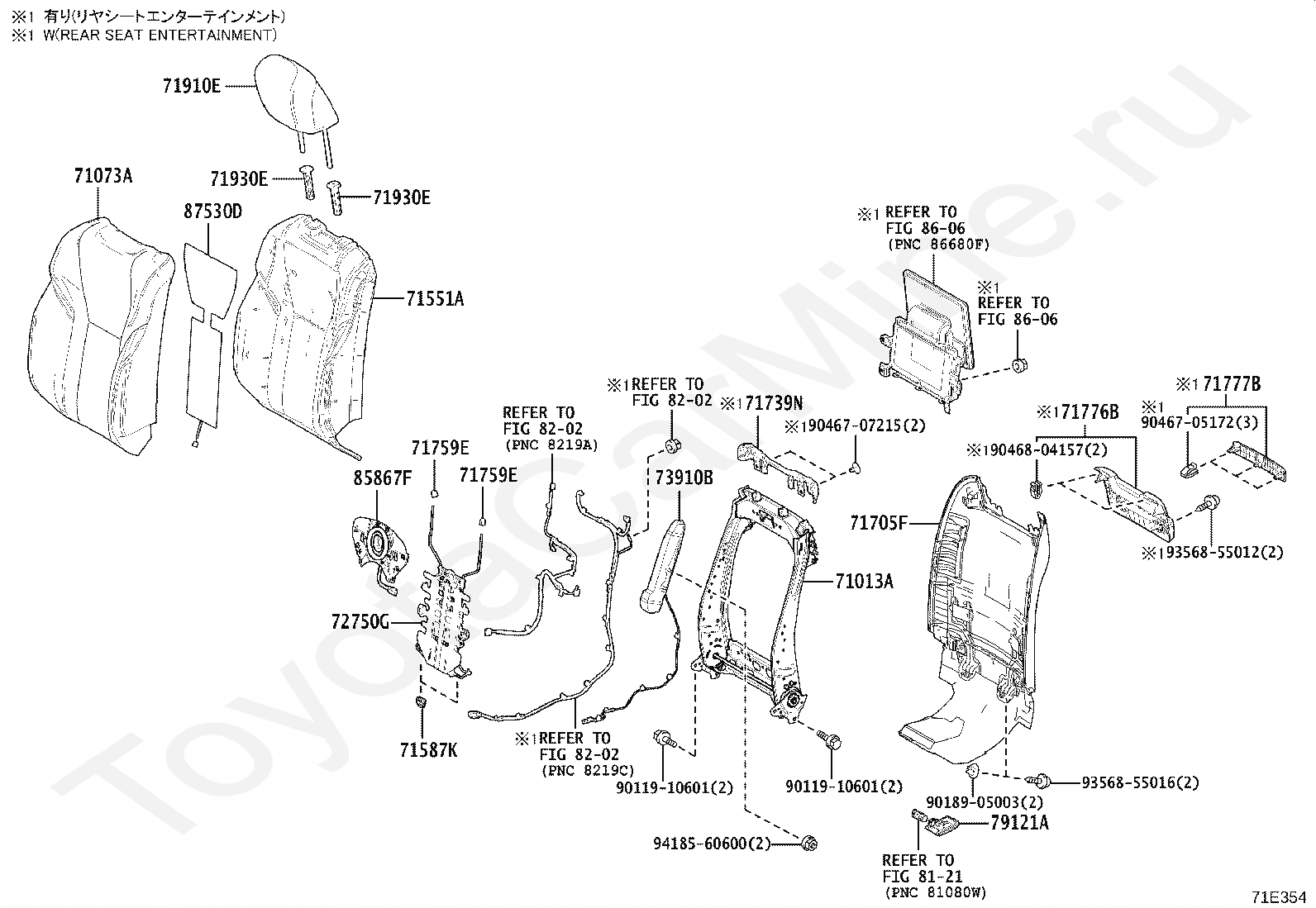

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71551A

PAD, FRONT SEAT BACK, RH

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71705F

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71739N

BEZEL, FRONT SEAT BACK, RH

71759E

HOOK, FRONT SEAT BACK, RH

71776B

COVER, FRONT SEAT BACK BOARD, NO.1

71777B

COVER, FRONT SEAT BACK BOARD, NO.2

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

72750G

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910B

AIR BAG ASSY, FRONT SEAT, RH

79121A

BRACKET, FRONT SEAT CUSHION, RH

8121

переход к группе запчастей

8202

переход к группе запчастей

85867F

BLOWER, SEAT BACK CLIMATE CONTROL, RH

8606

переход к группе запчастей

87530D

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9018905003

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9046804157

Крепеж

9356855012

Крепеж

9356855016

Крепеж

9418560600

Крепеж

Код

Описание

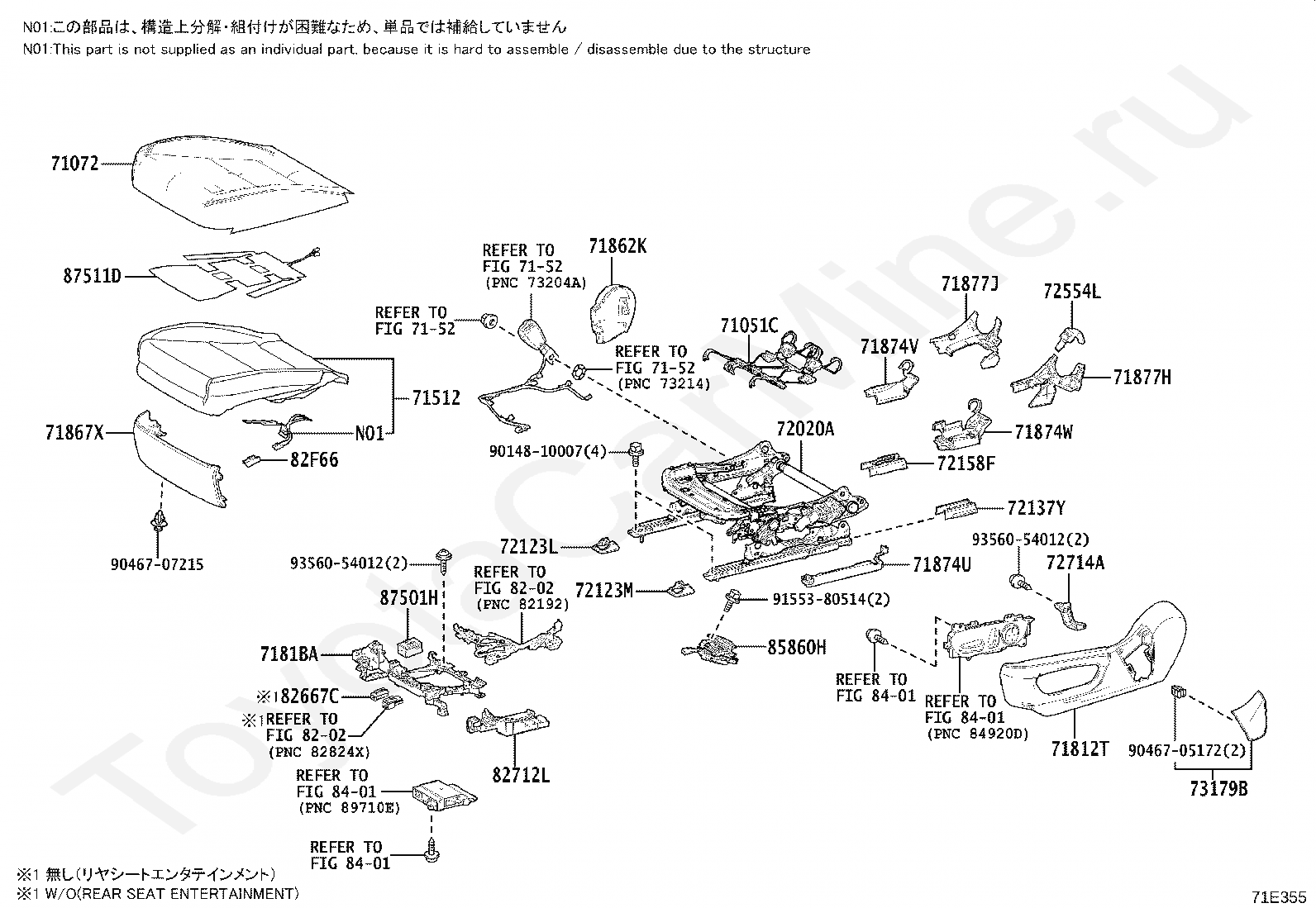

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71512

PAD, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

71812T

SHIELD, FRONT SEAT CUSHION, LH

7181BA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71867X

SHIELD, FRONT SEAT CUSHION, FRONT LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874V

SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER

71874W

SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER

71877H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71877J

COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)

72020A

ADJUSTER ASSY, FRONT SEAT, LH

72123L

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72123M

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72137Y

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158F

COVER, SEAT TRACK BRACKET, INNER REAR LH

72554L

PROTECTOR, RECLINING COVER, LH

72714A

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

73179B

CAP, SEAT BELT ANCHOR COVER, LH

8202

переход к группе запчастей

82667C

HOLDER, CONNECTOR

82712L

SUPPORT, WIRING HARNESS

82F66

HOLDER, CONNECTOR

8401

переход к группе запчастей

85860H

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

87501H

CONTROL SUB-ASSY, SEAT HEATER, LH

87511D

HEATER ASSY, FRONT SEAT CUSHION, LH

9014810007

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9155380514

Крепеж

9356054012

Крепеж

Код

Описание

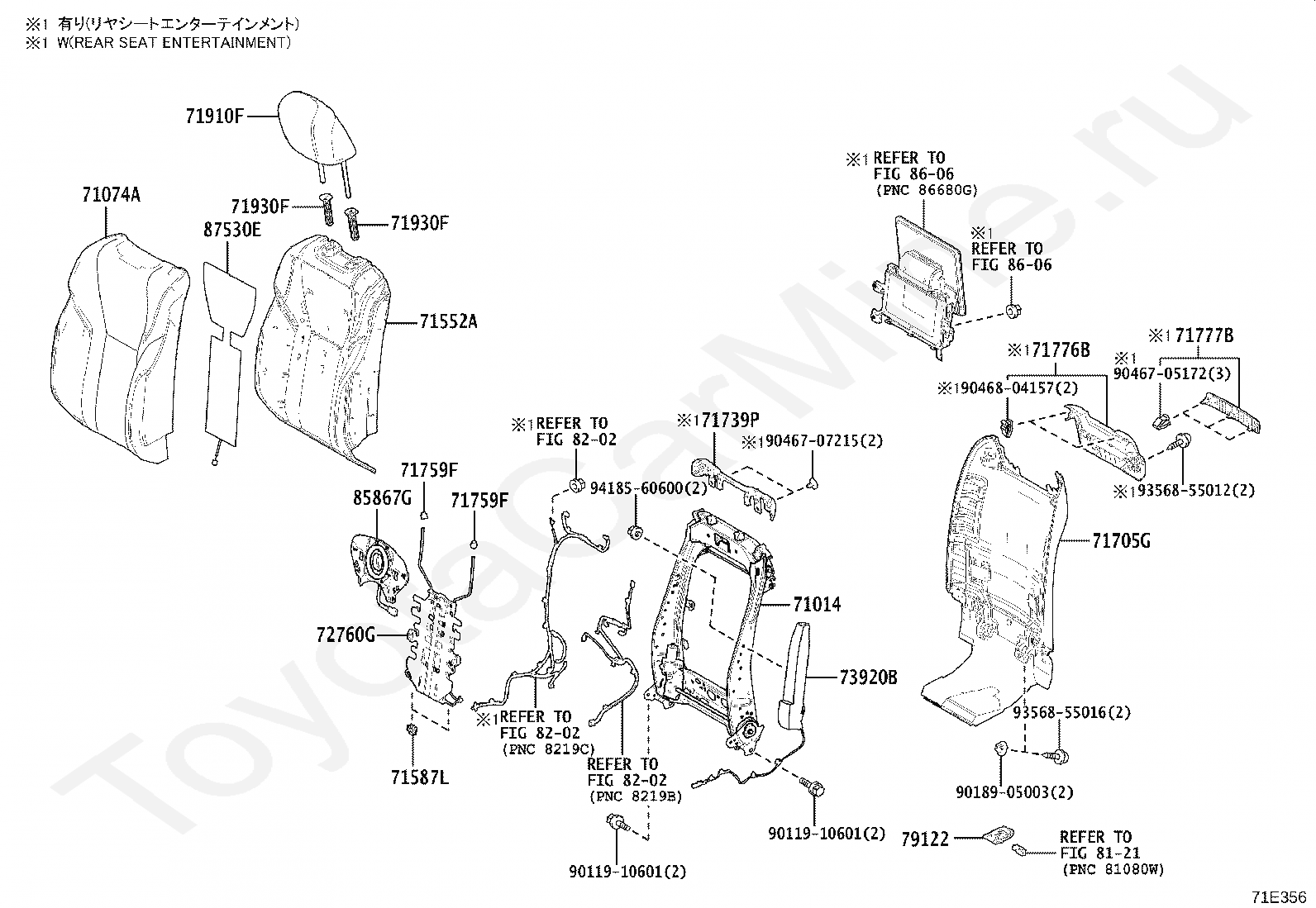

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71552A

PAD, FRONT SEAT BACK, LH

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71705G

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71739P

BEZEL, FRONT SEAT BACK, LH

71759F

HOOK, FRONT SEAT BACK, LH

71776B

COVER, FRONT SEAT BACK BOARD, NO.1

71777B

COVER, FRONT SEAT BACK BOARD, NO.2

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

72760G

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920B

AIR BAG ASSY, FRONT SEAT, LH

79122

BRACKET, FRONT SEAT CUSHION, LH

8121

переход к группе запчастей

8202

переход к группе запчастей

85867G

BLOWER, SEAT BACK CLIMATE CONTROL, LH

8606

переход к группе запчастей

87530E

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9018905003

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9046804157

Крепеж

9356855012

Крепеж

9356855016

Крепеж

9418560600

Крепеж

Код

Описание

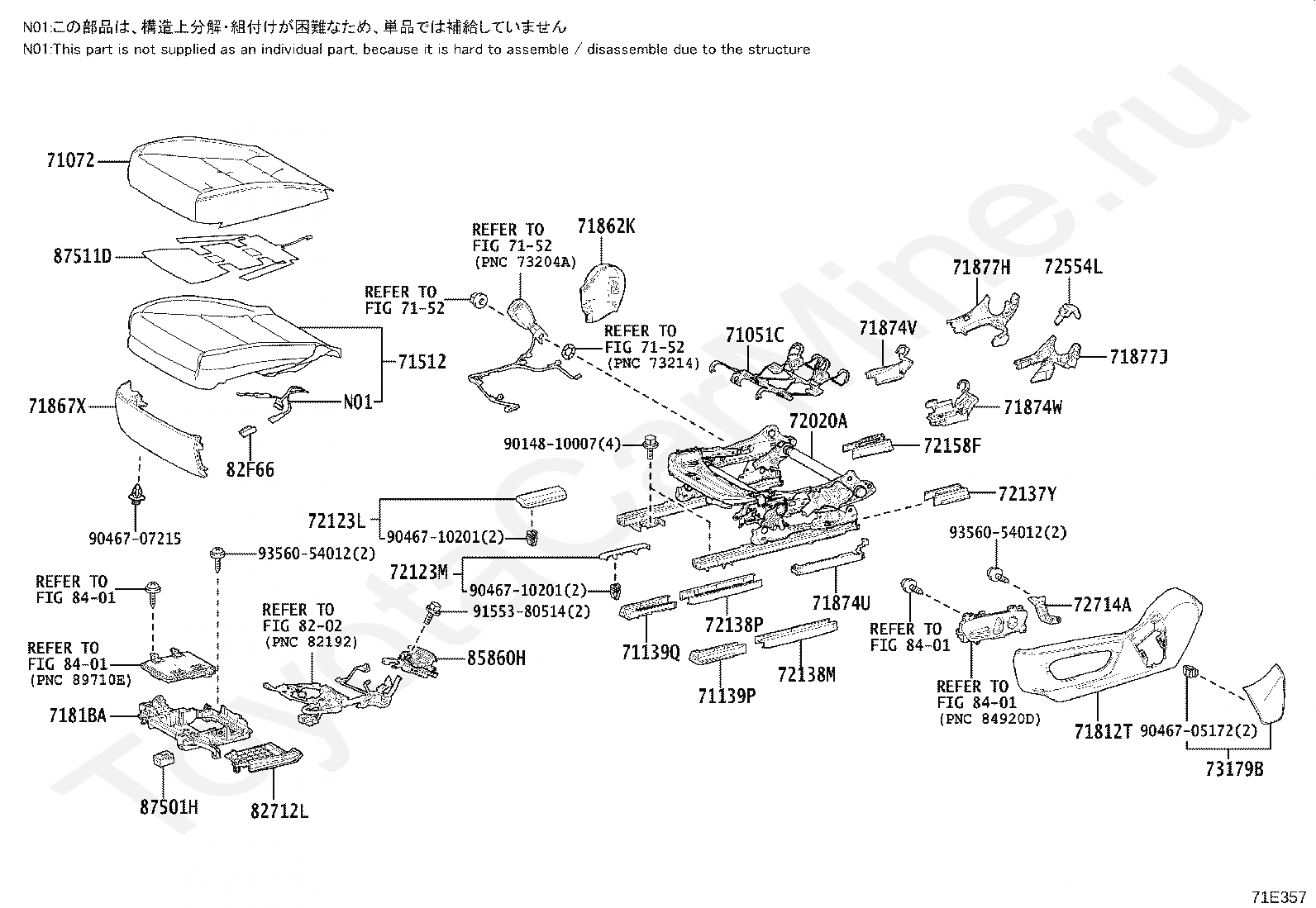

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71139P

COVER, FRONT SEAT LEG, LH OUTER

71139Q

COVER, FRONT SEAT LEG, LH INNER

71512

PAD, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

71812T

SHIELD, FRONT SEAT CUSHION, LH

7181BA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71867X

SHIELD, FRONT SEAT CUSHION, FRONT LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874V

SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER

71874W

SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER

71877H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71877J

COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)

72020A

ADJUSTER ASSY, FRONT SEAT, LH

72123L

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72123M

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72137Y

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72138M

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72138P

COVER, SEAT TRACK BRACKET, INNER REAR LH

72158F

COVER, SEAT TRACK BRACKET, INNER REAR LH

72554L

PROTECTOR, RECLINING COVER, LH

72714A

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

73179B

CAP, SEAT BELT ANCHOR COVER, LH

8202

переход к группе запчастей

82712L

SUPPORT, WIRING HARNESS

82F66

HOLDER, CONNECTOR

8401

переход к группе запчастей

85860H

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

87501H

CONTROL SUB-ASSY, SEAT HEATER, LH

87511D

HEATER ASSY, FRONT SEAT CUSHION, LH

9014810007

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9046710201

Крепеж

9155380514

Крепеж

9356054012

Крепеж

Код

Описание

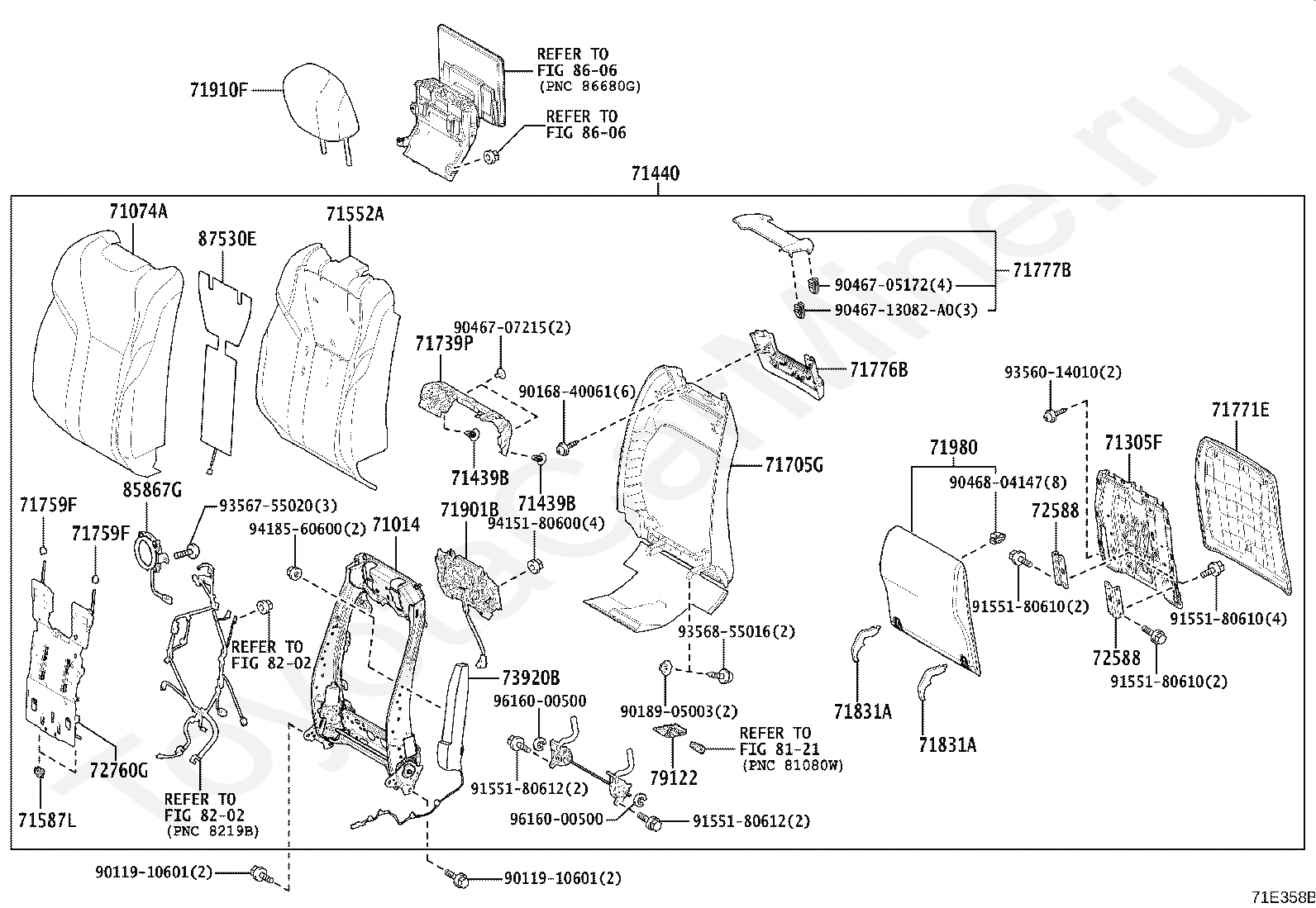

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71305F

FRAME SUB-ASSY, CENTER SEAT BACK, LH

71439B

CLIP

71440

BACK ASSY, FRONT SEAT, LH

71552A

PAD, FRONT SEAT BACK, LH

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71705G

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71739P

BEZEL, FRONT SEAT BACK, LH

71759F

HOOK, FRONT SEAT BACK, LH

71771E

BOARD, FRONT SEAT BACK, LH

71776B

COVER, FRONT SEAT BACK BOARD, NO.1

71777B

COVER, FRONT SEAT BACK BOARD, NO.2

71831A

COVER, FRONT SEAT HINGE

71901B

INSERT SUB-ASSY, FRONT SEAT HEADREST

71910F

HEADREST ASSY, FRONT SEAT, LH

71980

FOOTREST ASSY, FRONT SEAT, NO.1

72588

BRACKET, FRONT SEAT BACK BOARD

72760G

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920B

AIR BAG ASSY, FRONT SEAT, LH

79122

BRACKET, FRONT SEAT CUSHION, LH

8121

переход к группе запчастей

8202

переход к группе запчастей

85867G

BLOWER, SEAT BACK CLIMATE CONTROL, LH

8606

переход к группе запчастей

87530E

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9016840061

Крепеж

9018905003

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9046713082A0

Крепеж

9046804147

Крепеж

9155180610

Крепеж

9155180612

Крепеж

9356014010

Крепеж

9356755020

Крепеж

9356855016

Крепеж

9415180600

Крепеж

9418560600

Крепеж

9616000500

Крепеж

FRONT SEAT & SEAT TRACK TOYOTA NEW MODEL, 2021/12 - 2025, 3500CC 24-VALVE DOHC, VJA310, автомат, ATM, 10-SPEED FLOOR SHIFT
