Тормозная магистраль TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, турбо, T-BAR ROOF, GT TYPE, SW20, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

MR2

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

T-BAR ROOF

Класс

GT TYPE

Фрейм

SW20

Трансмиссия

механика МКПП, 5 скоростей

Опции

Код

Описание

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046106212

Крепеж

9046106213

Крепеж

9046808034

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9165260640

Крепеж

9622110706

Крепеж

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046106212

Крепеж

9046106213

Крепеж

9046808034

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9165260640

Крепеж

9622110706

Крепеж

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321A

WAY(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046400583

Крепеж

9046808034

Крепеж

9048001555

Крепеж

9161160640

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160814

Крепеж

9165160820

Крепеж

9622110706

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44552

TUBE, BRAKE ACTUATOR, NO.2

44590

BRACKET ASSY, BRAKE ACTUATOR

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9094901603

Крепеж

9161160814

Крепеж

9166160816

Крепеж

9331515025

Крепеж

9411040600

Крепеж

9451100800

Крепеж

9461410600

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44591

BRACKET, BRAKE ACTUATOR, NO.1

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9009140608

Крепеж

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9166160825

Крепеж

9411040600

Крепеж

9451100600

Крепеж

9461410600

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44591

BRACKET, BRAKE ACTUATOR, NO.1

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9009140608

Крепеж

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9166160825

Крепеж

9411040600

Крепеж

9451100600

Крепеж

9461410600

Крепеж

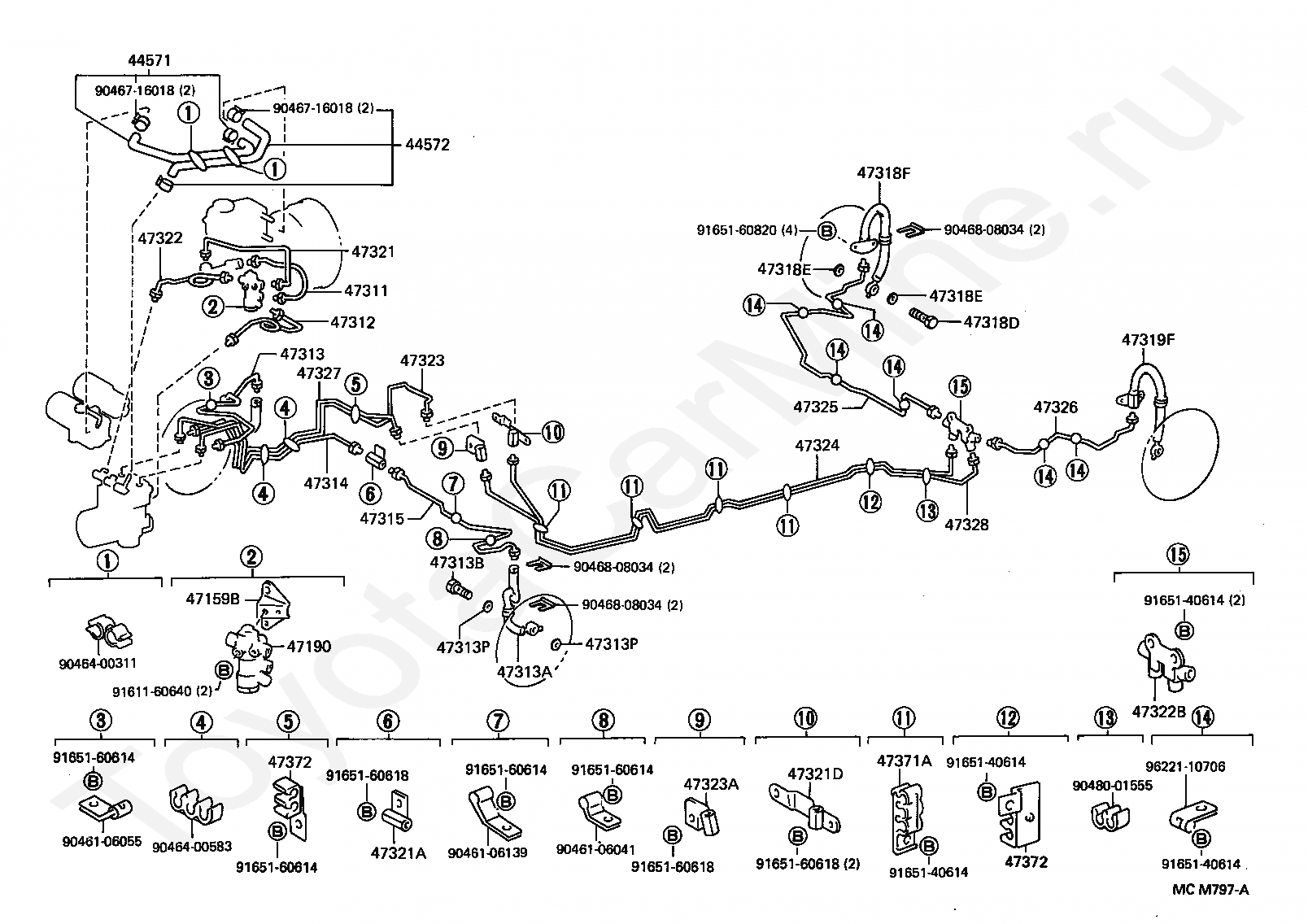

Код

Описание

44571

HOSE, BRAKE ACTUATOR

44572

HOSE, BRAKE ACTUATOR, NO.2

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321A

WAY(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046400311

Крепеж

9046400583

Крепеж

9046716018

Крепеж

9046808034

Крепеж

9048001555

Крепеж

9161160640

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9622110706

Крепеж

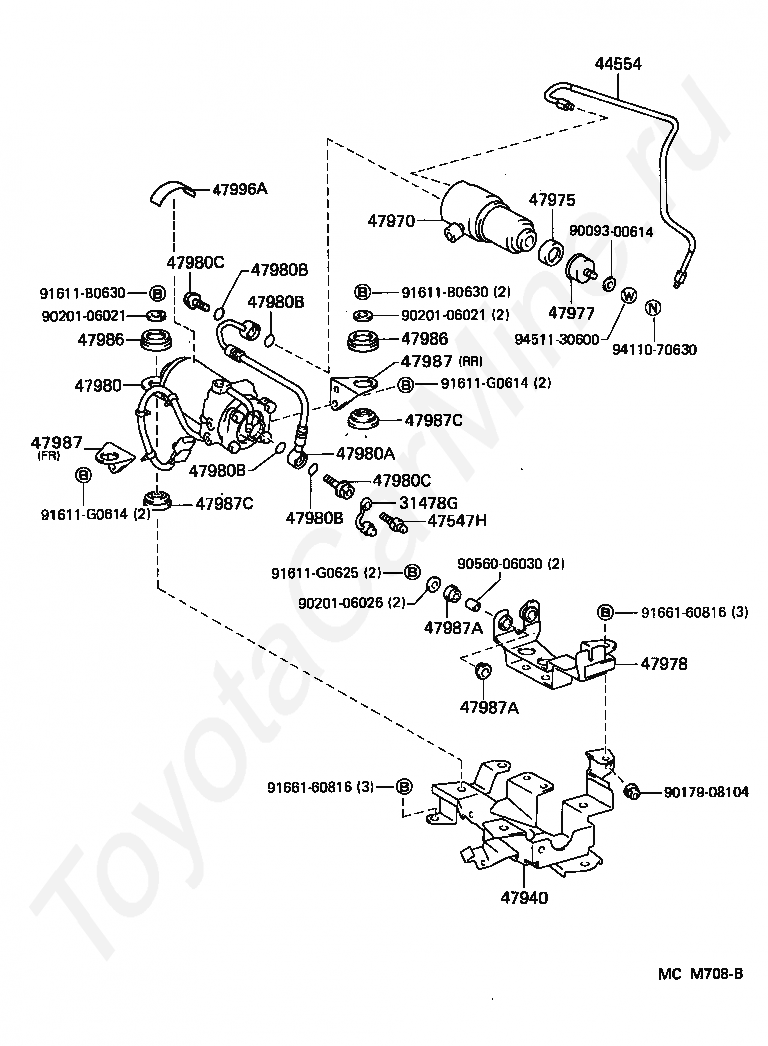

Код

Описание

31478G

CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACCUMULATOR)

44554

TUBE, BRAKE ACTUATOR, NO.4

47547H

PLUG, BLEEDER(FOR BRAKE TRACTION ACCUMULATOR)

47940

BRACKET ASSY, BRAKE TRACTION

47970

ACCUMULATOR ASSY, BRAKE TRACTION

47975

BUSH, BRAKE TRACTION ACCUMULATOR

47977

BRACKET, BRAKE TRACTION ACCUMULATOR, NO.1

47978

BRACKET, BRAKE TRACTION ACCUMULATOR , NO.2

47980

PUMP ASSY, BRAKE TRACTION

47980A

HOSE, PRESSURE(FOR BRAKE TRACTION PUMP)

47980B

RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)

47980C

BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE)

47986

COVER, BRAKE TRACTION PUMP, NO.2

47987

BRACKET, BRAKE TRACTION PUMP, NO.1

47987A

BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET)

47987C

BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET)

47996A

LABEL, BRAKE BLEED NOTICE

9009300614

Крепеж

9017908104

Крепеж

9020106021

Крепеж

9020106026

Крепеж

9056006030

Крепеж

91611B0630

Крепеж

91611G0614

Крепеж

91611G0625

Крепеж

9166160816

Крепеж

9411070630

Крепеж

9451130600

Крепеж

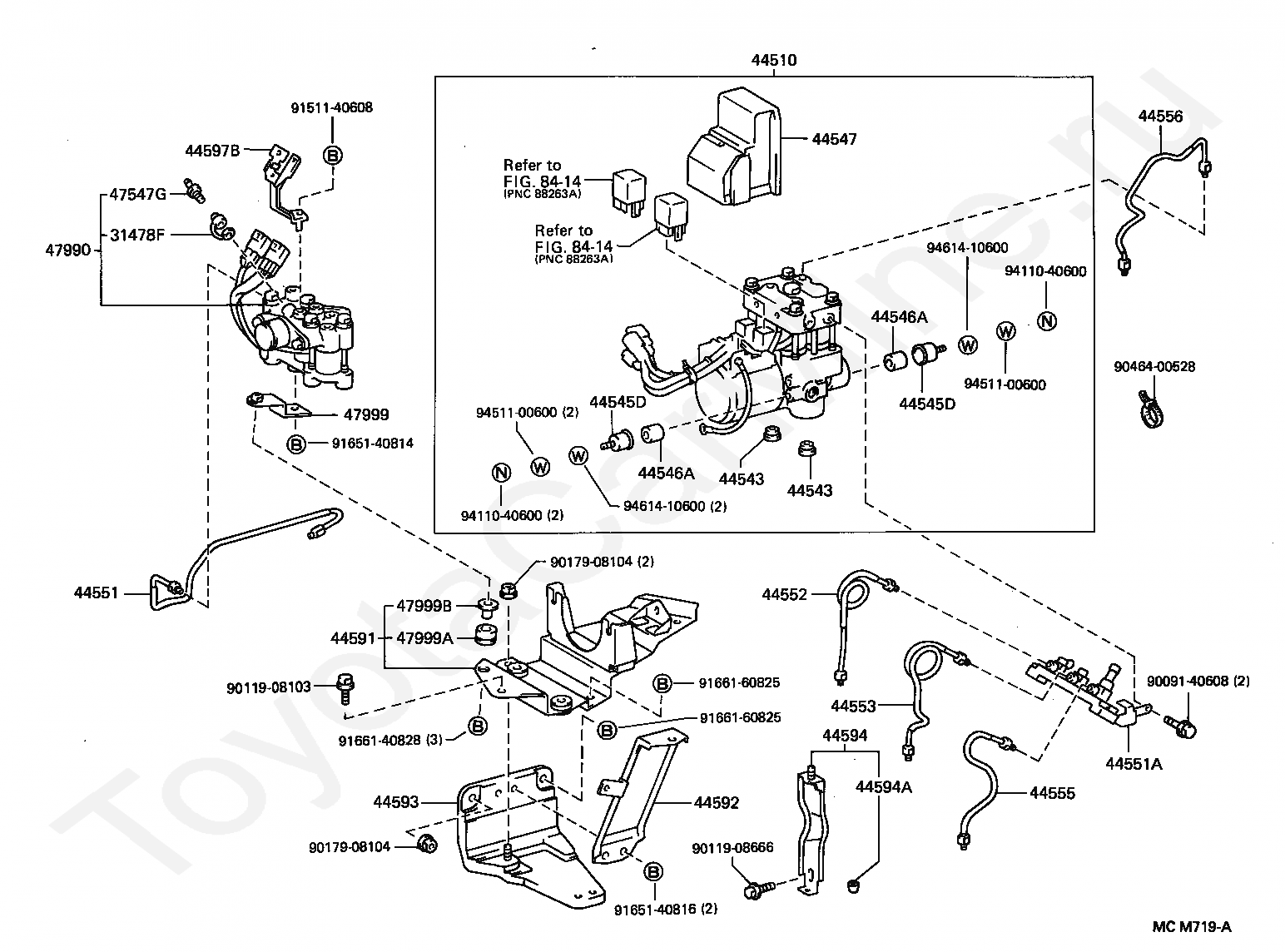

Код

Описание

31478F

CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR)

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44552

TUBE, BRAKE ACTUATOR, NO.2

44553

TUBE, BRAKE ACTUATOR, NO.3

44555

TUBE, BRAKE ACTUATOR, NO.5

44556

TUBE, BRAKE ACTUATOR, NO.6

44591

BRACKET, BRAKE ACTUATOR, NO.1

44592

BRACKET, BRAKE ACTUATOR, NO.2

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597B

CLAMP, BRAKE TRACTION ACTUATOR CONNECTOR

47547G

PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)

47990

ACTUATOR ASSY, BRAKE TRACTION

47999

BRACKET, BRAKE TRACTION ACTUATOR, NO.2

47999A

BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)

47999B

SPACER(FOR BRAKE TRACTION ACTUATOR BRACKET)

8414

переход к группе запчастей

9009140608

Крепеж

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9046400528

Крепеж

9151140608

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9166140828

Крепеж

9166160825

Крепеж

9411040600

Крепеж

9451100600

Крепеж

9461410600

Крепеж

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321A

WAY(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046400583

Крепеж

9046808034

Крепеж

9048001276

Крепеж

9048001555

Крепеж

9161160640

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9622110706

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44590

BRACKET ASSY, BRAKE ACTUATOR

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

9009905277

Крепеж

9011908666

Крепеж

9017908104

Крепеж

91651G0820

Крепеж

9166160816

Крепеж

Тормозная магистраль TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, турбо, T-BAR ROOF, GT TYPE, SW20, механика, МКПП, 5 скоростей

Товар добавлен в корзину!

Заполните форму
