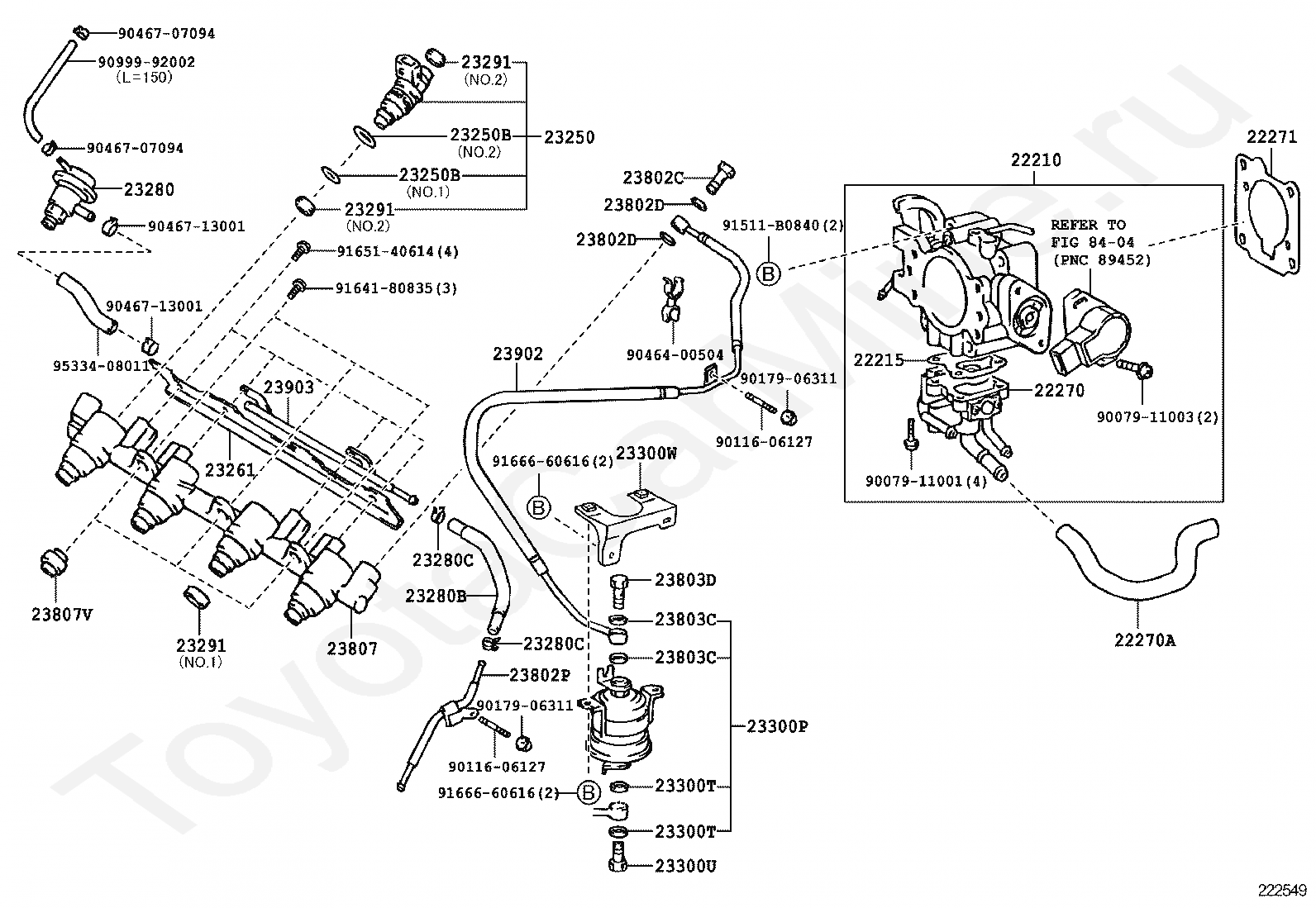

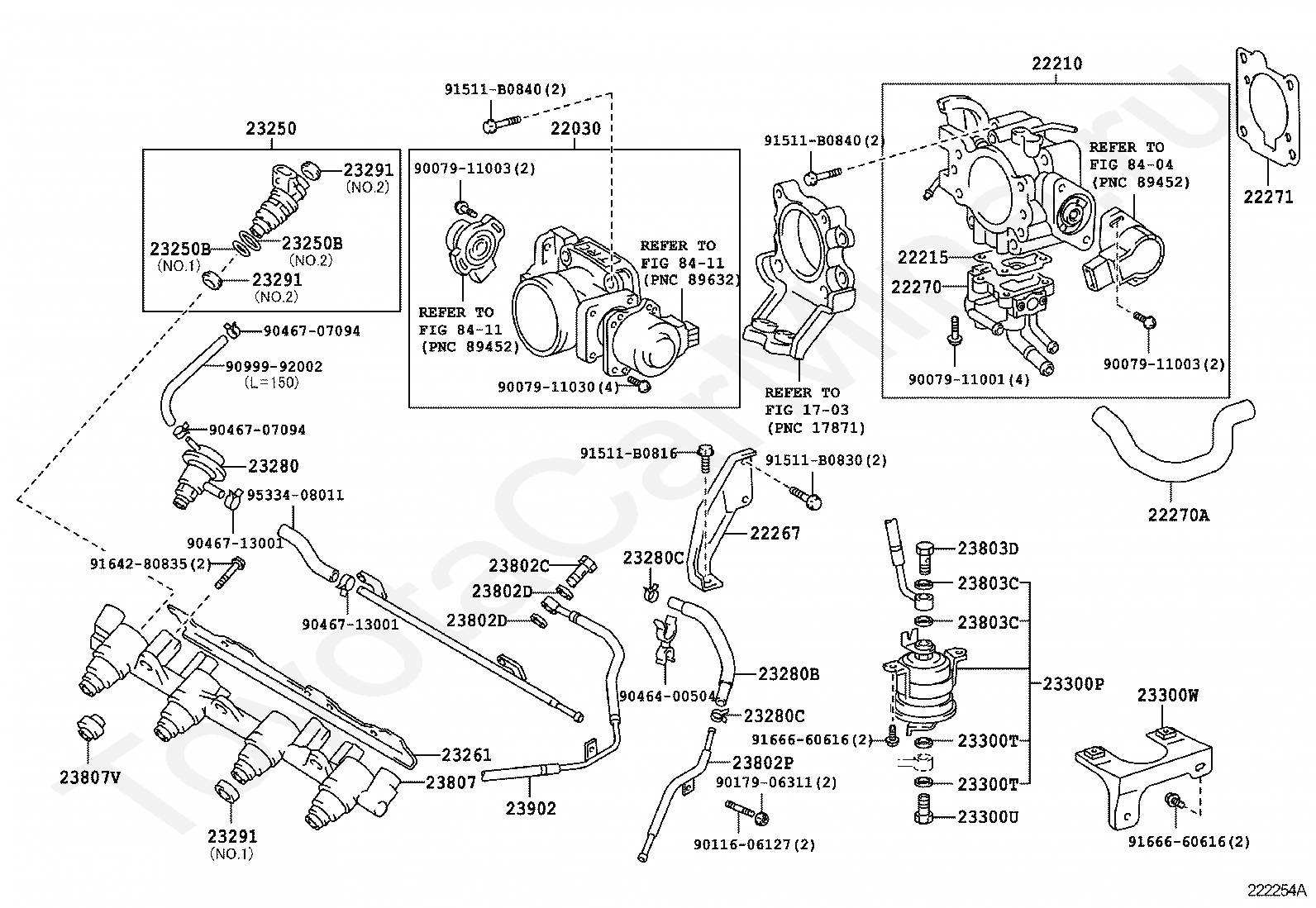

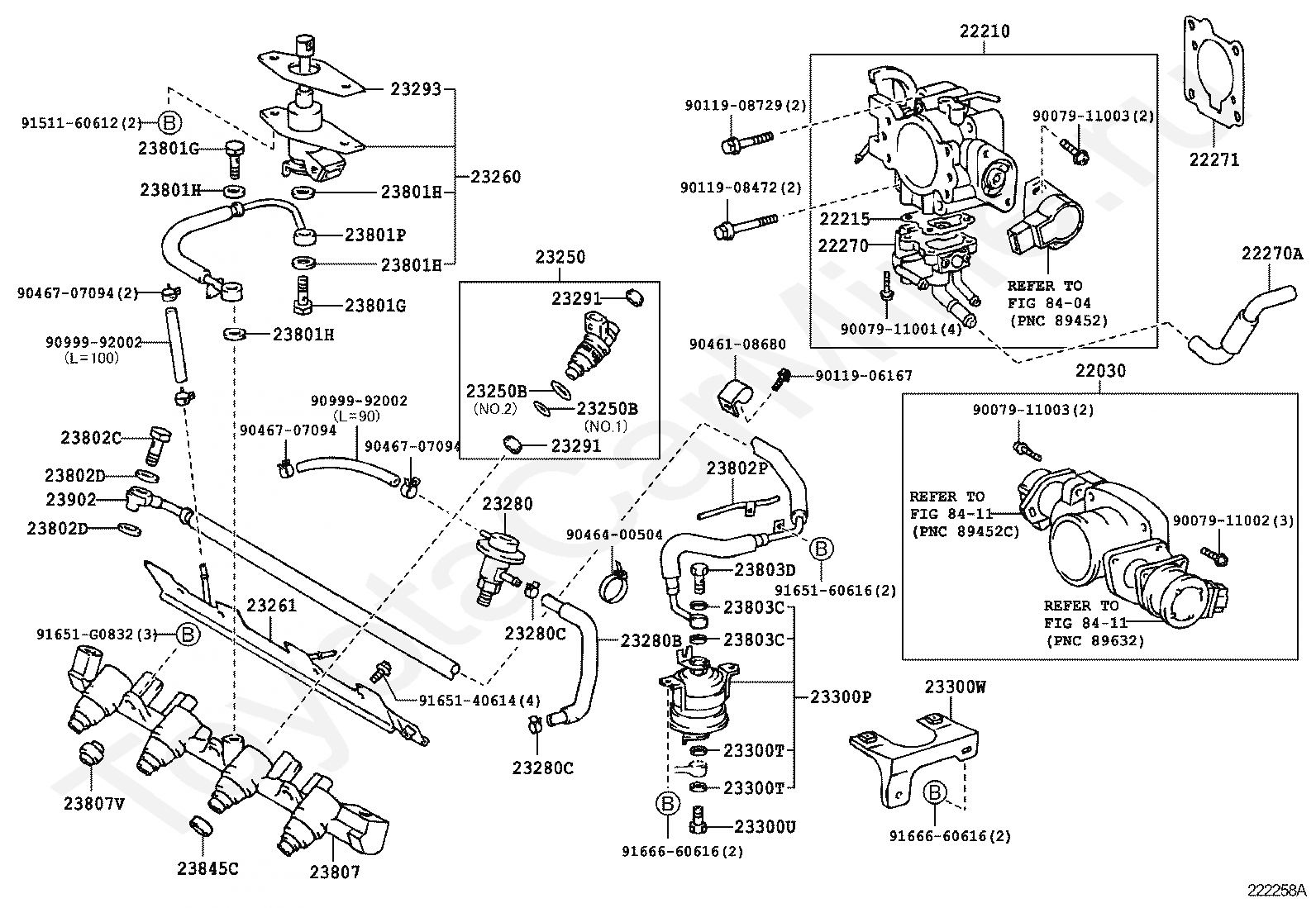

Топливная система TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, турбо, T-BAR ROOF, GT TYPE, SW20, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

MR2

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

T-BAR ROOF

Класс

GT TYPE

Фрейм

SW20

Трансмиссия

механика МКПП, 5 скоростей

Опции

Код

Описание

22210

BODY ASSY, THROTTLE

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22270A

HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23260

INJECTOR ASSY, COLD START FUEL

23261

COVER, INJECTOR

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23293

GASKET, COLD START INJECTOR

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23801G

BOLT, UNION(FOR FUEL PIPE)

23801H

GASKET(FOR FUEL PIPE)

23801P

PIPE SUB-ASSY, FUEL, NO.1

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23802P

TUBE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23845C

INSULATOR, FUEL PIPE

23902

TUBE SUB-ASSY, FUEL

8404

переход к группе запчастей

9007911001

Крепеж

9007911003

Крепеж

9011906167

Крепеж

9011908472

Крепеж

9011908729

Крепеж

9046108680

Крепеж

9046400504

Крепеж

9046707094

Крепеж

9099992002

Крепеж

9151160612

Крепеж

9165140614

Крепеж

9165160616

Крепеж

91651G0832

Крепеж

9166660616

Крепеж

Код

Описание

22210

BODY ASSY, THROTTLE

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22270A

HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23261

COVER, INJECTOR

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23802P

TUBE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23902

TUBE SUB-ASSY, FUEL

23903

TUBE SUB-ASSY, FUEL, NO.3

8404

переход к группе запчастей

9007911001

Крепеж

9007911003

Крепеж

9011606127

Крепеж

9017906311

Крепеж

9046400504

Крепеж

9046707094

Крепеж

9046713001

Крепеж

9099992002

Крепеж

91511B0840

Крепеж

9164180835

Крепеж

9165140614

Крепеж

9166660616

Крепеж

9533408011

Крепеж

Код

Описание

22030

BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

22210

BODY ASSY, THROTTLE

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22270A

HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23260

INJECTOR ASSY, COLD START FUEL

23261

COVER, INJECTOR

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23293

GASKET, COLD START INJECTOR

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23801G

BOLT, UNION(FOR FUEL PIPE)

23801H

GASKET(FOR FUEL PIPE)

23801P

PIPE SUB-ASSY, FUEL, NO.1

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23802P

TUBE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23845C

INSULATOR, FUEL PIPE

23902

TUBE SUB-ASSY, FUEL

8404

переход к группе запчастей

8411

переход к группе запчастей

9007911001

Крепеж

9007911002

Крепеж

9007911003

Крепеж

9011906167

Крепеж

9011908472

Крепеж

9011908729

Крепеж

9046108680

Крепеж

9046400504

Крепеж

9046707094

Крепеж

9099992002

Крепеж

9151160612

Крепеж

9165140614

Крепеж

9165160616

Крепеж

91651G0832

Крепеж

9166660616

Крепеж

Код

Описание

1703

переход к группе запчастей

22030

BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

22210

BODY ASSY, THROTTLE

22215

GASKET, THROTTLE BODY COVER

22267

BRACKET, THROTTLE BODY

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22270A

HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23261

COVER, INJECTOR

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23802P

TUBE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23902

TUBE SUB-ASSY, FUEL

8404

переход к группе запчастей

8411

переход к группе запчастей

9007911001

Крепеж

9007911003

Крепеж

9007911030

Крепеж

9011606127

Крепеж

9017906311

Крепеж

9046400504

Крепеж

9046707094

Крепеж

9046713001

Крепеж

9099992002

Крепеж

91511B0816

Крепеж

91511B0830

Крепеж

91511B0840

Крепеж

9164280835

Крепеж

9166660616

Крепеж

9533408011

Крепеж

Код

Описание

23091

TUBE SUB-ASSY, FUEL PUMP

23206A

BRACKET, FUEL PUMP

23206B

GASKET, FUEL PUMP BRACKET

23217A

FILTER, FUEL PUMP

23220P

PUMP ASSY, FUEL

23229

CLIP(FOR FUEL PUMP FILTER)

23233

HOSE, FUEL PUMP

23233B

CLIP(FOR FUEL PUMP HOSE)

23249

RUBBER, CUSHION(FOR FUEL PUMP)

7701

переход к группе запчастей

9015950219

Крепеж

91611G0812

Крепеж

9165160612

Крепеж

9411540400

Крепеж

9411540500

Крепеж

9451100400

Крепеж

9451100500

Крепеж

Топливная система TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, турбо, T-BAR ROOF, GT TYPE, SW20, механика, МКПП, 5 скоростей
