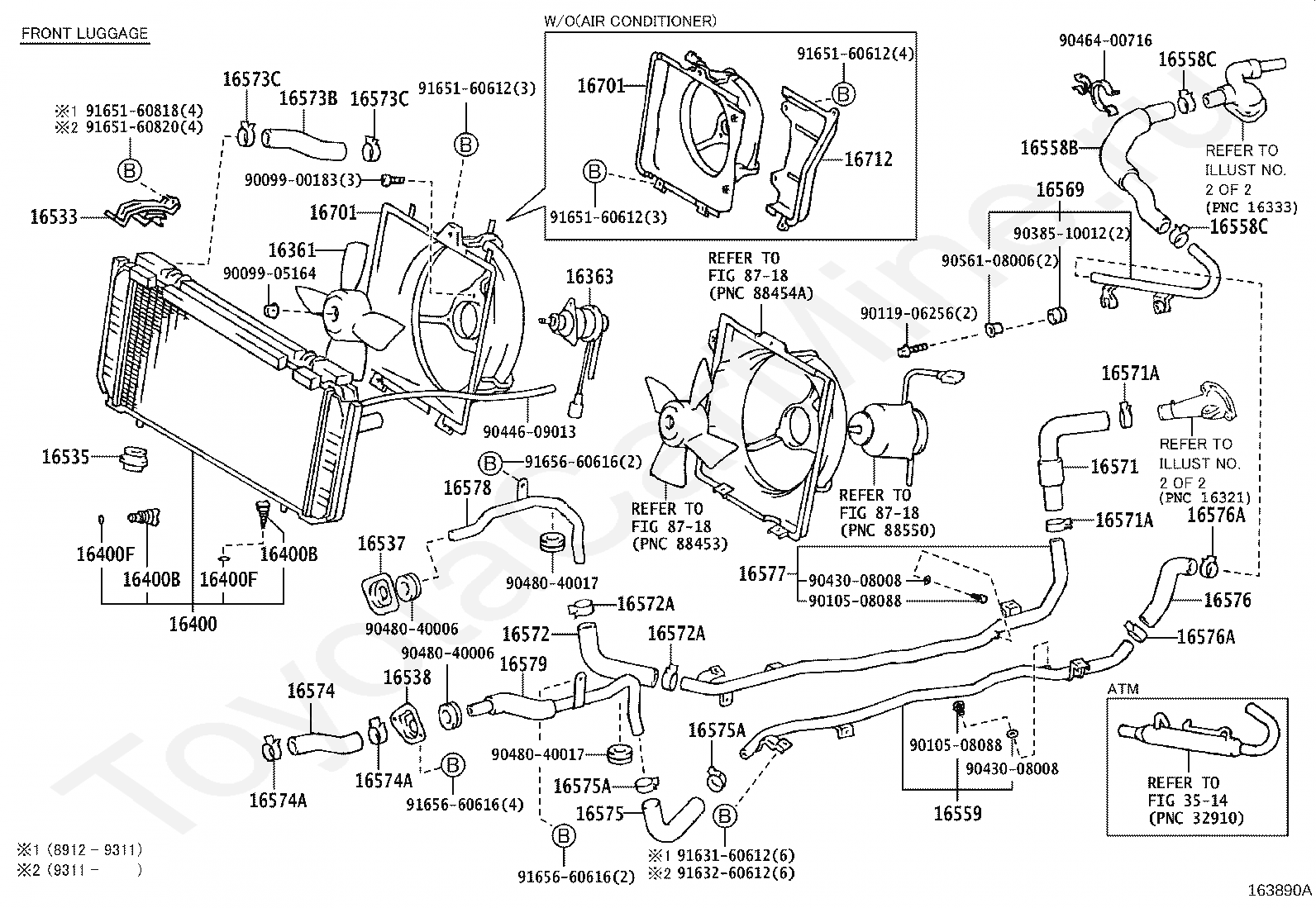

Радиатор и шланги TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, турбо, T-BAR ROOF, GT TYPE, SW20, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

MR2

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

T-BAR ROOF

Класс

GT TYPE

Фрейм

SW20

Трансмиссия

механика МКПП, 5 скоростей

Опции

Код

Описание

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16537

SUPPORT, RADIATOR PIPE, NO.1

16538

SUPPORT, RADIATOR PIPE, NO.2

16558B

HOSE, RADIATOR, NO.7

16558C

CLIP, RADIATOR HOSE, NO.7

16559

PIPE, RADIATOR, NO.4

16569

PIPE, RADIATOR, NO.5

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16575

HOSE, RADIATOR, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16576

HOSE, RADIATOR, NO.6

16576A

CLIP, RADIATOR HOSE, NO.6

16577

PIPE, RADIATOR, NO.7

16578

PIPE, RADIATOR, NO.2

16579

PIPE, RADIATOR, NO.3

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

3514

переход к группе запчастей

8718

переход к группе запчастей

9009900183

Крепеж

9009905164

Крепеж

9010508088

Крепеж

9011906256

Крепеж

9038510012

Крепеж

9043008008

Крепеж

9044609013

Крепеж

9046400716

Крепеж

9048040006

Крепеж

9048040017

Крепеж

9056108006

Крепеж

9163160612

Крепеж

9163260612

Крепеж

9165160612

Крепеж

9165160818

Крепеж

9165160820

Крепеж

9165660616

Крепеж

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16258A

GASKET(FOR HEATER RETURN)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16278

PIPE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16321

INLET, WATER

16323B

PLUG(FOR WATER INLET HOUSING)

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16331P

RING,O(FOR WATER OUTLET)

16333

HOUSING, WATER OUTLET

16341

GASKET, WATER OUTLET

16361

FAN

16363

MOTOR, COOLING FAN

16401

CAP SUB-ASSY, RADIATOR

1644435070

Крепеж

1644535070

Крепеж

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16520

FILLER ASSY, WATER

16701

SHROUD SUB-ASSY, FAN

16701B

CUSHION, FAN SHROUD

1709

переход к группе запчастей

8716

переход к группе запчастей

8846774020

Крепеж

8846774030

Крепеж

9009900905

Крепеж

9009902133

Крепеж

9009905164

Крепеж

9009919228

Крепеж

9009919244

Крепеж

9011906465

Крепеж

9011908358

Крепеж

9011908983

Крепеж

9012606006

Крепеж

9017906170

Крепеж

9017906209

Крепеж

9040452034

Крепеж

9040614003

Крепеж

9043016162

Крепеж

9151260812

Крепеж

91611B0822

Крепеж

91611B1028

Крепеж

91611G0814

Крепеж

9163140830

Крепеж

91651G0816

Крепеж

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16258A

GASKET(FOR HEATER RETURN)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16321

INLET, WATER

16331

OUTLET, WATER

16331A

THERMOSTAT

16331P

RING,O(FOR WATER OUTLET)

16333

HOUSING, WATER OUTLET

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16361

FAN

16363

MOTOR, COOLING FAN

16400B

PLUG, RADIATOR DRAIN COCK

16401

CAP SUB-ASSY, RADIATOR

1644435070

Крепеж

1644535070

Крепеж

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16520

FILLER ASSY, WATER

16701

SHROUD SUB-ASSY, FAN

16701B

CUSHION, FAN SHROUD

1703

переход к группе запчастей

1709

переход к группе запчастей

8716

переход к группе запчастей

8846774020

Крепеж

8846774030

Крепеж

9009900905

Крепеж

9009902133

Крепеж

9009905164

Крепеж

9009919228

Крепеж

9009919244

Крепеж

9011906465

Крепеж

9011908358

Крепеж

9011908983

Крепеж

9017906311

Крепеж

9017908150

Крепеж

9040617012

Крепеж

9151160812

Крепеж

9151360828

Крепеж

9163260830

Крепеж

91643K0822

Крепеж

9415080630

Крепеж

Радиатор и шланги TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, турбо, T-BAR ROOF, GT TYPE, SW20, механика, МКПП, 5 скоростей
