Тормозная магистраль TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, купе, GRAMS, SW20, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

MR2

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

купе

Класс

GRAMS

Фрейм

SW20

Трансмиссия

автомат АКПП, 4 ступени

Опции

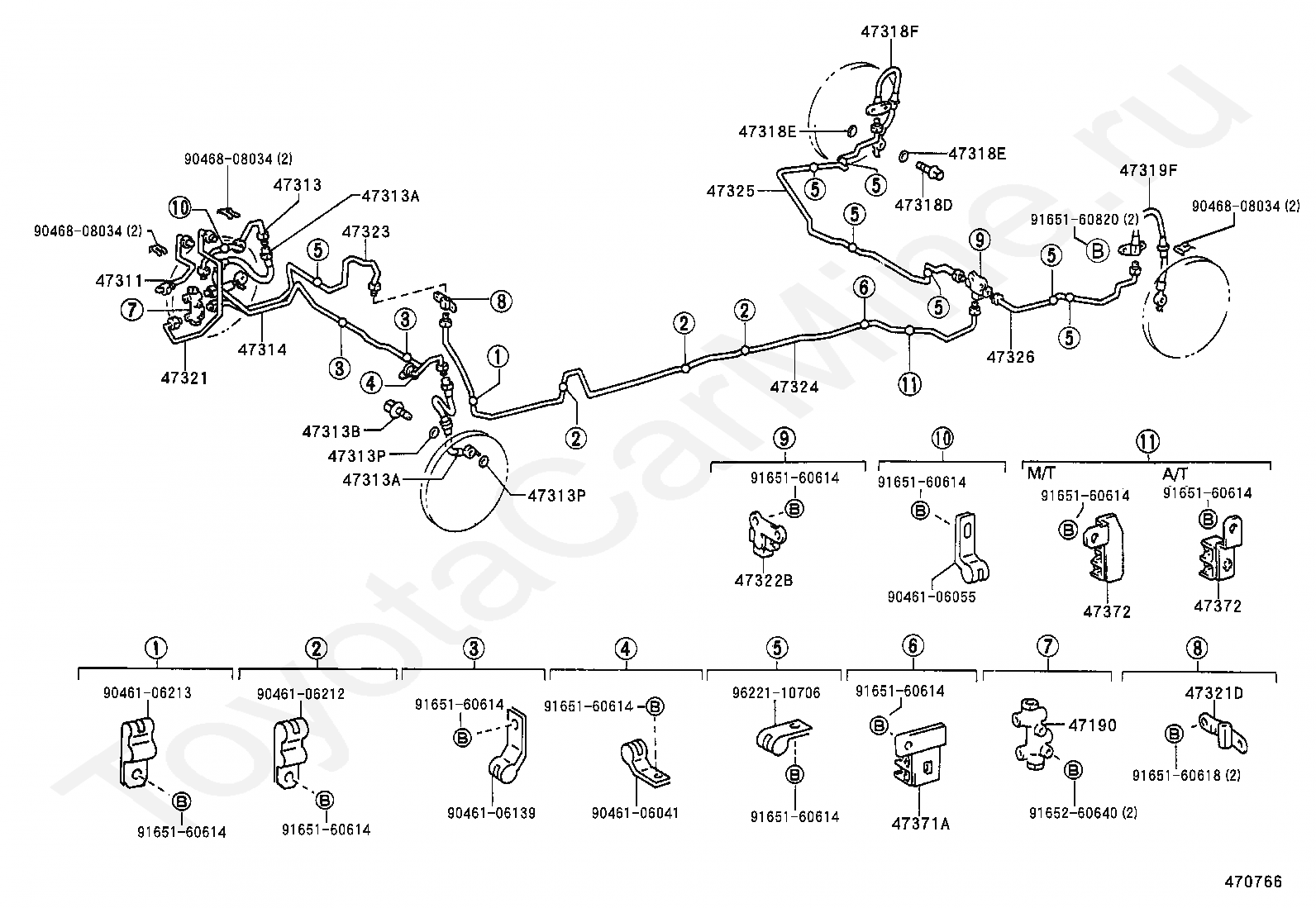

Код

Описание

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046106212

Крепеж

9046106213

Крепеж

9046808034

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9165260640

Крепеж

9622110706

Крепеж

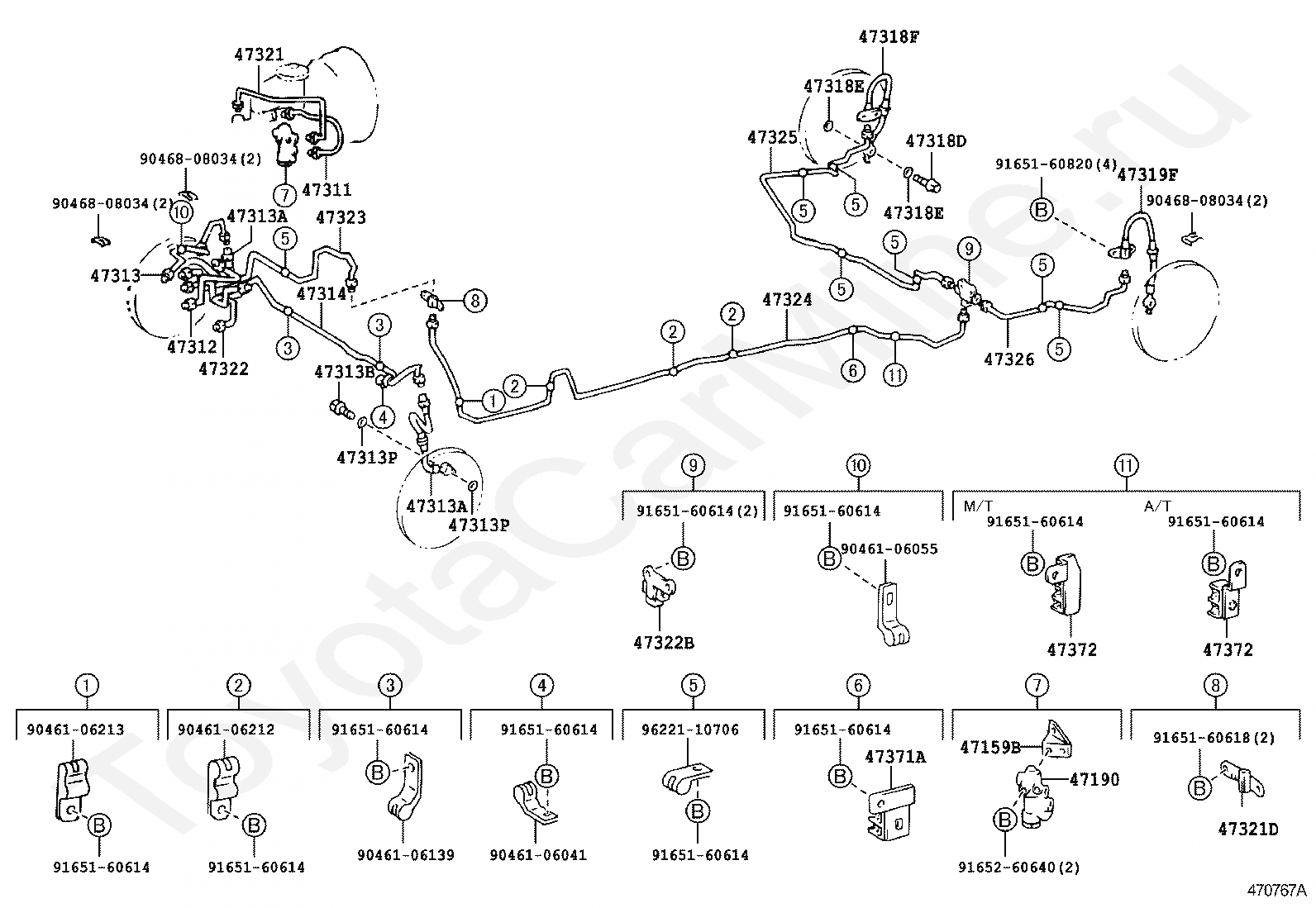

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046106212

Крепеж

9046106213

Крепеж

9046808034

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9165260640

Крепеж

9622110706

Крепеж

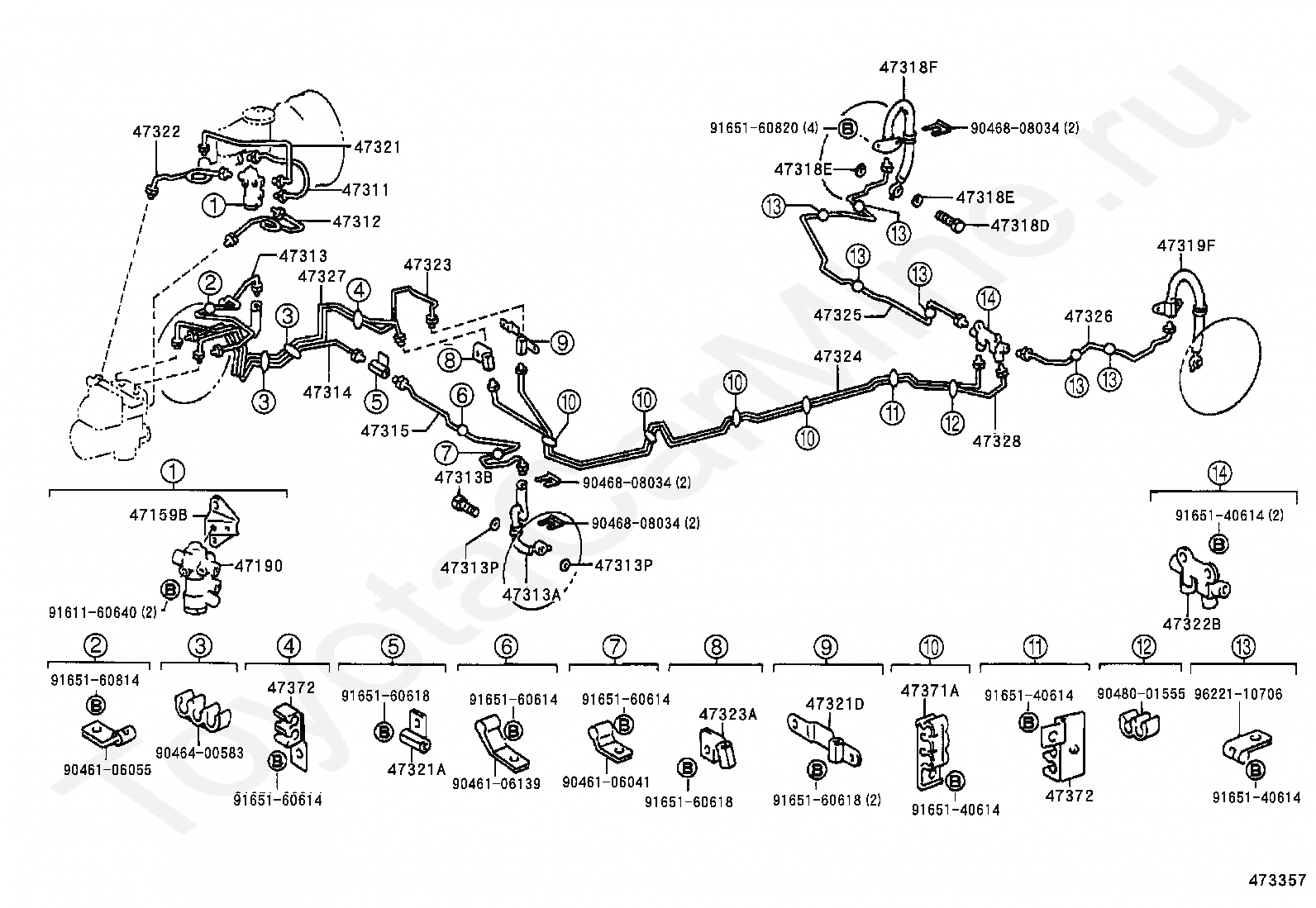

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321A

WAY(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046400583

Крепеж

9046808034

Крепеж

9048001555

Крепеж

9161160640

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160814

Крепеж

9165160820

Крепеж

9622110706

Крепеж

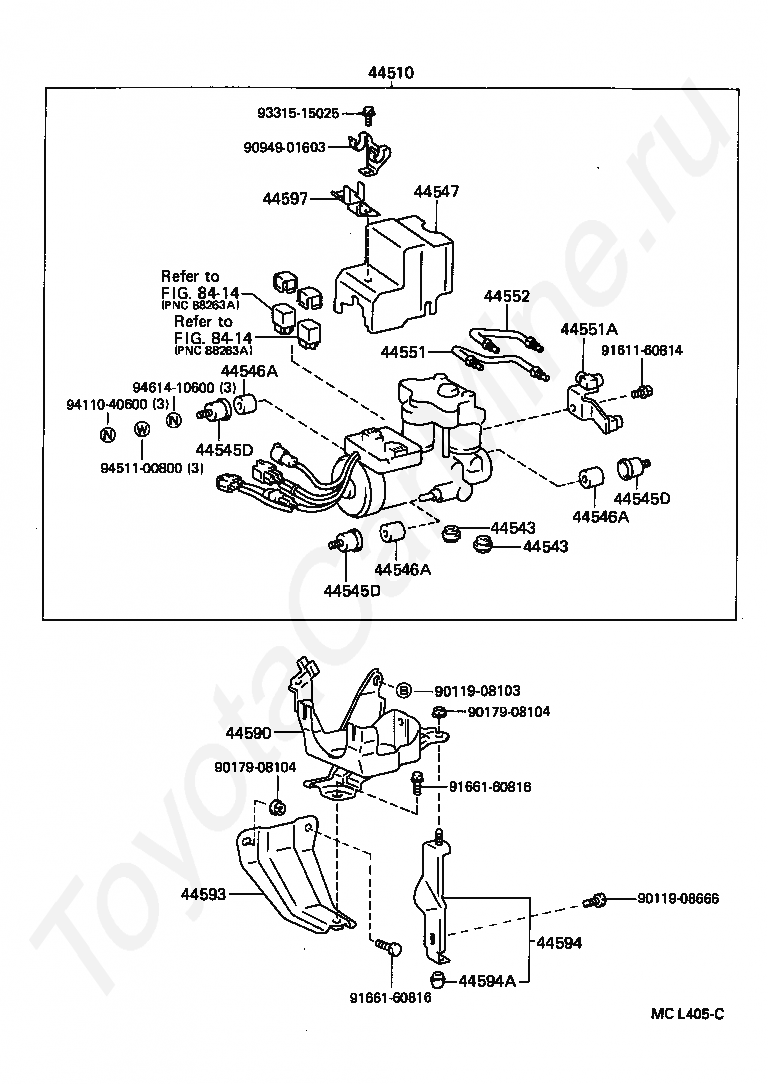

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44552

TUBE, BRAKE ACTUATOR, NO.2

44590

BRACKET ASSY, BRAKE ACTUATOR

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9094901603

Крепеж

9161160814

Крепеж

9166160816

Крепеж

9331515025

Крепеж

9411040600

Крепеж

9451100800

Крепеж

9461410600

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44552

TUBE, BRAKE ACTUATOR, NO.2

44590

BRACKET ASSY, BRAKE ACTUATOR

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9094901603

Крепеж

9161160814

Крепеж

9166160816

Крепеж

9331515025

Крепеж

9411040600

Крепеж

9451100800

Крепеж

9461410600

Крепеж

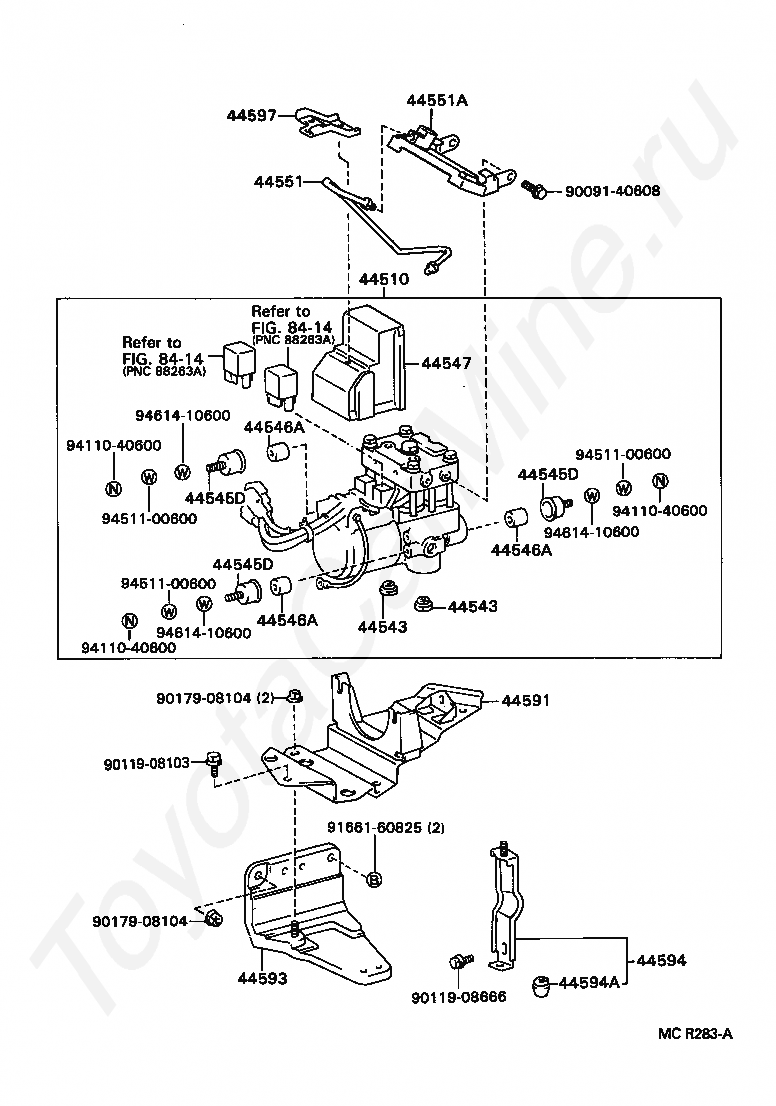

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44591

BRACKET, BRAKE ACTUATOR, NO.1

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9009140608

Крепеж

9011908103

Крепеж

9011908666

Крепеж

9017908104

Крепеж

9166160825

Крепеж

9411040600

Крепеж

9451100600

Крепеж

9461410600

Крепеж

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321A

WAY(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

9046106041

Крепеж

9046106055

Крепеж

9046106139

Крепеж

9046400583

Крепеж

9046808034

Крепеж

9048001276

Крепеж

9048001555

Крепеж

9161160640

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160618

Крепеж

9165160820

Крепеж

9622110706

Крепеж

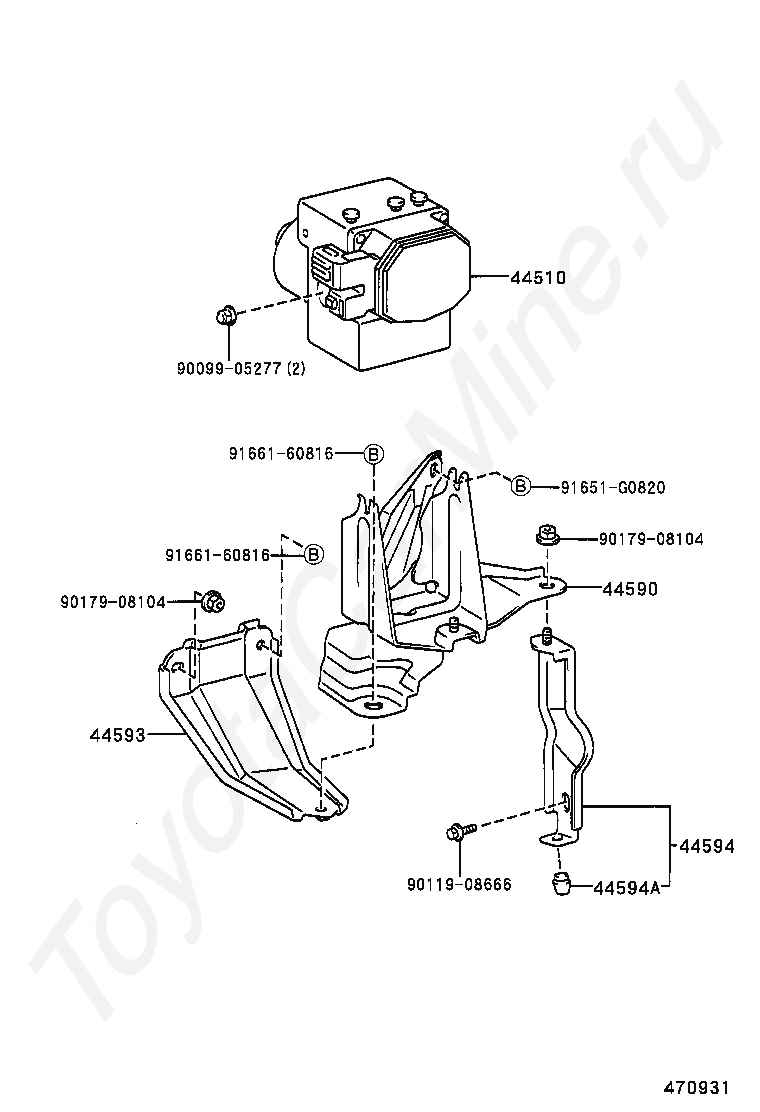

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44590

BRACKET ASSY, BRAKE ACTUATOR

44593

BRACKET, BRAKE ACTUATOR, NO.3

44594

BRACKET, BRAKE ACTUATOR, NO.4

44594A

CUSHION(FOR BRAKE ACTUATOR BRACKET NO.4)

9009905277

Крепеж

9011908666

Крепеж

9017908104

Крепеж

91651G0820

Крепеж

9166160816

Крепеж
