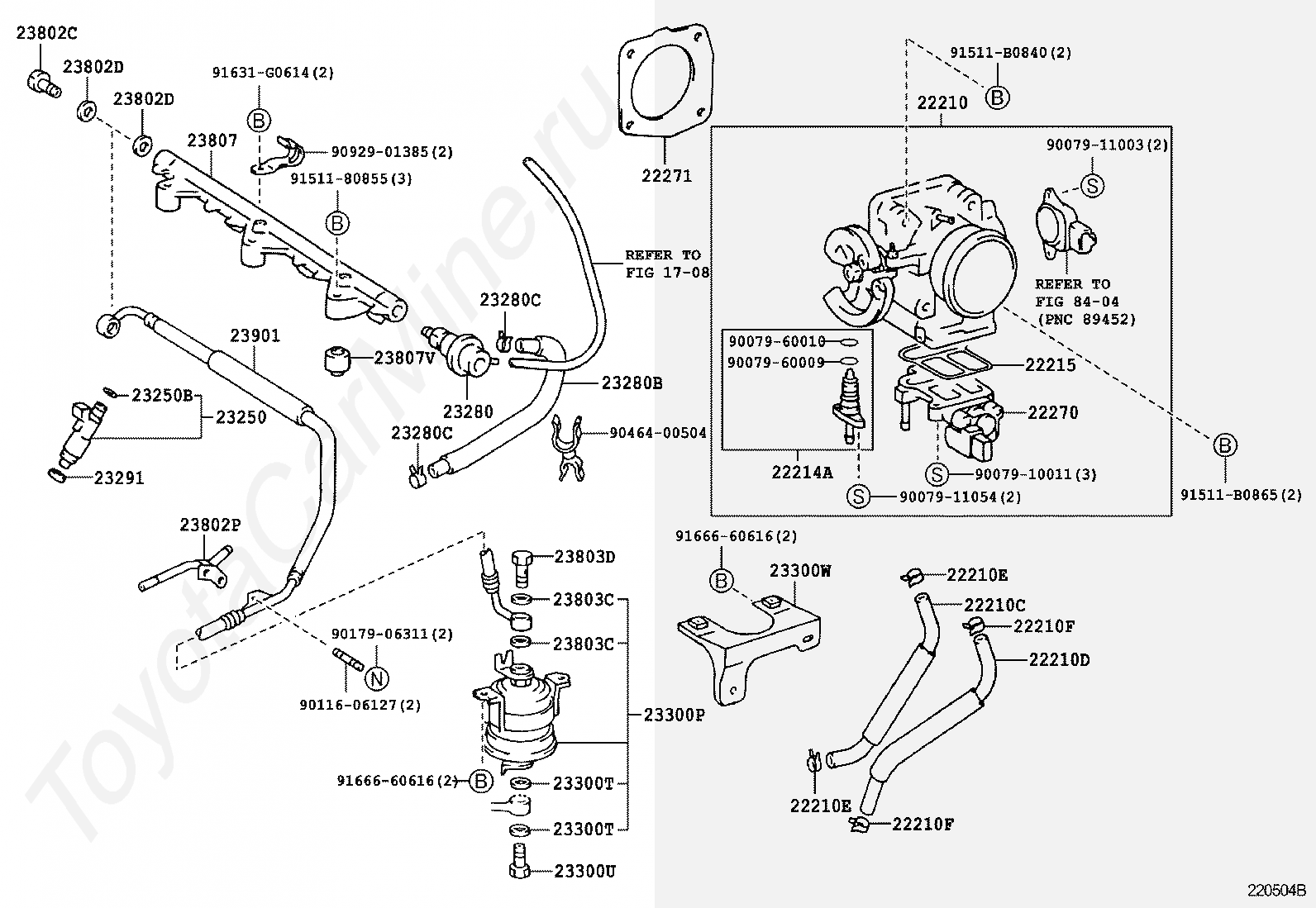

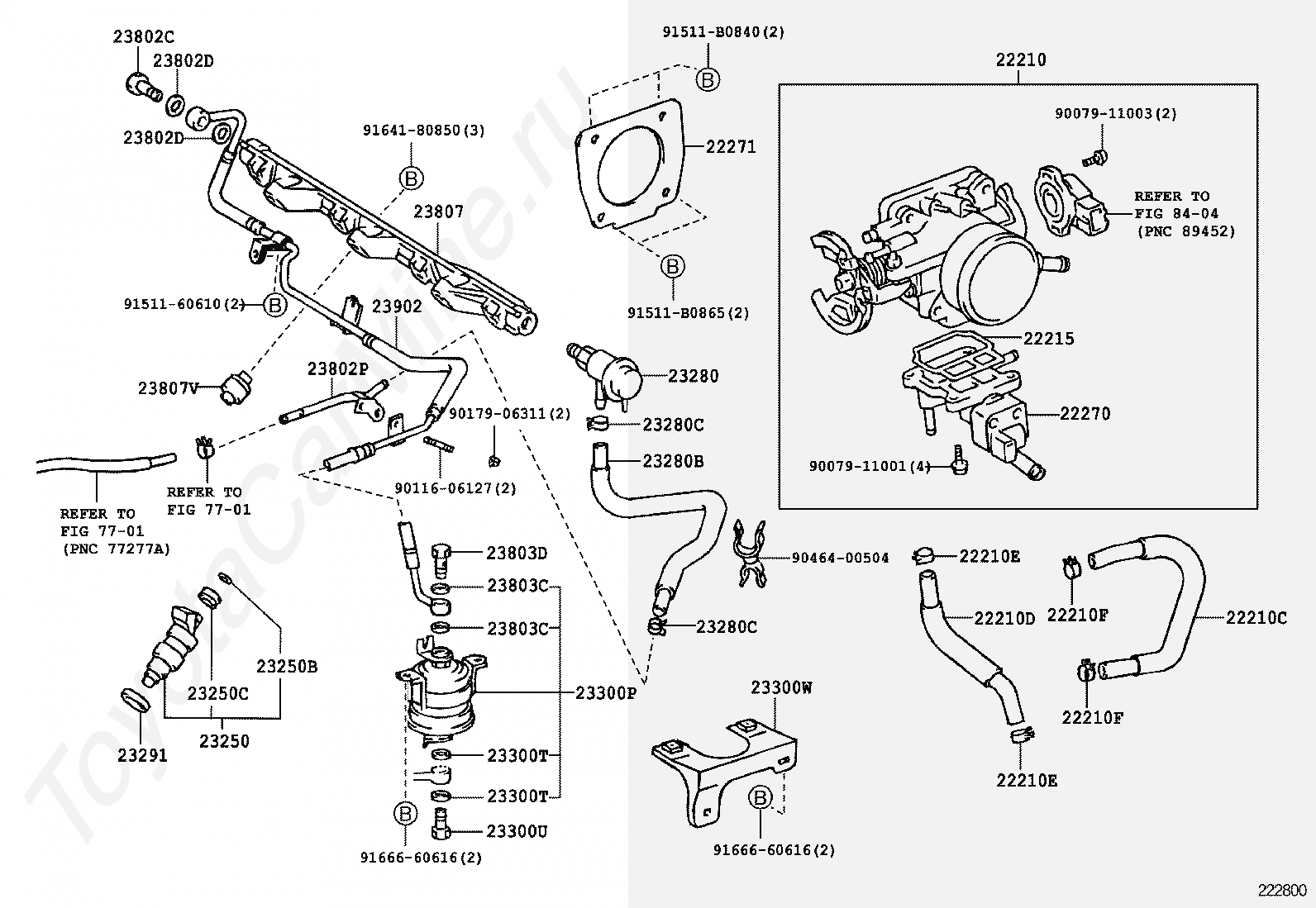

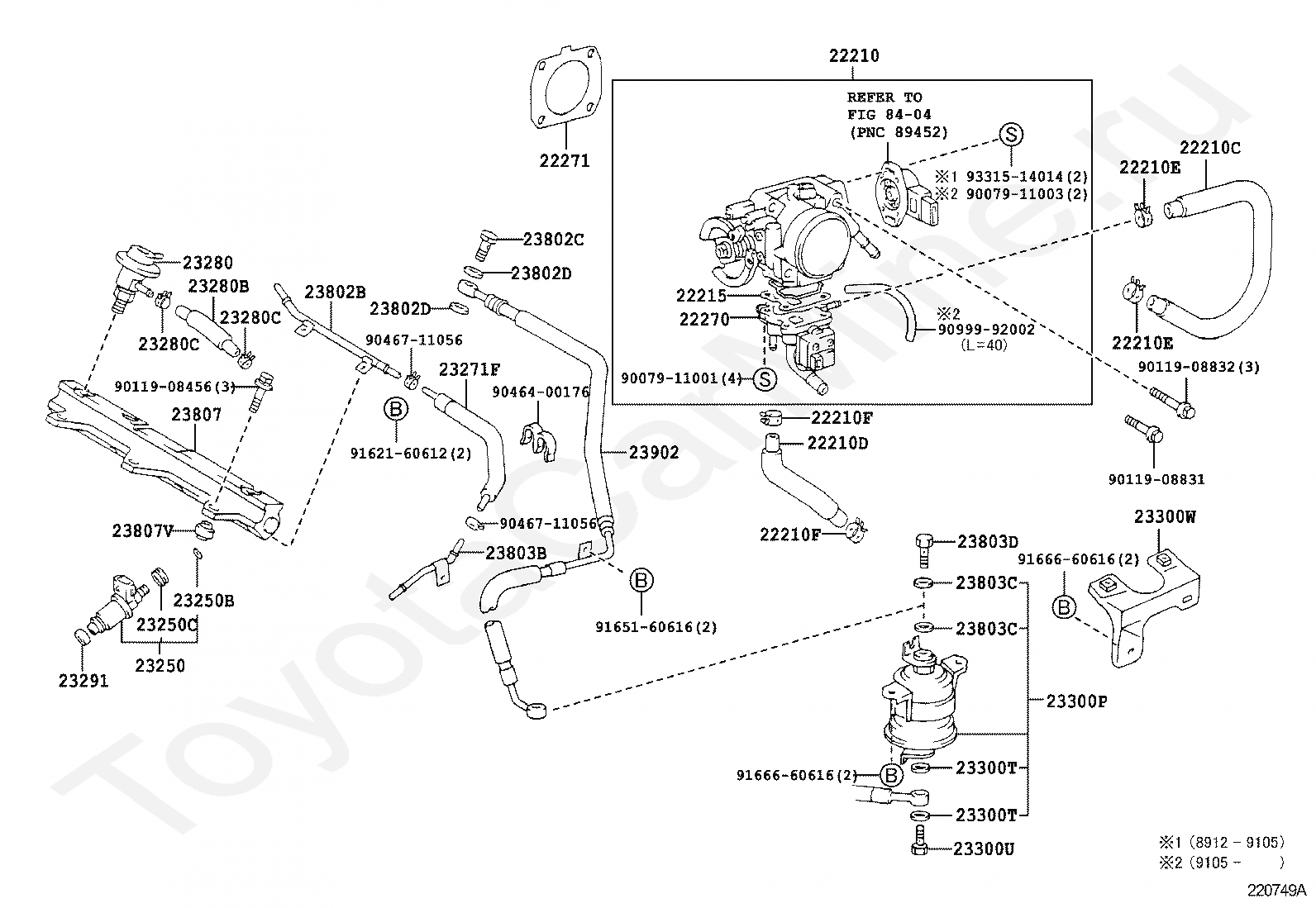

Топливная система TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, купе, GRAMS, SW20, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

MR2

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

купе

Класс

GRAMS

Фрейм

SW20

Трансмиссия

автомат АКПП, 4 ступени

Опции

Код

Описание

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23271F

HOSE, FUEL

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23803B

PIPE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23902

TUBE SUB-ASSY, FUEL

8404

переход к группе запчастей

9007911001

Крепеж

9007911003

Крепеж

9011908456

Крепеж

9011908831

Крепеж

9011908832

Крепеж

9046400176

Крепеж

9046711056

Крепеж

9099992002

Крепеж

9162160612

Крепеж

9165160616

Крепеж

9166660616

Крепеж

9331514014

Крепеж

Код

Описание

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23802P

TUBE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23902

TUBE SUB-ASSY, FUEL

7701

переход к группе запчастей

8404

переход к группе запчастей

9007911001

Крепеж

9007911003

Крепеж

9011606127

Крепеж

9017906311

Крепеж

9046400504

Крепеж

9151160610

Крепеж

91511B0840

Крепеж

91511B0865

Крепеж

9164180850

Крепеж

9166660616

Крепеж

Код

Описание

1708

переход к группе запчастей

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22214A

THERMOSTAT, THROTTLE BODY

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23280

REGULATOR ASSY, FUEL PRESSURE

23280B

HOSE, FUEL PRESSURE REGULATOR RETURN

23280C

CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300W

BRACKET, FUEL FILTER

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23802P

TUBE SUB-ASSY, FUEL, NO.3

23803C

GASKET(NOZZLE LEKAGE PIPE NO.3)

23803D

BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23901

TUBE SUB-ASSY, FUEL

8404

переход к группе запчастей

9007910011

Крепеж

9007911003

Крепеж

9007911054

Крепеж

9007960009

Крепеж

9007960010

Крепеж

9011606127

Крепеж

9017906311

Крепеж

9046400504

Крепеж

9092901385

Крепеж

9151180855

Крепеж

91511B0840

Крепеж

91511B0865

Крепеж

91631G0614

Крепеж

9166660616

Крепеж

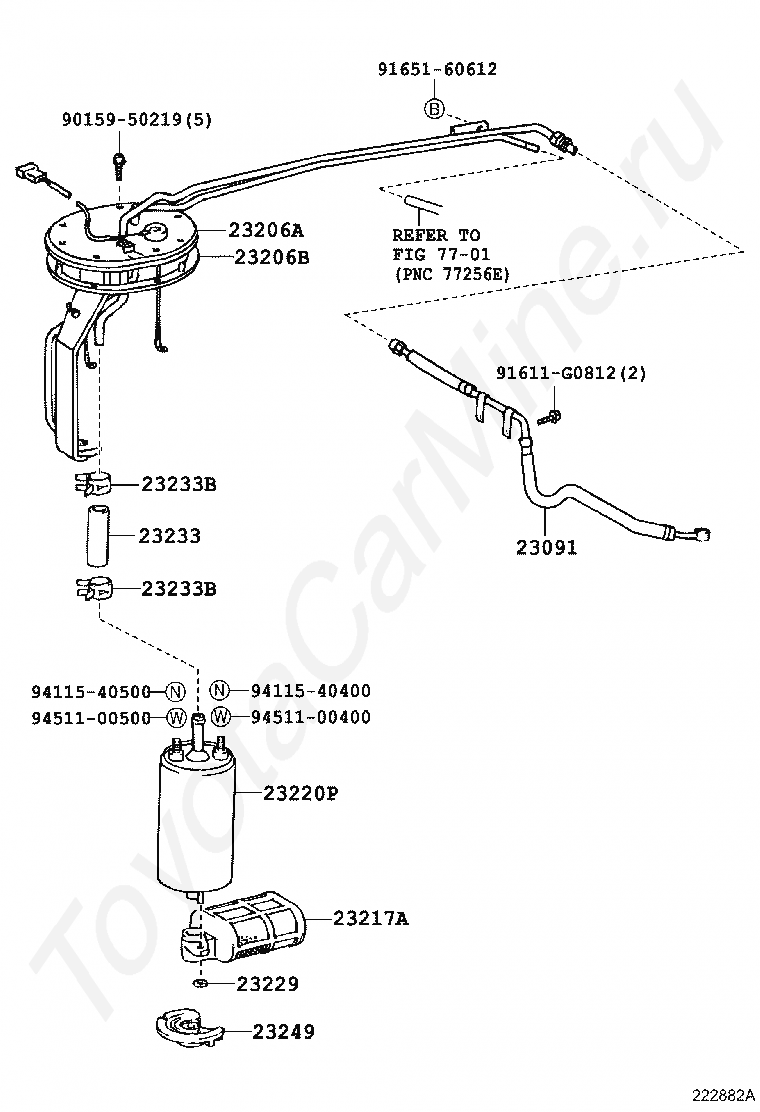

Код

Описание

23091

TUBE SUB-ASSY, FUEL PUMP

23206A

BRACKET, FUEL PUMP

23206B

GASKET, FUEL PUMP BRACKET

23217A

FILTER, FUEL PUMP

23220P

PUMP ASSY, FUEL

23229

CLIP(FOR FUEL PUMP FILTER)

23233

HOSE, FUEL PUMP

23233B

CLIP(FOR FUEL PUMP HOSE)

23249

RUBBER, CUSHION(FOR FUEL PUMP)

7701

переход к группе запчастей

9015950219

Крепеж

91611G0812

Крепеж

9165160612

Крепеж

9411540400

Крепеж

9411540500

Крепеж

9451100400

Крепеж

9451100500

Крепеж

Топливная система TOYOTA MR2, 1989/12 - 1999/08, 2 литра, 16 клапанов, DOHC, EFI, купе, GRAMS, SW20, автомат, АКПП, 4 ступени
