Каталог
Ближний ВостокМодель
MODEL-FДвигатель
2 литраКласс
GL SPECIFICATIONФрейм
YR21Трансмиссия
автомат АКПП, 4 ступениОпции
2 литра левый руль MIDDLE ROOF Европа 8-местный

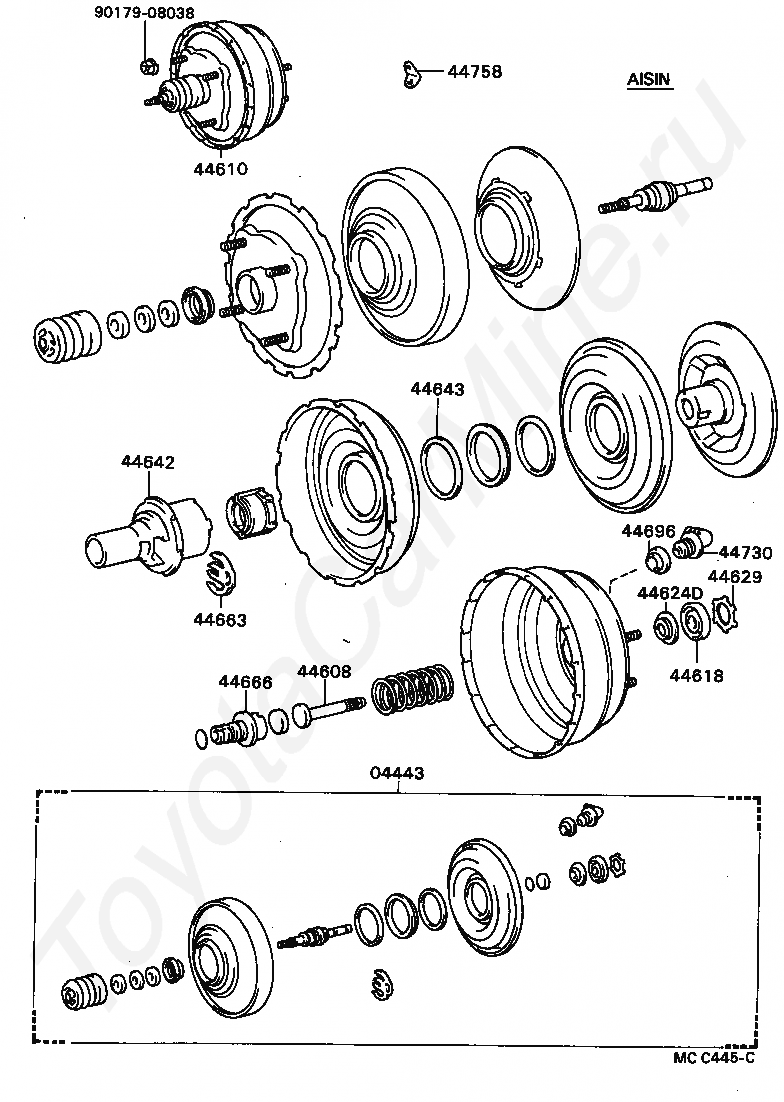

Код
Описание
04443
BOOSTER KIT, BRAKE
44605
PLATE & SEAL SUB-ASSY, BOOSTER
44608
PUSH ROD SUB-ASSY, BOOSTER
44610
BOOSTER ASSY, BRAKE
44633
KEY, BOOSTER VALVE PLUNGER
44637A
PLATE, BOOSTER DIAPHRAGM
44645
RETAINER, BOOSTER PUSH ROD SEAL
44673A
BODY, BOOSTER VALVE
44683B
RETAINER, BOOSTER KEY
44696
GROMMET, CHECK VALVE
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44758
BRACKET, VACUUM CHECK VALVE
9017908038
Крепеж
Код
Описание
04443
BOOSTER KIT, BRAKE
44608
PUSH ROD SUB-ASSY, BOOSTER
44609D
PLATE & RETAINER SUB-ASSY, BOOSTER
44610
BOOSTER ASSY, BRAKE
44624J
PLATE, BOOSTER CENTER
44628A
BODY, BOOSTER CENTER
44632B
HUB, BOOSTER REACTION DISK
44633
KEY, BOOSTER VALVE PLUNGER
44637A
PLATE, BOOSTER DIAPHRAGM
44651B
NUT, BOOSTER
44673A
BODY, BOOSTER VALVE
44696
GROMMET, CHECK VALVE
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44758
BRACKET, VACUUM CHECK VALVE
9017908038
Крепеж
Код
Описание
04443
BOOSTER KIT, BRAKE
44608
PUSH ROD SUB-ASSY, BOOSTER
44610
BOOSTER ASSY, BRAKE
44618
SEAL, BOOSTER BODY
44624D
RETAINER, BOOSTER SEAL
44629
RING, CIRCULAR INTERNAL
44642
PISTON, BRAKE BOOSTER
44643
RETAINER, DIAPHRAGM
44663
KEY, VALVE STOPPER
44666
CASE, REACTION DISC
44696
GROMMET, CHECK VALVE
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44758
BRACKET, VACUUM CHECK VALVE
9017908038
Крепеж
Код
Описание
44729
GASKET, VACUUM TUBE
44730F
UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44761
TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764
TUBE, BOOSTER VACUUM
44771
HOSE, VACUUM TUBE CONNECTOR
44771A
CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44774
HOSE, UNION TO CONNECTOR TUBE
44774C
CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44778
HOSE, CONNECTOR TO CHECK VALVE
44778A
CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
9046108058
Крепеж
9046110221
Крепеж
9161140814
Крепеж
9165140820
Крепеж
Код
Описание
44729
GASKET, VACUUM TUBE
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730F
UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44758
BRACKET, VACUUM CHECK VALVE
44761
TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764
TUBE, BOOSTER VACUUM
44771
HOSE, VACUUM TUBE CONNECTOR
44771A
CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44772
HOSE, CHECK VALVE TO CONNECTOR TUBE
44772A
CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44773F
HOSE, UNION TO CHECK VALVE
44773G
CLIP(FOR UNION TO CHECK VALVE HOSE)
44774
HOSE, UNION TO CONNECTOR TUBE
44774C
CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44778
HOSE, CONNECTOR TO CHECK VALVE
44778A
CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
9046108058
Крепеж
9046110726
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140814
Крепеж
9165140820
Крепеж
