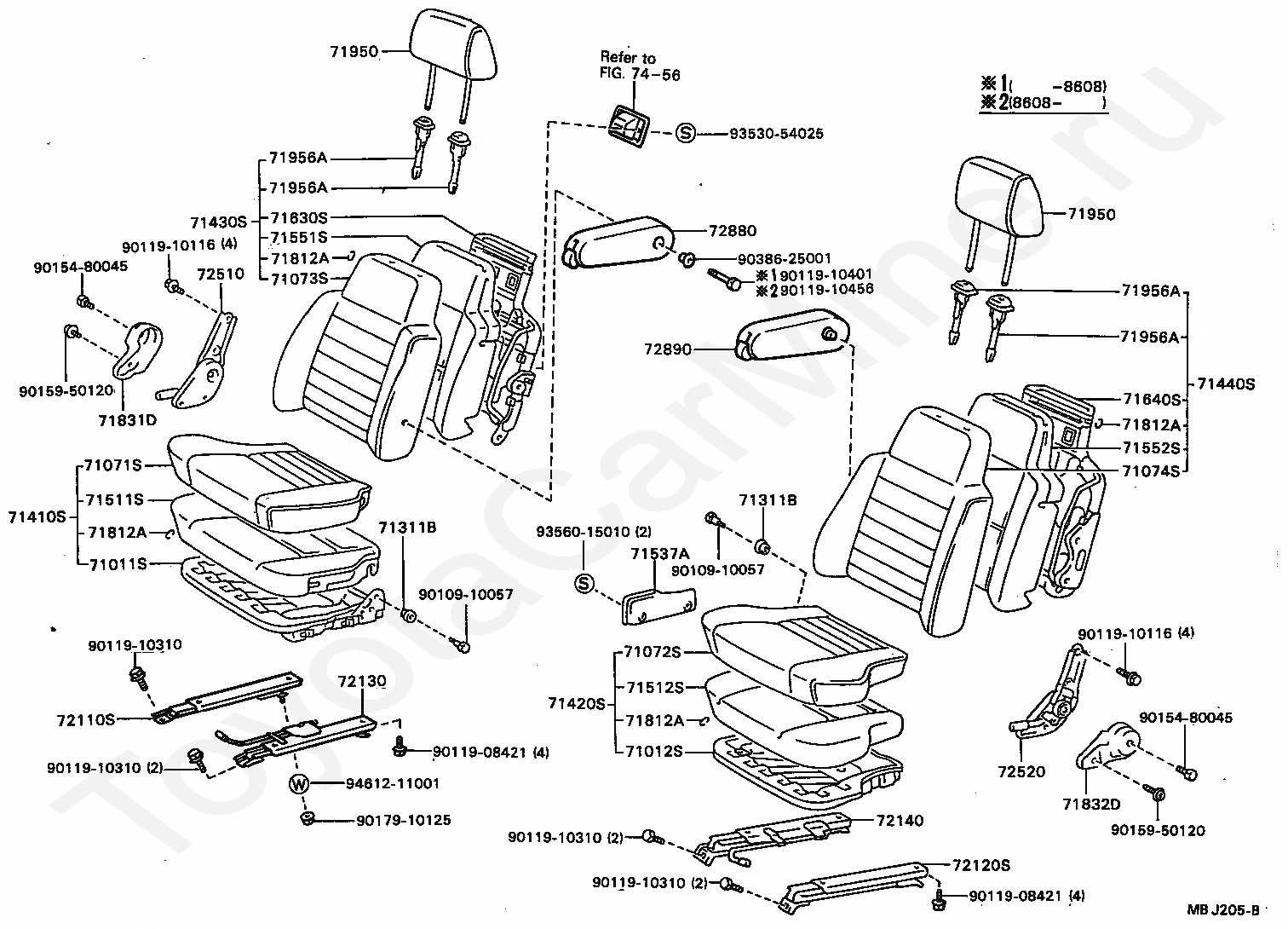

Кресла TOYOTA MODEL-F, 1986/08 - 1988/08, 2,2 литра, EFI, GL SPECIFICATION, YR31, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

MODEL-F

Двигатель

2,2 литра, EFI

Класс

GL SPECIFICATION

Фрейм

YR31

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль MIDDLE ROOF Европа 8-местный

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72140

TRACK ASSY, LH SEAT, INNER

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

7456

переход к группе запчастей

9010910057

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910401

Крепеж

9011910456

Крепеж

9015480045

Крепеж

9015950120

Крепеж

9017910125

Крепеж

9038625001

Крепеж

9353054025

Крепеж

9356015010

Крепеж

9461211001

Крепеж

Код

Описание

5852

переход к группе запчастей

62551D

GARNISH, REAR SEAT SIDE, RH

62556A

CAP, REAR SEAT SIDE GARNISH

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

71047

LOCK SUB-ASSY, REAR SEAT LEG

71246A

PLATE, REAR SEAT CUSHION SET

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71611B

PAD, REAR NO.1 SEAT CUSHION

71632A

COVER, REAR SEAT, OUTER

71651

PAD, REAR NO.1 SEAT BACK

71667B

PAD, REAR SEAT BACK, CENTER B

71683

PAD, REAR SEAT BACK CORNER, C

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72160B

TRACK ASSY, REAR NO.1 SEAT, RH

72170B

TRACK ASSY, REAR NO.1 SEAT, LH

72180A

TRACK ASSY, REAR NO.2 SEAT, RH

72190A

TRACK ASSY, REAR NO.2 SEAT, LH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72571

CABLE, LOCKING LEVER NO.1

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

79160

SPRING ASSY, NO.1 SEAT CUSHION

79180

SPRING ASSY, NO.1 SEAT BACK

9010508055

Крепеж

9011908421

Крепеж

9011910111

Крепеж

9011910282

Крепеж

9011910431

Крепеж

9015480002

Крепеж

9015480006

Крепеж

9015940119

Крепеж

9017910125

Крепеж

9054106022

Крепеж

9095006021

Крепеж

9165560825

Крепеж

9326955008

Крепеж

9356015016

Крепеж

Код

Описание

62551D

GARNISH, REAR SEAT SIDE, RH

62552D

GARNISH, REAR SEAT SIDE, LH

62553A

GARNISH, REAR SEAT SIDE, NO.2 RH

62554A

GARNISH, REAR SEAT SIDE, NO.2 LH

62555A

KNOB, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71611B

PAD, REAR NO.1 SEAT CUSHION

71632A

COVER, REAR SEAT, OUTER

71651

PAD, REAR NO.1 SEAT BACK

71683

PAD, REAR SEAT BACK CORNER, C

71684A

PAD, REAR SEAT BACK CORNER, D

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72553A

PROTECTOR, RECLINING COVER, RH

72554A

PROTECTOR, RECLINING COVER, LH

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72810A

ARMREST ASSY, SEAT, RH

72820A

ARMREST ASSY, SEAT, LH

72960

TABLE ASSY, REAR SEAT TURN

72969

KNOB, REAR SEAT TURN LOCK

72995

COVER, REAR SEAT CUSHION, RH

72998

COVER, REAR SEAT CUSHION, LH

79160

SPRING ASSY, NO.1 SEAT CUSHION

79180

SPRING ASSY, NO.1 SEAT BACK

9004159130

Крепеж

9011910055

Крепеж

9011910111

Крепеж

9011910428

Крепеж

9011910431

Крепеж

9015480006

Крепеж

9015940119

Крепеж

9017910178

Крепеж

9038614007

Крепеж

9050610031

Крепеж

9326955008

Крепеж

9356055010

Крепеж

9454201400

Крепеж

9461211400

Крепеж

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71324A

CUSHION, REAR SEAT

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

71629

COVER, REAR SEAT CUSHION HINGE

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71857

COVER, RECLINING HINGE, RH

71858

COVER, RECLINING HINGE, LH

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658

KNOB, REAR SEAT HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72691

STRIKER, REAR NO.3 SEAT LOCK

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79232

LEG, REAR NO.2 SEAT, RH

79242

LEG, REAR NO.2 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9010908095

Крепеж

9011910111

Крепеж

9011910157

Крепеж

9011910392

Крепеж

9011911011

Крепеж

9015480006

Крепеж

9015940118

Крепеж

9015960280

Крепеж

9016450020

Крепеж

9020612035

Крепеж

9024908155

Крепеж

9038612005

Крепеж

9050626018

Крепеж

9052306017

Крепеж

9165161025

Крепеж

9321046020

Крепеж

9356055016

Крепеж

9616000800

Крепеж

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71324A

CUSHION, REAR SEAT

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

71629

COVER, REAR SEAT CUSHION HINGE

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71857

COVER, RECLINING HINGE, RH

71858

COVER, RECLINING HINGE, LH

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658

KNOB, REAR SEAT HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72691

STRIKER, REAR NO.3 SEAT LOCK

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

72810A

ARMREST ASSY, SEAT, RH

72820A

ARMREST ASSY, SEAT, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79232

LEG, REAR NO.2 SEAT, RH

79242

LEG, REAR NO.2 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9010908095

Крепеж

9010910055

Крепеж

9011910111

Крепеж

9011910157

Крепеж

9011910392

Крепеж

9011911011

Крепеж

9015480006

Крепеж

9015940118

Крепеж

9015960280

Крепеж

9016450020

Крепеж

9020612035

Крепеж

9024908155

Крепеж

9038612005

Крепеж

9038614007

Крепеж

9050626018

Крепеж

9052306017

Крепеж

9165161025

Крепеж

9321046020

Крепеж

9356055016

Крепеж

9454201400

Крепеж

9461211400

Крепеж

9616000800

Крепеж
