Каталог
ЯпонияМодель
MIRAIДвигатель
электромоторКузов
седанКласс
Z TYPEФрейм
JPD20Опции
4 двери 766W
Код
Описание

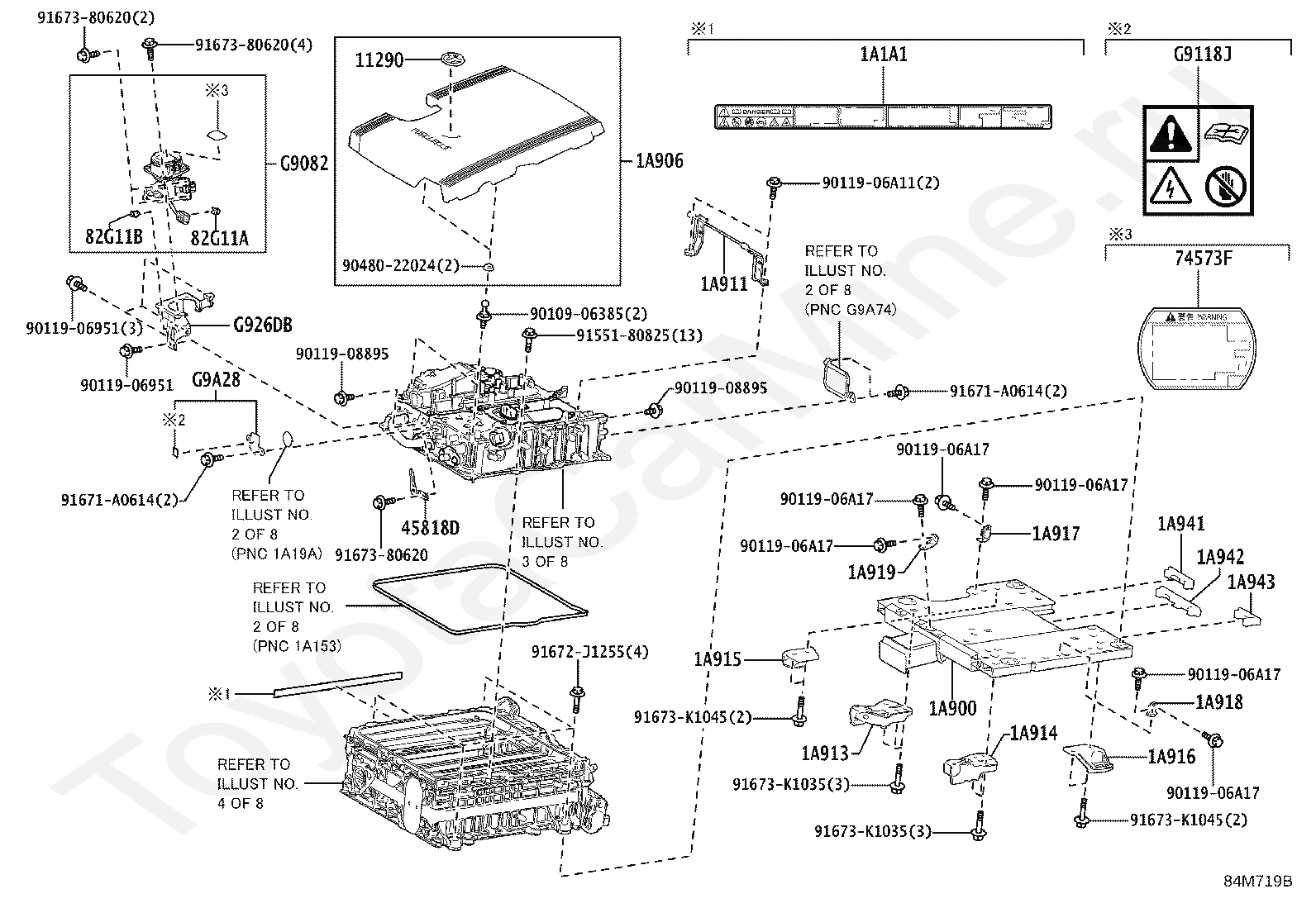

11290
PLATE ASSY, FC STACK NAME
1A1A1
LABEL, FC STACK CAUTION, NO.1
1A900
FRAME ASSY, FC STACK
1A906
COVER SUB-ASSY, FC STACK
1A911
BRACKET, FC STACK COVER
1A913
BRACKET, FC MOUNTING, FRONT RH
1A914
BRACKET, FC MOUNTING, FRONT LH
1A915
BRACKET, FC MOUNTING, REAR RH
1A916
BRACKET, FC MOUNTING, REAR LH
1A917
BRACKET, FC STACK FRAME SUPPORT, RH
1A918
BRACKET, FC STACK FRAME SUPPORT, LH
1A919
BRACKET, FC STACK FRAME SUPPORT, FRONT
1A941
COVER, FC STACK FRAME, NO.1
1A942
COVER, FC STACK FRAME, NO.2
1A943
COVER, FC STACK FRAME, NO.3
45818D
BRACKET, CONNECTOR
74573F
LABEL, EV BATTERY CAUTION
82G11A
CLAMP, WIRING HARNESS, NO.1
82G11B
CLAMP, WIRING HARNESS, NO.2
9010906385
Крепеж
9011906951
Крепеж
9011906A11
Крепеж
9011906A17
Крепеж
9011908895
Крепеж
9048022024
Крепеж
9155180825
Крепеж
91671A0614
Крепеж
91672J1255
Крепеж
9167380620
Крепеж
91673K1035
Крепеж
91673K1045
Крепеж
G9082
CABLE, DC EV POWER SUPPLY
G9118J
LABEL, UNIT CONTROLLER CAUTION, NO.1
G926DB
BRACKET, EV CHARGE CONNECTOR
G9A28
COVER, FC CONVERTER SERVICE HOLE, FRONT
Код
Описание

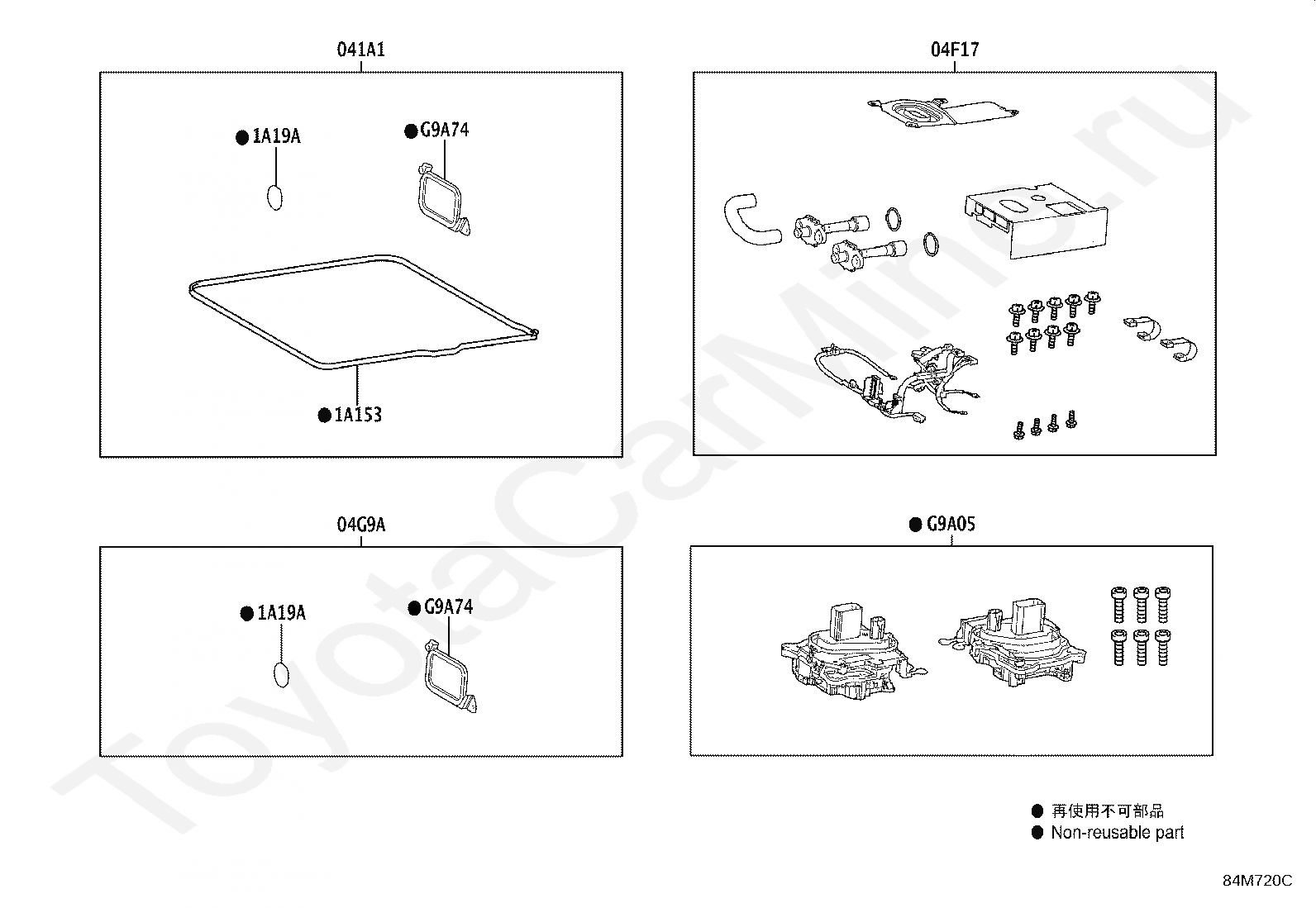

041A1
STACK KIT, FC
04F17
TRANSISTOR KIT, FC CONVERTER POWER MODULE
04G9A
CONVERTER KIT, FC
1A153
GASKET, FC STACK CASE, UPPER
1A19A
PLUG, FC STACK CASE, NO.1
G9A05
INVERTER SET, FC WATER & HYDROGEN PUMP
G9A74
COVER, FC CONVERTER VENT
Код
Описание

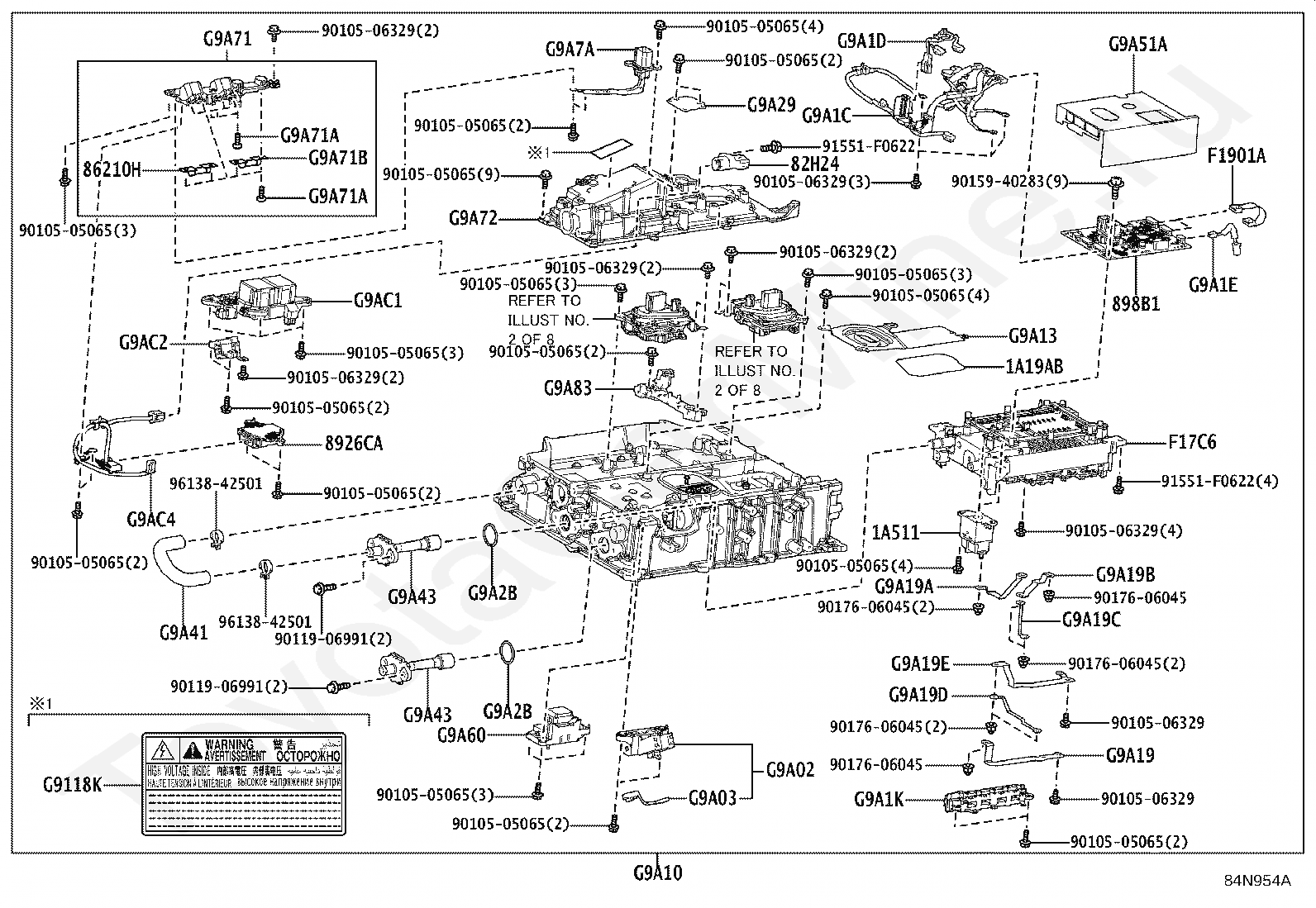

1A19AB
PLUG, FC STACK CASE, NO.3
1A511
RELAY, FC STACK MAIN
82H24
CONNECTOR, WIRING HARNESS
86210H
FUSE, HIGH VOLTAGE
8926CA
SENSOR, DC VOLTAGE
898B1
COMPUTER, FC DC CONVERTER CONTROL
9010505065
Крепеж
9010506329
Крепеж
9011906991
Крепеж
9015940283
Крепеж
9017606045
Крепеж
91551F0622
Крепеж
9613842501
Крепеж
F17C6
TRANSISTOR, FC CONVERTER POWER MODULE
F1901A
WIRE SUB-ASSY, COMPUTER
G9118K
LABEL, UNIT CONTROLLER CAUTION, NO.2
G9A02
TERMINAL SUB-ASSY, FC CONVERTER POWER OUTLET
G9A03
WIRE SUB-ASSY, FC CONVERTER POWER OUTLET
G9A10
CONVERTER ASSY, FC
G9A13
COVER, FC CONVERTER SIGNAL CONNECTOR
G9A19
PLATE, FC CONVERTER BUS-BAR, NO.1
G9A19A
PLATE, FC CONVERTER BUS-BAR, NO.2
G9A19B
PLATE, FC CONVERTER BUS-BAR, NO.3
G9A19C
PLATE, FC CONVERTER BUS-BAR, NO.4
G9A19D
PLATE, FC CONVERTER BUS-BAR, NO.5
G9A19E
PLATE, FC CONVERTER BUS-BAR, NO.6
G9A1C
WIRE, FC CONVERTER, NO.1
G9A1D
WIRE, FC CONVERTER, NO.2
G9A1E
WIRE, FC CONVERTER, NO.3
G9A1K
SENSOR, FC CONVERTER CURRENT
G9A29
COVER, FC CONVERTER SERVICE HOLE, REAR
G9A2B
GASKET, FC CONVERTER, REAR
G9A41
HOSE, FC CONVERTER COOLING
G9A43
PIPE, FC CONVERTER COOLING
G9A51A
SHEET, FC CONVERTER, NO.2
G9A60
JUNCTION ASSY, FC PRECHARGE
G9A71
TERMINAL, FC INVERTER INPUT
G9A71A
TERMINAL, FEMALE
G9A71B
FUSE, HIGH VOLTAGE
G9A72
COVER, FC INVERTER INPUT JUNCTION
G9A7A
CABLE, AIR CONDITIONER COMPRESSOR
G9A83
TERMINAL, FC WATER & HYDROGEN PUMP INVERTER
G9AC1
BLOCK, FC EXTERNAL POWER SUPPLY JUNCTION
G9AC2
TERMINAL, FC EXTERNAL POWER SUPPLY
G9AC4
WIRE, FC EXTERNAL POWER SUPPLY
Код
Описание

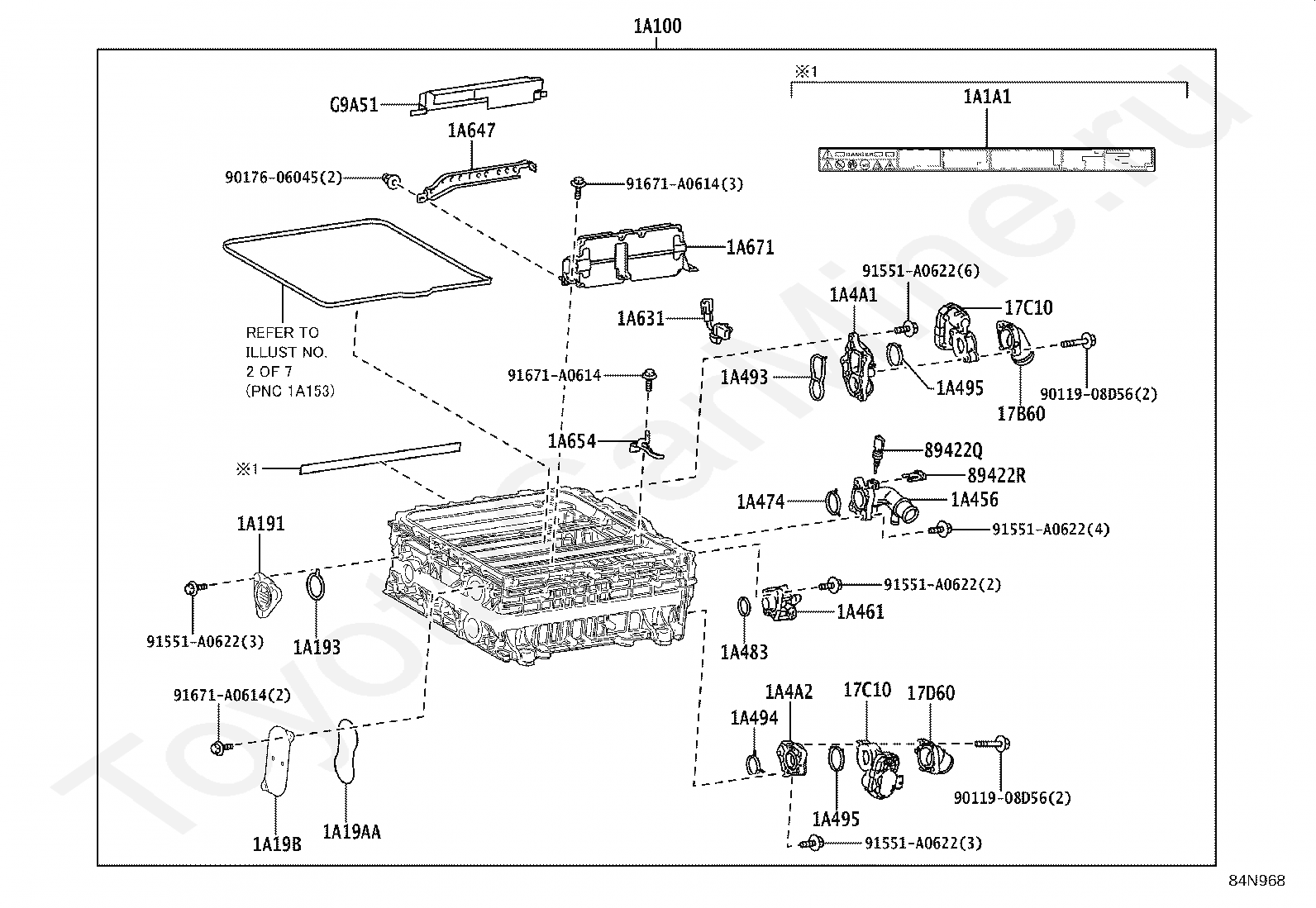

17B60
PIPE ASSY, FC STACK AIR INLET
17C10
REGULATOR ASSY, FC AIR PRESSURE
17D60
PIPE ASSY, FC STACK AIR OUTLET
1A100
STACK ASSY, FC
1A191
COVER, FC STACK VENTILATION
1A193
GASKET, FC STACK VENTILATION
1A19AA
PLUG, FC STACK CASE, NO.2
1A19B
COVER, FC STACK CASE PLUG
1A1A1
LABEL, FC STACK CAUTION, NO.1
1A456
OUTLET, FC STACK WATER
1A461
INLET, FC STACK HYDROGEN
1A474
GASKET, FC STACK WATER OUTLET, NO.2
1A483
GASKET, FC STACK HYDROGEN INLET, NO.2
1A493
GASKET, FC STACK AIR INLET, NO.2
1A494
GASKET, FC STACK AIR OUTLET, NO.2
1A495
GASKET, FC STACK AIR, NO.5
1A4A1
INLET, FC STACK AIR AND WATER
1A4A2
OUTLET, FC STACK AIR
1A631
WIRE, FC STACK MONITOR
1A647
PROTECTOR, FC STACK WIRING HARNESS
1A654
BRACKET, FC STACK MONITOR WIRE
1A671
SENSOR, FC STACK VOLTAGE
89422Q
SENSOR, WATER TEMPERATURE
89422R
CLIP, WATER TEMPERATURE SENSOR
9011908D56
Крепеж
9017606045
Крепеж
91551A0622
Крепеж
91671A0614
Крепеж
G9A51
SHEET, FC CONVERTER
Код
Описание

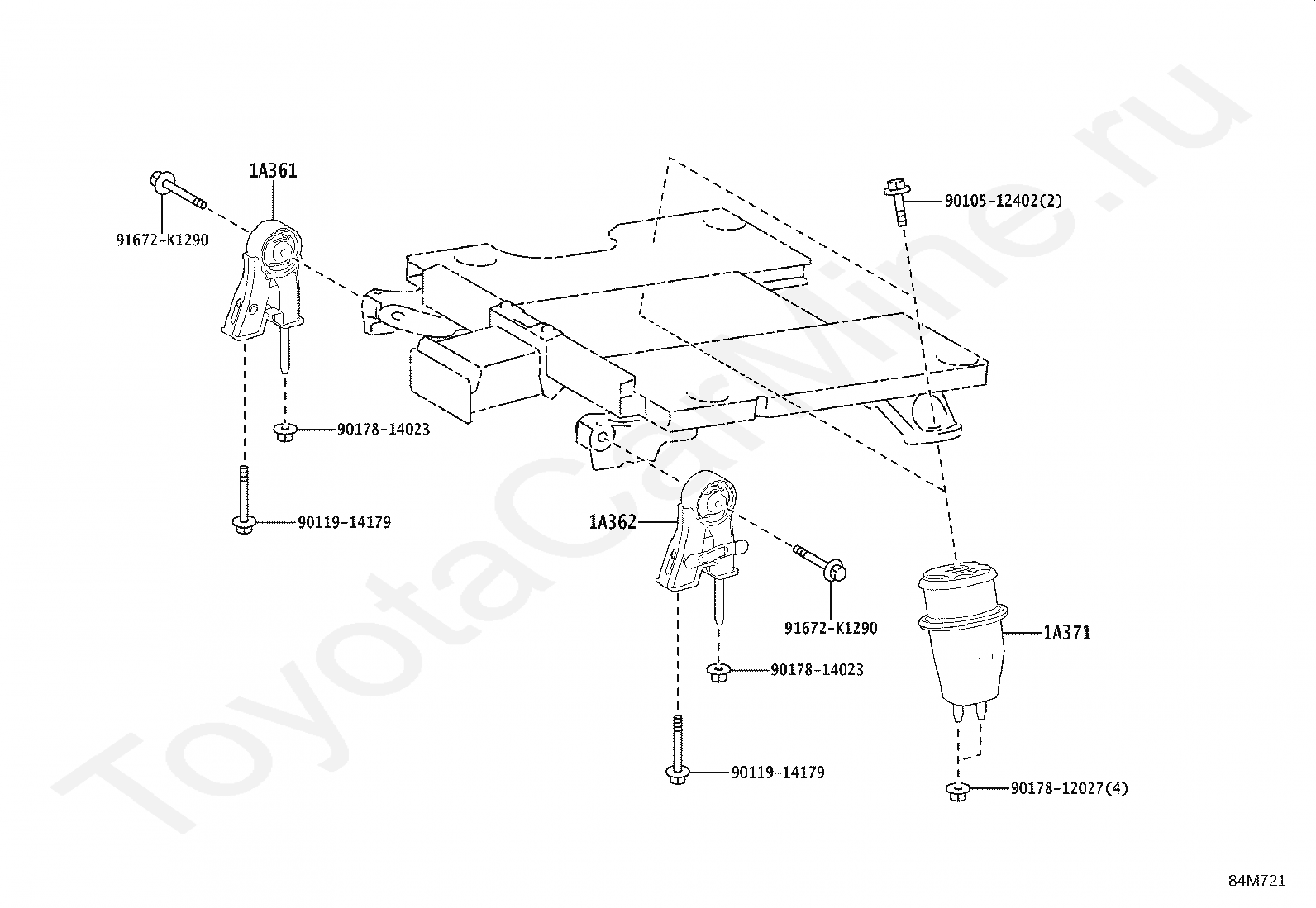

1A361
INSULATOR, FC MOUNTING, FRONT RH
1A362
INSULATOR, FC MOUNTING, FRONT LH
1A371
INSULATOR, FC MOUNTING, REAR
9010512402
Крепеж
9011914179
Крепеж
9017812027
Крепеж
9017814023
Крепеж
91672K1290
Крепеж
Код
Описание

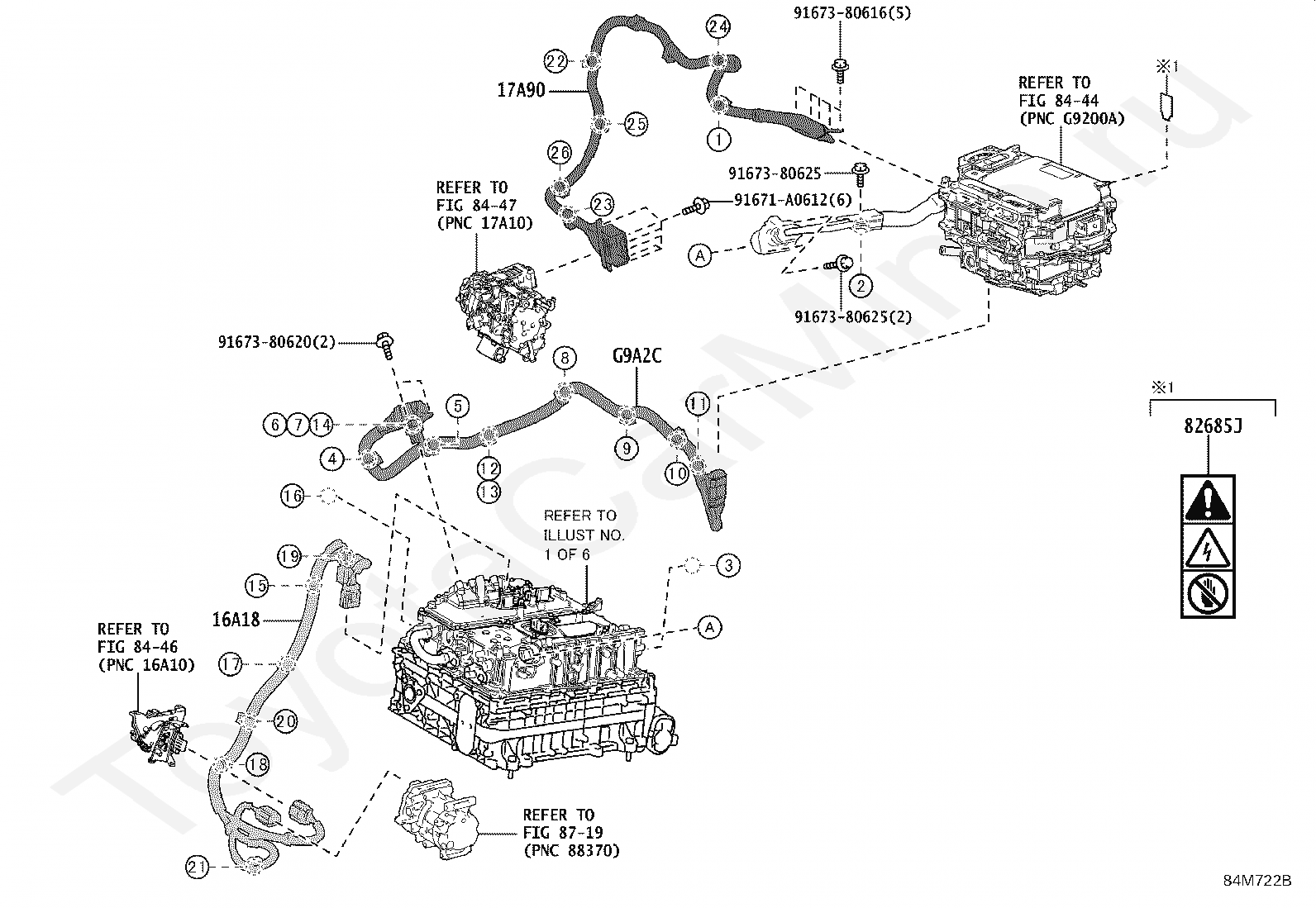

16A18
CABLE, FC COOLING WATER PUMP
17A90
CABLE ASSY, FC AIR COMPRESSOR MOTOR
82685J
PLATE, CAUTION
8444
переход к группе запчастей
8446
переход к группе запчастей
8447
переход к группе запчастей
8719
переход к группе запчастей
91671A0612
Крепеж
9167380616
Крепеж
9167380620
Крепеж
9167380625
Крепеж
G9A2C
CABLE, FC JUNCTION
Код
Описание

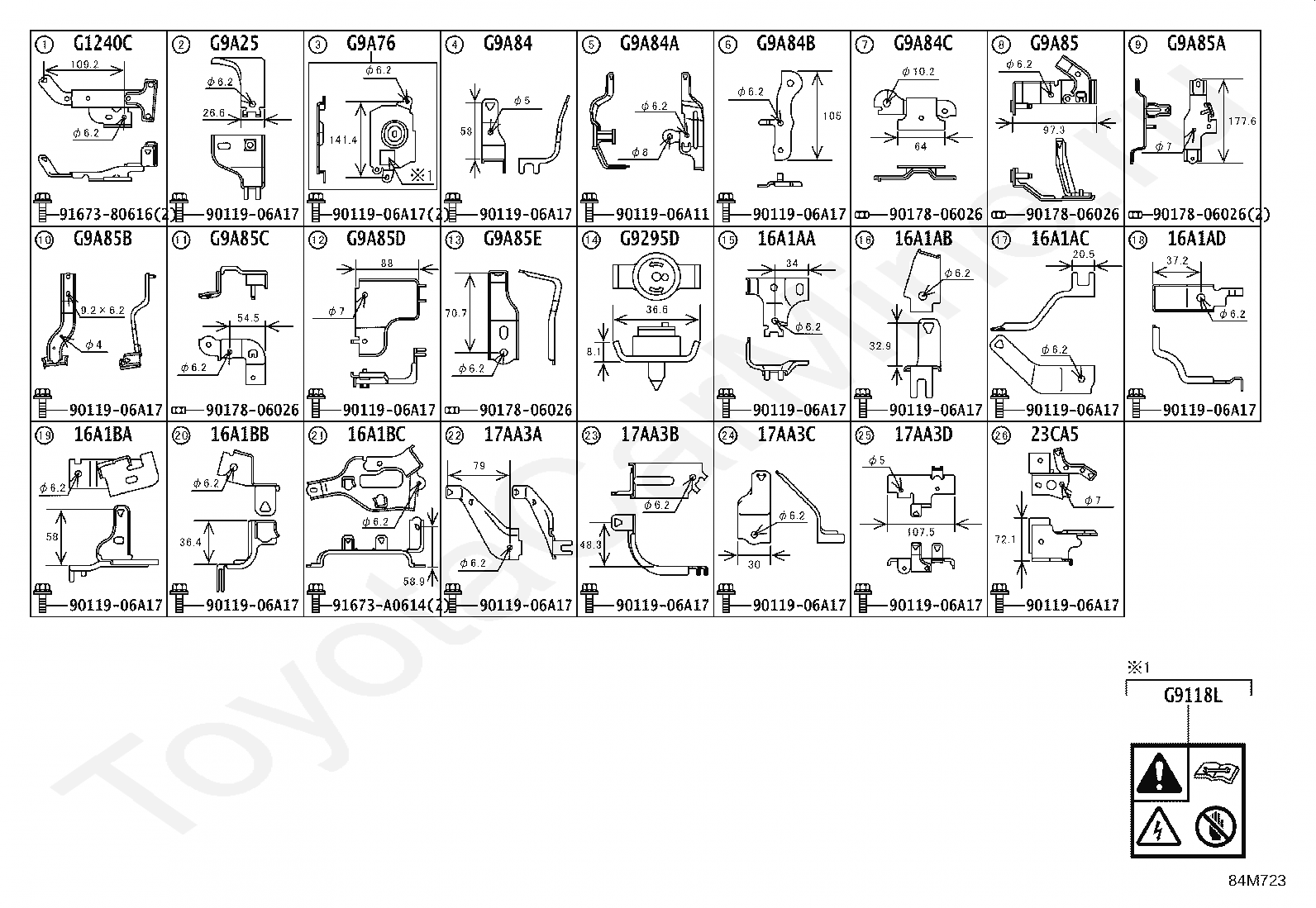

16A1AA
BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.1
16A1AB
BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.2
16A1AC
BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.3
16A1AD
BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.4
16A1BA
BRACKET, FC COOLING WATER PUMP CABLE, NO.1
16A1BB
BRACKET, FC COOLING WATER PUMP CABLE, NO.2
16A1BC
BRACKET, FC COOLING WATER PUMP CABLE, NO.3
17AA3A
BRACKET, FC AIR COMPRESSOR CABLE, NO.1
17AA3B
BRACKET, FC AIR COMPRESSOR CABLE, NO.2
17AA3C
BRACKET, FC AIR COMPRESSOR CABLE, NO.3
17AA3D
BRACKET, FC AIR COMPRESSOR CABLE, NO.4
23CA5
BRACKET, HYDROGEN PUMP CABLE
9011906A11
Крепеж
9011906A17
Крепеж
9017806026
Крепеж
9167380616
Крепеж
91673A0614
Крепеж
G1240C
BRACKET ASSY, INVERTER MOTOR CABLE
G9118L
LABEL, UNIT CONTROLLER CAUTION, NO.3
G9295D
STRIKER, BATTERY COVER LOCK
G9A25
BRACKET, FC CONVERTER POWER OUTLET
G9A76
PLATE, FC CONVERTER SUPPORT
G9A84
BRACKET, FC JUNCTION CABLE, NO.1
G9A84A
BRACKET, FC JUNCTION CABLE, NO.2
G9A84B
BRACKET, FC JUNCTION CABLE, NO.3
G9A84C
BRACKET, FC JUNCTION CABLE, NO.4
G9A85
BRACKET, FC JUNCTION CABLE RH STEERING, NO.1
G9A85A
BRACKET, FC JUNCTION CABLE RH STEERING, NO.2
G9A85B
BRACKET, FC JUNCTION CABLE RH STEERING, NO.3
G9A85C
BRACKET, FC JUNCTION CABLE RH STEERING, NO.4
G9A85D
BRACKET, FC JUNCTION CABLE RH STEERING, NO.5
G9A85E
BRACKET, FC JUNCTION CABLE RH STEERING, NO.6
Код
Описание
5801
переход к группе запчастей
7701
переход к группе запчастей
9017806012
Крепеж
9017806027
Крепеж
9167380620
Крепеж

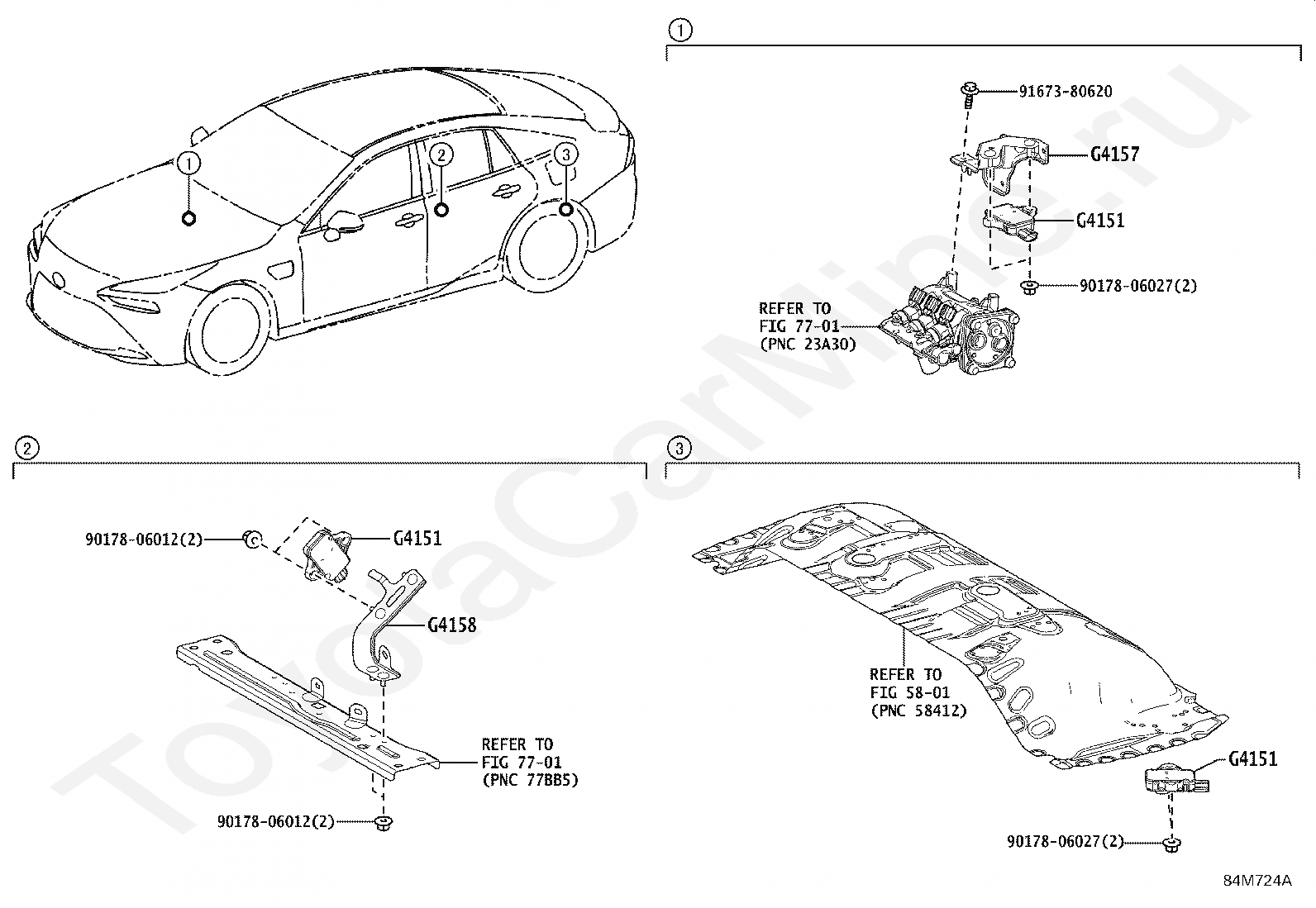

G4151
DETECTOR, HYDROGEN
G4157
BRACKET, HYDROGEN DETECTOR, NO.1
G4158
BRACKET, HYDROGEN DETECTOR, NO.2
