Каталог
ЯпонияМодель
MIRAIДвигатель
электромоторКузов
седанКласс
Z TYPEФрейм
JPD20Опции
4 двери 766W
Код
Описание

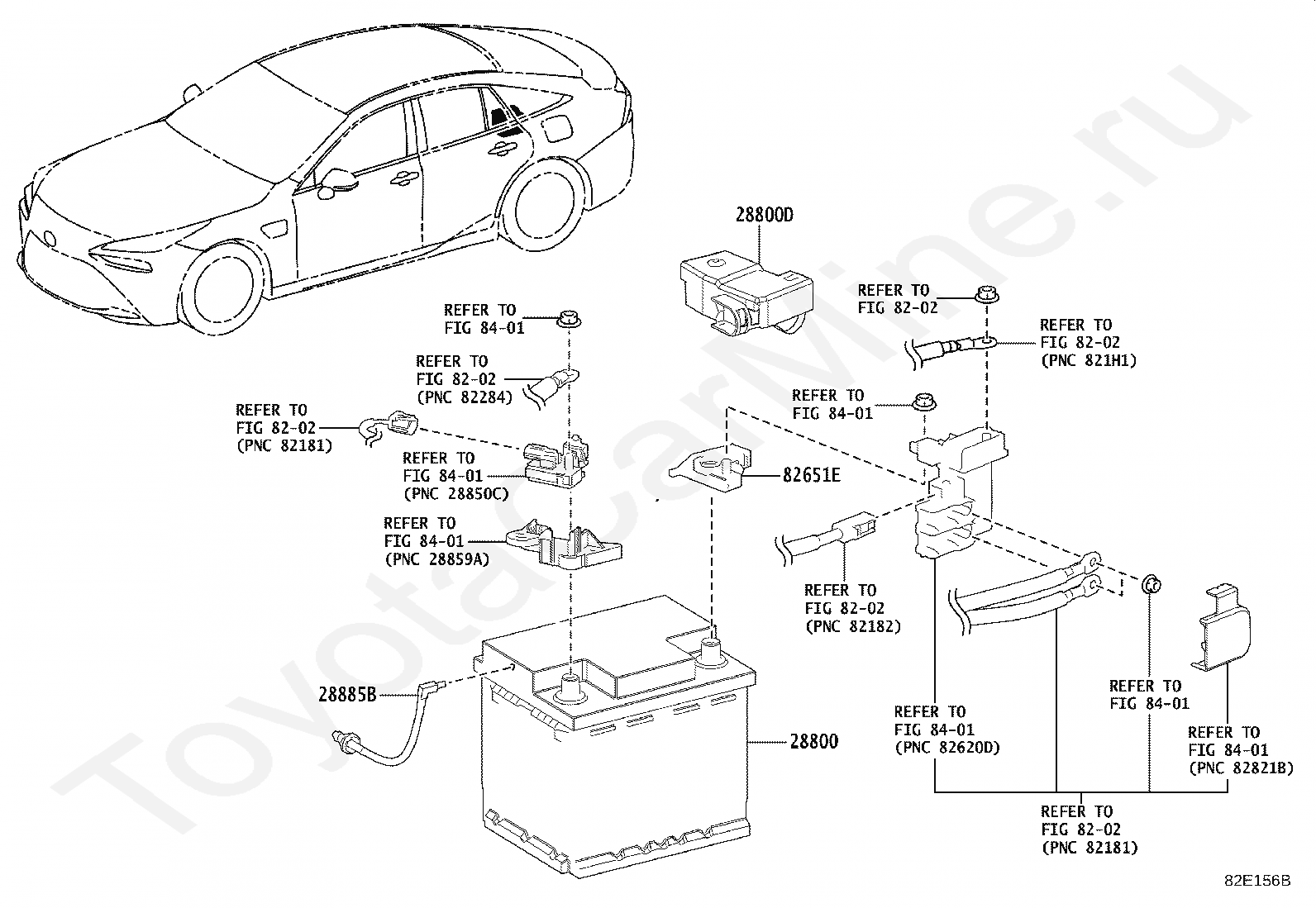

28800
BATTERY
28800D
COVER, CONNECTOR(FOR BATTERY TERMINAL)
28885B
HOSE, BATTERY
8202
переход к группе запчастей
82651E
BLOCK, TERMINAL
8401
переход к группе запчастей
Код
Описание

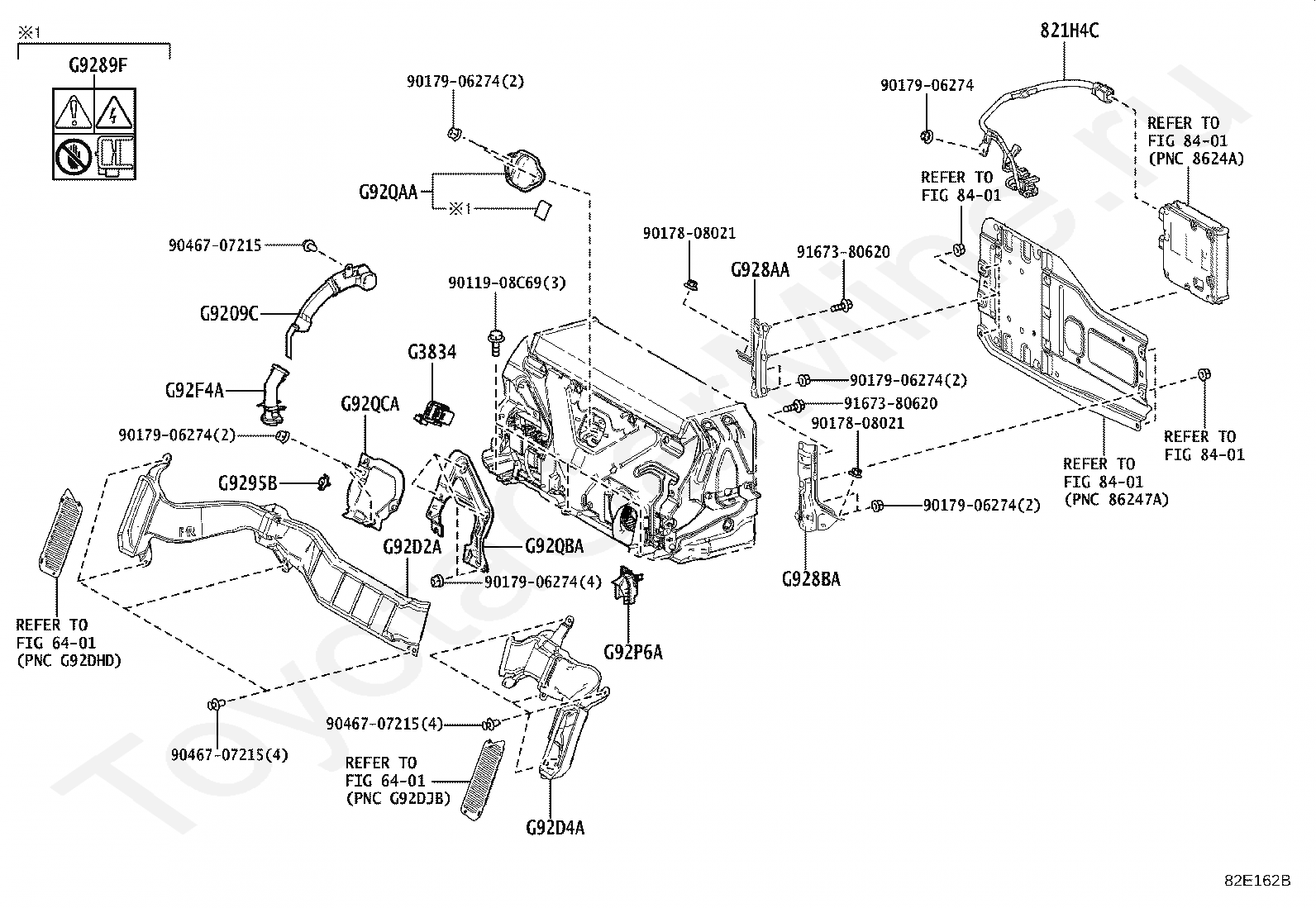

6401
переход к группе запчастей
821H4C
WIRE, SOCKET INVERTER
8401
переход к группе запчастей
9011908C69
Крепеж
9017808021
Крепеж
9017906274
Крепеж
9046707215
Крепеж
9167380620
Крепеж
G3834
GRIP, SERVICE PLUG
G9209C
DUCT SUB-ASSY, EV BATTERY
G9289F
LABEL, BATTERY CAUTION, NO.3
G928AA
BRACKET, EV BATTERY, RH
G928BA
BRACKET, EV BATTERY, LH
G9295B
STRIKER, BATTERY COVER LOCK
G92D2A
DUCT, EV BATTERY INTAKE, NO.2
G92D4A
DUCT, EV BATTERY INTAKE, NO.4
G92F4A
DUCT, EV BATTERY EXHAUST, NO.4
G92P6A
COVER, EV BATTERY CLAMP, NO.2
G92QAA
PANEL, EV BATTERY SHIELD, NO.8
G92QBA
PANEL, EV BATTERY SHIELD, NO.9
G92QCA
PANEL, EV BATTERY SHIELD, NO.10
Код
Описание

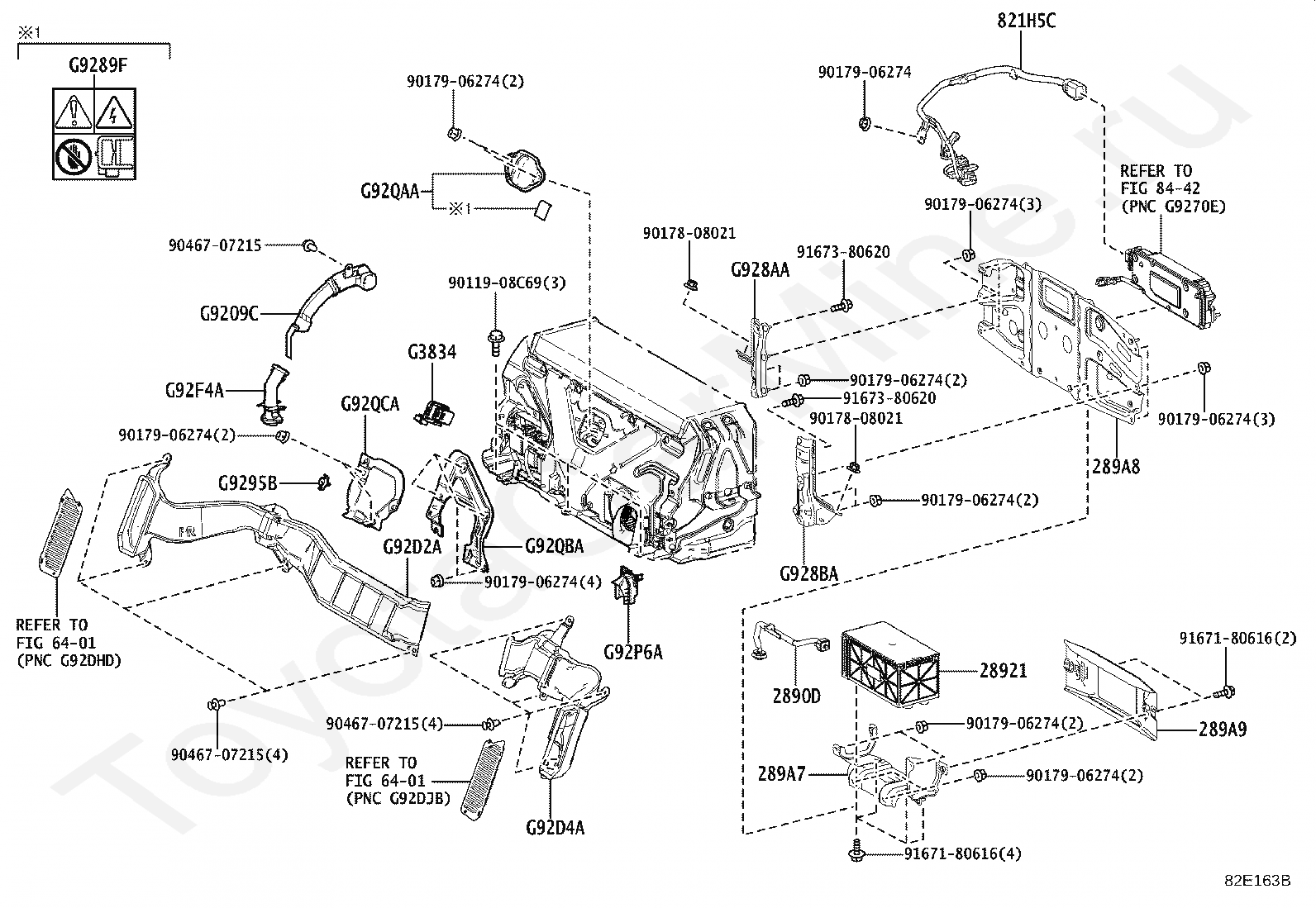

2890D
HOSE SUB-ASSY, SUB-BATTERY MULTI POWER
28921
SUB-BATTERY, MULTI POWER CONTROL
289A7
BRACKET, SUB-BATTERY MULTI POWER, NO.1
289A8
BRACKET, SUB-BATTERY MULTI POWER, NO.2
289A9
BRACKET, SUB-BATTERY MULTI POWER, NO.3
6401
переход к группе запчастей
821H5C
WIRE, FC BATTERY CHARGER
8442
переход к группе запчастей
9011908C69
Крепеж
9017808021
Крепеж
9017906274
Крепеж
9046707215
Крепеж
9167180616
Крепеж
9167380620
Крепеж
G3834
GRIP, SERVICE PLUG
G9209C
DUCT SUB-ASSY, EV BATTERY
G9289F
LABEL, BATTERY CAUTION, NO.3
G928AA
BRACKET, EV BATTERY, RH
G928BA
BRACKET, EV BATTERY, LH
G9295B
STRIKER, BATTERY COVER LOCK
G92D2A
DUCT, EV BATTERY INTAKE, NO.2
G92D4A
DUCT, EV BATTERY INTAKE, NO.4
G92F4A
DUCT, EV BATTERY EXHAUST, NO.4
G92P6A
COVER, EV BATTERY CLAMP, NO.2
G92QAA
PANEL, EV BATTERY SHIELD, NO.8
G92QBA
PANEL, EV BATTERY SHIELD, NO.9
G92QCA
PANEL, EV BATTERY SHIELD, NO.10
Код
Описание

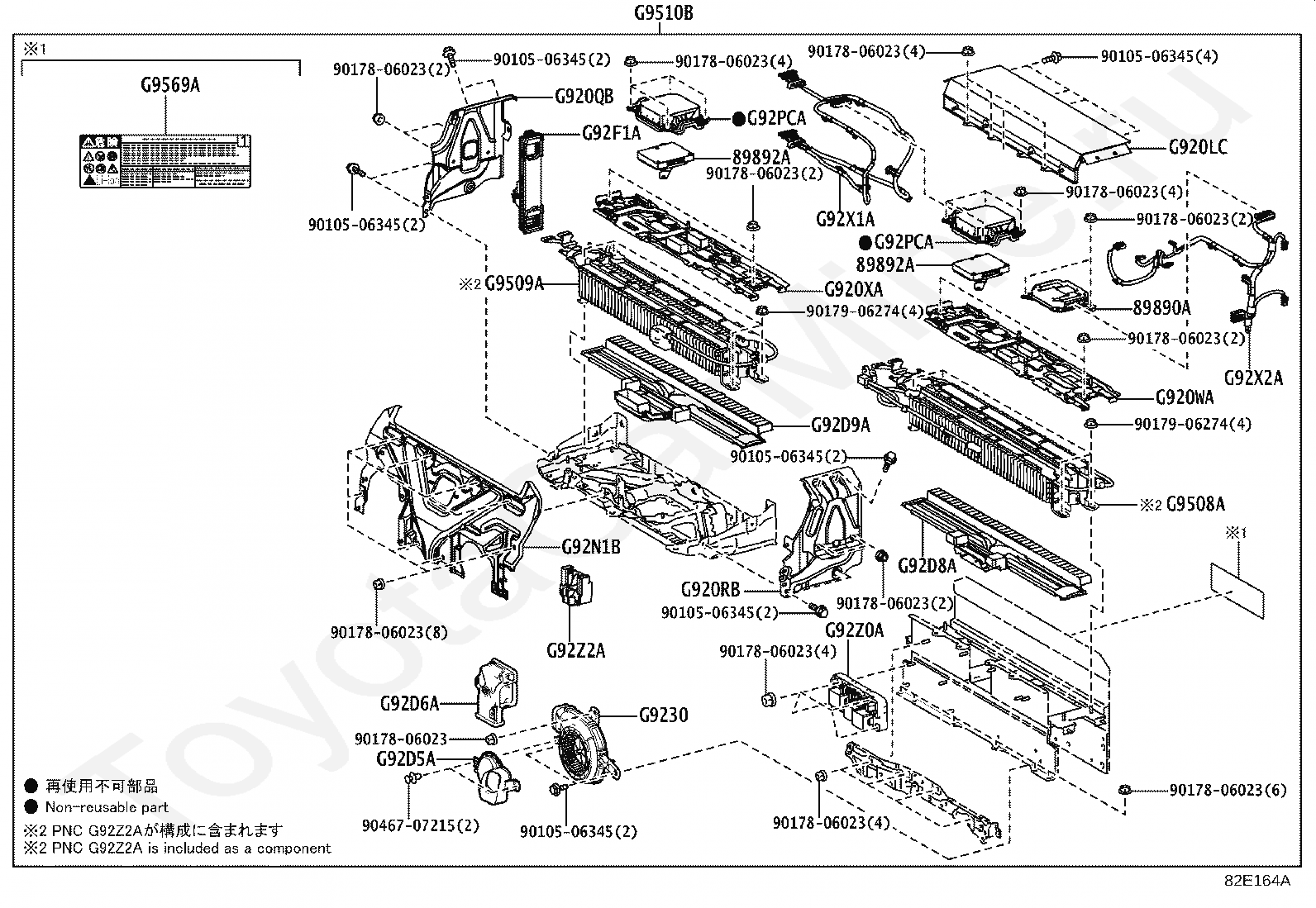

89890A
COMPUTER ASSY, BATTERY
89892A
SENSOR, BATTERY VOLTAGE
9010506345
Крепеж
9017806023
Крепеж
9017906274
Крепеж
9046707215
Крепеж
G920LC
COVER SUB-ASSY, EV BATTERY, UPPER NO.1
G920QB
SHIELD SUB-ASSY, EV BATTERY, NO.1
G920RB
SHIELD SUB-ASSY, EV BATTERY, NO.2
G920WA
SHIELD SUB-ASSY, EV BATTERY, NO.7
G920XA
SHIELD SUB-ASSY, EV BATTERY, NO.8
G9230
BLOWER ASSY, BATTERY COOLING
G92D5A
DUCT, EV BATTERY INTAKE, NO.5
G92D6A
DUCT, EV BATTERY INTAKE, NO.6
G92D8A
DUCT, EV BATTERY INTAKE, NO.8
G92D9A
DUCT, EV BATTERY INTAKE, NO.9
G92F1A
DUCT, EV BATTERY EXHAUST, NO.1
G92N1B
PANEL, EV BATTERY UPPER COVER
G92PCA
PROTECTOR, EV BATTERY, NO.1
G92X1A
WIRE, EV BATTERY PACK, NO.1
G92X2A
WIRE, EV BATTERY PACK, NO.2
G92Z0A
BLOCK ASSY, EV BATTERY JUNCTION, NO.1
G92Z2A
BLOCK, EV BATTERY TERMINAL
G9508A
STACK SUB-ASSY, EV SUPPLY, NO.1
G9509A
STACK SUB-ASSY, EV SUPPLY, NO.2
G9510B
BATTERY ASSY, EV SUPPLY
G9569A
LABEL, LITHIUM ION BATTERY CAUTION
