Воздушная тормозная система TOYOTA MEGA CRUISER, 1999/06 - 2001/10, 4,1 литра, турбо-дизель, EFI, BXD20, автомат

Каталог

Япония

Модель

MEGA CRUISER

Двигатель

4,1 литра, турбо-дизель, EFI

Фрейм

BXD20

Трансмиссия

автомат

Опции

TURBO DIESEL EFI

Код

Описание

44890

COMPRESSOR ASSY, AIR

44896B

BUSH, AIR BRAKE COMPRESSOR BRACKET, NO.1

44896C

BUSH, AIR BRAKE COMPRESSOR BRACKET, NO.2

48925C

FILTER, AIR BRAKE COMPRESSOR

48927D

BRACKET, AIR BRAKE COMPRESSOR FILTER

48943E

HOSE(FOR FILTER TO COMPRESSOR)

5151

переход к группе запчастей

9011906368

Крепеж

9046713027

Крепеж

9338516014

Крепеж

9418040600

Крепеж

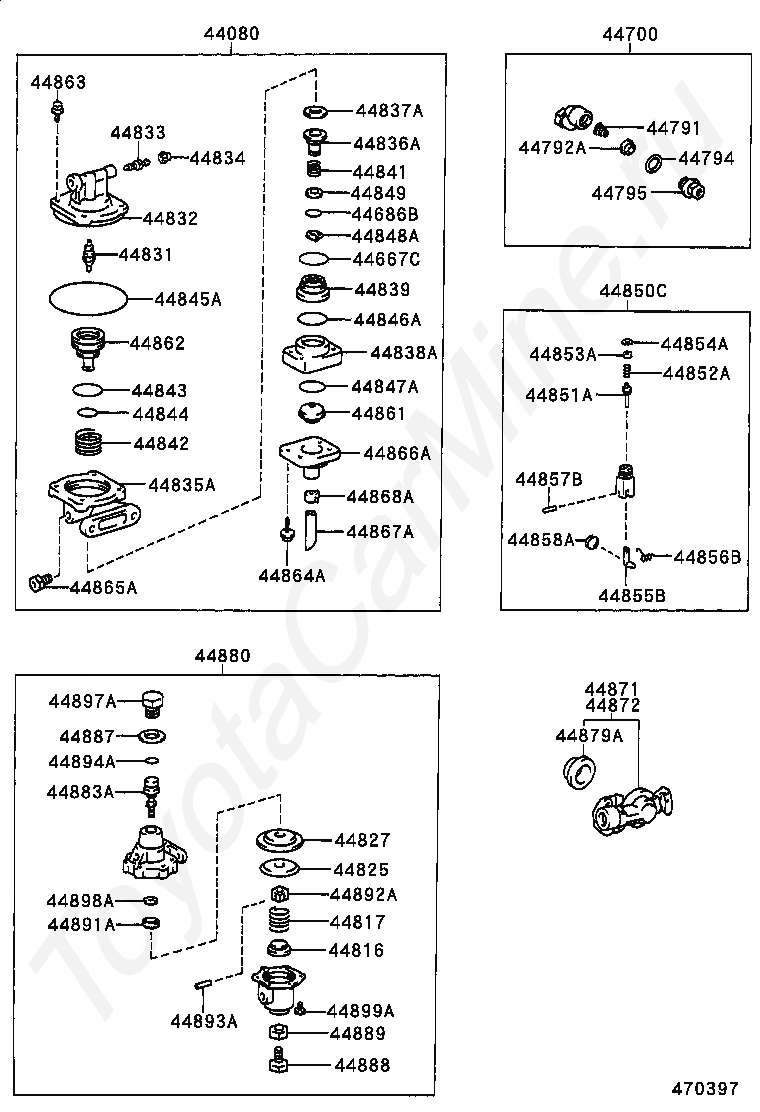

Код

Описание

44080

VALVE ASSY, AIR BRAKE RELAY

44667C

RING, O, NO.1(FOR AIR BRAKE RELAY VALVE)

44686B

RING, O, NO.2(FOR AIR BRAKE RELAY VALVE)

44700

VALVE ASSY, AIR BRAKE CHECK

44791

SPRING, AIR BRAKE CHECK VALVE

44792A

VALVE, AIR BRAKE CHECK

44794

RING, AIR BRAKE CHECK VALVE

44795

UNION, AIR BRAKE CHECK VALVE

44816

SEAT, AIR BRAKE REDUCING VALVE SPRING

44817

SPRING, AIR BRAKE REDUCING VALVE

44825

PLATE, AIR BRAKE REDUCING VALVE DIAPHRAGM

44827

DIAPHRAGM, AIR BRAKE REDUCING VALVE

44831

PISTON, AIR BRAKE RELAY VALVE

44832

HOUSING, AIR BRAKE RELAY VALVE

44833

PLUG, AIR BRAKE RELAY VALVE

44834

PROTECTOR, AIR BRAKE RELAY VALVE

44835A

BODY, AIR BRAKE RELAY VALVE

44836A

VALVE, AIR BRAKE RELAY INLET

44837A

RETAINER, AIR BRAKE RELAY VALVE, NO.1

44838A

RETAINER, AIR BRAKE RELAY VALVE, NO.2

44839

GUIDE, AIR BRAKE RELAY VALVE

44841

SPRING, AIR BRAKE RELAY VALVE NO.1

44842

SPRING, AIR BRAKE RELAY VALVE, NO.2

44843

RING, AIR BRAKE RELAY VALVE, NO.1

44844

RING, AIR BRAKE RELAY VALVE, NO.2

44845A

RING, AIR BRAKE RELAY VALVE, NO.3

44846A

RING, AIR BRAKE RELAY VALVE, NO.4

44847A

RING, AIR BRAKE RELAY VALVE, NO.5

44848A

RING, AIR BRAKE RELAY VALVE SNAP

44849

WASHER, AIR BRAKE RELAY VALVE

44850C

COCK ASSY, DRAIN

44851A

VALVE, DRAIN COCK(FOR AIR RESERVOIR)

44852A

SPRING, DRAIN COCK(FOR AIR RESERVOIR)

44853A

WASHER, DRAIN COCK(FOR AIR RESERVOIR)

44854A

RING, DRAIN COCK(FOR AIR RESERVOIR)

44855B

LEVER, DRAIN COCK(FOR AIR RESERVOIR)

44856B

SPRING, DRAIN COCK LEVER(FOR AIR RESERVOIR)

44857B

PIN, DRAIN COCK LEVER(FOR AIR RESERVOIR)

44858A

RING, DRAIN COCK LEVER SET(FOR AIR RESERVOIR)

44861

COVER, AIR BRAKE RELAY VALVE EXHAUST

44862

PISTON, AIR BRAKE RELAY

44863

SCREW, AIR BRAKE RELAY VALVE, NO.1

44864A

SCREW, AIR BRAKE RELAY VALVE, NO.2

44865A

CONNECTOR, AIR BRAKE RELAY VALVE

44866A

COVER, AIR BRAKE RELAY VALVE END

44867A

HOSE, AIR BRAKE RELAY VALVE

44868A

CLAMP, AIR BRAKE RELAY VALVE

44871

COUPLING, TRAILER AIR BRAKE EMERGENCY

44872

COUPLING, TRAILER AIR BRAKE SERVICE

44879A

SEAL, TRAILER AIR BRAKE COUPLING

44880

VALVE ASSY, AIR BRAKE REDUCING

44883A

VALVE, AIR BRAKE REDUCING

44887

PACKING, AIR BRAKE REDUCING VALVE, NO.2

44888

PACKING, AIR BRAKE REDUCING VALVE ADJUSTING

44889

NUT, AIR BRAKE REDUCING VALVE

44891A

WASHER, AIR BRAKE REDUCING VALVE DIAPHRGM

44892A

NUT, AIR BRAKE REDUCING VALVE SQUARE

44893A

PIN, AIR BRAKE REDUCING VALVE

44894A

RING, AIR BRAKE REDUCING VALVE

44897A

PLUG, AIR BRAKE REDUCING VALVE, NO.1

44898A

PACKING, AIR BRAKE REDUCING VALVE PLUG

44899A

PLUG, AIR BRAKE REDUCING VALVE, NO.2

Код

Описание

44700

VALVE ASSY, AIR BRAKE CHECK

44700A

ELBOW(FOR AIR BRAKE CHECK VALVE)

44700B

CONECTOR, STRAIGHT(FOR AIR BRAKE CHECK VALVE)

44720

VALVE ASSY, AIR SAFETY

44720A

CONECTOR, ELBOW(FOR AIR SAFETY VALVE)

44722D

ELBOW(FOR AIR CONTROL TUBE)

44781A

BRACKET, HOSE CLAMP

44800A

COCK ASSY, AIR BRAKE

44800B

CONECTOR, ELBOW(FOR AIR BRAKE COCK)

44800C

CONECTOR, STRAIGHT(FOR AIR BRAKE COCK)

44810

RESERVOIR ASSY, AIR

44810A

PLUG NO.1(FOR AIR RESERVOIR)

44810B

PLUG NO.2(FOR AIR RESERVOIR)

44850C

COCK ASSY, DRAIN

5151

переход к группе запчастей

8419

переход к группе запчастей

9010108154

Крепеж

9040124001

Крепеж

9040253002

Крепеж

9040552001

Крепеж

9165160620

Крепеж

9413062440

Крепеж

9453100800

Крепеж

9461310800

Крепеж

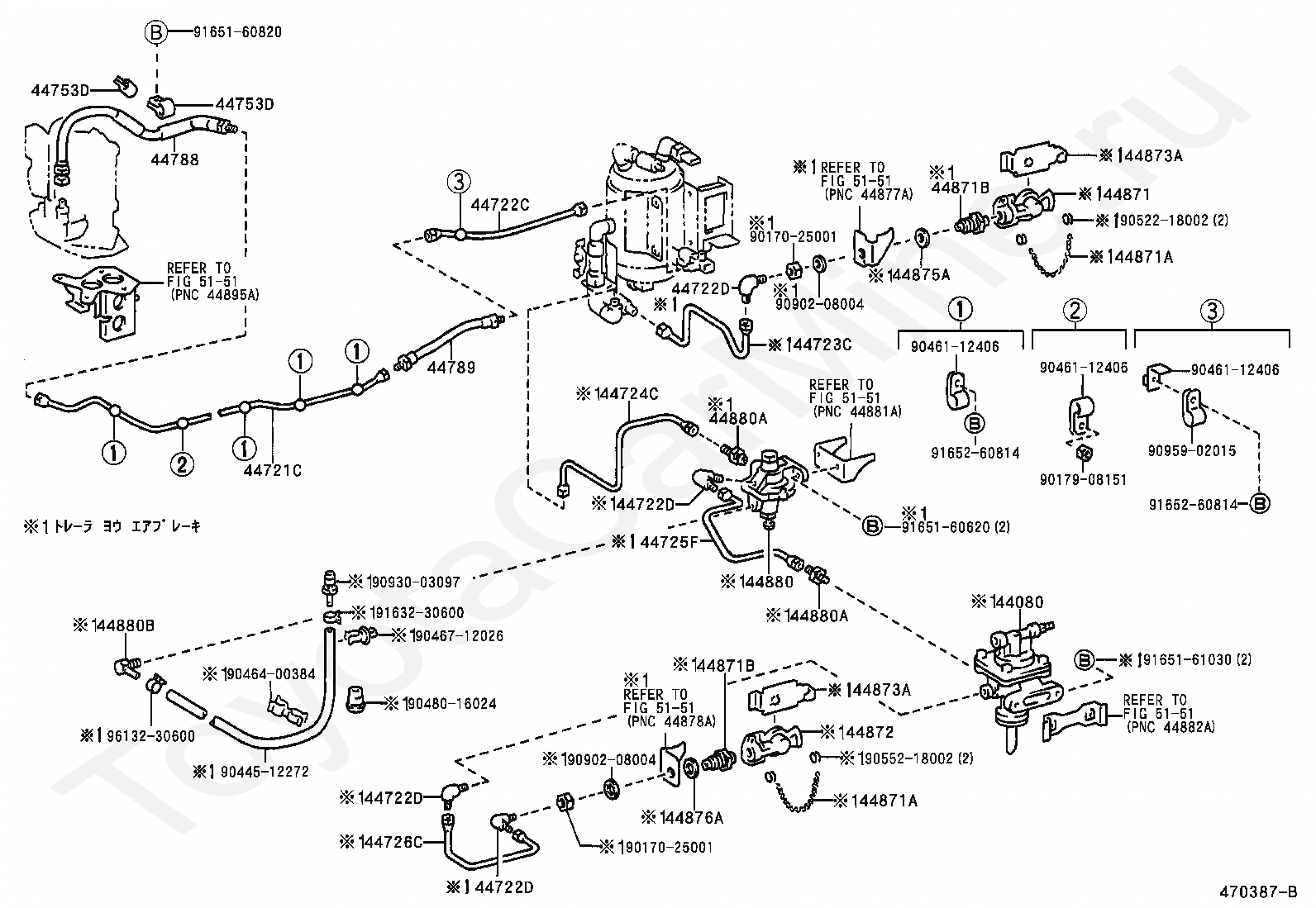

Код

Описание

44080

VALVE ASSY, AIR BRAKE RELAY

44721C

TUBE, AIR CONTROL, NO.1

44722C

TUBE, AIR CONTROL, NO.2

44722D

ELBOW(FOR AIR CONTROL TUBE)

44723C

TUBE, AIR CONTROL, NO.3

44724C

TUBE, AIR CONTROL, NO.4

44725F

TUBE, AIR CONTROL, NO.5

44726C

TUBE, AIR CONTROL, NO.6

44753D

CLAMP, AIR TUBE

44788

HOSE, AIR BRAKE, NO.1

44789

HOSE, AIR BRAKE, NO.2

44871

COUPLING, TRAILER AIR BRAKE EMERGENCY

44871A

CHAIN(FOR TRAILER AIR BRAKE COUPLING)

44871B

CONECTOR, STRAIGHT(FOR TRAILER AIR BRAKE COUPLING)

44872

COUPLING, TRAILER AIR BRAKE SERVICE

44873A

COUPLING, AIR BRAKE DUMMY

44875A

PLATE, AIR BRAKE EMERGENCY COUPLING CAUTION

44876A

PLATE, AIR BRAKE SERVICE COUPLING CAUTION

44880

VALVE ASSY, AIR BRAKE REDUCING

44880A

CONECTOR, STRAIGHT(FOR AIR BRAKE REDUCING VALVE)

44880B

UNION(FOR AIR BRAKE REDUCING VALVE)

5151

переход к группе запчастей

9017025001

Крепеж

9017908151

Крепеж

9044512272

Крепеж

9046112406

Крепеж

9046400384

Крепеж

9046712026

Крепеж

9048016024

Крепеж

9052218002

Крепеж

9055218002

Крепеж

9090208004

Крепеж

9093003097

Крепеж

9095902015

Крепеж

9163230600

Крепеж

9165160620

Крепеж

9165160820

Крепеж

9165161030

Крепеж

9165260814

Крепеж

9613230600

Крепеж

Воздушная тормозная система TOYOTA MEGA CRUISER, 1999/06 - 2001/10, 4,1 литра, турбо-дизель, EFI, BXD20, автомат
