Задние двери TOYOTA MATRIX, 2008/01 - 2010/12, 2,4 литра, 16 клапанов DOHC, EFI, AZE141, механика, МКПП, 5 скоростей

Каталог

Америка

Модель

MATRIX

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Фрейм

AZE141

Трансмиссия

механика МКПП, 5 скоростей

Опции

США 391W

Код

Описание

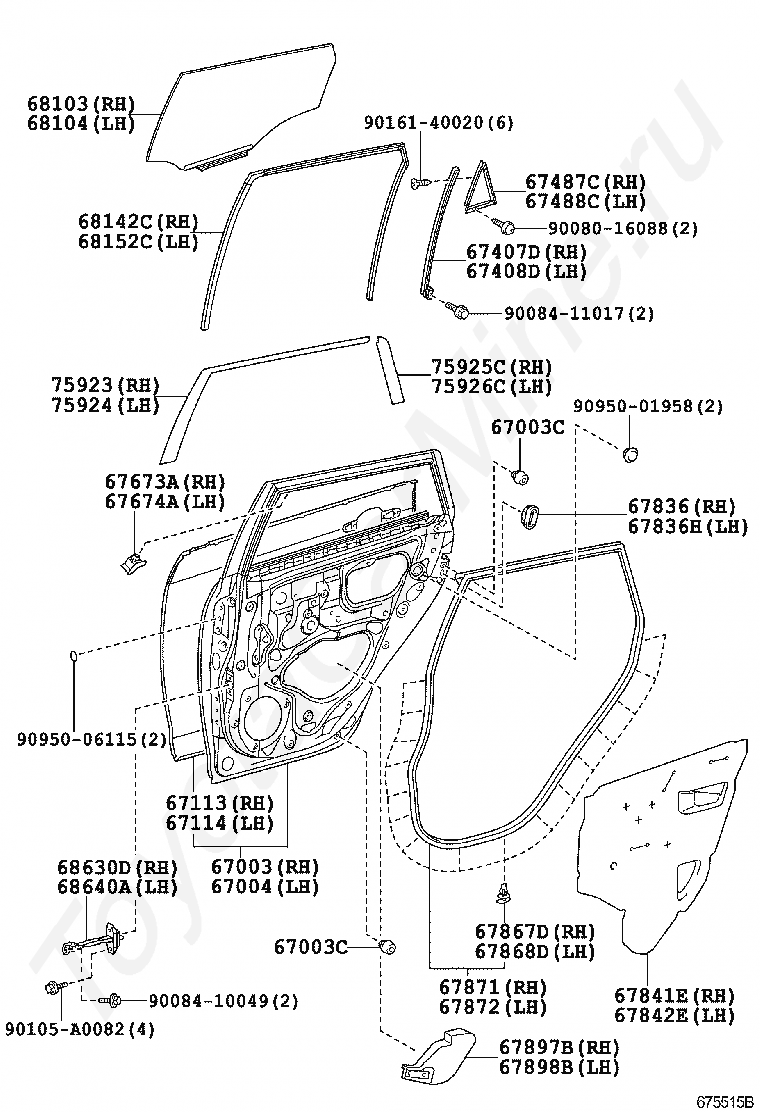

67003

PANEL SUB-ASSY, REAR DOOR, RH

67003C

CUSHION, REAR DOOR PANEL

67004

PANEL SUB-ASSY, REAR DOOR, LH

67113

PANEL, REAR DOOR, OUTER RH

67114

PANEL, REAR DOOR, OUTER LH

67407D

GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

67408D

GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

67487C

SEAL, REAR DOOR REAR GUIDE, RH

67488C

SEAL, REAR DOOR REAR GUIDE, LH

67673A

GARNISH, REAR DOOR FRAME, RH

67674A

GARNISH, REAR DOOR FRAME, LH

67836

COVER, REAR DOOR LOCK CHILD PROTECTION, RH

67836H

COVER, REAR DOOR LOCK CHILD PROTECTION, LH

67841E

COVER, REAR DOOR SERVICE HOLE, RH

67842E

COVER, REAR DOOR SERVICE HOLE, LH

67867D

RETAINER, REAR DOOR WEATHERSTRIP, RH

67868D

RETAINER, REAR DOOR WEATHERSTRIP, LH

67871

WEATHERSTRIP, REAR DOOR, RH

67872

WEATHERSTRIP, REAR DOOR, LH

67897B

CUSHION, REAR DOOR, RH

67898B

CUSHION, REAR DOOR, LH

68103

GLASS SUB-ASSY, REAR DOOR, RH

68104

GLASS SUB-ASSY, REAR DOOR, LH

68142C

RUN, REAR DOOR GLASS, RH

68152C

RUN, REAR DOOR GLASS, LH

68630D

CHECK ASSY, REAR DOOR, RH

68640A

CHECK ASSY, REAR DOOR, LH

75923

TAPE, BLACK OUT, NO.2 RH

75924

TAPE, BLACK OUT, NO.2 LH

75925C

TAPE, BLACK OUT, NO.3 RH

75926C

TAPE, BLACK OUT, NO.3 LH

9008016088

Крепеж

9008410049

Крепеж

9008411017

Крепеж

90105A0082

Крепеж

9016140020

Крепеж

9095001958

Крепеж

9095006115

Крепеж

Код

Описание

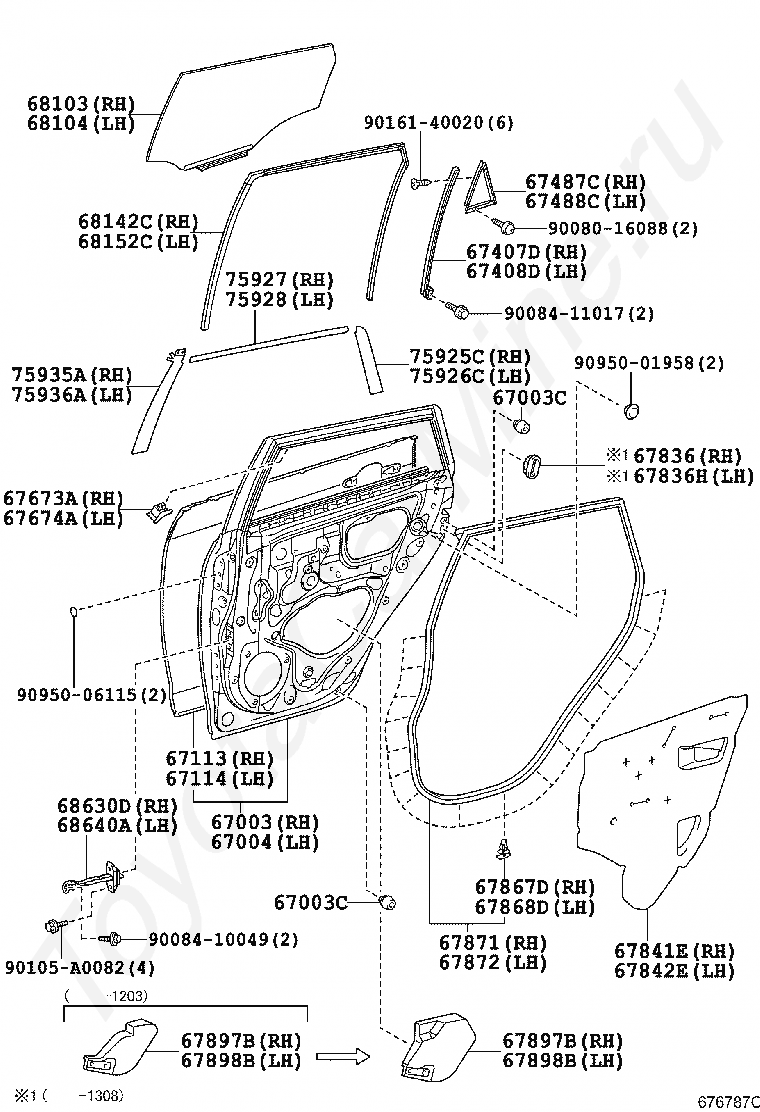

67003

PANEL SUB-ASSY, REAR DOOR, RH

67003C

CUSHION, REAR DOOR PANEL

67004

PANEL SUB-ASSY, REAR DOOR, LH

67113

PANEL, REAR DOOR, OUTER RH

67114

PANEL, REAR DOOR, OUTER LH

67407D

GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

67408D

GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

67487C

SEAL, REAR DOOR REAR GUIDE, RH

67488C

SEAL, REAR DOOR REAR GUIDE, LH

67673A

GARNISH, REAR DOOR FRAME, RH

67674A

GARNISH, REAR DOOR FRAME, LH

67836

COVER, REAR DOOR LOCK CHILD PROTECTION, RH

67836H

COVER, REAR DOOR LOCK CHILD PROTECTION, LH

67841E

COVER, REAR DOOR SERVICE HOLE, RH

67842E

COVER, REAR DOOR SERVICE HOLE, LH

67867D

RETAINER, REAR DOOR WEATHERSTRIP, RH

67868D

RETAINER, REAR DOOR WEATHERSTRIP, LH

67871

WEATHERSTRIP, REAR DOOR, RH

67872

WEATHERSTRIP, REAR DOOR, LH

67897B

CUSHION, REAR DOOR, RH

67898B

CUSHION, REAR DOOR, LH

68103

GLASS SUB-ASSY, REAR DOOR, RH

68104

GLASS SUB-ASSY, REAR DOOR, LH

68142C

RUN, REAR DOOR GLASS, RH

68152C

RUN, REAR DOOR GLASS, LH

68630D

CHECK ASSY, REAR DOOR, RH

68640A

CHECK ASSY, REAR DOOR, LH

75925C

TAPE, BLACK OUT, NO.3 RH

75926C

TAPE, BLACK OUT, NO.3 LH

75927

TAPE, BLACK OUT, NO.4 RH

75928

TAPE, BLACK OUT, NO.4 LH

75935A

TAPE, BLACK OUT, NO.6 RH

75936A

TAPE, BLACK OUT, NO.6 LH

9008016088

Крепеж

9008410049

Крепеж

9008411017

Крепеж

90105A0082

Крепеж

9016140020

Крепеж

9095001958

Крепеж

9095006115

Крепеж

Код

Описание

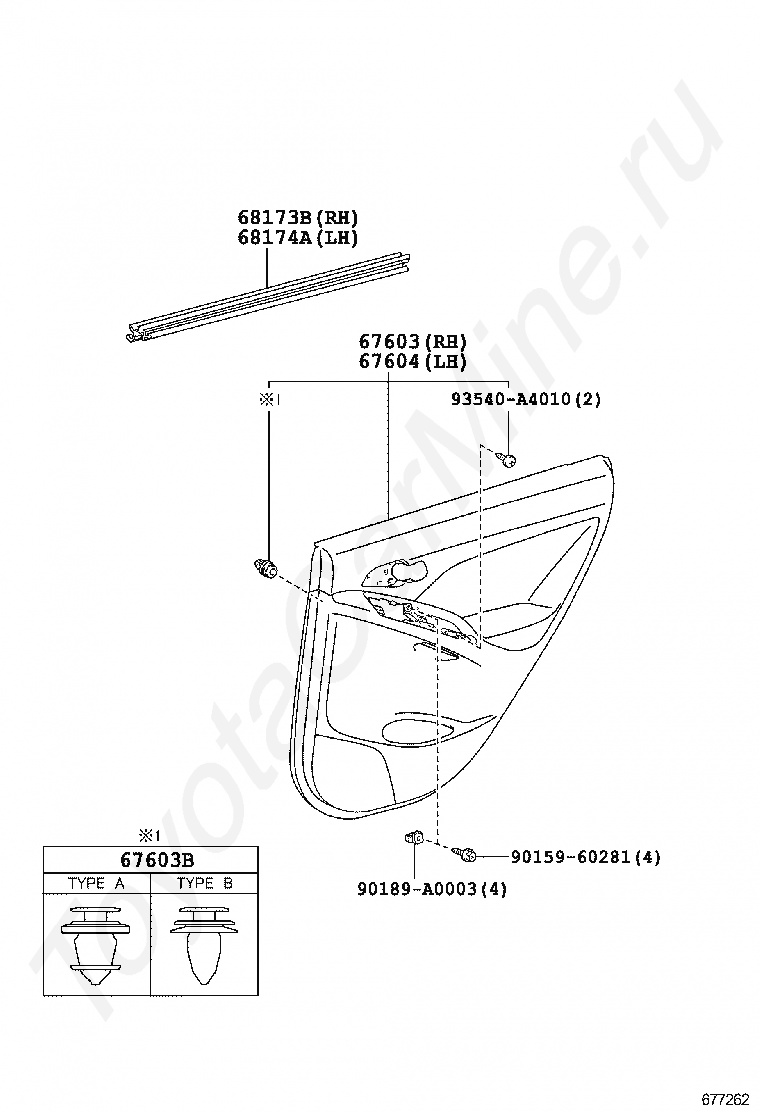

67603

BOARD SUB-ASSY, REAR DOOR TRIM, RH

67603B

CLIP(FOR REAR DOOR TRIM BOARD)

67604

BOARD SUB-ASSY, REAR DOOR TRIM, LH

68173B

WEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174A

WEATHERSTRIP, REAR DOOR GLASS, INNER LH

9015960281

Крепеж

90189A0003

Крепеж

93540A4010

Крепеж

Код

Описание

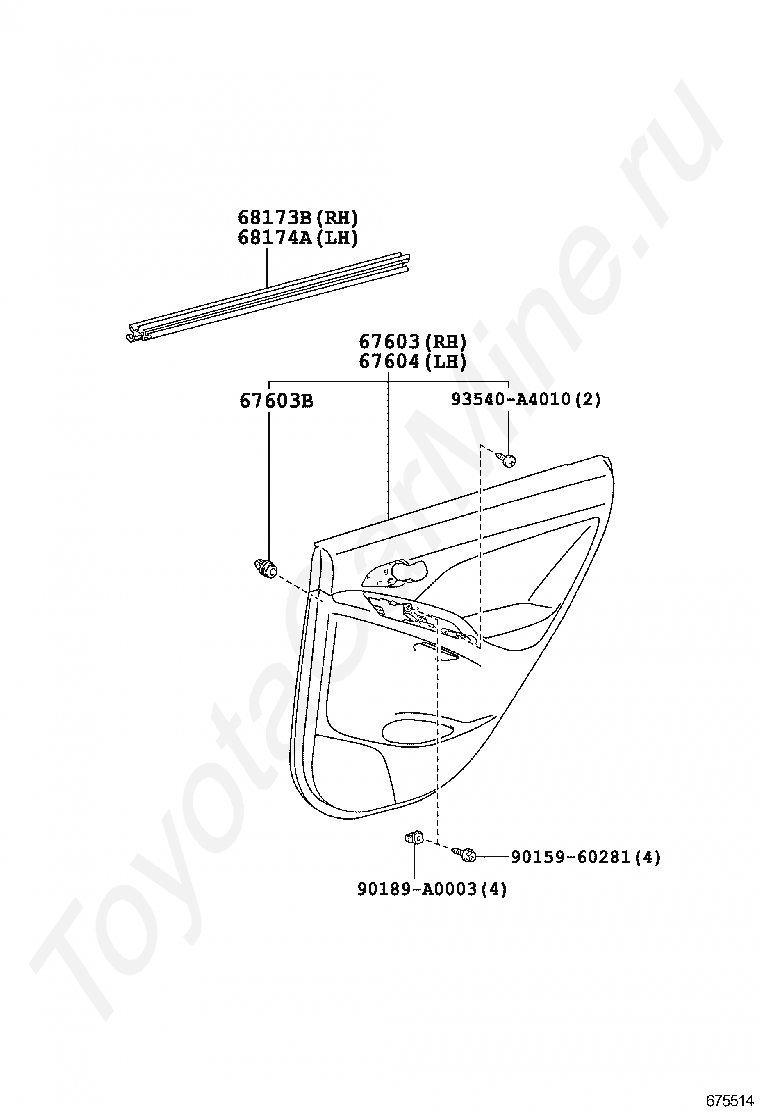

67603

BOARD SUB-ASSY, REAR DOOR TRIM, RH

67603B

CLIP(FOR REAR DOOR TRIM BOARD)

67604

BOARD SUB-ASSY, REAR DOOR TRIM, LH

68173B

WEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174A

WEATHERSTRIP, REAR DOOR GLASS, INNER LH

9015960281

Крепеж

90189A0003

Крепеж

93540A4010

Крепеж

Задние двери TOYOTA MATRIX, 2008/01 - 2010/12, 2,4 литра, 16 клапанов DOHC, EFI, AZE141, механика, МКПП, 5 скоростей
