Кресла TOYOTA LITEACE VAN,WAGON, 1988/08 - 1992/01, 1,5 литра, V(MODEL MARK), STANDARD TYPE, KM36, механика, МКПП, 4 ступени

Каталог

Европа

Модель

LITEACE VAN,WAGON

Двигатель

1,5 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KM36

Трансмиссия

механика МКПП, 4 ступени

Опции

левый руль 4-дверный вэн SIDE GLASS VAN MIDDLE ROOF 5-местный

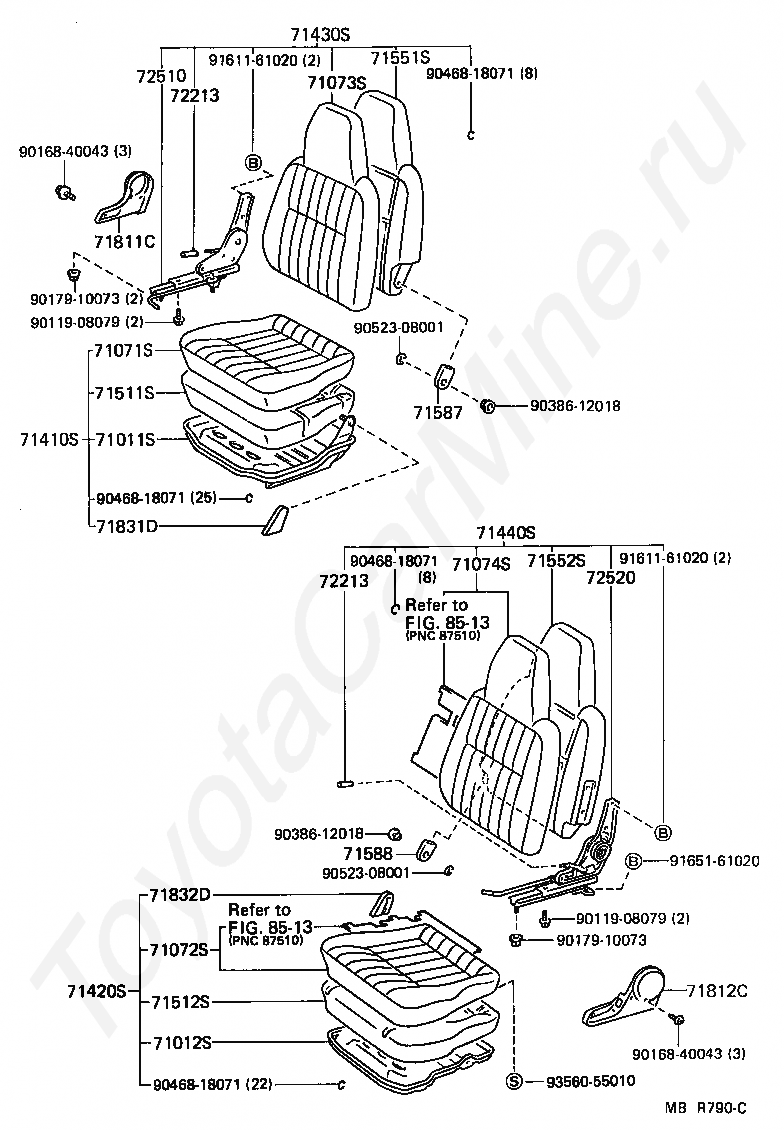

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

8513

переход к группе запчастей

9011908079

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9038612018

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9161161020

Крепеж

9165161020

Крепеж

9356055010

Крепеж

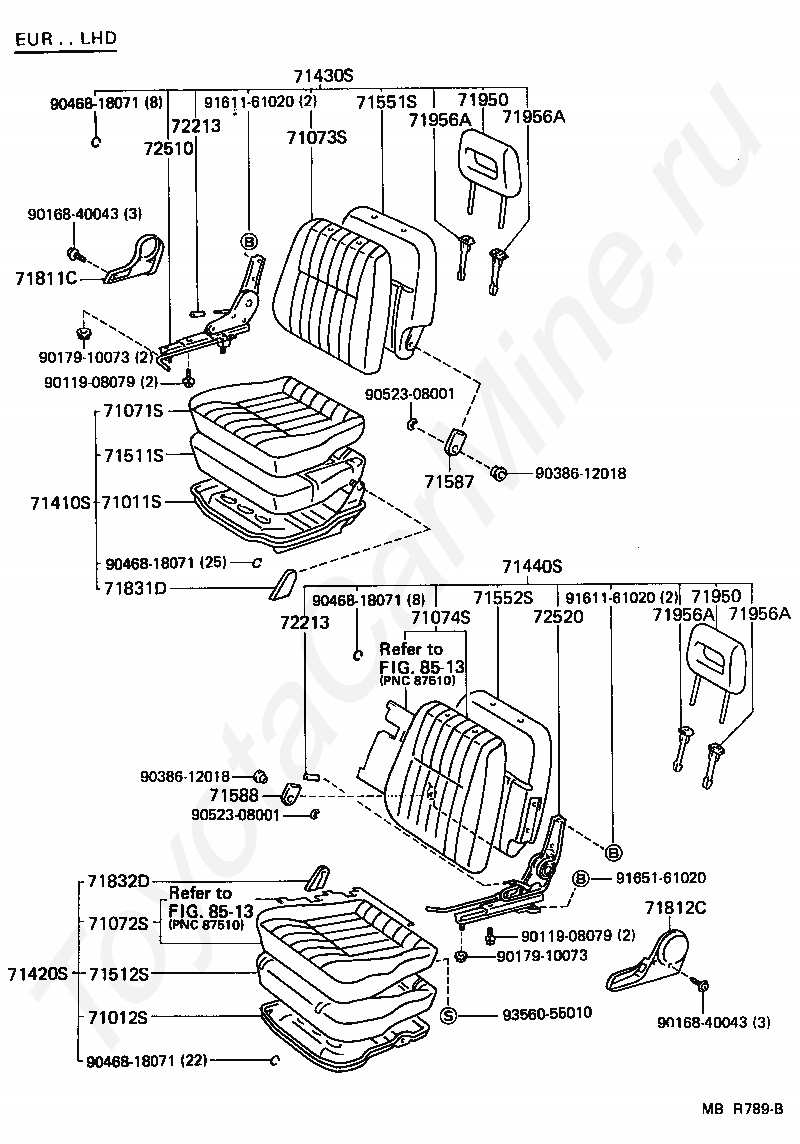

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

8513

переход к группе запчастей

9011908079

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9038612018

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9161161020

Крепеж

9165161020

Крепеж

9356055010

Крепеж

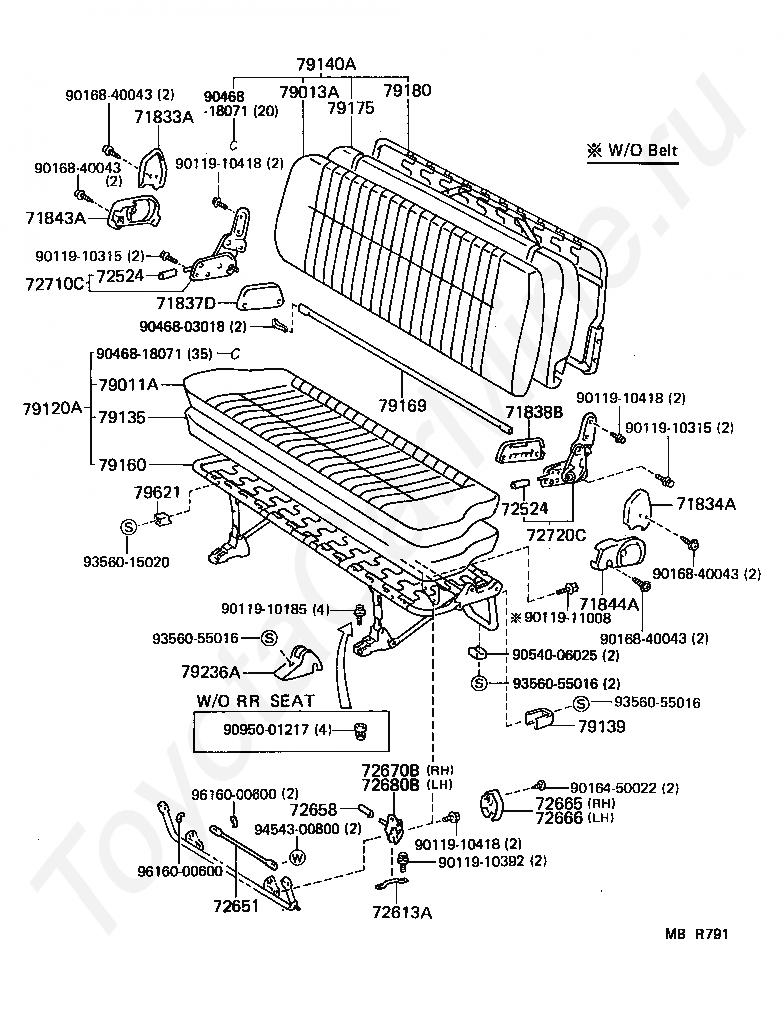

Код

Описание

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71837D

COVER, REAR SEAT RECLINING, INNER RH

71838B

COVER, REAR SEAT RECLINING, INNER LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

72613A

STRIKER, FRONT SEAT LOCK

72651

ROD, REAR SEAT BACK LOCK

72658

KNOB, REAR SEAT HANDLE

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72720C

ADJUSTER ASSY, NO.1 SEAT RECLINING, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79139

COVER, REAR SEAT LEG

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79169

ROD, REAR SEAT HINGE CONNECTOR

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79236A

COVER, NO.2 SEAT LEG

79621

STOPPER, NO.2 SEAT CUSHION

9011910185

Крепеж

9011910315

Крепеж

9011910392

Крепеж

9011910418

Крепеж

9011911008

Крепеж

9016450022

Крепеж

9016840043

Крепеж

9046803018

Крепеж

9046818071

Крепеж

9054006025

Крепеж

9095001217

Крепеж

9356015020

Крепеж

9356055016

Крепеж

9454300800

Крепеж

9616000600

Крепеж

Кресла TOYOTA LITEACE VAN,WAGON, 1988/08 - 1992/01, 1,5 литра, V(MODEL MARK), STANDARD TYPE, KM36, механика, МКПП, 4 ступени
