Кресла TOYOTA LITEACE VAN,WAGON, 1985/10 - 1988/08, 1,5 литра, фургон, DELUX SPECIFICATION, KM30, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

LITEACE VAN,WAGON

Двигатель

1,5 литра

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

KM30

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль MIDDLE ROOF 8-местный

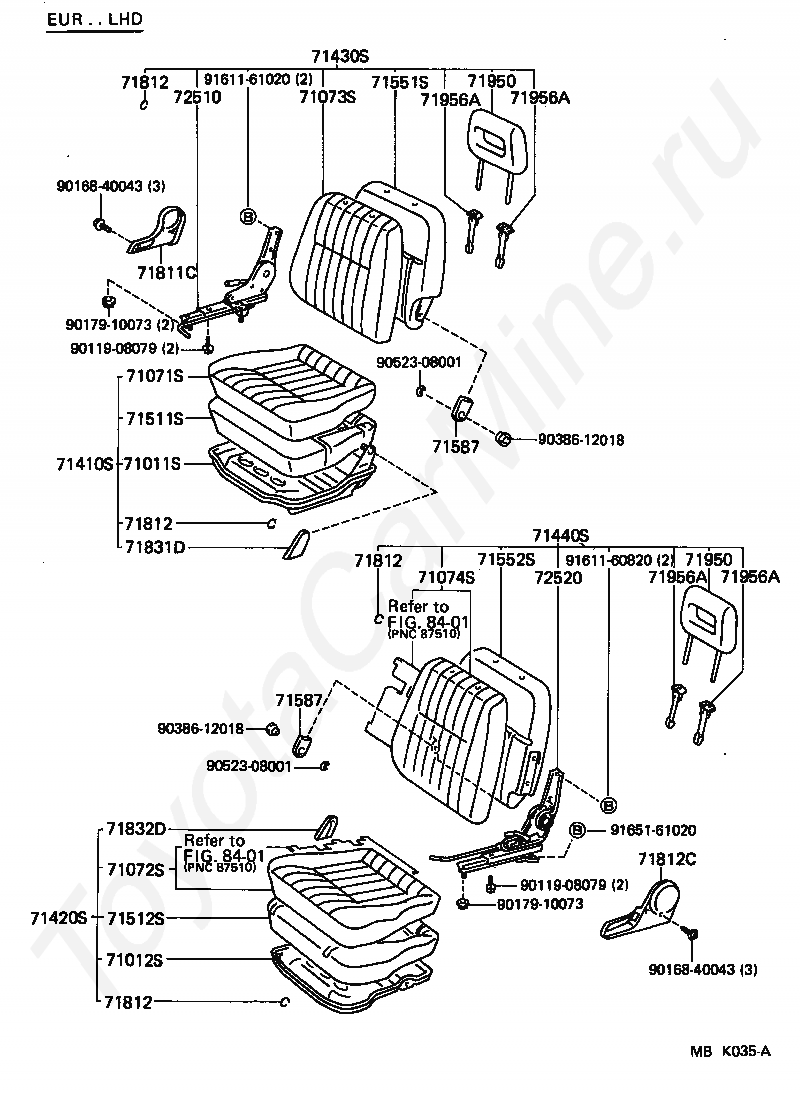

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71811C

COVER, RECLINING ADJUSTER, RH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

8401

переход к группе запчастей

9011908079

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9161160820

Крепеж

9161161020

Крепеж

9165161020

Крепеж

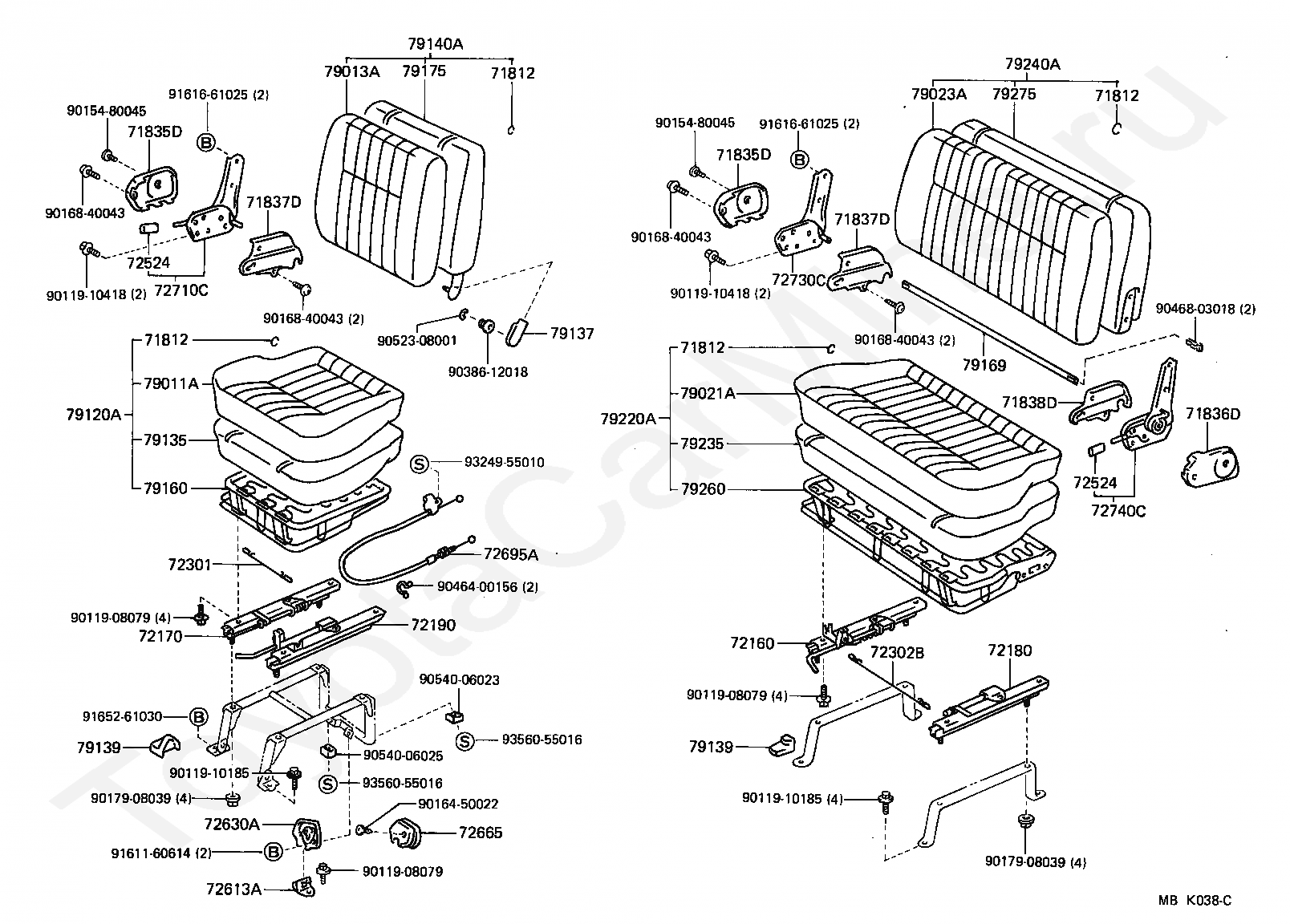

Код

Описание

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71835D

COVER, REAR SEAT RECLINING, LOWER RH

71836D

COVER, REAR SEAT RECLINING, LOWER LH

71837D

COVER, REAR SEAT RECLINING, INNER RH

71838D

COVER, REAR SEAT RECLINING, INNER LH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72524

HANDLE, RECLINING ADJUSTER RELEASE

72613A

STRIKER, FRONT SEAT LOCK

72630A

LOCK ASSY, REAR NO.1 SEAT

72665

COVER, REAR SEAT BACK LOCK, RH

72695A

CABLE, REAR SEAT LOCK CONTROL

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79137

COVER, NO.1 SEAT HINGE

79139

COVER, REAR SEAT LEG

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79169

ROD, REAR SEAT HINGE CONNECTOR

79175

PAD, NO.1 SEAT BACK

79220A

CUSHION ASSY, NO.2 SEAT

79235

PAD, NO.2 SEAT CUSHION

79240A

BACK ASSY, NO.2 SEAT

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

9011908079

Крепеж

9011910185

Крепеж

9011910418

Крепеж

9015480045

Крепеж

9016450022

Крепеж

9016840043

Крепеж

9017908039

Крепеж

9038612018

Крепеж

9046400156

Крепеж

9046803018

Крепеж

9052308001

Крепеж

9054006023

Крепеж

9054006025

Крепеж

9161160614

Крепеж

9161661025

Крепеж

9165261030

Крепеж

9324955010

Крепеж

9356055016

Крепеж

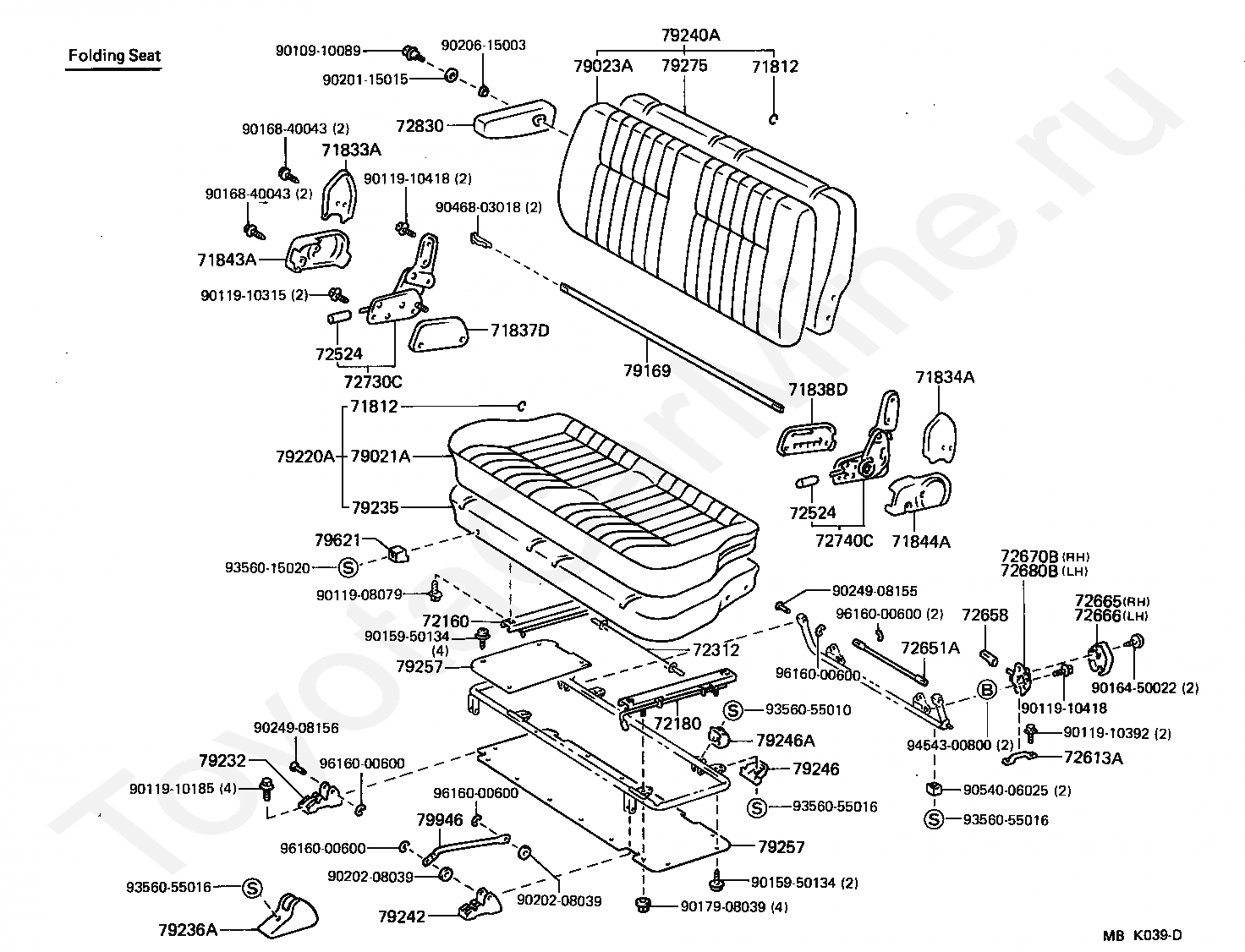

Код

Описание

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71837D

COVER, REAR SEAT RECLINING, INNER RH

71838D

COVER, REAR SEAT RECLINING, INNER LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180

TRACK ASSY, REAR SEAT, INNER RH

72312

WIRE, REAR SEAT TRACK EQUALIZING

72524

HANDLE, RECLINING ADJUSTER RELEASE

72613A

STRIKER, FRONT SEAT LOCK

72651A

COVER, REAR SEAT LOCK

72658

KNOB, REAR SEAT HANDLE

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72830

ARMREST ASSY, REAR SEAT, CENTER

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79169

ROD, REAR SEAT HINGE CONNECTOR

79220A

CUSHION ASSY, NO.2 SEAT

79232

LEG, REAR NO.2 SEAT, RH

79235

PAD, NO.2 SEAT CUSHION

79236A

COVER, NO.2 SEAT LEG

79240A

BACK ASSY, NO.2 SEAT

79242

LEG, REAR NO.2 SEAT, LH

79246

COVER, NO.2 SEAT LEG, NO.1

79246A

COVER, NO.2 SEAT LEG, NO.2

79257

BOARD, NO.2 SEAT

79275

PAD, NO.2 SEAT BACK

79621

STOPPER, NO.2 SEAT CUSHION

79946

STAY, SEAT LEG, NO.2

9010910089

Крепеж

9011908079

Крепеж

9011910185

Крепеж

9011910315

Крепеж

9011910392

Крепеж

9011910418

Крепеж

9015950134

Крепеж

9016450022

Крепеж

9016840043

Крепеж

9017908039

Крепеж

9020115015

Крепеж

9020208039

Крепеж

9020615003

Крепеж

9024908155

Крепеж

9024908156

Крепеж

9046803018

Крепеж

9054006025

Крепеж

9356015020

Крепеж

9356055010

Крепеж

9356055016

Крепеж

9454300800

Крепеж

9616000600

Крепеж

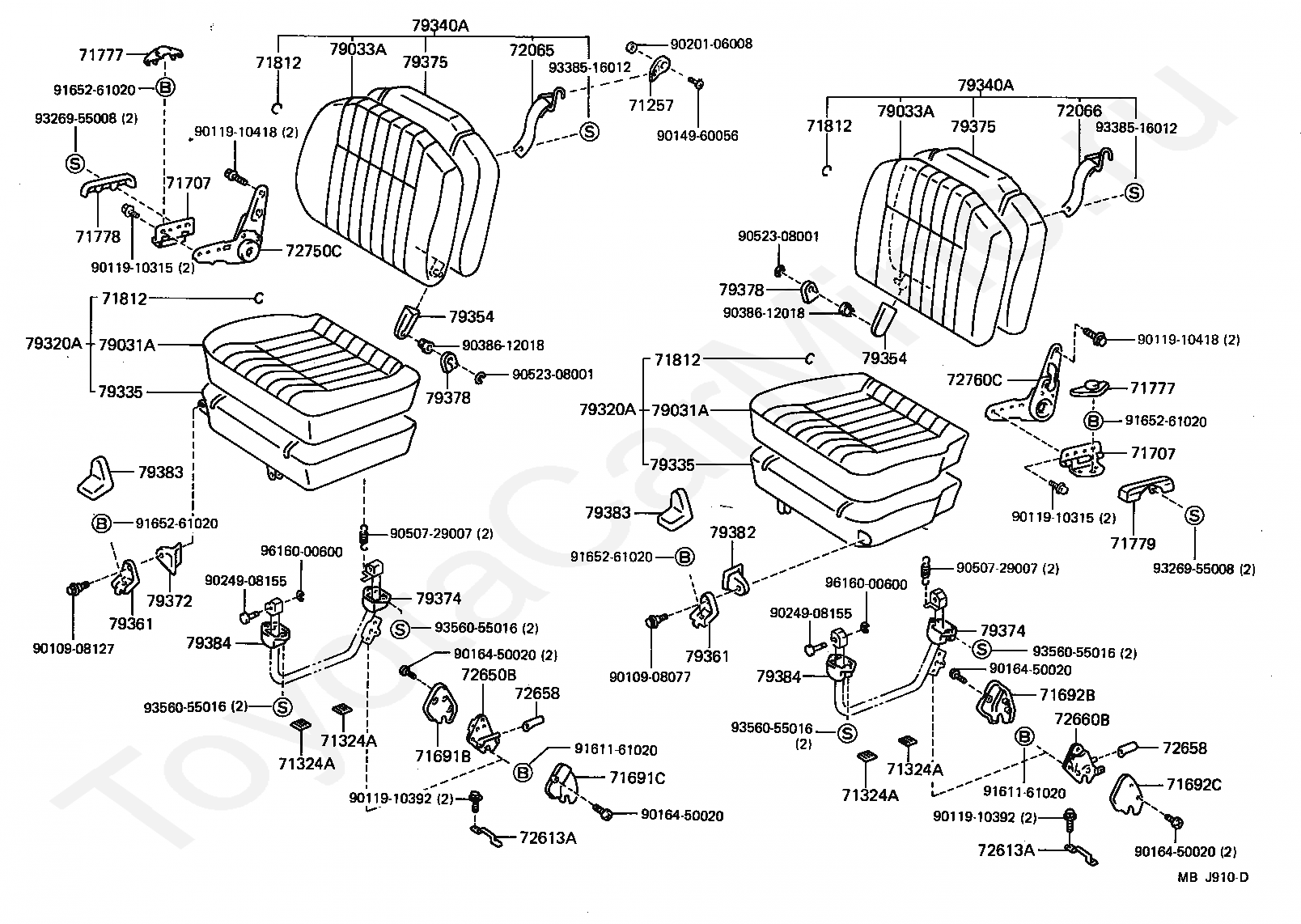

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71324A

CUSHION, REAR SEAT

71691B

COVER, REAR SEAT LOCK, OUTER RH

71691C

COVER, REAR SEAT LOCK, INNER RH

71692B

COVER, REAR SEAT LOCK, OUTER LH

71692C

COVER, REAR SEAT LOCK, INNER LH

71707

HINGE SUB-ASSY, REAR SEAT SIDE

71777

COVER, REAR SEAT SIDE HINGE FEMALE

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72613A

STRIKER, FRONT SEAT LOCK

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658

KNOB, REAR SEAT HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

79031A

COVER SUB-ASSY, NO.3 SEAT CUSHION

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79320A

CUSHION ASSY, NO.3 SEAT

79335

PAD, NO.3 SEAT CUSHION

79340A

BACK ASSY, NO.3 SEAT

79354

COVER, NO.3 SEAT BACK HINGE

79361

BRACKET, NO.3 SEAT SUPPORT

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375

PAD, NO.3 SEAT BACK

79378

COVER, NO.3 SEAT CUSHION HINGE

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79383

COVER, NO.3 SEAT BRACKET SUPPORT

79384

COVER, NO.3 SEAT LEG, REAR LH

9010908077

Крепеж

9010908127

Крепеж

9011910315

Крепеж

9011910392

Крепеж

9011910418

Крепеж

9014960056

Крепеж

9016450020

Крепеж

9020106008

Крепеж

9024908155

Крепеж

9038612018

Крепеж

9050729007

Крепеж

9052308001

Крепеж

9161161020

Крепеж

9165261020

Крепеж

9326955008

Крепеж

9338516012

Крепеж

9356055016

Крепеж

9616000600

Крепеж

Кресла TOYOTA LITEACE VAN,WAGON, 1985/10 - 1988/08, 1,5 литра, фургон, DELUX SPECIFICATION, KM30, механика, МКПП, 5 скоростей
