Каталог
ЯпонияМодель
LITEACE VAN,WAGONДвигатель
1,8 литраКузов
V(MODEL MARK)Класс
DELUX SPECIFICATIONФрейм
YM31Трансмиссия
механика МКПП, 5 скоростейОпции
V1 SPECIFICATION: VAN (STANDARD) 4-дверный вэн SIDE GLASS VAN STANDARD ROOF 05S CBR

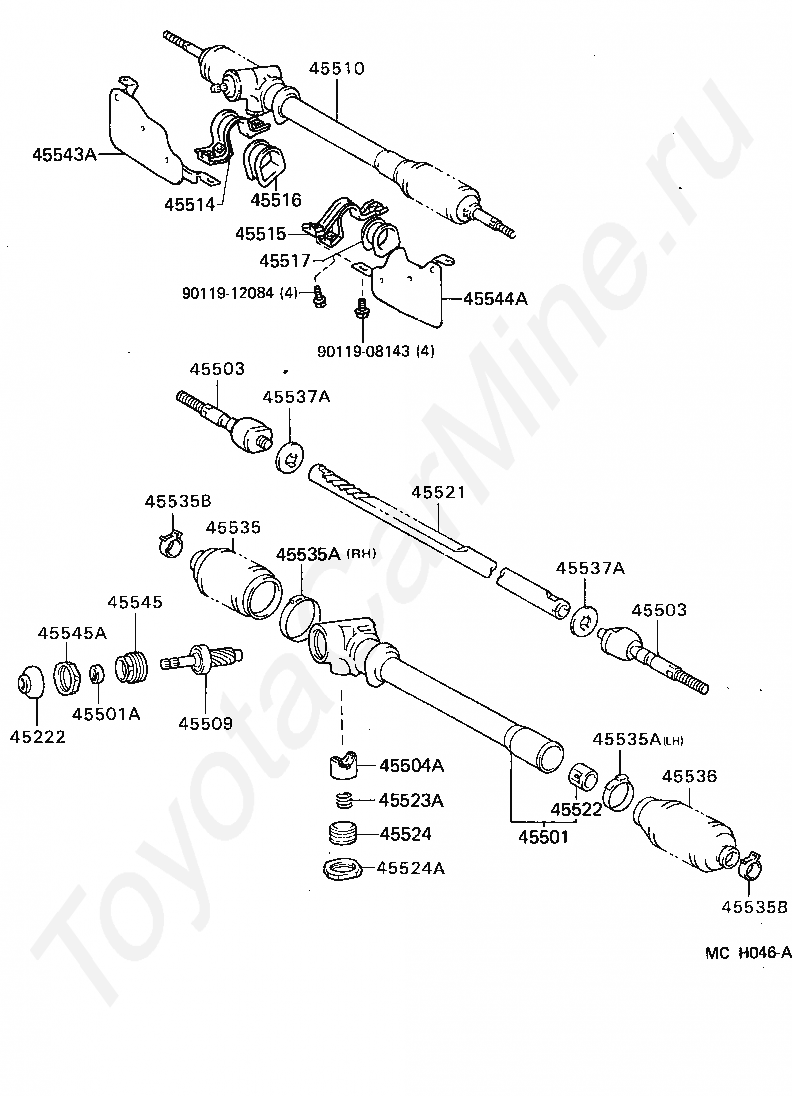

Код
Описание
45222
COVER, STEERING GEAR DUST
45501
HOUSING SUB-ASSY, STEERING RACK
45501A
SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503
END SUB-ASSY, STEERING RACK
45504A
GUIDE SUB-ASSY, RACK
45509
PINION SUB-ASSY, STEERING
45510
GEAR ASSY, STEERING
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45521
RACK, STEERING
45522
BUSH, STEERING RACK
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
45536
BOOT, STEERING RACK, NO.2
45537A
WASHER, CLAW(FOR STEERING RACK END LOCK)
45543A
PROTECTOR, STEERING RACK BOOT, RH
45544A
PROTECTOR, STEERING RACK BOOT, LH
45545
SCREW, PINION BEARING ADJUSTING
45545A
NUT(FOR PINION BEARING ADJUSTING SCREW)
9011908143
Крепеж
9011912084
Крепеж
Код
Описание
04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45543A
PROTECTOR, STEERING RACK BOOT, RH
45544A
PROTECTOR, STEERING RACK BOOT, LH
9011908143
Крепеж
9011912027
Крепеж
9011912084
Крепеж
9411571200
Крепеж
9453101200
Крепеж
9462111200
Крепеж
Код
Описание
44015A
NUT SUB-ASSY, BEARING GUIDE
44015B
RING, O(FOR BEARING GUIDE NUT)
44015C
SEAL, OIL(FOR BEARING GUIDE NUT)
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44206E
SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
44206G
SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44210E
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44210F
BEARING(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44275
STOPPER, CYLINDER END
44275B
SEAL, OIL(FOR CYLINDER END STOPPER)
44275D
BUSH(FOR CYLINDER END STOPPER)
44275F
RING, O(FOR CYLINDER END STOPPER)
44277
SEAT, RACK GUIDE
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
44503F
WASHER, CLAW(FOR POWER STEERING RACK END)
44523H
SPRING(FOR POWER STEERING RACK GUIDE)
44524B
NUT(FOR POWER STEERING RACK GUIDE CAP)
44535B
BOOT, STEERING RACK NO.1(FOR POWER STEERING)
44535D
CLIP(FOR POWER STEERING RACK BOOT)
44536B
BOOT, STEERING RACK NO.2(FOR POWER STEERING)
45222
COVER, STEERING GEAR DUST
45503
END SUB-ASSY, STEERING RACK
45523
GUIDE, RACK(FOR STEERING GEAR)
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535A
CLAMP(FOR STEERING RACK BOOT)
9151160825
Крепеж

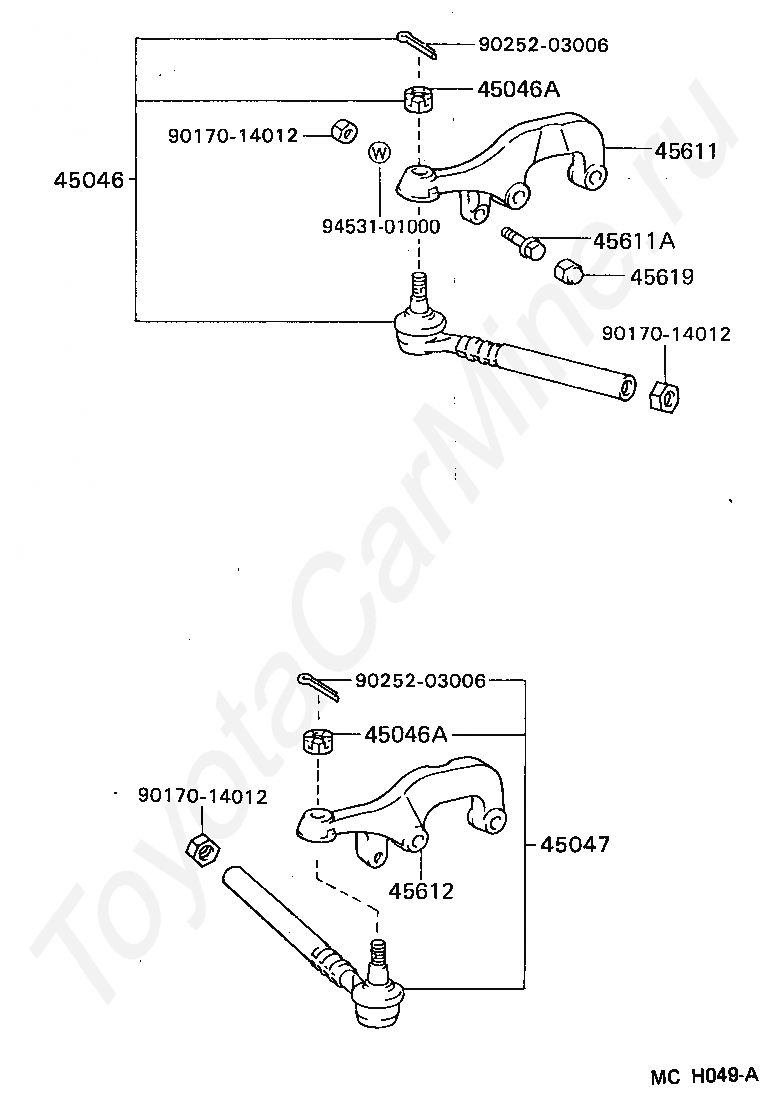

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45611
ARM, STEERING KNUCKLE, RH
45611A
BOLT, KNUCKLE STOPPER
45612
ARM, STEERING KNUCKLE, LH
45619
COVER, KNUCKLE STOPPER
9017014012
Крепеж
9025203006
Крепеж
9453101000
Крепеж
