Каталог
Ближний ВостокМодель
LITEACEДвигатель
1,3 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
KM20Трансмиссия
механика МКПП, 4 ступени, на рулеОпции
левый руль 4-дверный вэн высокая крыша SIDE GLASS VAN 02S EUR CBU

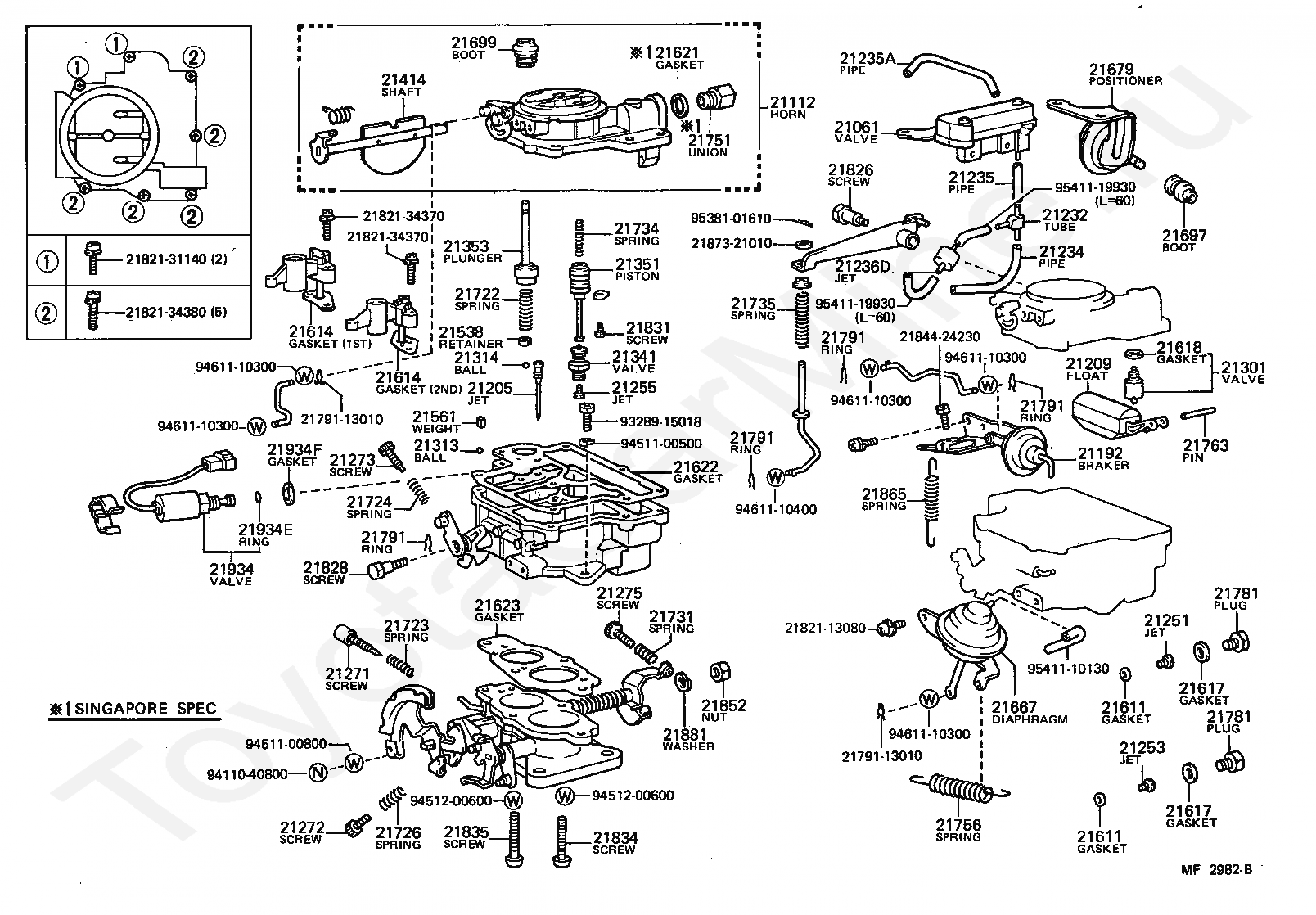

Код
Описание
2102
переход к группе запчастей
21061
VALVE SUB-ASSY, THERMOSTATIC
21112
HORN, AIR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21232
TUBE
21234
PIPE OR HOSE
21235
PIPE OR HOSE, CONNECTING
21235A
PIPE OR HOSE, CONNECTING
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
2157627010
Крепеж
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21667
DIAPHRAGM
21679
POSITIONER
21697
BOOT(FOR SLIDING ROD)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2179113010
Крепеж
2182113080
Крепеж
2182131140
Крепеж
2182134370
Крепеж
2182134380
Крепеж
21826
SCREW, PUMP ARM SET
21831
SCREW, POWER PISTON STOP
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835
SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
2184424230
Крепеж
21852
NUT, THROTTLE LEVER SET
21865
SPRING
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9328915018
Крепеж
9411040800
Крепеж
9451100400
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9541110130
Крепеж
9541119930
Крепеж

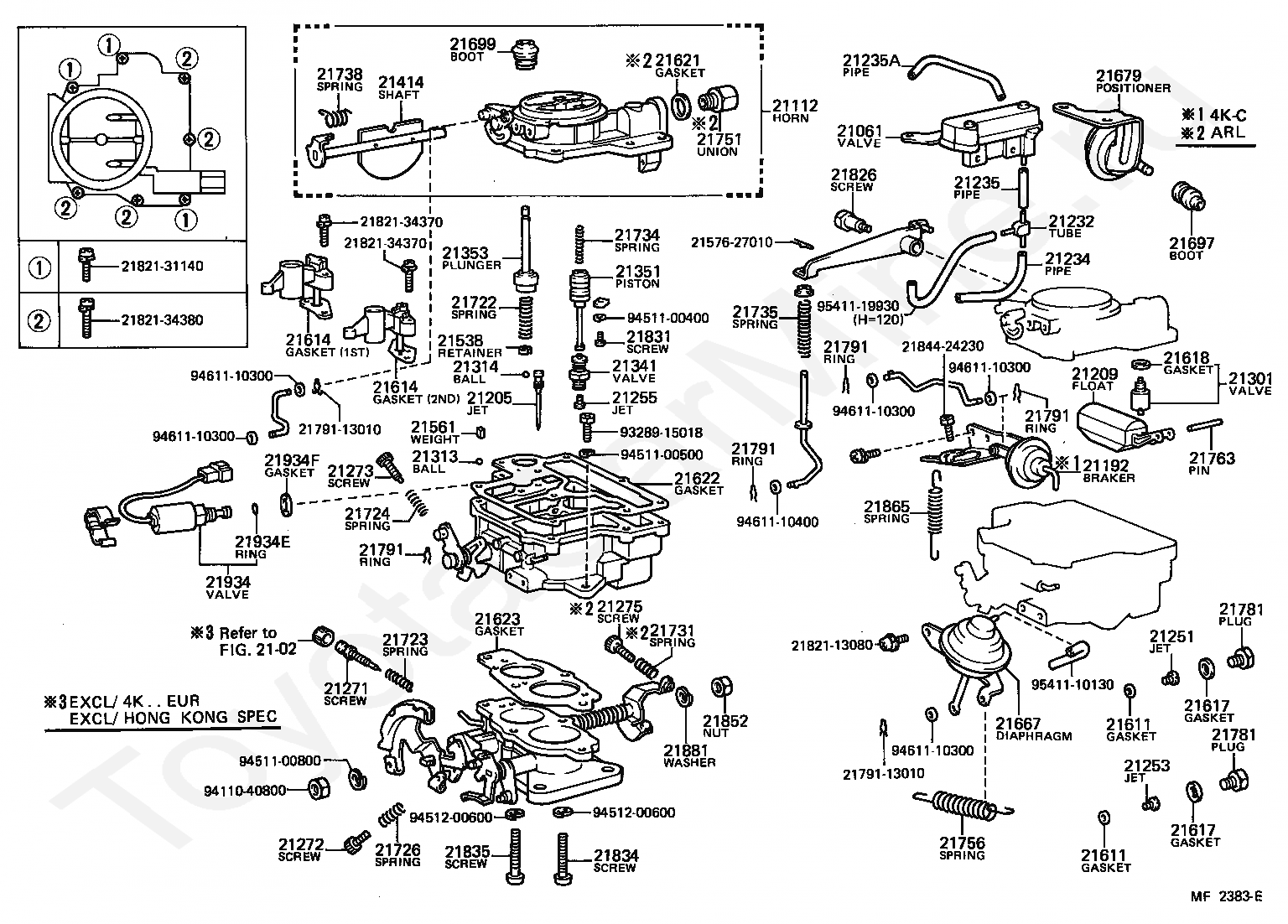

Код
Описание
21061
VALVE SUB-ASSY, THERMOSTATIC
21112
HORN, AIR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21232
TUBE
21234
PIPE OR HOSE
21235
PIPE OR HOSE, CONNECTING
21235A
PIPE OR HOSE, CONNECTING
21236D
JET(FOR OPENER)
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21667
DIAPHRAGM
21679
POSITIONER
21697
BOOT(FOR SLIDING ROD)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2179113010
Крепеж
2182113080
Крепеж
2182131140
Крепеж
2182134370
Крепеж
2182134380
Крепеж
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
21831
SCREW, POWER PISTON STOP
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835
SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
2184424230
Крепеж
21852
NUT, THROTTLE LEVER SET
21865
SPRING
2187321010
Крепеж
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9328915018
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9538101610
Крепеж
9541110130
Крепеж
9541119930
Крепеж
