Кресла TOYOTA LITE/TOWNACE V,WG, 1992/01 - 1996/10, 2 литра, дизель, N(MODEL MARK), CR36, механика

Каталог

Япония

Модель

LITE/TOWNACE V,WG

Двигатель

2 литра, дизель

Класс

N(MODEL MARK)

Фрейм

CR36

Трансмиссия

механика

Опции

высокая крыша SIDE GLASS VAN 5 дверей 5-местный V1 SPECIFICATION: VAN (STANDARD)

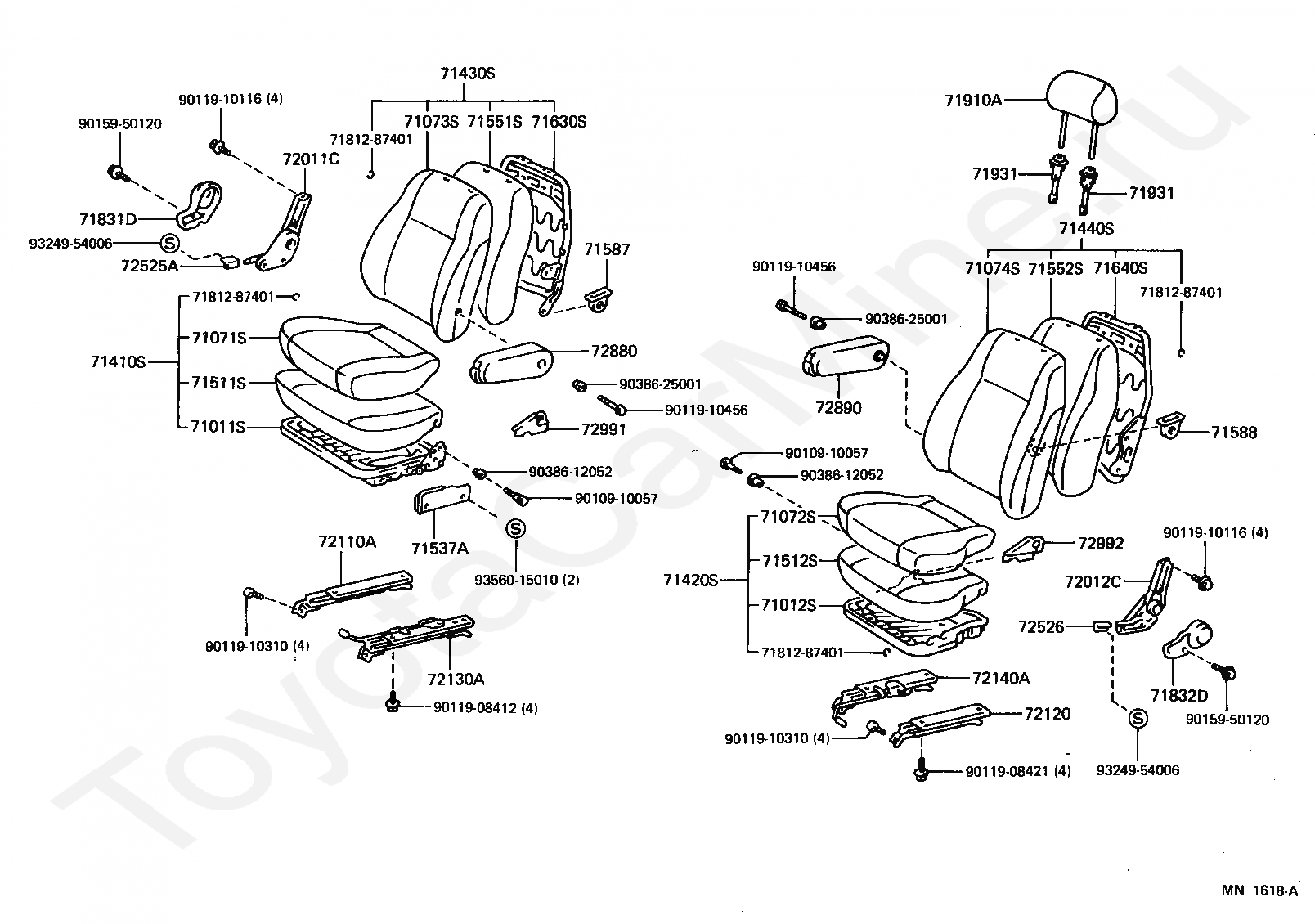

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7181287401

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

9010910057

Крепеж

9011908412

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910456

Крепеж

9015950120

Крепеж

9038612052

Крепеж

9038625001

Крепеж

9324954006

Крепеж

9356015010

Крепеж

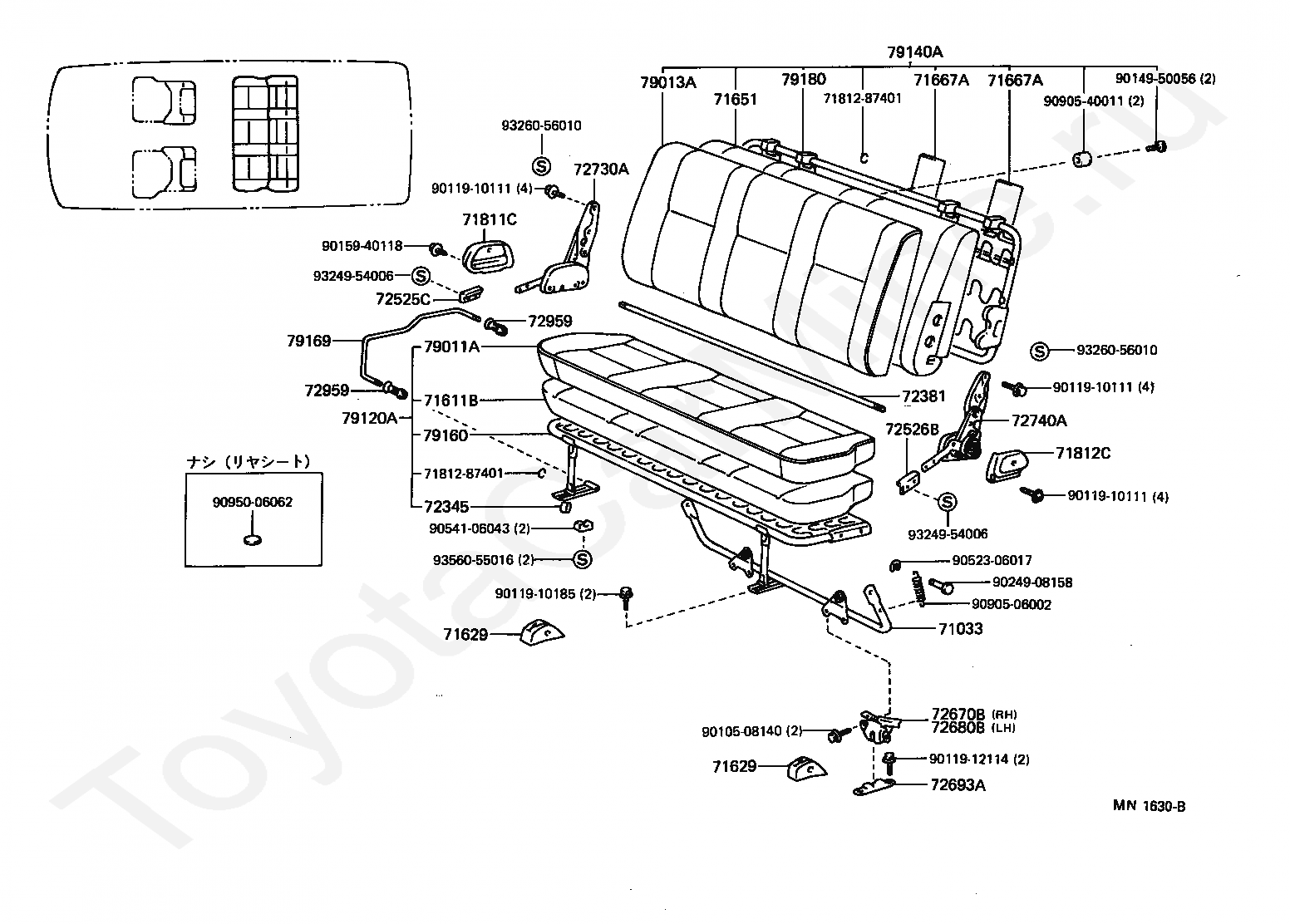

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71611B

PAD, REAR NO.1 SEAT CUSHION

71629

COVER, REAR SEAT CUSHION HINGE

71651

PAD, REAR NO.1 SEAT BACK

71667A

PAD, REAR SEAT BACK, CENTER A

71811C

COVER, RECLINING ADJUSTER, RH

7181287401

Крепеж

71812C

COVER, RECLINING ADJUSTER, LH

72345

CAP, SEAT STAND FRAME

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72693A

STRIKER, REAR SEAT CUSHION LOCK, NO.3

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72959

SPACER, REAR SEAT TURN SIDE

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79169

ROD, REAR SEAT HINGE CONNECTOR

79180

SPRING ASSY, NO.1 SEAT BACK

9010508140

Крепеж

9011910111

Крепеж

9011910185

Крепеж

9011912114

Крепеж

9014950056

Крепеж

9015940118

Крепеж

9024908158

Крепеж

9052306017

Крепеж

9054106043

Крепеж

9090506002

Крепеж

9090540011

Крепеж

9095006062

Крепеж

9324954006

Крепеж

9326056010

Крепеж

9356055016

Крепеж

Кресла TOYOTA LITE/TOWNACE V,WG, 1992/01 - 1996/10, 2 литра, дизель, N(MODEL MARK), CR36, механика
