Топливный бак и горловина TOYOTA LITE/TOWNACE V,WG, 1992/01 - 1996/10, 2 литра, EFI, E(MODEL MARK), YR21, механика

Каталог

Япония

Модель

LITE/TOWNACE V,WG

Двигатель

2 литра, EFI

Класс

E(MODEL MARK)

Фрейм

YR21

Трансмиссия

механика

Опции

высокая крыша 4 двери 8-местный

Код

Описание

5544587001

Крепеж

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77012

TUBE SUB-ASSY, FUEL TANK BREATHER

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77135

BRACKET, CHECK VALVE

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77179A

GASKET, FUEL TANK BREATHER TUBE

77201

PIPE SUB-ASSY, FUEL TANK INLET

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

77202B

HOSE, FUEL, NO.2 (FOR BREATHER TUBE)

77202C

HOSE, FUEL, NO.3 (FOR BREATHER TUBE)

77213B

HOSE, FUEL TANK TO FILLER PIPE

77222

TUBE, FUEL TANK BREATHER, NO.2

77223

TUBE, FUEL TANK BREATHER, NO.3

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77305A

LID SUB-ASSY, FUEL FILLER OPENING

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77306A

SPRING, FUEL LID OPEN LEVER

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77358A

STOPPER, FUEL FILLER OPENING LID

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9011906298

Крепеж

9011908320

Крепеж

9015940155

Крепеж

9015950004

Крепеж

9015950219

Крепеж

9046026001

Крепеж

9046065002

Крепеж

9046721005

Крепеж

9048001186

Крепеж

9048013055

Крепеж

9048025385

Крепеж

9048030014

Крепеж

9054106001

Крепеж

9161140814

Крепеж

9166160816

Крепеж

9331116014

Крепеж

9338516012

Крепеж

9613230600

Крепеж

Код

Описание

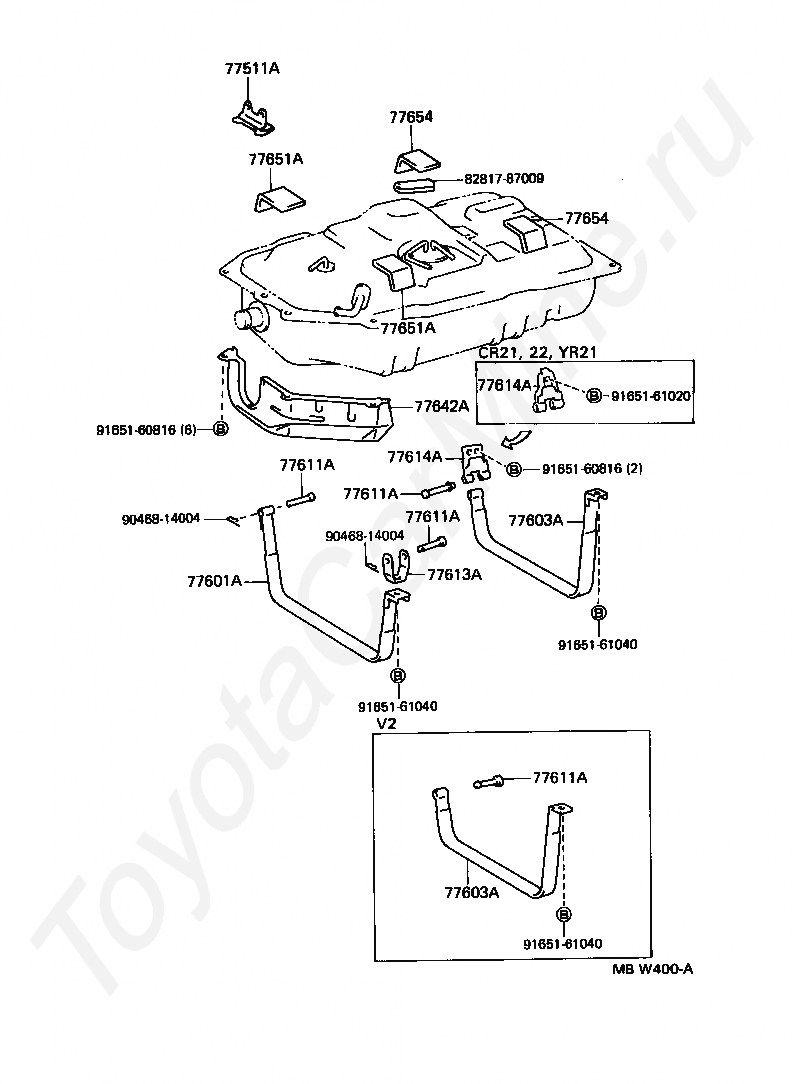

77511A

BRACKET, FUEL TANK

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603A

BAND SUB-ASSY, FUEL TANK, NO.2

77611A

PIN (FOR FUEL TANK BAND)

77613A

BRACKET, FUEL TANK BAND, NO.1

77614A

BAND, FUEL TANK, NO.2 RH

77642A

PROTECTOR, FUEL TANK, NO.2

77651A

CUSHION, FUEL TANK, NO.1

77654

CUSHION, FUEL TANK, NO.2

8281787009

Крепеж

9046814004

Крепеж

9165160816

Крепеж

9165161020

Крепеж

9165161040

Крепеж

Код

Описание

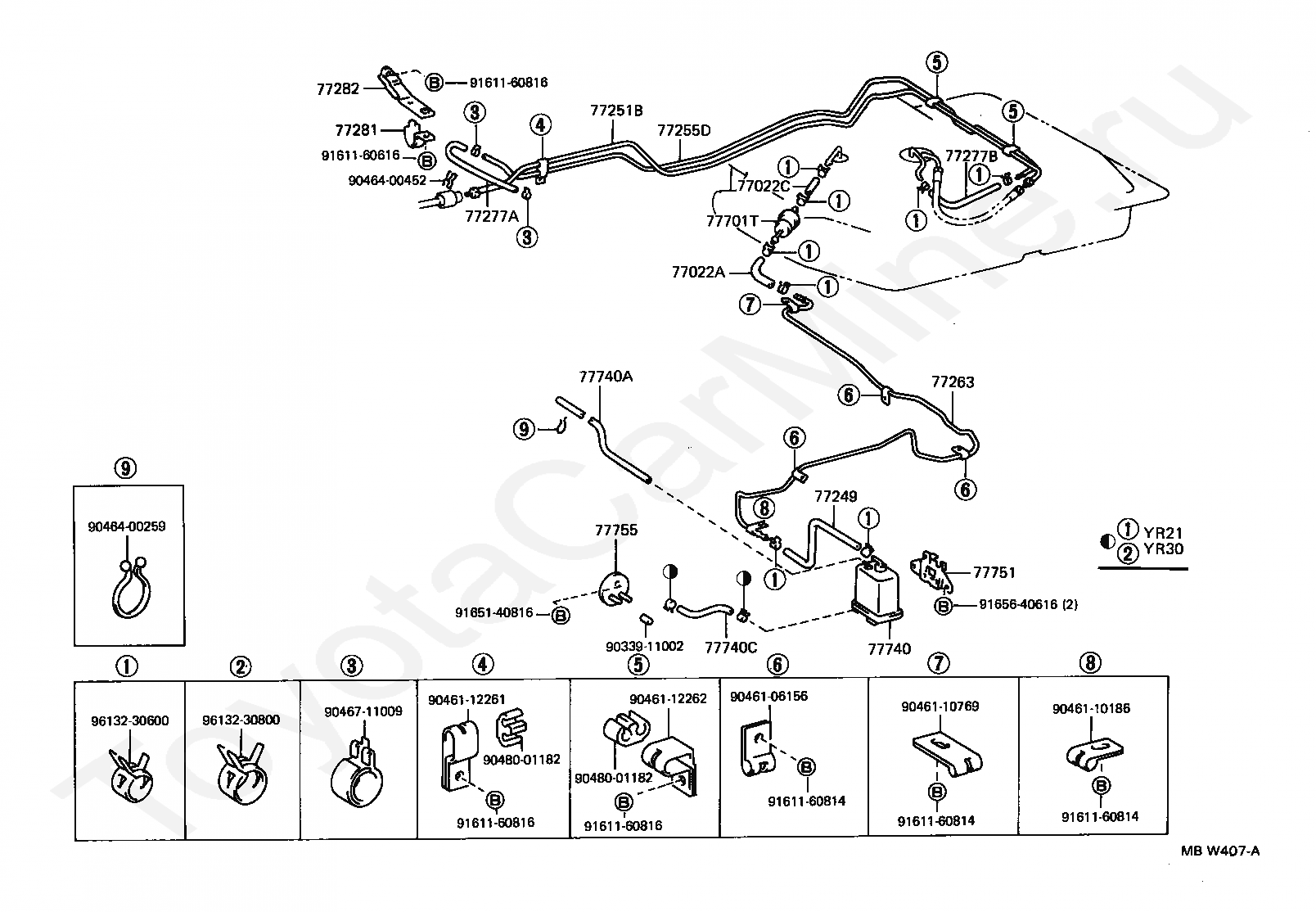

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77249

HOSE, FUEL EMISSION

77251B

TUBE, FUEL MAIN

77255D

TUBE, FUEL RETURN

77263

TUBE, FUEL TANK TO CANISTER, NO.3

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77281

BRACKET, FUEL MAIN TUBE, NO.1

77282

BRACKET, FUEL MAIN TUBE, NO.2

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740C

HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

77751

BRACKET, CHARCOAL CANISTER BASE

77755

BRACKET, CHARCOAL CANISTER OUTLET HOSE

9033911002

Крепеж

9046106156

Крепеж

9046110186

Крепеж

9046110769

Крепеж

9046112261

Крепеж

9046112262

Крепеж

9046400259

Крепеж

9046400452

Крепеж

9046711009

Крепеж

9048001182

Крепеж

9161160616

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9165140816

Крепеж

9165640616

Крепеж

9613230600

Крепеж

9613230800

Крепеж

Топливный бак и горловина TOYOTA LITE/TOWNACE V,WG, 1992/01 - 1996/10, 2 литра, EFI, E(MODEL MARK), YR21, механика
