Каталог
ЯпонияМодель
LITE/TOWNACE TRUCKДвигатель
2 литра, дизельКузов
SUPER SINGLE JUST LOWКласс
DELUX SPECIFICATIONФрейм
CM55Трансмиссия
автомат АКПП, 4 ступени, на рулеОпции
STEEL-MADE DECK THREE SIDE OPEN COMPLETED VEHICLE

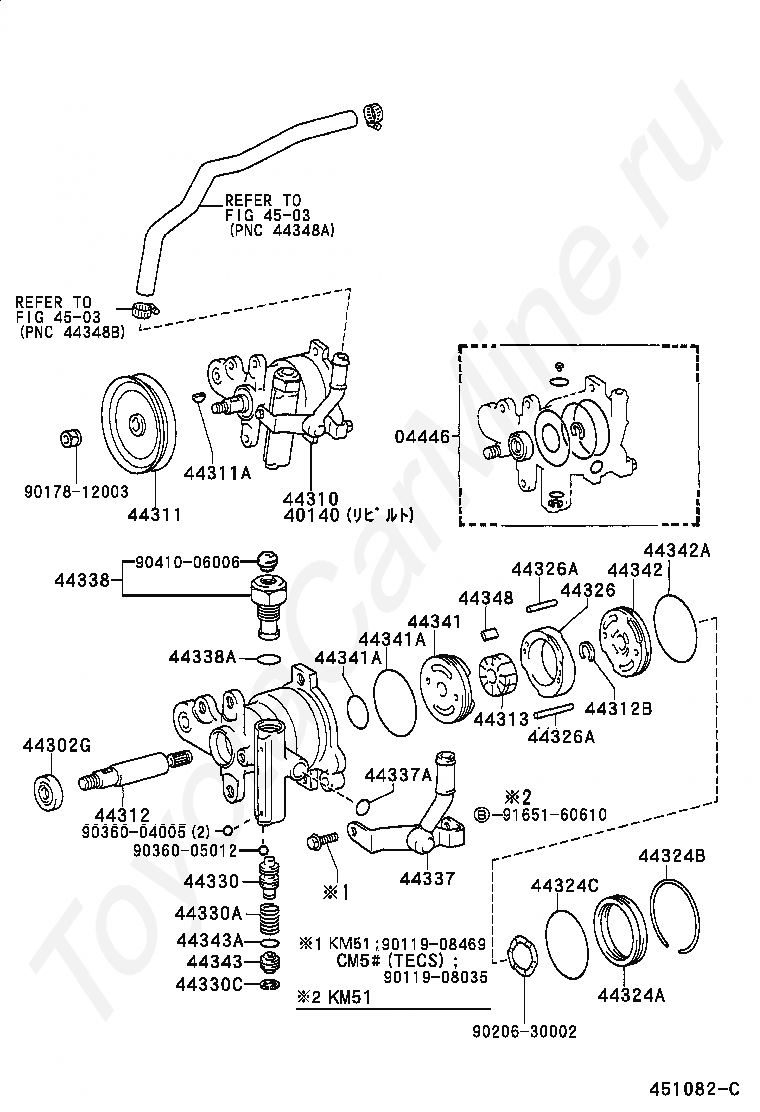

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
40140
PUMP ASSY,VANE REBUILT
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44310
PUMP ASSY, VANE
44311
PULLEY, VANE PUMP
44311A
KEY, VANE PUMP PULLEY
44312
SHAFT, VANE PUMP
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44324A
HOUSING, PUMP, REAR
44324B
RING, HOLE SNAP(FOR PUMP HOUSING REAR)
44324C
RING, O(FOR PUMP HOUSING REAR)
44326
RING, CAM(FOR VANE PUMP)
44326A
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330C
RING, SNAP(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338
UNION, PRESSURE PORT
44338A
RING, O(FOR PRESSURE PORT UNION)
44341
PLATE, VANE PUMP SIDE, FRONT
44341A
RING, O(FOR VANE PUMP FRONT SIDE PLATE)
44342
PLATE, VANE PUMP SIDE, REAR
44342A
RING, O(FOR VANE PUMP SIDE PLATE REAR)
44343
SEAT, FLOW CONTROL SPRING
44343A
RING, O(FOR FLOW CONTROL SPRING SEAT)
44348
PLATE, VANE PUMP
4503
переход к группе запчастей
9011908035
Крепеж
9011908469
Крепеж
9017812003
Крепеж
9020630002
Крепеж
9036004005
Крепеж
9036005012
Крепеж
9041006006
Крепеж
9165160610
Крепеж

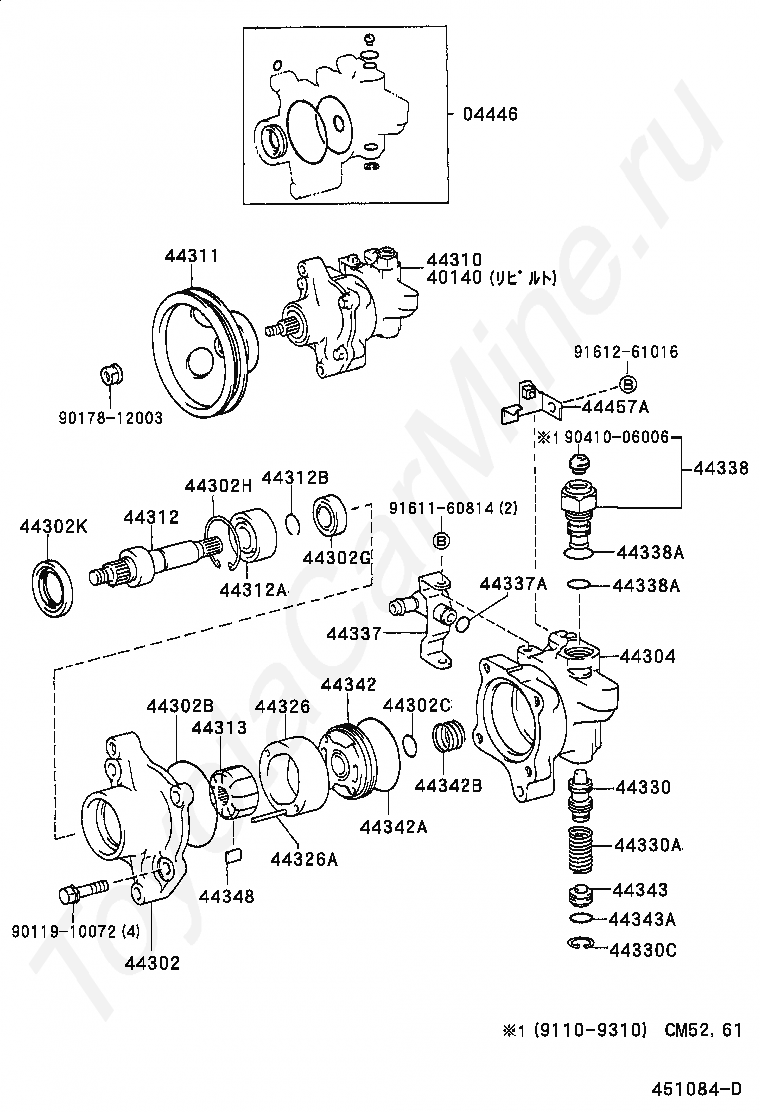

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
40140
PUMP ASSY,VANE REBUILT
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302B
RING, O, NO.1(FOR VANE PUMP HOUSING)
44302C
RING, O, NO.2(FOR VANE PUMP HOUSING)
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302H
RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44310
PUMP ASSY, VANE
44311
PULLEY, VANE PUMP
44311A
KEY, VANE PUMP PULLEY
44312
SHAFT, VANE PUMP
44312A
BEARING(FOR VANE PUMP SHAFT)
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44326
RING, CAM(FOR VANE PUMP)
44326A
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330C
RING, SNAP(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338
UNION, PRESSURE PORT
44338A
RING, O(FOR PRESSURE PORT UNION)
44342
PLATE, VANE PUMP SIDE, REAR
44342A
RING, O(FOR VANE PUMP SIDE PLATE REAR)
44342B
SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
44343
SEAT, FLOW CONTROL SPRING
44343A
RING, O(FOR FLOW CONTROL SPRING SEAT)
44348
PLATE, VANE PUMP
9011910072
Крепеж
9017012011
Крепеж
9020112022
Крепеж
9161160814
Крепеж
9451101200
Крепеж

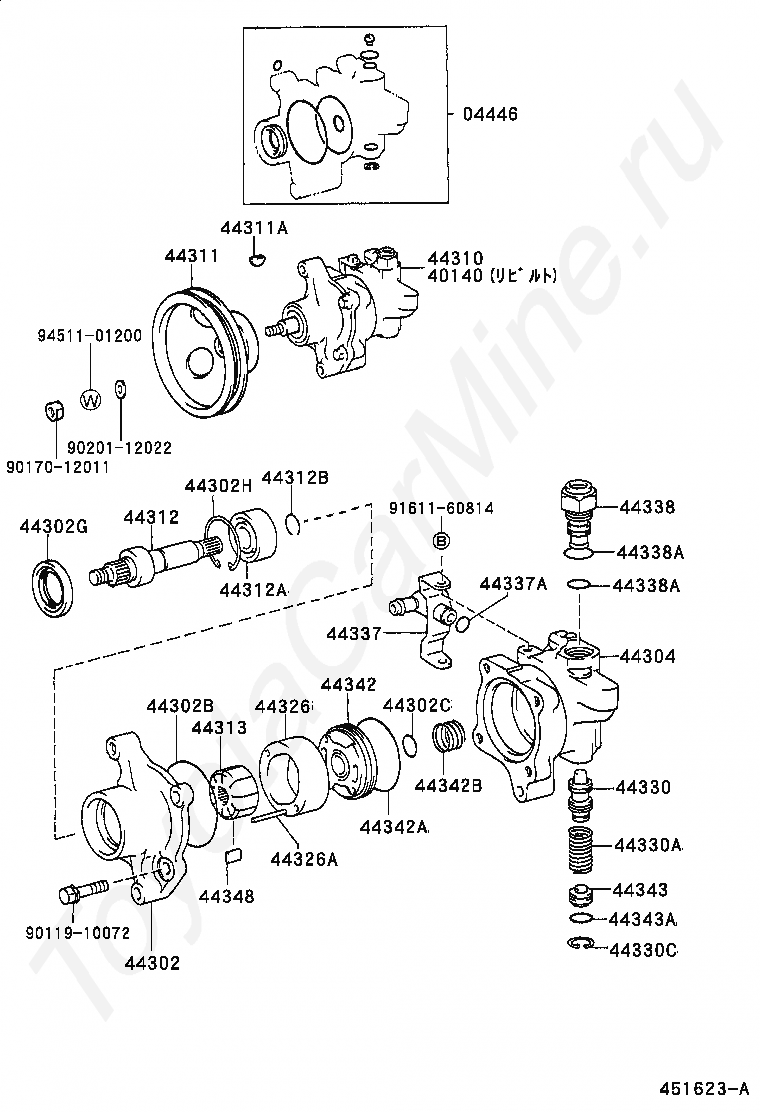

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
40140
PUMP ASSY,VANE REBUILT
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302B
RING, O, NO.1(FOR VANE PUMP HOUSING)
44302C
RING, O, NO.2(FOR VANE PUMP HOUSING)
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302H
RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44302K
SEAL, OIL, NO.3(FOR VANE PUMP HOUSING)
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44310
PUMP ASSY, VANE
44311
PULLEY, VANE PUMP
44312
SHAFT, VANE PUMP
44312A
BEARING(FOR VANE PUMP SHAFT)
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44326
RING, CAM(FOR VANE PUMP)
44326A
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330C
RING, SNAP(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338
UNION, PRESSURE PORT
44338A
RING, O(FOR PRESSURE PORT UNION)
44342
PLATE, VANE PUMP SIDE, REAR
44342A
RING, O(FOR VANE PUMP SIDE PLATE REAR)
44342B
SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
44343
SEAT, FLOW CONTROL SPRING
44343A
RING, O(FOR FLOW CONTROL SPRING SEAT)
44348
PLATE, VANE PUMP
44457A
BRACKET, TUBE SUPPORT, VANE PUMP
9011910072
Крепеж
9017812003
Крепеж
9041006006
Крепеж
9161160814
Крепеж
9161261016
Крепеж

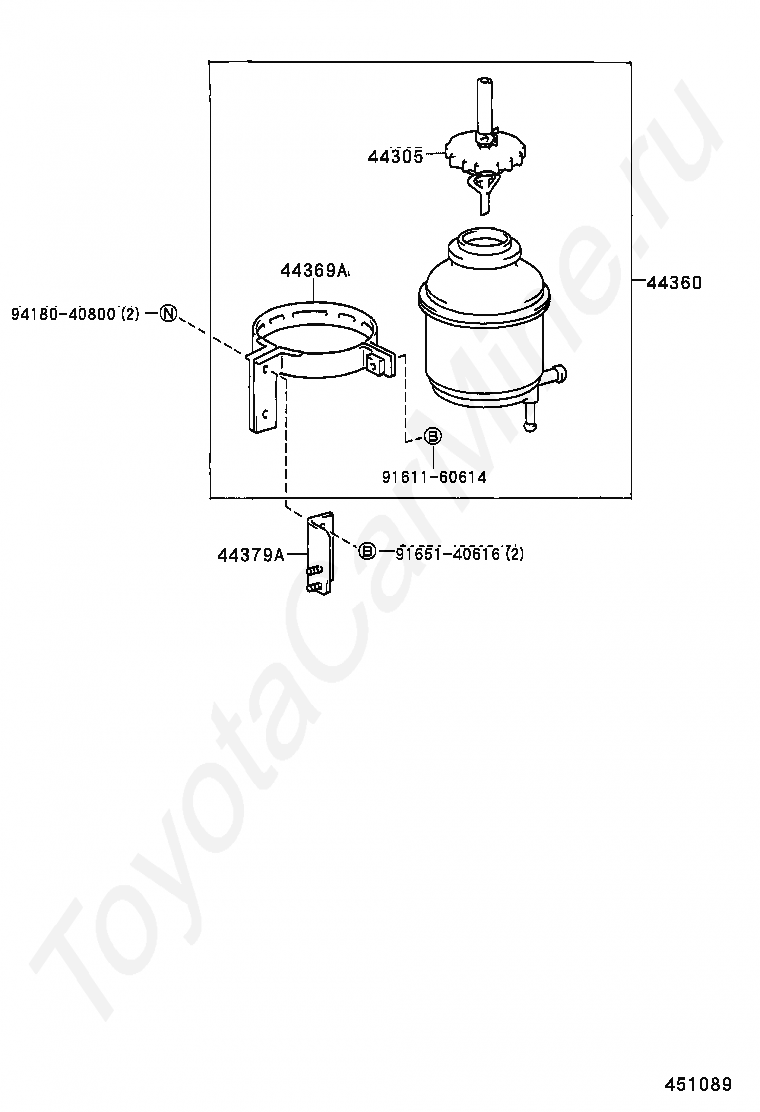

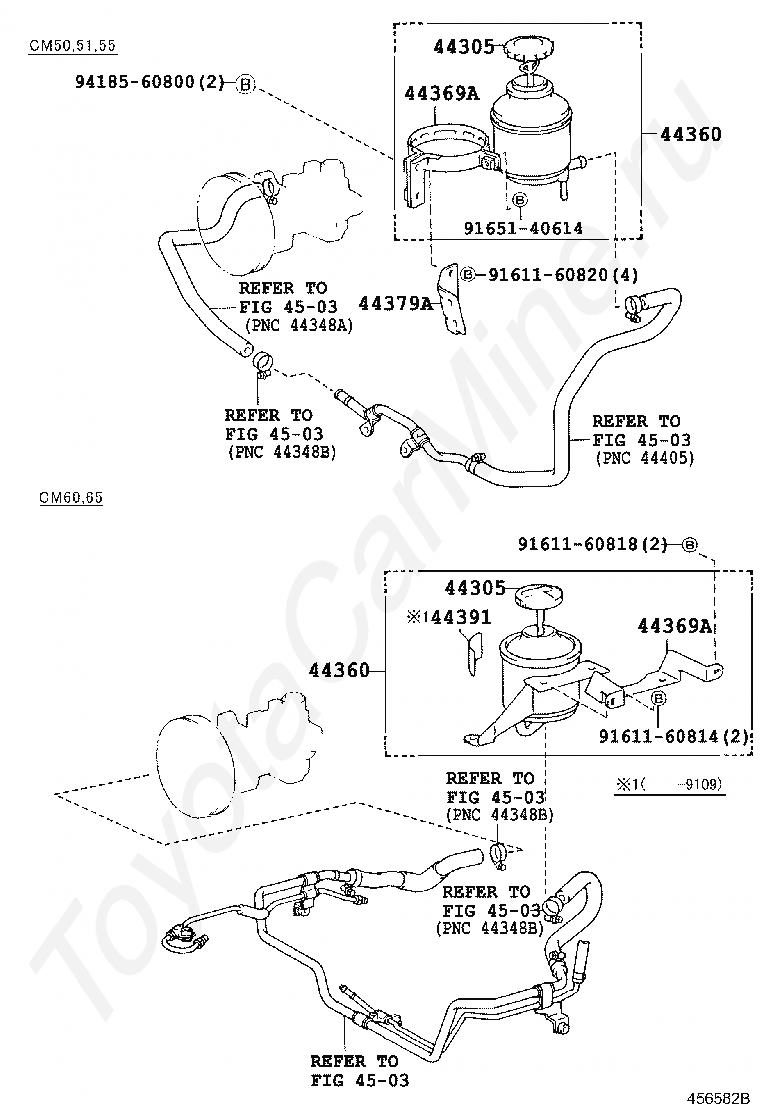

Код
Описание
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44360
RESERVOIR ASSY, VANE PUMP OIL
44369A
BRACKET, OIL RESERVOIR, NO.1
44379A
BRACKET, OIL RESERVOIR, NO.2
44391
PLATE, POWER STEERING OIL RESERVOIR CAUTION
4503
переход к группе запчастей
9161160814
Крепеж
9161160818
Крепеж
9161160820
Крепеж
9165140614
Крепеж
9418560800
Крепеж
Код
Описание
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44360
RESERVOIR ASSY, VANE PUMP OIL
44369A
BRACKET, OIL RESERVOIR, NO.1
44379A
BRACKET, OIL RESERVOIR, NO.2
9161160614
Крепеж
9165140616
Крепеж
9418040800
Крепеж
