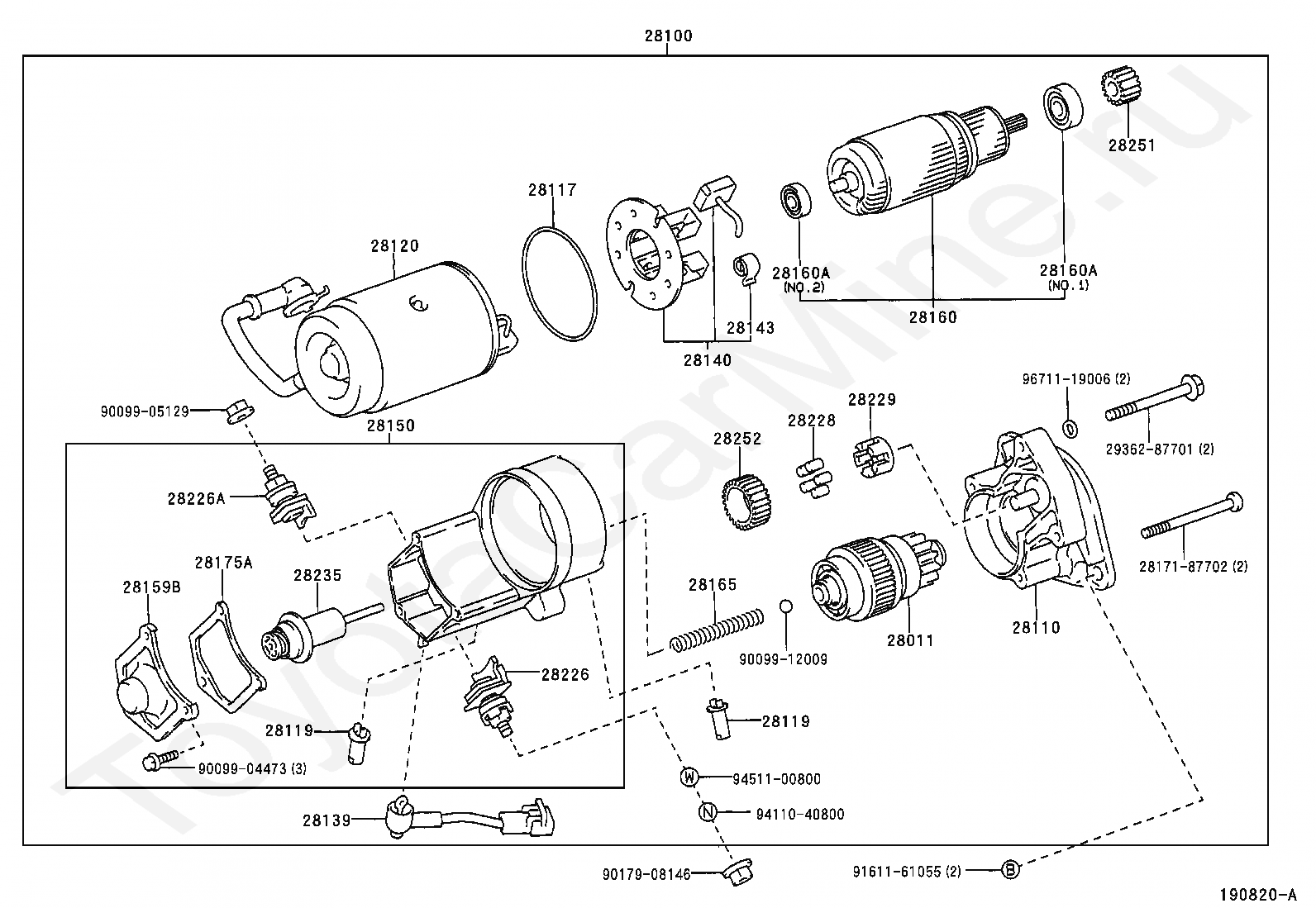

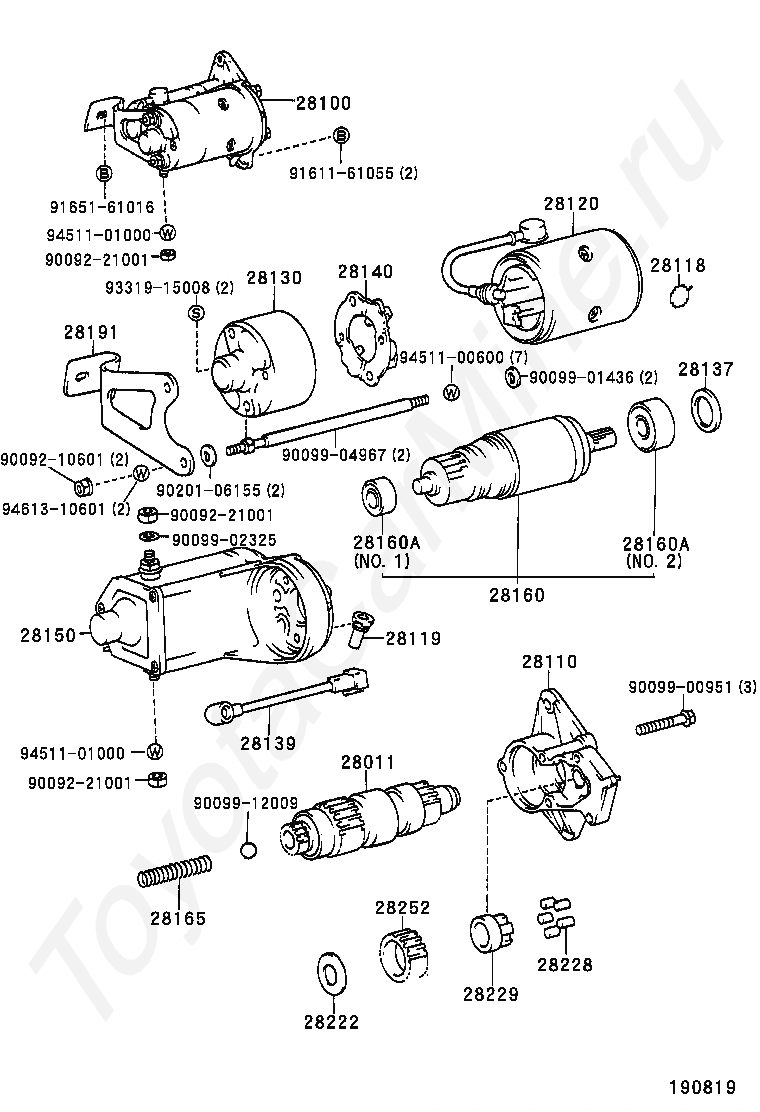

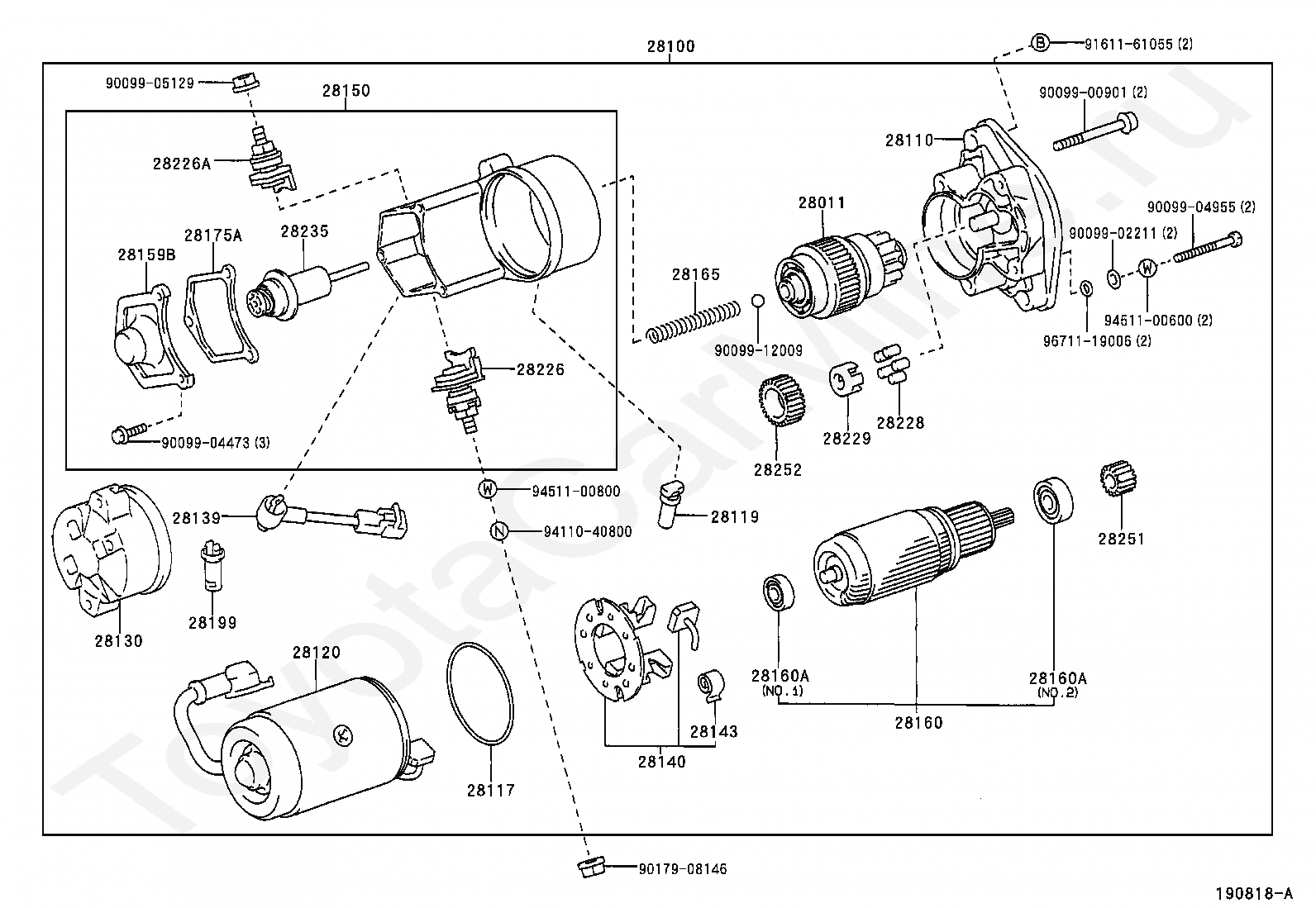

Стартер TOYOTA LITE/TOWNACE TRUCK, 1986/10 - 1999/06, 2 литра, дизель, SUPER SINGLE JUST LOW, DELUX SPECIFICATION, CM55, автомат, АКПП, 4 ступени, на руле

Каталог

Япония

Модель

LITE/TOWNACE TRUCK

Двигатель

2 литра, дизель

Кузов

SUPER SINGLE JUST LOW

Класс

DELUX SPECIFICATION

Фрейм

CM55

Трансмиссия

автомат АКПП, 4 ступени, на руле

Опции

STEEL-MADE DECK THREE SIDE OPEN COMPLETED VEHICLE

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28139

WIRE, LEAD, NO.1(FOR STARTER)

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28169

CLAMP, STARTER MOTOR LEAD WIRE

28175A

GASKET, MAGNET SWITCH COVER

2817615090

Крепеж

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28251

PINION, STARTER DRIVE

28252

GEAR, STARTER IDLE

9009900270

Крепеж

9009900907

Крепеж

9009904448

Крепеж

9009904449

Крепеж

9009904474

Крепеж

9009904974

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9009914064

Крепеж

9017908146

Крепеж

9161161055

Крепеж

9411040800

Крепеж

9451100600

Крепеж

9451100800

Крепеж

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28117

RUBBER(FOR STARTER YOKE)

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28139

WIRE, LEAD, NO.1(FOR STARTER)

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28175A

GASKET, MAGNET SWITCH COVER

28199

COVER, STARTER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28251

PINION, STARTER DRIVE

28252

GEAR, STARTER IDLE

9009900901

Крепеж

9009902211

Крепеж

9009904473

Крепеж

9009904955

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9017908146

Крепеж

9161161055

Крепеж

9411040800

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9671119006

Крепеж

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28118

PLATE(FOR STARTER YOKE)

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28137

WASHER, FELT, STARTER

28139

WIRE, LEAD, NO.1(FOR STARTER)

28140

HOLDER ASSY, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28191

STAY, STARTER

28222

WASHER, STARTER IDLE GEAR CLUTCH

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28252

GEAR, STARTER IDLE

9009210601

Крепеж

9009221001

Крепеж

9009900951

Крепеж

9009901436

Крепеж

9009902325

Крепеж

9009904967

Крепеж

9009912009

Крепеж

9020106155

Крепеж

9161161055

Крепеж

9165161016

Крепеж

9331915008

Крепеж

9451100600

Крепеж

9451101000

Крепеж

9461310601

Крепеж

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28117

RUBBER(FOR STARTER YOKE)

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28139

WIRE, LEAD, NO.1(FOR STARTER)

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

2817187702

Крепеж

28175A

GASKET, MAGNET SWITCH COVER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28251

PINION, STARTER DRIVE

28252

GEAR, STARTER IDLE

2936287701

Крепеж

9009904473

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9017908146

Крепеж

9161161055

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9671119006

Крепеж

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28117

RUBBER(FOR STARTER YOKE)

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28139

WIRE, LEAD, NO.1(FOR STARTER)

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

2817187702

Крепеж

28175A

GASKET, MAGNET SWITCH COVER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28251

PINION, STARTER DRIVE

28252

GEAR, STARTER IDLE

2936287701

Крепеж

9009904473

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9017908146

Крепеж

9161161055

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9671119006

Крепеж

Стартер TOYOTA LITE/TOWNACE TRUCK, 1986/10 - 1999/06, 2 литра, дизель, SUPER SINGLE JUST LOW, DELUX SPECIFICATION, CM55, автомат, АКПП, 4 ступени, на руле
