Рулевая рейка и наконечники TOYOTA LITE/TOWNACE NOAH,V, 1996/10 - 2001/11, 2 литра, 16 клапанов, DOHC, EFI, фургон, V(MODEL MARK), SR50, автомат

Каталог

Япония

Модель

LITE/TOWNACE NOAH,V

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

V(MODEL MARK)

Фрейм

SR50

Трансмиссия

автомат

Опции

STANDARD ROOF 4 двери 8-местный COMPLETED VEHICLE электронная система впрыска топлива

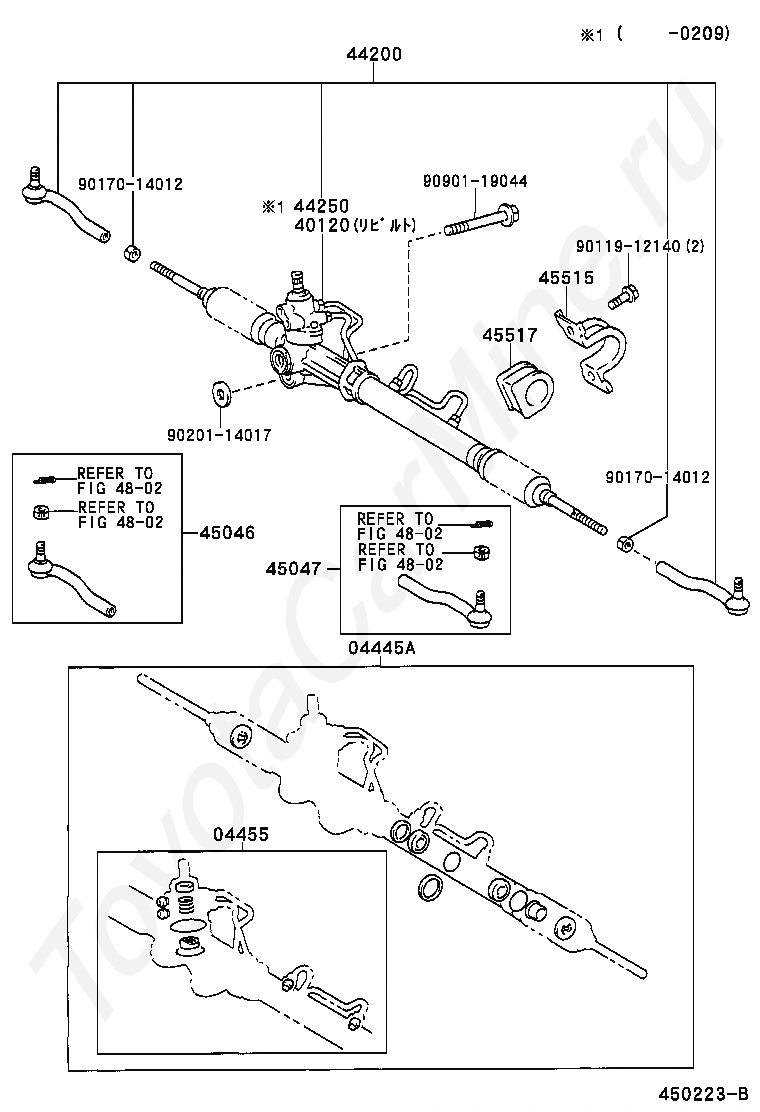

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

40120

GEAR ASSY,POWER STEERING,REBUILT

44200

LINK ASSY, POWER STEERING

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046

END SUB-ASSY, TIE ROD, RH

45047

END SUB-ASSY, TIE ROD, LH

45515

BRACKET, STEERING RACK HOUSING, NO.2

45517

GROMMET, STEERING RACK HOUSING, NO.2

4802

переход к группе запчастей

9011912140

Крепеж

9017014012

Крепеж

9020114017

Крепеж

9090119044

Крепеж

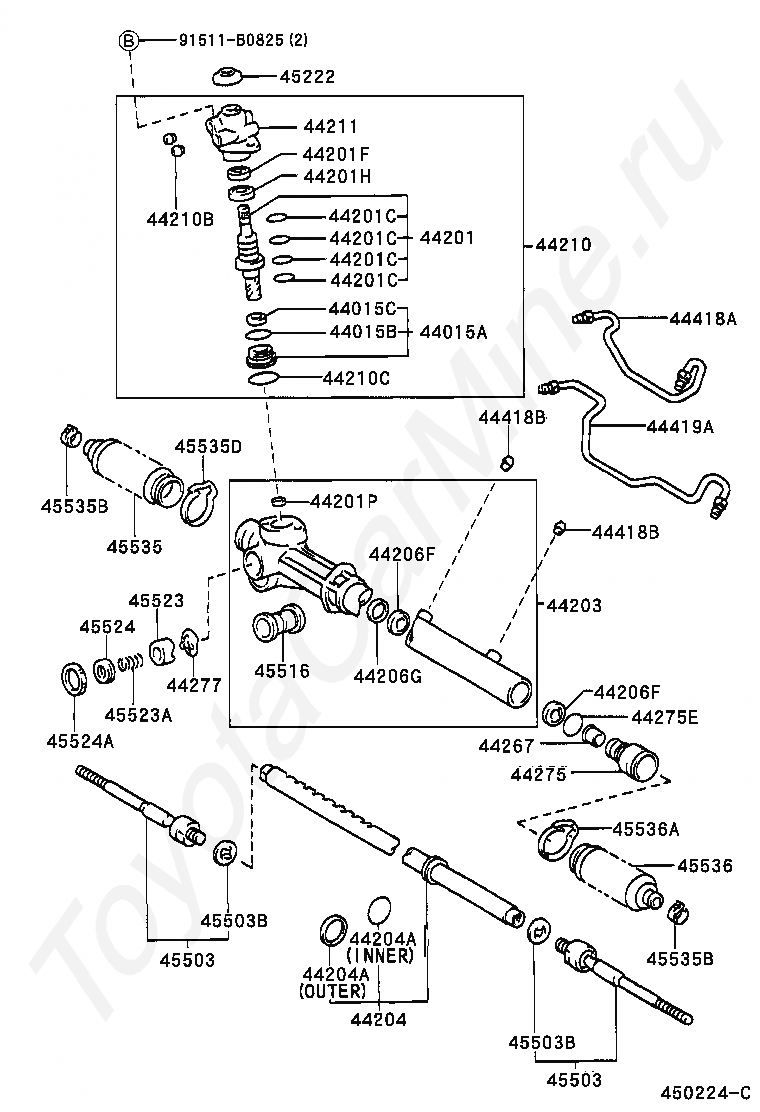

Код

Описание

44015A

NUT SUB-ASSY, BEARING GUIDE

44015B

RING, O(FOR BEARING GUIDE NUT)

44015C

SEAL, OIL(FOR BEARING GUIDE NUT)

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201F

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44201H

BEARING(FOR POWER STEERING CONTROL VALVE UPPER)

44201P

BEARING(FOR POWER STEERING CONTROL VALVE LOWER)

44203

HOUSING SUB-ASSY, POWER STEERING RACK

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44206F

SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE)

44206G

SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44267

GUIDE, RACK END

44275

STOPPER, CYLINDER END

44275E

RING, O(FOR RACK END GUIDE)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

45222

COVER, STEERING GEAR DUST

45503

END SUB-ASSY, STEERING RACK

45503B

WASHER, CLAW(FOR STEERING RACK END)

45516

GROMMET, STEERING RACK HOUSING, NO.1

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535B

CLIP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45536

BOOT, STEERING RACK, NO.2

45536A

CLAMP(FOR STEERING RACK BOOT NO.2)

91511B0825

Крепеж

Рулевая рейка и наконечники TOYOTA LITE/TOWNACE NOAH,V, 1996/10 - 2001/11, 2 литра, 16 клапанов, DOHC, EFI, фургон, V(MODEL MARK), SR50, автомат
