Каталог
ЯпонияМодель
LITE/TOWNACE NOAH,VДвигатель
2 литра, 16 клапанов, DOHC, EFIКузов
фургонКласс
V(MODEL MARK)Фрейм
SR50Трансмиссия
автоматОпции
STANDARD ROOF 4 двери 8-местный COMPLETED VEHICLE электронная система впрыска топлива

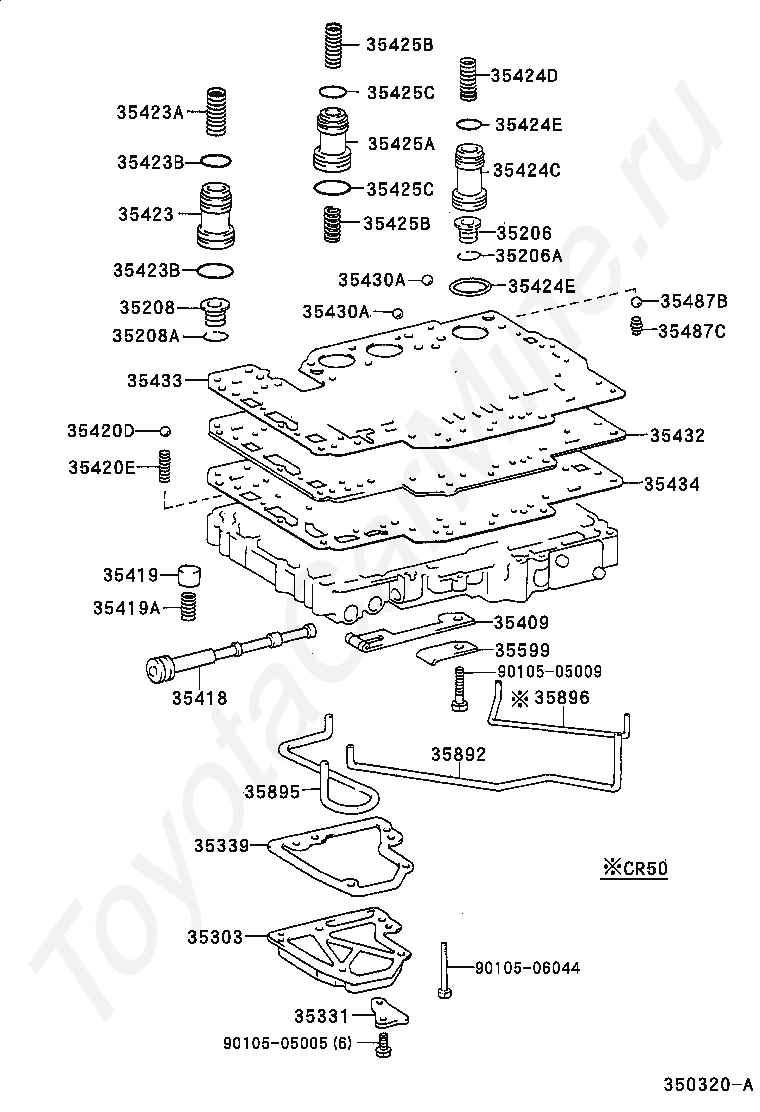

Код
Описание
35206
SPRING SUB-ASSY, C-1 ACCUMULATOR
35206A
RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
35208
SPRING SUB-ASSY, B-2 ACCUMULATOR
35208A
RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35303
STRAINER SUB-ASSY, OIL
35331
COVER, OIL STRAINER
35339
GASKET, OIL STRAINER
35409
SPRING SUB-ASSY, MANUAL DETENT
35418
VALVE, MANUAL
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35420D
BALL (FOR LOWER VALVE BODY)
35420E
SPRING (FOR LOWER VALVE BODY)
35423
PISTON, B-2 ACCUMULATOR
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35430A
BALL (FOR REAR UPPER VALVE BODY)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35487B
BALL, CHECK, NO.4
35487C
SPRING, COMPRESSION (FOR CHECK BALL)
35599
COVER, MANUAL DETENT SPRING
35892
TUBE, OVERDRIVE BRAKE
35895
TUBE, FRONT CLUTCH APPLY
35896
TUBE, OVERDRIVE SWITCH APPLY
9010505005
Крепеж
9010505009
Крепеж
9010506044
Крепеж

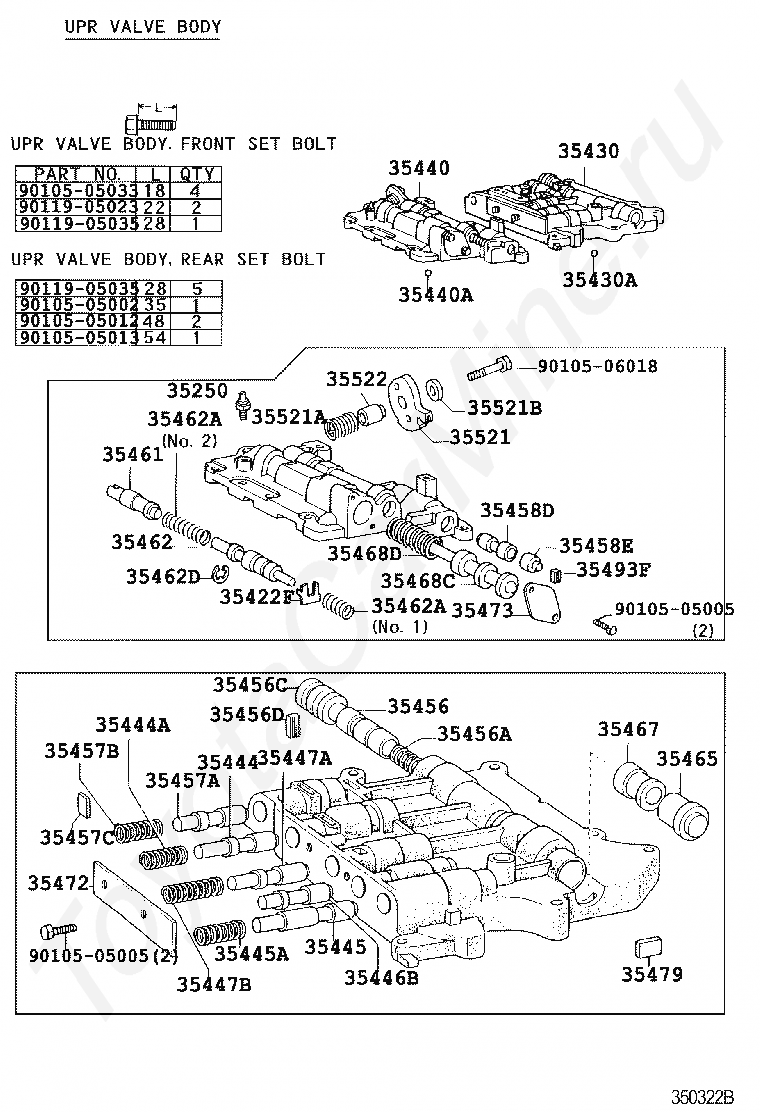

Код
Описание
35250
BODY ASSY, CHECK BALL
35422F
STOPPER, VALVE VIBRATING
35430
BODY ASSY, REAR UPPER VALVE
35430A
BALL (FOR REAR UPPER VALVE BODY)
35440
BODY ASSY, FRONT UPPER VALVE
35440A
BALL (FOR FRONT UPPER VALVE BODY)
35444
VALVE, INTERMEDIATE MODULATOR
35444A
SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35446B
PLUG, GOVERNOR MODULATOR VALVE
35447A
VALVE, REVERSE CLUTCH SEQUENCE
35447B
SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE)
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456D
SEAT (FOR 2-3 SHIFT VALVE)
35457A
VALVE, DETENT REGULATOR
35457B
SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35457C
SEAT (FOR DETENT REGULATOR VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35461
PLUG, DOWN SHIFT
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35462D
RING, E (FOR THROTTLE VALVE)
35465
PLUG, INTERMEDIATE SHIFT VALVE
35467
VALVE, INTERMEDIATE SHIFT
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35472
COVER, VALVE BODY, NO.2
35473
COVER, TRANSMISSION VALVE BODY
35479
SEAT, INTERMEDIATE SHIFT VALVE
35493F
SEAT, SHIFT VALVE PLUG
35521
CAM, THROTTLE VALVE
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
9010505002
Крепеж
9010505005
Крепеж
9010505012
Крепеж
9010505013
Крепеж
9010505033
Крепеж
9010506018
Крепеж
9011905023
Крепеж
9011905035
Крепеж

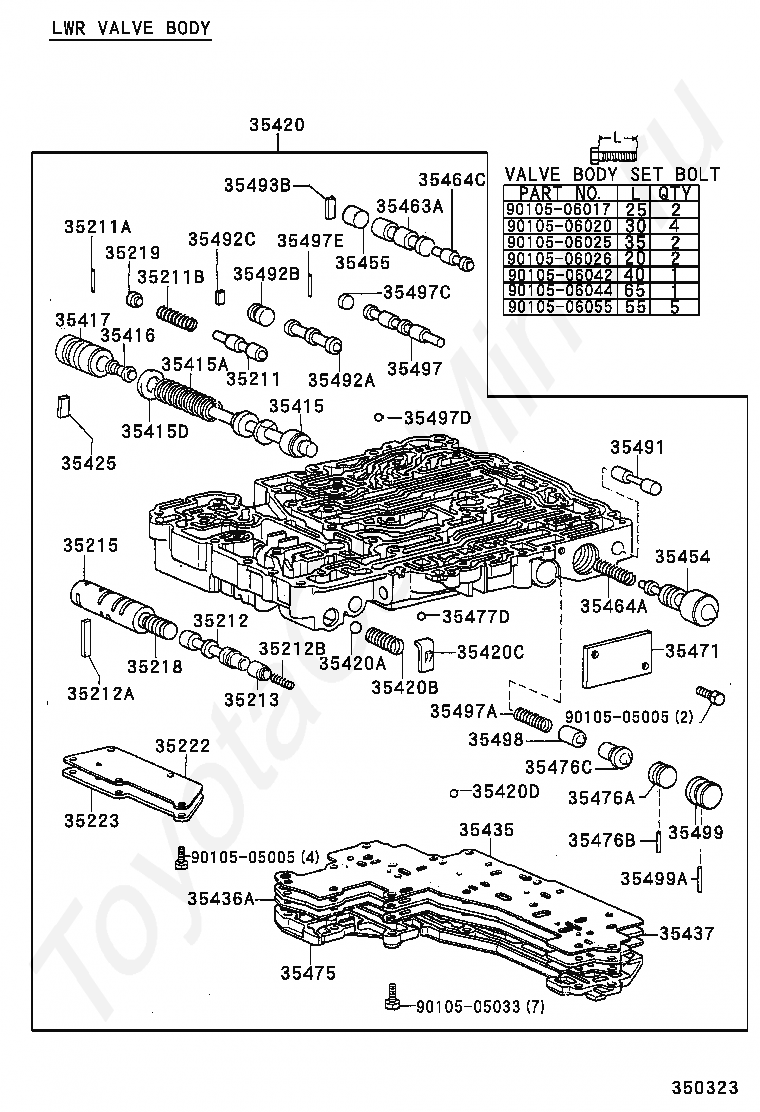

Код
Описание
35211
VALVE, LOCK UP SIGNAL
35211A
PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)
35211B
SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)
35212
VALVE, LOCK UP RELAY
35212A
SEAT, PLUG (FOR LOCK UP RELAY VALVE)
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213
VALVE, LOCK UP RELAY CONTROL
35215
SLEEVE, LOCK UP RELAY VALVE
35218
PLUG, LOCK UP RELAY VALVE
35219
PLUG, LOCK UP SIGNAL VALVE
35222
PLATE, LOCK UP RELAY VALVE BODY
35223
GASKET, LOCK UP RELAY VALVE BODY
35415
VALVE, PRESSURE REGULATOR
35415A
SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
35415D
SHIM (FOR PRESSURE REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417
SLEEVE, PRESSURE REGULATOR VALVE
35420
BODY ASSY, LOWER VALVE
35420A
BALL (FOR PRESSURE RELIEF)
35420B
SPRING (FOR PRESSURE RELIEF)
35420C
SEAT (FOR PRESSURE RELIEF)
35420D
BALL (FOR LOWER VALVE BODY)
35425
SEAT, PRESSURE REGULATOR VALVE SLEEVE
35435
GASKET, VALVE BODY PLATE, NO.3
35436A
GASKET, VALVE BODY PLATE, NO.4
35437
PLATE, 3-4 SHIFT VALVE SEPARATOR
35454
VALVE, LOW COAST SHIFT
35455
PLUG, 1-2 SHIFT VALVE LOW
35463A
VALVE, 1-2 SHIFT, LOWER
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464C
VALVE, 1-2 SHIFT, UPPER
35471
COVER, VALVE BODY, NO.1
35475
COVER, VALVE BODY, NO.5
35476A
PLUG, STRAIGHT (FOR 3RD COAST SHIFT)
35476B
PIN, LOCATING (FOR 3RD COAST SHIFT)
35476C
VALVE, 3RD COAST
35477D
BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35491
PLUG, REVERSE BRAKE
35492A
VALVE, MANUAL DOWN TIMING
35492B
PLUG (FOR MANUAL DOWN TIMING VALVE)
35492C
SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE)
35493B
SEAT, 1-2 SHIFT VALVE PLUG
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35497D
BALL, CHECK (FOR 3-4 SHIFT VALVE)
35497E
ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE)
35498
VALVE, 3-4 COAST SHIFT
35499
PLUG, 3-4 SHIFT VALVE
35499A
PIN, STRAIGHT (FOR 3-4 SHIFT VALVE)
9010505005
Крепеж
9010505033
Крепеж
9010506017
Крепеж
9010506020
Крепеж
9010506025
Крепеж
9010506026
Крепеж
9010506042
Крепеж
9010506044
Крепеж
9010506055
Крепеж

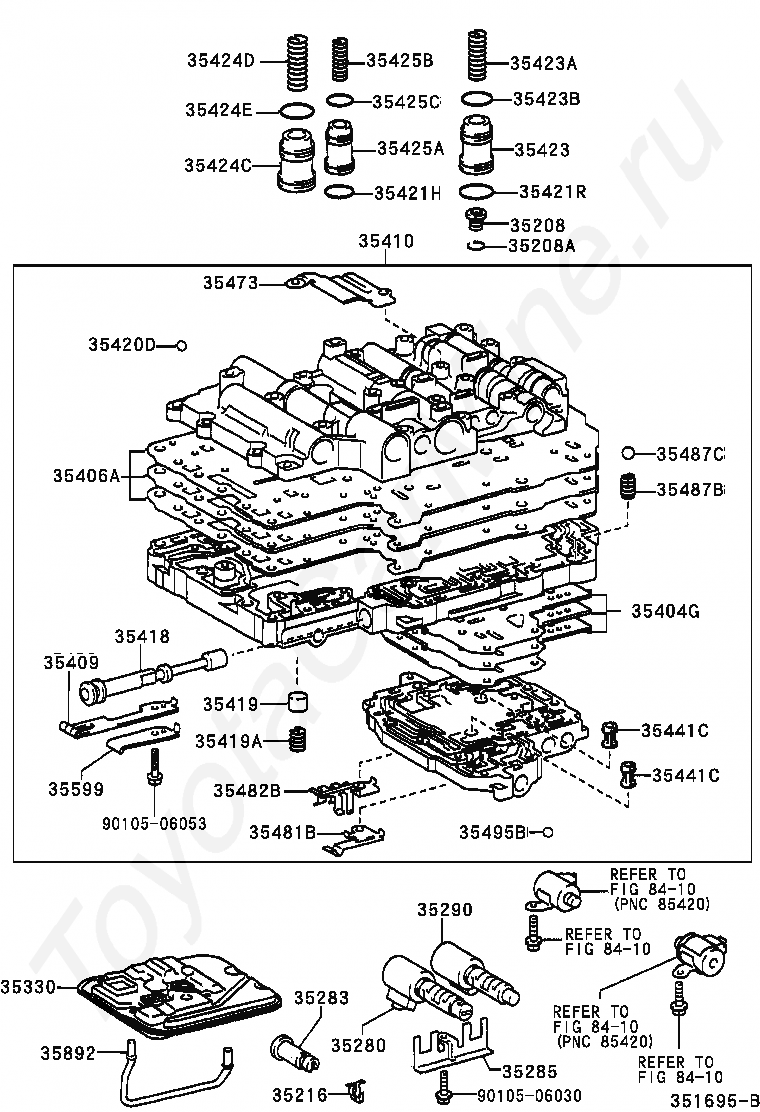

Код
Описание
35208
SPRING SUB-ASSY, B-2 ACCUMULATOR
35208A
RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35216
STOPPER, VALVE SLEEVE
35280
SOLENOID ASSY, LOCK UP CONTROL
35283
SLEEVE, LOCK UP CONTROL SOLENOID
35285
PLATE, SOLENOID LOCK
35290
SOLENOID ASSY, LINE PRESSURE CONTROL
35330
STRAINER ASSY, VALVE BODY OIL
35404G
PLATE SUB-ASSY, VALVE BODY, NO.2
35406A
PLATE SUB-ASSY, VALVE BODY
35409
SPRING SUB-ASSY, MANUAL DETENT
35410
BODY ASSY, TRANSMISSION VALVE
35418
VALVE, MANUAL
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35420D
BALL (FOR LOWER VALVE BODY)
35421H
RING (FOR ACCUMULATOR PISTON NO.2)
35421R
RING (FOR ACCUMULATOR PISTON NO.3)
35423
PISTON, B-2 ACCUMULATOR
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35441C
STRAINER, SOLENOID OIL
35473
COVER, TRANSMISSION VALVE BODY
35481B
CLAMP, VALVE BODY WIRE HARNESS
35482B
CLAMP, TEMPERATURE SENSOR
35487B
BALL, CHECK, NO.4
35487C
SPRING, COMPRESSION (FOR CHECK BALL)
35495B
BALL, CHECK, NO.1
35599
COVER, MANUAL DETENT SPRING
35892
TUBE, OVERDRIVE BRAKE
8410
переход к группе запчастей
9010506030
Крепеж
9010506053
Крепеж

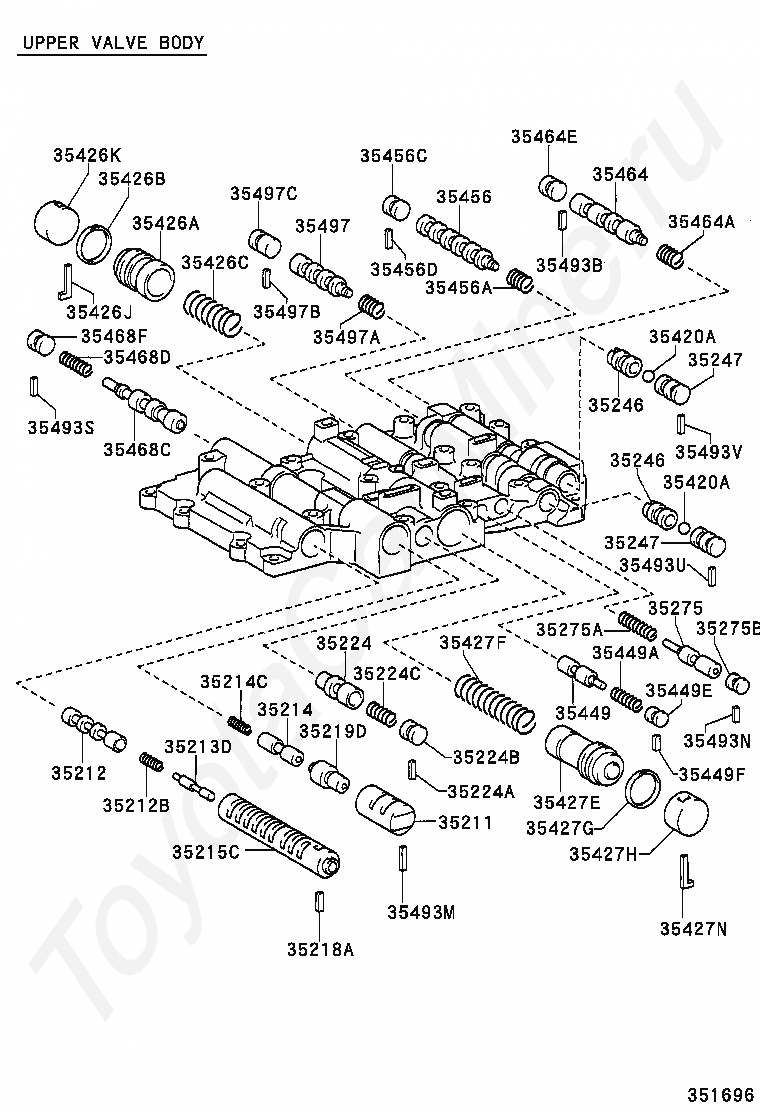

Код
Описание
35211
VALVE, LOCK UP SIGNAL
35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213D
PLUNGER, LOCK UP RELAY VALVE
35214
VALVE, LOCK UP CONTROL
35214C
SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)
35215C
SLEEVE, LOCK UP RELAY VALVE, NO.1
35218A
KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG)
35219D
PLUNGER, LOCK UP CONTROL VALVE
35224
VALVE, REVERSE CONTROL
35224A
KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)
35224B
PLUG (FOR REVERSE CONTROL VALVE)
35224C
SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)
35246
VALVE, CHECK, NO.1
35247
VALVE, CHECK, NO.2
35275
VALVE, SOLENOID MODULATOR
35275A
SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)
35275B
PLUG (FOR SOLENOID MODULATOR VALVE)
35420A
BALL (FOR PRESSURE RELIEF)
35426A
PISTON, C-0 ACCUMULATOR
35426B
RING, O (FOR C-0 ACCUMULATOR PISTON)
35426C
SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35426J
SEAT, C-0 ACCUMULATOR PISTON PLUG
35426K
PLUG, C-0 ACCUMULATOR PISTON
35427E
PISTON, B-0 ACCUMULATOR
35427F
SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427G
RING, O (FOR B-0 ACCUMULATOR PISTON)
35427H
PLUG, B-0 ACCUMULATOR PISTON
35427N
SEAT, B-0 ACCUMULATOR PISTON PLUG
35449
VALVE, SEQUENCE
35449A
SPRING, COMPRESSION (FOR SEQUENCE VALVE)
35449E
PLUG, SEQUENCE VALVE
35449F
SEAT, REVERSE SEQUENCE VALVE PLUG
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456D
SEAT (FOR 2-3 SHIFT VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464E
PLUG (FOR 1-2 SHIFT VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468F
PLUG (FOR SECONDARY REGULATOR VALVE)
35493B
SEAT, 1-2 SHIFT VALVE PLUG
35493M
SEAT, LOCK UP CONTROL VALVE PLUG
35493N
SEAT, SOLENOID MODULATOR VALVE PLUG
35493S
SEAT, SECONDARY REGULATOR VALVE PLUG
35493U
SEAT, CHECK VALVE, NO.1
35493V
SEAT, CHECK VALVE, NO.2
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497B
SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)

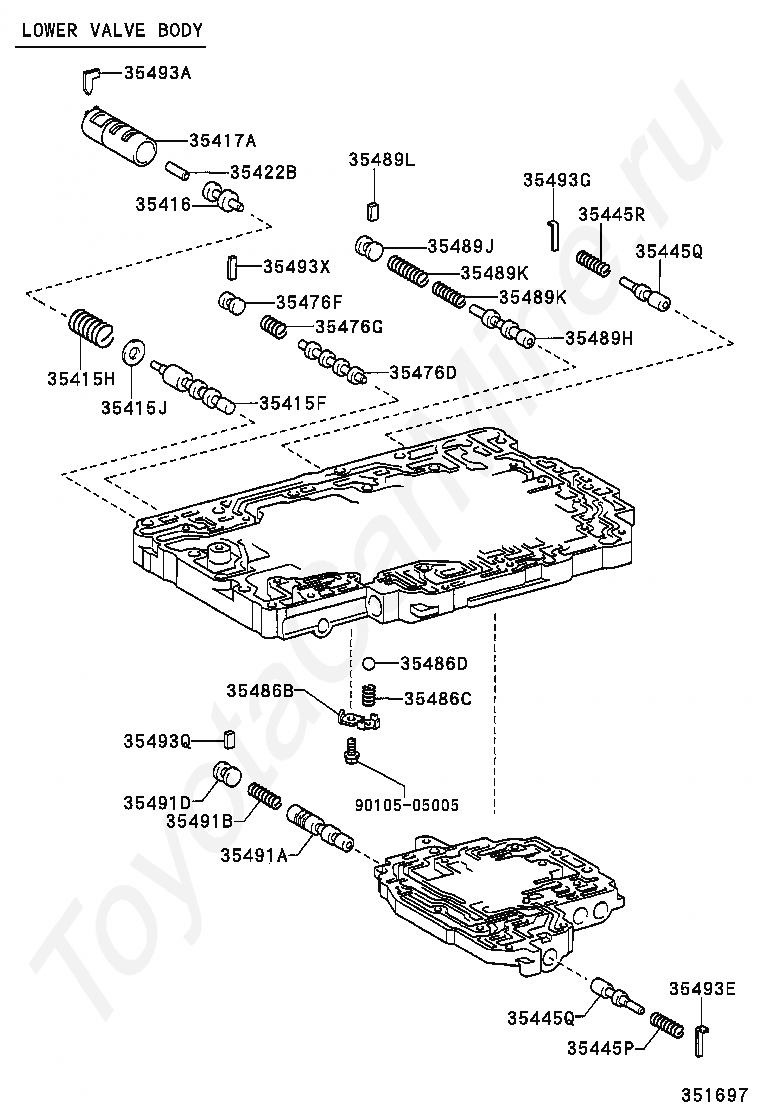

Код
Описание
35415F
VALVE, PRIMARY REGULATOR
35415H
SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)
35415J
WASHER (FOR PRIMARY REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417A
SLEEVE, PRIMARY REGULATOR VALVE
35422B
PLUNGER, PRIMARY REGULATOR VALVE, NO.2
35445P
SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)
35445Q
VALVE, LOW COAST MODULATOR
35445R
SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)
35476D
VALVE, CUT OFF
35476F
PLUG (FOR CUT OFF VALVE)
35476G
SPRING, COMPRESSION (FOR CUT OFF VALVE)
35486B
SEAT, PRESSURE RELIEF VALVE SPRING
35486C
SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)
35486D
BALL (FOR PRESSURE RELIFE VALVE)
35489H
VALVE, C-1 ORIFICE CONTROL
35489J
PLUG (FOR C-1 ORIFICE CONTROL VALVE)
35489K
SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)
35489L
KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE)
35491A
VALVE, ACCUMULATOR CONTROL, NO.1
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D
PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)
35493A
SEAT, PRIMARY REGULATOR VALVE PLUG
35493E
SEAT, 2ND COAST MODULATOR VALVE PLUG
35493G
SEAT, LOW COAST MODULATOR VALVE PLUG
35493Q
SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1
35493X
SEAT, CUT OFF VALAE

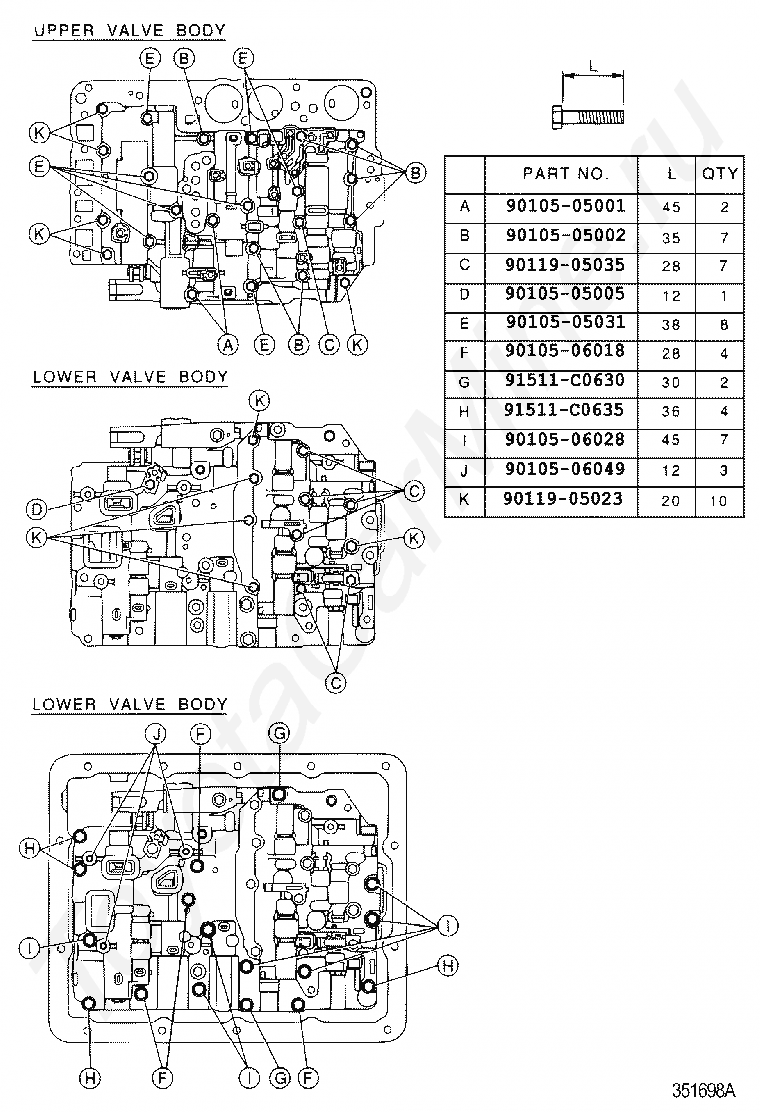

9010505005
Крепеж
Код
Описание
9010505001
Крепеж
9010505002
Крепеж
9010505005
Крепеж
9010505031
Крепеж
9010506018
Крепеж
9010506028
Крепеж
9010506049
Крепеж
9011905023
Крепеж
9011905035
Крепеж
91511C0630
Крепеж
91511C0635
Крепеж
Наш менеджер перезвонит в ближайшее время
