Радиатор и шланги TOYOTA LAND CRUISER, 2007/09 - 2012/01, 4,7 литров, 32 клапана, DOHC, EFI, UZJ200

Каталог

Европа

Модель

LAND CRUISER

Двигатель

4,7 литров, 32 клапана, DOHC, EFI

Фрейм

UZJ200

Опции

левый руль 8-местный 405W

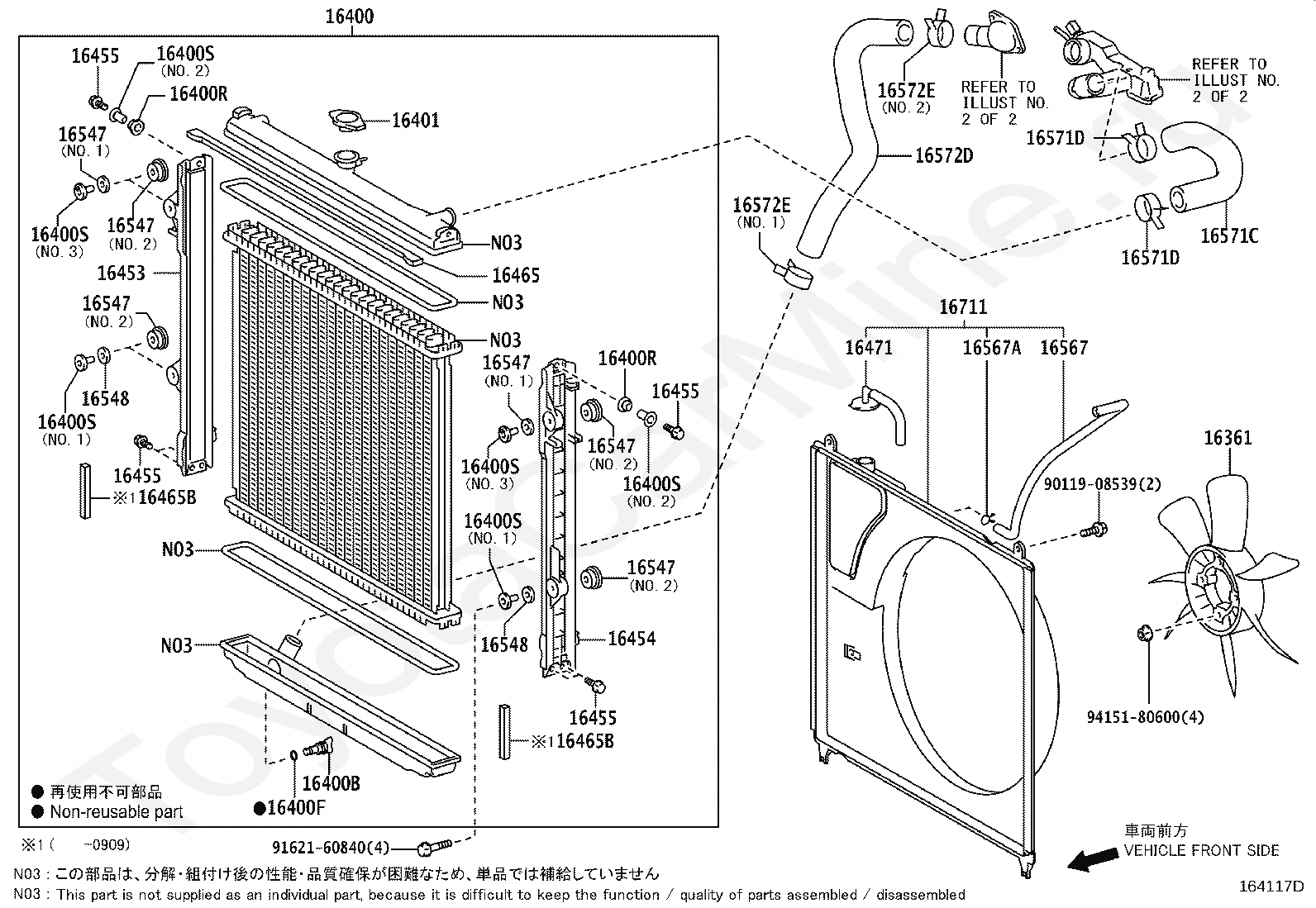

Код

Описание

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16401

CAP SUB-ASSY, RADIATOR

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16465

PACKING, RADIATOR

16465B

PACKING, RADIATOR, NO.2

16471

CAP SUB-ASSY, RESERVE TANK

16547

BUSH, RADIATOR SUPPORT, NO.1

16548

BUSH, RADIATOR SUPPORT, NO.2

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

9011908539

Крепеж

9162160840

Крепеж

9415180600

Крепеж

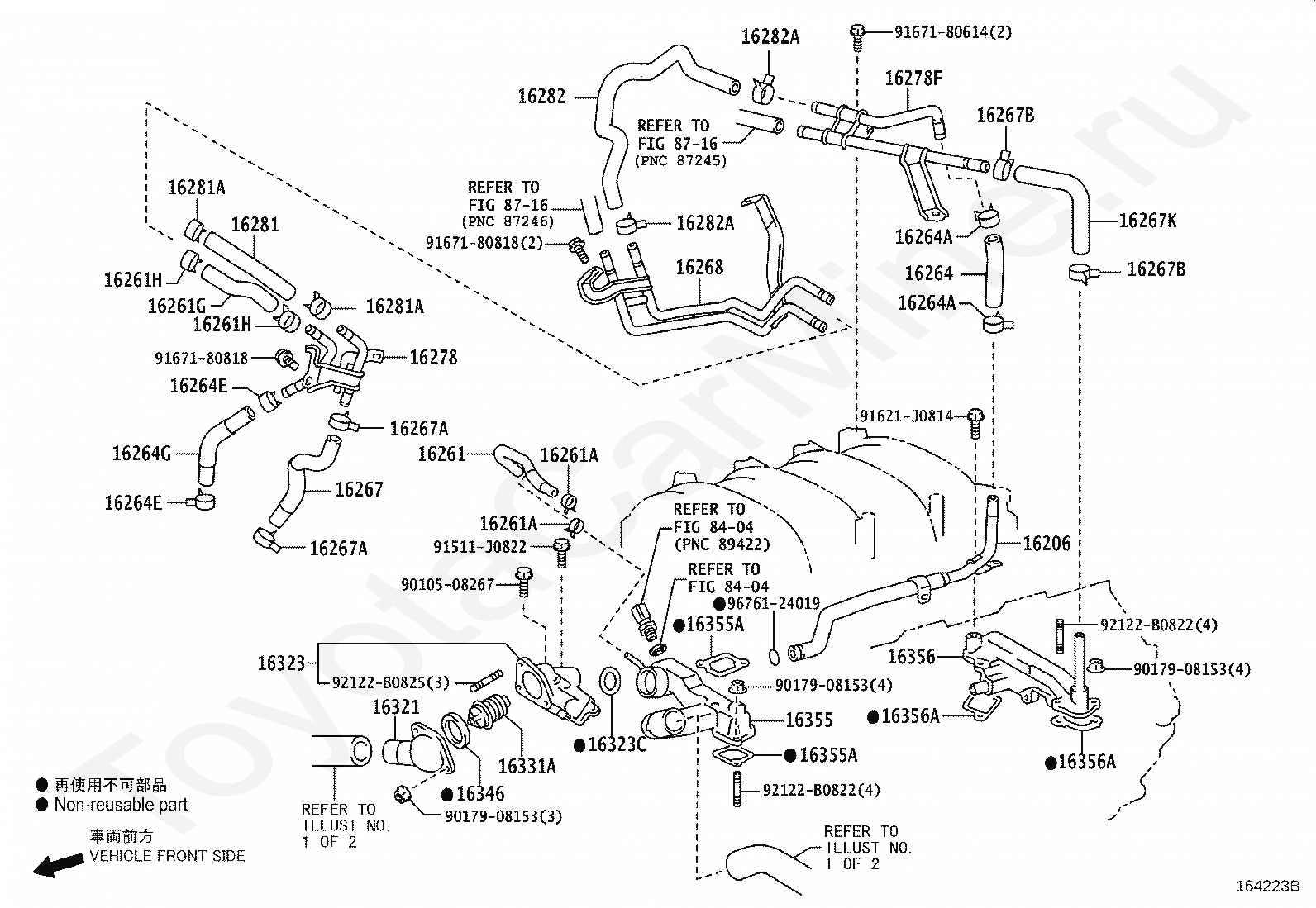

Код

Описание

16206

PIPE SUB-ASSY, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264G

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267K

HOSE, WATER BY-PASS, NO.3

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16278F

HOSE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16323C

RING, O(FOR WATER INLET HOUSING)

16331A

THERMOSTAT

16346

GASKET, THERMOSTAT

16355

JOINT, WATER BY-PASS, FRONT

16355A

GASKET(FOR WATER BY-PASS JOINT FRONT)

16356

JOINT, WATER BY-PASS, REAR

16356A

GASKET(WATER BY-PASS JOINT, REAR)

8404

переход к группе запчастей

8716

переход к группе запчастей

9010508267

Крепеж

9017908153

Крепеж

91511J0822

Крепеж

91621J0814

Крепеж

9167180614

Крепеж

9167180818

Крепеж

92122B0822

Крепеж

92122B0825

Крепеж

9676124019

Крепеж

Радиатор и шланги TOYOTA LAND CRUISER, 2007/09 - 2012/01, 4,7 литров, 32 клапана, DOHC, EFI, UZJ200
