VALVE BODY & OIL STRAINER (ATM) TOYOTA LAND CRUISER 100, 1998/01 - 2002/08, 4,7 литров, 32 клапана, DOHC, EFI, VX TYPE, UZJ100, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

LAND CRUISER 100

Двигатель

4,7 литров, 32 клапана, DOHC, EFI

Класс

VX TYPE

Фрейм

UZJ100

Трансмиссия

автомат АКПП, 4 ступени

Опции

левый руль

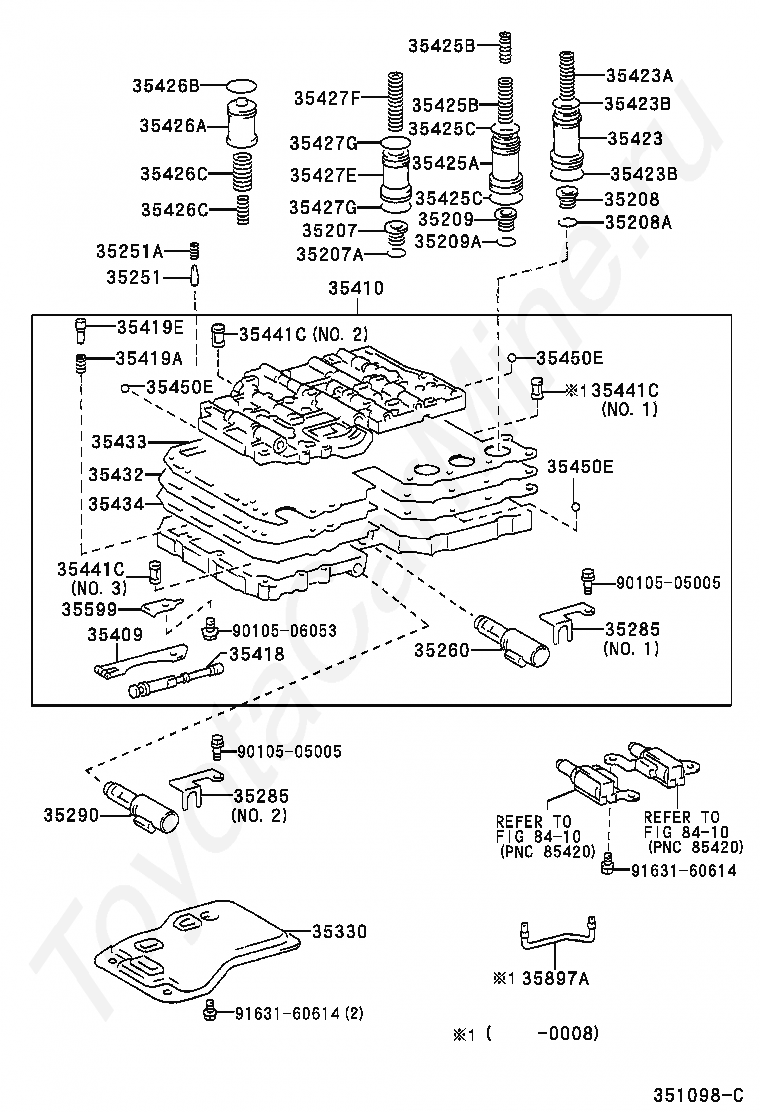

Код

Описание

35207

SPRING SUB-ASSY, B-0 ACCUMULATOR

35207A

RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35209A

RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35260

ACCUMLATOR ASSY, THROTTLE PRESSURE

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419E

VALVE, CHECK, NO.3

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35441C

STRAINER, SOLENOID OIL

35450E

BALL (FOR UPPER VALVE BODY)

35599

COVER, MANUAL DETENT SPRING

35897A

TUBE, 1ST & REVERSE BRAKE, NO.1

8410

переход к группе запчастей

9010505005

Крепеж

9010506053

Крепеж

9163160614

Крепеж

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35438F

SEAT, DETENT SPRING

35445H

VALVE, 2ND COAST MODULATOR

35445J

PLUG (FOR 2ND COAST MODULATOR VALVE)

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493C

SEAT, RELEASE CONTROL VALVE PLUG

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35410F

BALL (FOR CHECK VALVE)

35419D

VALVE, CHECK, NO.2

35419G

VALVE, CHECK, NO.4

35438F

SEAT, DETENT SPRING

35445H

VALVE, 2ND COAST MODULATOR

35445J

PLUG (FOR 2ND COAST MODULATOR VALVE)

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35493S

SEAT, SECONDARY REGULATOR VALVE PLUG

35493U

SEAT, CHECK VALVE, NO.1

35493V

SEAT, CHECK VALVE, NO.2

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35486D

BALL (FOR PRESSURE RELIFE VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35493P

SEAT, CUT BACK VALVE PLUG

35493Q

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1

9010505005

Крепеж

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35486D

BALL (FOR PRESSURE RELIFE VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493C

SEAT, RELEASE CONTROL VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35493P

SEAT, CUT BACK VALVE PLUG

9010505005

Крепеж

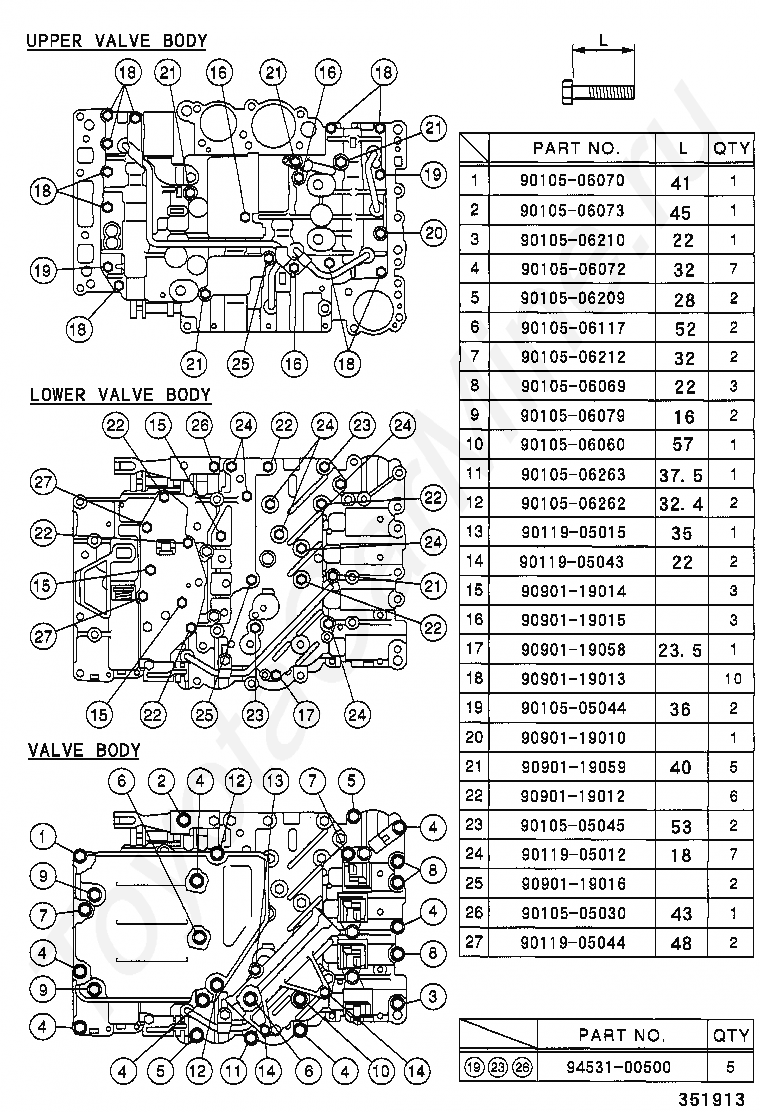

Код

Описание

9010505003

Крепеж

9010505005

Крепеж

9010505009

Крепеж

9010506018

Крепеж

9010506025

Крепеж

9010506053

Крепеж

9010506075

Крепеж

9011905023

Крепеж

9163160614

Крепеж

Код

Описание

9010505003

Крепеж

9010505009

Крепеж

9010506018

Крепеж

9010506025

Крепеж

9010506075

Крепеж

9011905023

Крепеж

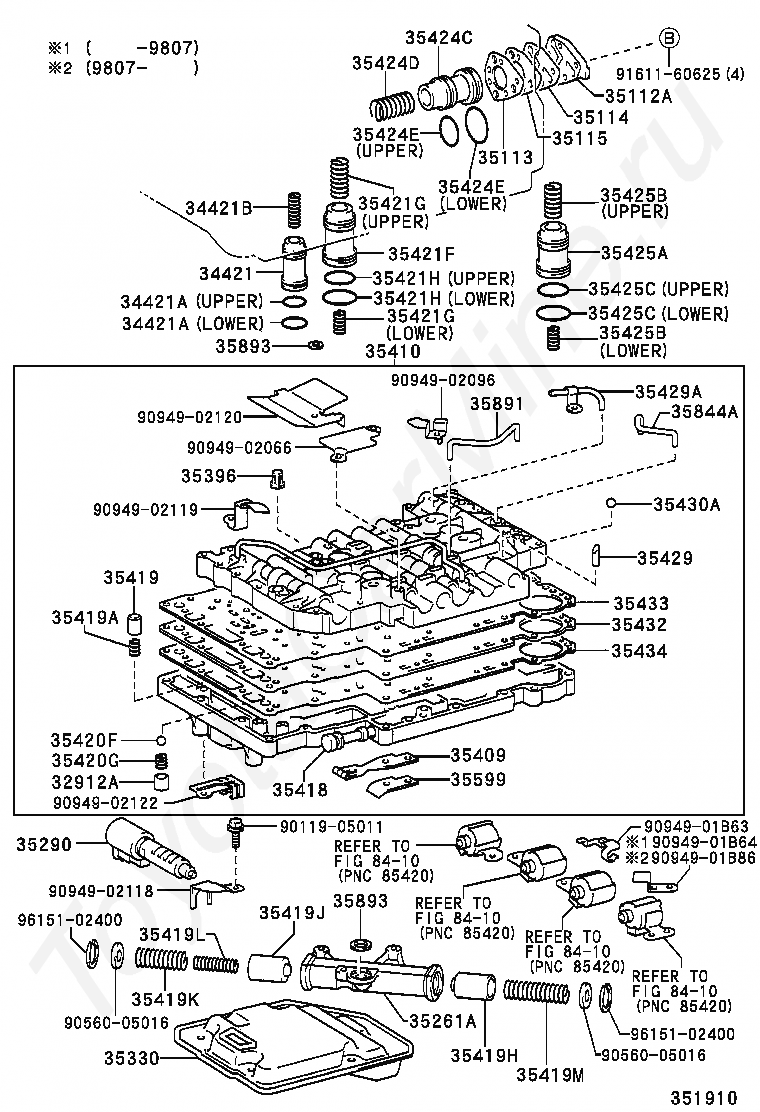

Код

Описание

32912A

CAGE, CHECK VALVE(FOR VALVE BODY)

34421

PISTON, OVERDRIVE BRAKE ACCUMULATOR

34421A

RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

34421B

SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

35112A

COVER, FRONT CLUTCH ACCUMULATOR

35113

GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

35114

GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

35115

PLATE, FRONT CLUTCH ACCUMULATOR

35261A

CYLINDER, THROTTLE PRESSURE ACCUMULATOR

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35396

STRAINER, THROTTLE OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419H

VALVE, CHECK, NO.5

35419J

VALVE, CHECK, NO.6

35419K

SPRING, COMPRESSION (FOR CHECK VALVE NO.2)

35419L

SPRING, COMPRESSION (FOR CHECK VALVE NO.3)

35419M

SPRING, COMPRESSION (FOR CHECK VALVE NO.4)

35420F

BALL, CHECK, NO.1

35420G

SPRING, BARREL SHAPED

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35429

TUBE, LINE PRESSURE

35429A

TUBE, LINE PRESSURE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35599

COVER, MANUAL DETENT SPRING

35844A

TUBE, ACCUMULATOR BACK PRESSURE, NO.1

35891

TUBE, OVERDRIVE DIRECT CLUTCH

35893

GASKET, CENTER SUPPORT APPLY

8410

переход к группе запчастей

9011905011

Крепеж

9056005016

Крепеж

9094901B63

Крепеж

9094901B64

Крепеж

9094901B86

Крепеж

9094902066

Крепеж

9094902096

Крепеж

9094902118

Крепеж

9094902119

Крепеж

9094902120

Крепеж

9094902122

Крепеж

9161160625

Крепеж

9615102400

Крепеж

Код

Описание

35211

VALVE, LOCK UP SIGNAL

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35211C

KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35211E

PLUG (FOR LOCK UP SIGNAL VALVE)

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35252

PLUNGER, REVERSE CONTROL VALVE

35253

SLEEVE, REVERSE CONTROL VALVE PLUNGER

35419D

VALVE, CHECK, NO.2

35441

VALVE, LOW COAST SHIFT CONTROL

35441A

SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE)

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35445F

KEY, STRAIGHT (FOR LOW MODULATOR VALVE)

35445G

PLUG (FOR LOW MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35448B

TUBE, PRIMARY REGULATOR VALVE APPLY

35450E

BALL (FOR UPPER VALVE BODY)

35454A

KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)

35454B

PLUG (FOR LOW COAST SHIFT VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456E

PIN, STRAIGHT (FOR 2-3 SHIFT VALVE)

35456G

PLUG (FOR 2-3 SHIFT VALVE)

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35489

VALVE, 3-2 KICK DOWN ORIFICE CONTROL

35489A

SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489D

KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489E

PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491D

PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493

SEAT, SHIFT VALVE SPRING

Код

Описание

35214

VALVE, LOCK UP CONTROL

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35222

PLATE, LOCK UP RELAY VALVE BODY

35223

GASKET, LOCK UP RELAY VALVE BODY

35415F

VALVE, PRIMARY REGULATOR

35415G

KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE)

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35415P

RING, E (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35428B

PLUG, 2-3 SHIFT TIMING VALVE

35435

GASKET, VALVE BODY PLATE, NO.3

35437B

PLATE, VALVE BODY COVER

35438B

SLEEVE, 2-3 SHIFT TIMING VALVE PLUG

35438C

PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)

35441C

STRAINER, SOLENOID OIL

35448A

TUBE, PRIMARY REGULATOR VALVE APPLY

35455

PLUG, 1-2 SHIFT VALVE LOW

35455A

PLUG (FOR 1-2 SHIFT VALVE LOW PLUG)

35458J

VALVE, CUT BACK

35459A

SLEEVE, THROTTLE VALVE, NO.2

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464D

KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)

35472

COVER, VALVE BODY, NO.2

35477A

VALVE, OVERDRIVE CLUTCH EXHAUST

35477B

SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477E

KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477F

PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35488

VALVE, 2-3 SHIFT TIMING

35488A

SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE)

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497F

KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)

9028206003

Крепеж

9033904045

Крепеж

9050108146

Крепеж

9090119014

Крепеж

9090119058

Крепеж

9094902121

Крепеж

Код

Описание

9010505030

Крепеж

9010505044

Крепеж

9010505045

Крепеж

9010506060

Крепеж

9010506069

Крепеж

9010506070

Крепеж

9010506072

Крепеж

9010506073

Крепеж

9010506079

Крепеж

9010506117

Крепеж

9010506209

Крепеж

9010506210

Крепеж

9010506212

Крепеж

9010506262

Крепеж

9010506263

Крепеж

9011905012

Крепеж

9011905015

Крепеж

9011905043

Крепеж

9011905044

Крепеж

9090119010

Крепеж

9090119012

Крепеж

9090119013

Крепеж

9090119014

Крепеж

9090119015

Крепеж

9090119016

Крепеж

9090119058

Крепеж

9090119059

Крепеж

9453100500

Крепеж

Код

Описание

32912A

CAGE, CHECK VALVE(FOR VALVE BODY)

34421

PISTON, OVERDRIVE BRAKE ACCUMULATOR

34421A

RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

34421B

SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

35112A

COVER, FRONT CLUTCH ACCUMULATOR

35113

GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

35114

GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

35115

PLATE, FRONT CLUTCH ACCUMULATOR

35261A

CYLINDER, THROTTLE PRESSURE ACCUMULATOR

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35396

STRAINER, THROTTLE OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419H

VALVE, CHECK, NO.5

35419J

VALVE, CHECK, NO.6

35419K

SPRING, COMPRESSION (FOR CHECK VALVE NO.2)

35419L

SPRING, COMPRESSION (FOR CHECK VALVE NO.3)

35419M

SPRING, COMPRESSION (FOR CHECK VALVE NO.4)

35420F

BALL, CHECK, NO.1

35420G

SPRING, BARREL SHAPED

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35429

TUBE, LINE PRESSURE

35429A

TUBE, LINE PRESSURE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35599

COVER, MANUAL DETENT SPRING

35844A

TUBE, ACCUMULATOR BACK PRESSURE, NO.1

35891

TUBE, OVERDRIVE DIRECT CLUTCH

35893

GASKET, CENTER SUPPORT APPLY

8410

переход к группе запчастей

9011905011

Крепеж

9056005016

Крепеж

9094901B63

Крепеж

9094901B64

Крепеж

9094901B86

Крепеж

9094902066

Крепеж

9094902096

Крепеж

9094902118

Крепеж

9094902119

Крепеж

9094902120

Крепеж

9094902122

Крепеж

9161160625

Крепеж

9615102400

Крепеж

Код

Описание

35211

VALVE, LOCK UP SIGNAL

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35211C

KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35211E

PLUG (FOR LOCK UP SIGNAL VALVE)

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35252

PLUNGER, REVERSE CONTROL VALVE

35253

SLEEVE, REVERSE CONTROL VALVE PLUNGER

35419D

VALVE, CHECK, NO.2

35441

VALVE, LOW COAST SHIFT CONTROL

35441A

SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE)

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35445F

KEY, STRAIGHT (FOR LOW MODULATOR VALVE)

35445G

PLUG (FOR LOW MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35448B

TUBE, PRIMARY REGULATOR VALVE APPLY

35450E

BALL (FOR UPPER VALVE BODY)

35454A

KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)

35454B

PLUG (FOR LOW COAST SHIFT VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456E

PIN, STRAIGHT (FOR 2-3 SHIFT VALVE)

35456G

PLUG (FOR 2-3 SHIFT VALVE)

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35489

VALVE, 3-2 KICK DOWN ORIFICE CONTROL

35489A

SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489D

KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489E

PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491D

PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493

SEAT, SHIFT VALVE SPRING

Код

Описание

35214

VALVE, LOCK UP CONTROL

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35222

PLATE, LOCK UP RELAY VALVE BODY

35223

GASKET, LOCK UP RELAY VALVE BODY

35415F

VALVE, PRIMARY REGULATOR

35415G

KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE)

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35415P

RING, E (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35428B

PLUG, 2-3 SHIFT TIMING VALVE

35435

GASKET, VALVE BODY PLATE, NO.3

35437B

PLATE, VALVE BODY COVER

35438B

SLEEVE, 2-3 SHIFT TIMING VALVE PLUG

35438C

PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)

35441C

STRAINER, SOLENOID OIL

35448A

TUBE, PRIMARY REGULATOR VALVE APPLY

35455

PLUG, 1-2 SHIFT VALVE LOW

35455A

PLUG (FOR 1-2 SHIFT VALVE LOW PLUG)

35458J

VALVE, CUT BACK

35459A

SLEEVE, THROTTLE VALVE, NO.2

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464D

KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)

35472

COVER, VALVE BODY, NO.2

35477A

VALVE, OVERDRIVE CLUTCH EXHAUST

35477B

SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477E

KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477F

PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35488

VALVE, 2-3 SHIFT TIMING

35488A

SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE)

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497F

KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)

9028206003

Крепеж

9033904045

Крепеж

9050108146

Крепеж

9090119014

Крепеж

9090119058

Крепеж

9094902121

Крепеж

Код

Описание

9010505030

Крепеж

9010505044

Крепеж

9010505045

Крепеж

9010506060

Крепеж

9010506069

Крепеж

9010506070

Крепеж

9010506072

Крепеж

9010506073

Крепеж

9010506079

Крепеж

9010506117

Крепеж

9010506209

Крепеж

9010506210

Крепеж

9010506212

Крепеж

9010506262

Крепеж

9010506263

Крепеж

9011905012

Крепеж

9011905015

Крепеж

9011905043

Крепеж

9011905044

Крепеж

9090119010

Крепеж

9090119012

Крепеж

9090119013

Крепеж

9090119014

Крепеж

9090119015

Крепеж

9090119016

Крепеж

9090119058

Крепеж

9090119059

Крепеж

9453100500

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA LAND CRUISER 100, 1998/01 - 2002/08, 4,7 литров, 32 клапана, DOHC, EFI, VX TYPE, UZJ100, автомат, АКПП, 4 ступени

Товар добавлен в корзину!

Заполните форму
