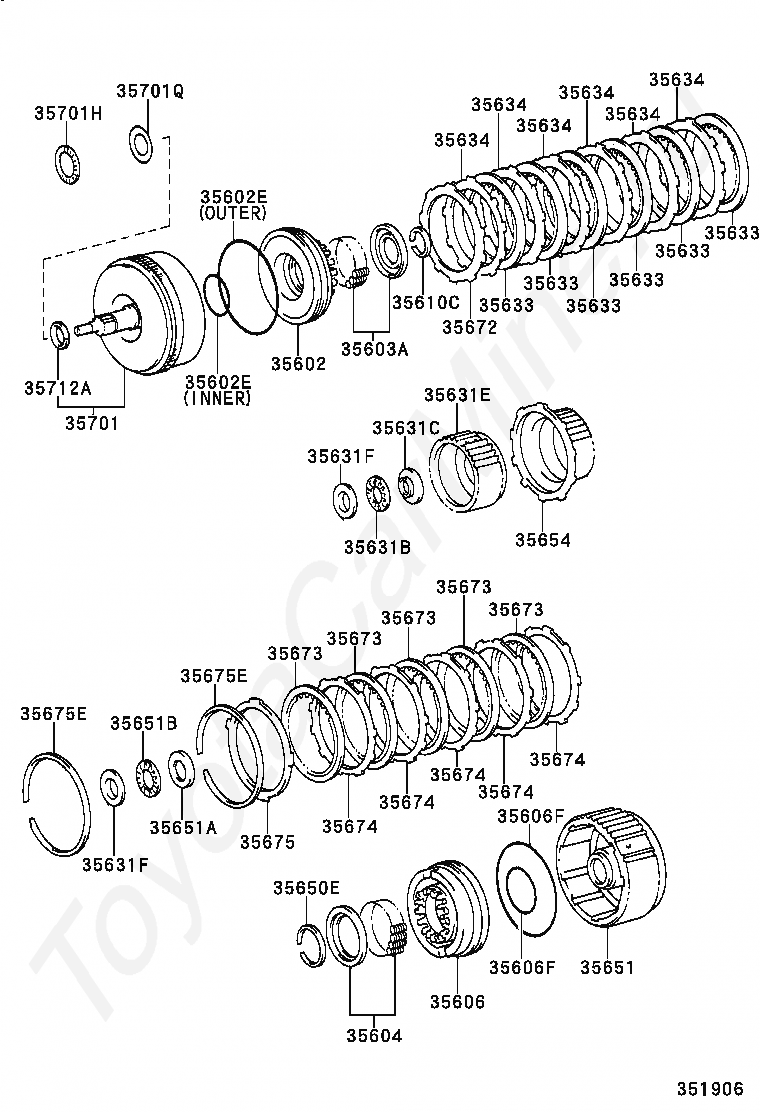

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) TOYOTA LAND CRUISER 100, 1998/01 - 2002/08, 4,7 литров, 32 клапана, DOHC, EFI, VX TYPE, UZJ100, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

LAND CRUISER 100

Двигатель

4,7 литров, 32 клапана, DOHC, EFI

Класс

VX TYPE

Фрейм

UZJ100

Трансмиссия

автомат АКПП, 4 ступени

Опции

левый руль

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

35602

PISTON SUB-ASSY, FRONT CLUTCH

35602B

RING, O (FOR FORWARD CLUTCH PISTON)

35602D

RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

35603A

SPRING SUB-ASSY, FORWARD CLUTCH RETURN

35604

SPRING SUB-ASSY, DIRECT CLUTCH RETURN

35605A

DRUM SUB-ASSY, DIRECT CLUTCH

35606A

PISTON SUB-ASSY, DIRECT CLUTCH

35606C

RING, O (FOR DIRECT CLUTCH PISTON)

35606E

RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

35616C

WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

35633B

DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

35633C

DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

35634A

PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

35634B

PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

35635

FLANGE, FORWARD CLUTCH

35672

PLATE, CLUTCH CUSHION

35675B

RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

35675C

FLANGE, DIRECT CLUTCH

35675D

RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

35686

WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)

35701

SHAFT SUB-ASSY, INPUT

35701B

BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

35701C

RACE, THRUST BEARING (FOR INPUT SHAFT REAR)

35701J

BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

35712A

RING, INPUT SHAFT OIL SEAL

35810B

BAND ASSY, 2ND COAST BRAKE

35810C

PIN (FOR 2ND COAST BRAKE BAND)

35810D

RING, E (FOR 2ND COAST BRAKE BAND PIN)

35815

COVER, 2ND COAST BRAKE

35815A

RING, O (FOR 2ND COAST BRAKE COVER)

35815B

RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

35821A

PISTON, 2ND COAST BRAKE

35821B

WASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

35821G

SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

35821H

RING, E (FOR 2ND COAST BRAKE PISTON)

35822A

ROD, 2ND COAST BRAKE PISTON

35865A

RING, 2ND COAST BRAKE PISTON OIL SEAL

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

35602

PISTON SUB-ASSY, FRONT CLUTCH

35602E

RING, O (FOR FRONT CLUTCH PISTON)

35603A

SPRING SUB-ASSY, FORWARD CLUTCH RETURN

35604

SPRING SUB-ASSY, DIRECT CLUTCH RETURN

35606

PISTON SUB-ASSY, REAR CLUTCH

35606F

RING, O (FOR REAR CLUTCH PISTON)

35610C

RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

35631B

BEARING, THRUST(FOR FRONT CLUTCH HUB)

35631C

RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

35631E

HUB, FRONT CLUTCH

35631F

RACE, THRUST BEARING(FOR REAR CLUTCH DRUM)

35633

DISC, CLUTCH (FOR FRONT CLUTCH)

35634

PLATE, FRONT CLUTCH

35650E

RING, O (FOR REAR CLUTCH PISTON OUTER)

35651

DRUM, REAR CLUTCH

35651A

RACE, THRUST BEARING (FOR REAR CLUTCH DRUM)

35651B

BEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)

35654

HUB, REAR CLUTCH

35672

PLATE, CLUTCH CUSHION

35673

DISC, REAR CLUTCH

35674

PLATE, REAR CLUTCH

35675

FLANGE, REAR CLUTCH

35675E

RING, HOLE SNAP (FOR REAR CLUTCH FLANGE)

35701

SHAFT SUB-ASSY, INPUT

35701H

BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

35701Q

RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

35712A

RING, INPUT SHAFT OIL SEAL

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

35602

PISTON SUB-ASSY, FRONT CLUTCH

35602E

RING, O (FOR FRONT CLUTCH PISTON)

35603A

SPRING SUB-ASSY, FORWARD CLUTCH RETURN

35604

SPRING SUB-ASSY, DIRECT CLUTCH RETURN

35606

PISTON SUB-ASSY, REAR CLUTCH

35606F

RING, O (FOR REAR CLUTCH PISTON)

35610C

RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

35631B

BEARING, THRUST(FOR FRONT CLUTCH HUB)

35631C

RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

35631E

HUB, FRONT CLUTCH

35631F

RACE, THRUST BEARING(FOR REAR CLUTCH DRUM)

35633

DISC, CLUTCH (FOR FRONT CLUTCH)

35634

PLATE, FRONT CLUTCH

35650E

RING, O (FOR REAR CLUTCH PISTON OUTER)

35651

DRUM, REAR CLUTCH

35651A

RACE, THRUST BEARING (FOR REAR CLUTCH DRUM)

35651B

BEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)

35654

HUB, REAR CLUTCH

35672

PLATE, CLUTCH CUSHION

35673

DISC, REAR CLUTCH

35674

PLATE, REAR CLUTCH

35675

FLANGE, REAR CLUTCH

35675E

RING, HOLE SNAP (FOR REAR CLUTCH FLANGE)

35701

SHAFT SUB-ASSY, INPUT

35701H

BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

35701Q

RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

35712A

RING, INPUT SHAFT OIL SEAL
