Каталог
ЕвропаМодель
LAND CRUISERДвигатель
4 литра, дизельКузов
STATION WAGON G TYPEФрейм
HJ60Трансмиссия
механика МКПП, 4 ступениОпции
правый руль STANDARD ROOF LIFT UP BACK DOOR дизель GENERAL COUNTRIES
Код
Описание
04443
BOOSTER KIT, BRAKE
44608
PUSH ROD SUB-ASSY, BOOSTER
44610
BOOSTER ASSY, BRAKE
44626
RETAINER, BOOSTER ROD CUP
44629
RING, CIRCULAR INTERNAL
44642
PISTON, BRAKE BOOSTER
44643
RETAINER, DIAPHRAGM
44647
RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44657A
RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
44657B
WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44662
RETAINER, REACTION, NO.1
44662B
LEVER, REACTION
44662C
PLATE, REACTION, NO.1
44669
RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)
44683
CONNECTOR, BOOSTER BODY
44683A
LOCK, CONNECTOR
44696
GROMMET, CHECK VALVE
44708
INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
9017908038
Крепеж
9331914008
Крепеж
Код
Описание
04443
BOOSTER KIT, BRAKE
44601
BAND SUB-ASSY, BOOSTER BODY
44608
PUSH ROD SUB-ASSY, BOOSTER
44610
BOOSTER ASSY, BRAKE
44626
RETAINER, BOOSTER ROD CUP
44629
RING, CIRCULAR INTERNAL
44642
PISTON, BRAKE BOOSTER
44643
RETAINER, DIAPHRAGM
44647
RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44657A
RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
44662
RETAINER, REACTION, NO.1
44662B
LEVER, REACTION
44662C
PLATE, REACTION, NO.1
44669
RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)
44696
GROMMET, CHECK VALVE
44697
SCREW, BOOSTER BAND SET
44697A
NUT(FOR BOOSTER BAND SET)
44708
INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
9017908038
Крепеж
9331914008
Крепеж
9411070600
Крепеж
Код
Описание
04443
BOOSTER KIT, BRAKE
44608
PUSH ROD SUB-ASSY, BOOSTER
44610
BOOSTER ASSY, BRAKE
44618
SEAL, BOOSTER BODY
44629
RING, CIRCULAR INTERNAL
44642
PISTON, BRAKE BOOSTER
44663
KEY, VALVE STOPPER
44696
GROMMET, CHECK VALVE
44708
INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44785
GASKET, BRAKE BOOSTER
44798
BRACKET, HEAT INSULATOR, NO.3
9010110076
Крепеж
9017908038
Крепеж
9165141016
Крепеж
9453101000
Крепеж

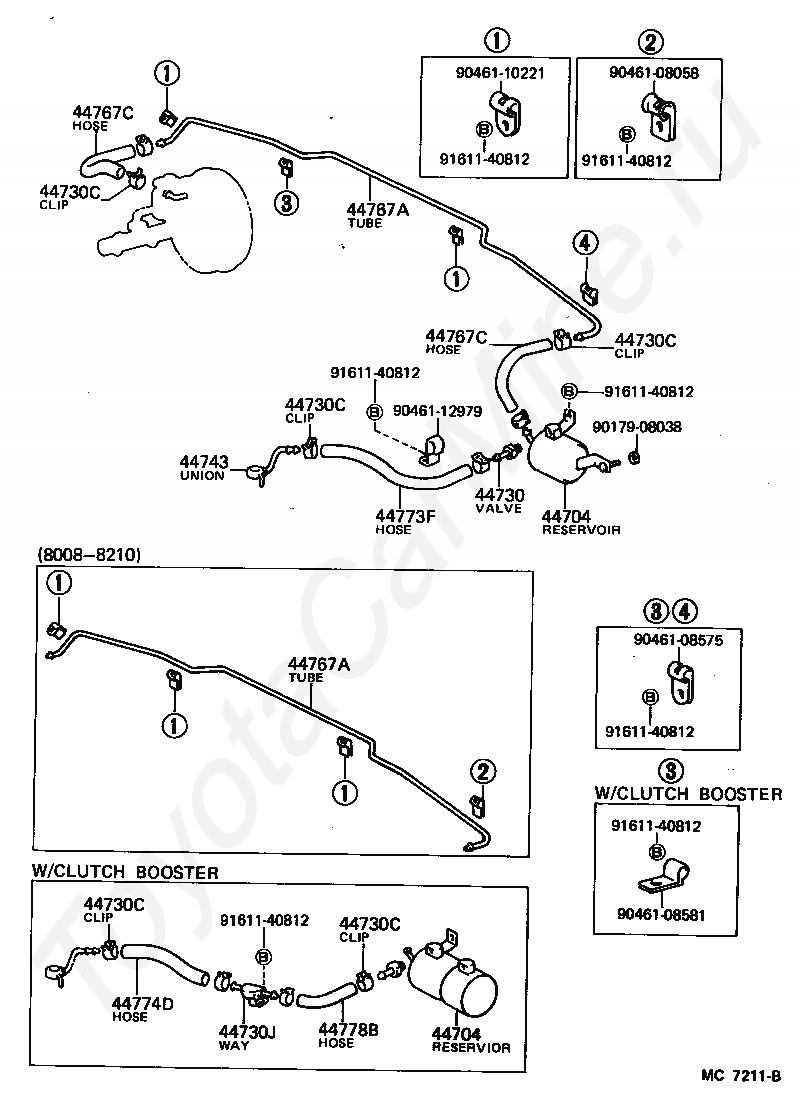

Код
Описание
44704
RESERVOIR SUB-ASSY, VACUUM
44730
VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730C
CLIP(FOR VACUUM HOSE)
44730J
WAY(FOR BOOSTER VACUUM)
44743
UNION(FOR VACUUM PUMP)
44767A
TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44767C
HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44773F
HOSE, UNION TO CHECK VALVE
44774D
HOSE, UNION TO WAY
44778B
HOSE, WAY TO CHECK VALVE
9017908038
Крепеж
9046108058
Крепеж
9046108575
Крепеж
9046108581
Крепеж
9046110221
Крепеж
9046112979
Крепеж
9161140812
Крепеж
Код
Описание
44704
RESERVOIR SUB-ASSY, VACUUM
44730C
CLIP(FOR VACUUM HOSE)
44730J
WAY(FOR BOOSTER VACUUM)
44767A
TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44767C
HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44774D
HOSE, UNION TO WAY
44778B
HOSE, WAY TO CHECK VALVE
9046108050
Крепеж
9046108642
Крепеж
9046108643
Крепеж
9161160812
Крепеж
