Каталог
ЕвропаМодель
LAND CRUISERДвигатель
4,2 литраКузов
STATION WAGON G TYPEФрейм
FJ60Трансмиссия
механика МКПП, 4 ступениОпции
правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

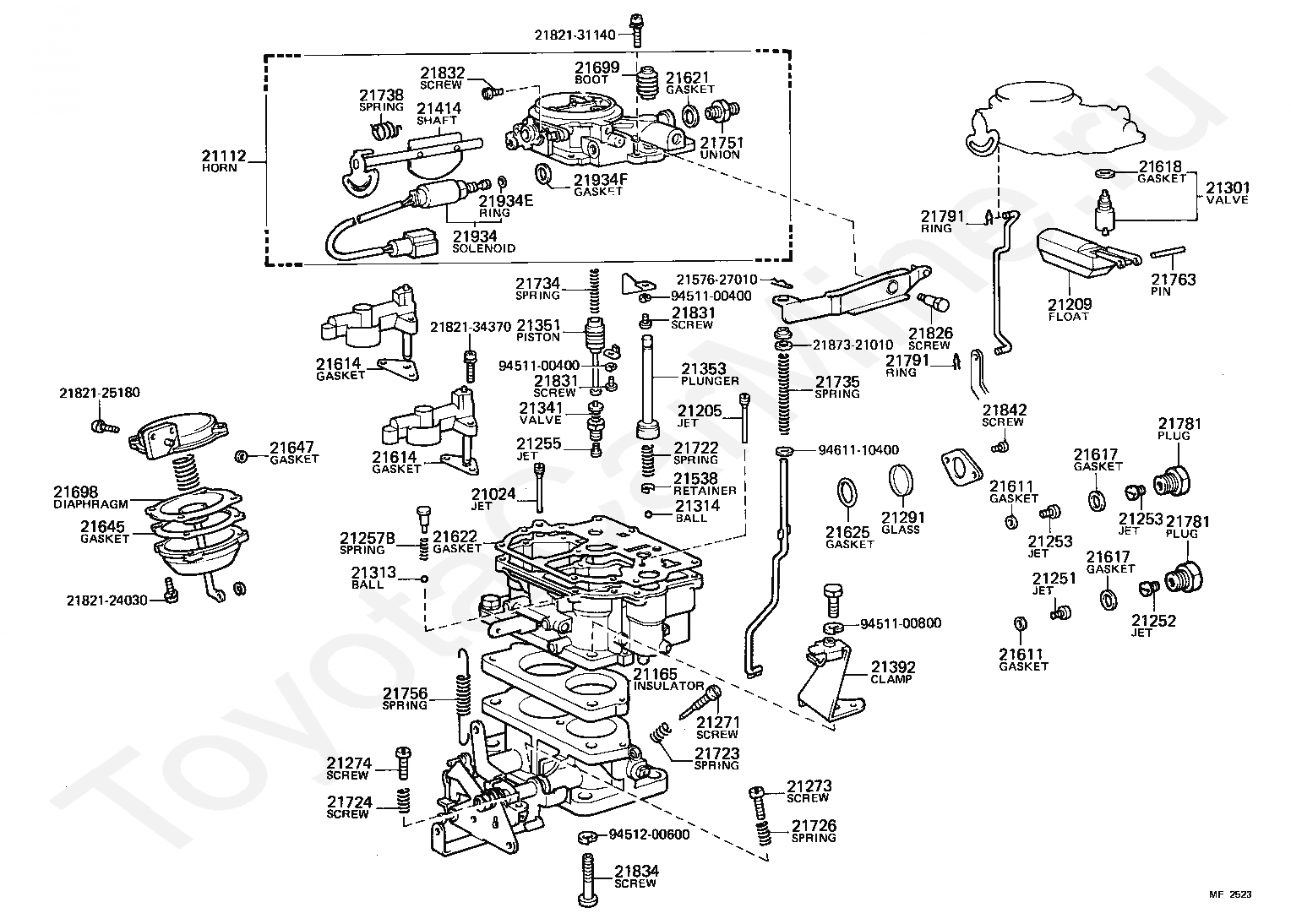

Код
Описание
21024
JET SUB-ASSY, 2ND
21112
HORN, AIR
21165
INSULATOR
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21252
JET, 1ST MAIN SPARE
21253
JET, 2ND MAIN
21255
JET, POWER
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21274
SCREW, 1ST THROTTLE ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21392
CLAMP, CHOKE WIRE
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
2157627010
Крепеж
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21738
SPRING, CHOKE VALVE RELIEF
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2182124030
Крепеж
2182125180
Крепеж
2182131140
Крепеж
2182134370
Крепеж
21826
SCREW, PUMP ARM SET
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2187321010
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9451100400
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110400
Крепеж

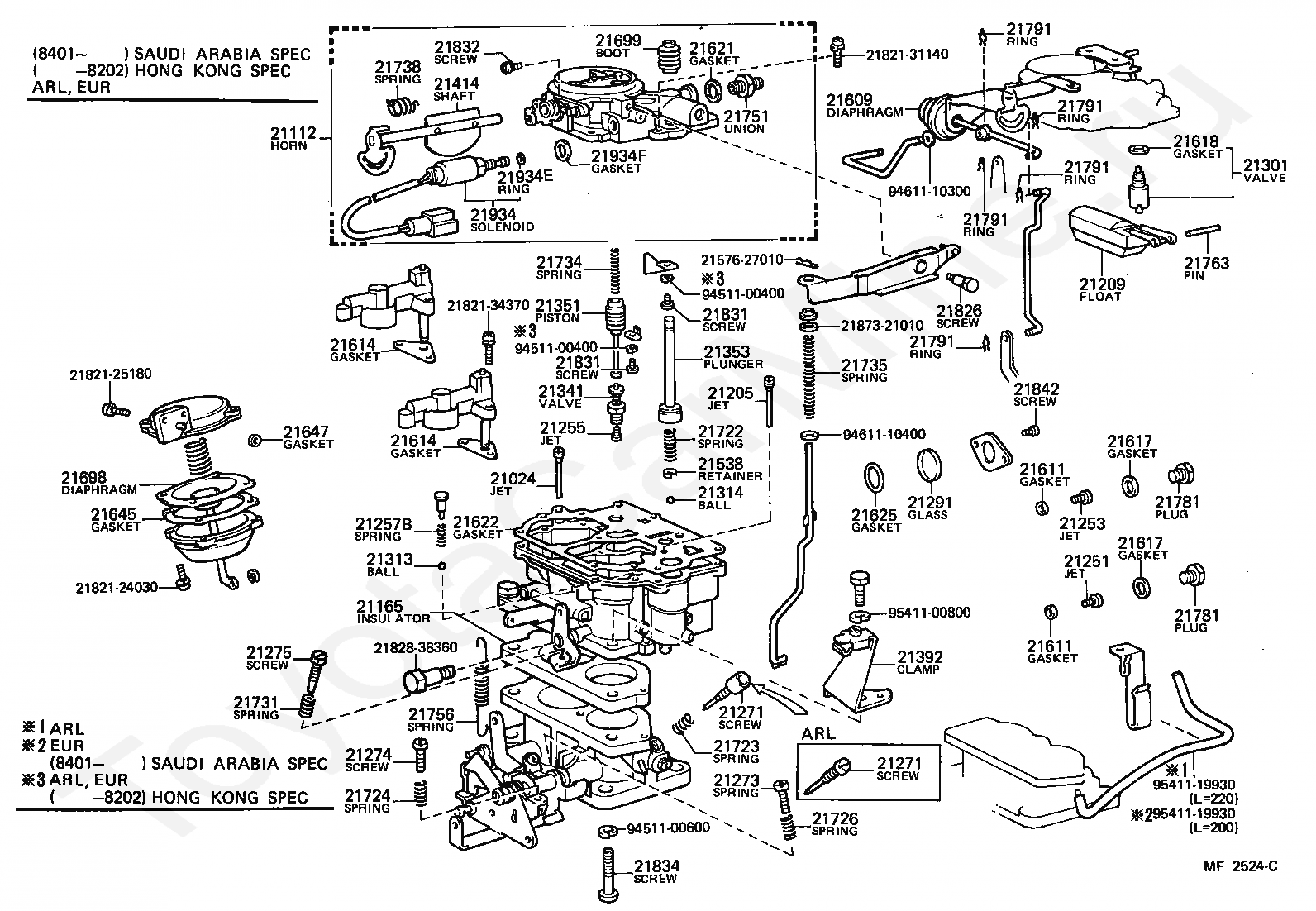

Код
Описание
21024
JET SUB-ASSY, 2ND
21112
HORN, AIR
21165
INSULATOR
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21274
SCREW, 1ST THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21392
CLAMP, CHOKE WIRE
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
2157627010
Крепеж
21609
DIAPHRAGM SUB-ASSY
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2182124030
Крепеж
2182125180
Крепеж
2182131140
Крепеж
2182134370
Крепеж
21826
SCREW, PUMP ARM SET
2182838360
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2187321010
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9451100400
Крепеж
9451100600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9541100800
Крепеж
9541119930
Крепеж
