Кресла TOYOTA LAND CRUISER, 1975/01 - 1980/07, 4,2 литра, PICKUP, FJ45, МКПП, 3 ступени

Каталог

Европа

Модель

LAND CRUISER

Двигатель

4,2 литра

Кузов

PICKUP

Фрейм

FJ45

Трансмиссия

МКПП, 3 ступени

Опции

правый руль WITHOUT ROLL BAR GENERAL COUNTRIES INCOMPLETE VEHICLES (CHASSIS & CAB)

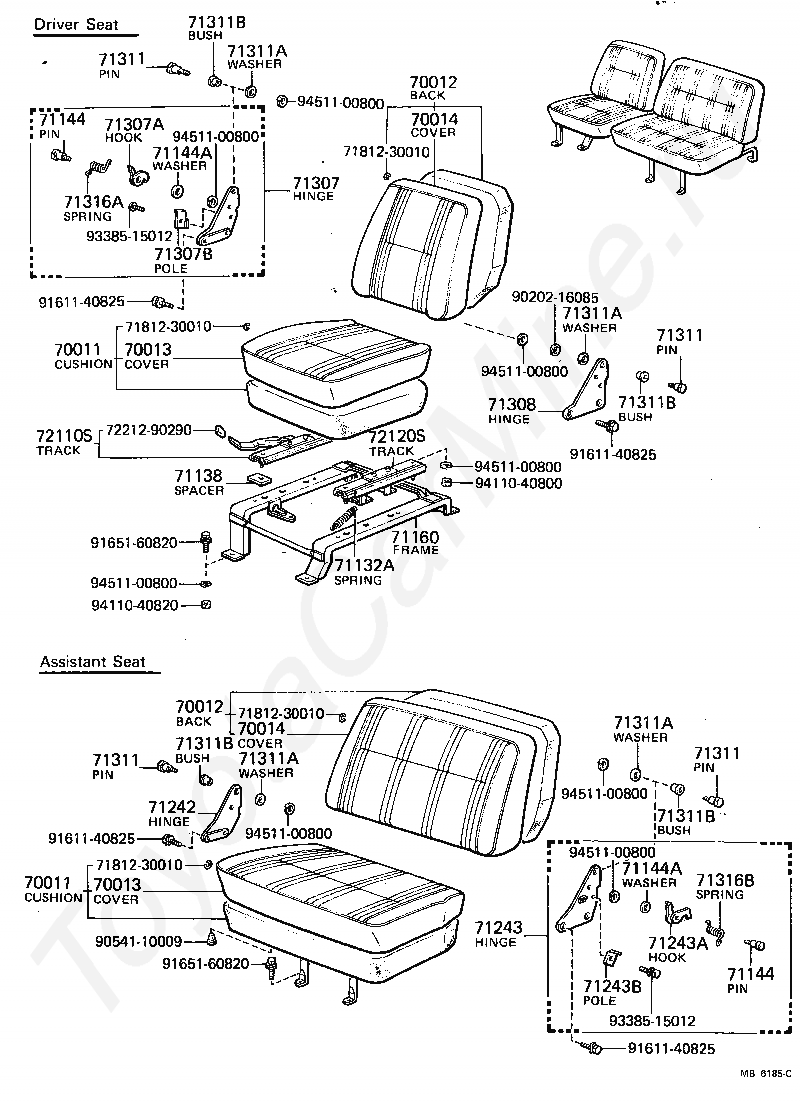

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

71132A

SPRING, TENSION (FOR SEAT TRACK)

71138

SPACER, FRONT SEAT SET

71144

PIN, SEAT HINGE HOOK

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71160

FRAME ASSY, DRIVER SEAT

71242

HINGE, PASSENGER SEAT BACK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71243A

HOOK, PASSENGER SEAT HINGE, LH

71243B

POLE, PASSENGER SEAT HINGE HOOK, LH

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71307A

HOOK, DRIVER SEAT HINGE, RH

71307B

POLE, DRIVER SEAT HINGE HOOK, RH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71311

PIN, FRONT SEAT HINGE

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71316A

SPRING, TORSION, NO.1

71316B

SPRING, TORSION, NO.2

7181230010

Крепеж

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

7221290290

Крепеж

9020216085

Крепеж

9054110009

Крепеж

9161140825

Крепеж

9165160820

Крепеж

9338515012

Крепеж

9411040800

Крепеж

9411040820

Крепеж

9451100800

Крепеж

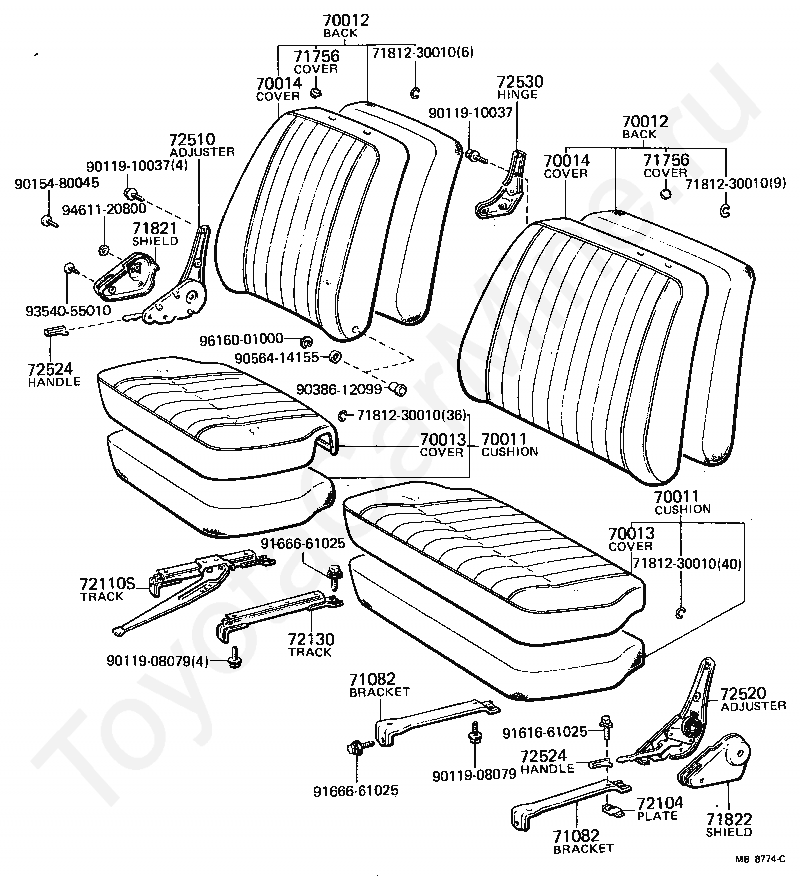

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

71082

BRACKET SUB-ASSY, PASSENGER SEAT SET

71756

COVER, AIR HOLE

7181230010

Крепеж

71821

SHIELD, FRONT SEAT SIDE, RH

71822

SHIELD, FRONT SEAT SIDE, LH

72104

PLATE SUB-ASSY, SEAT TRACK STOPPER

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

72530

HINGE ASSY, PASSENGER SEAT

9011908079

Крепеж

9011910037

Крепеж

9015480045

Крепеж

9038612099

Крепеж

9056414155

Крепеж

9161661025

Крепеж

9166661025

Крепеж

9354055010

Крепеж

9461120800

Крепеж

9616001000

Крепеж

Код

Описание

70020

SEAT ASSY, NO.2

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

71609

BAND SUB-ASSY, REAR SIDE SEAT

71609A

FASTENER, REAR SIDE SEAT BAND

71844

RUBBER, REAR SEAT CUSHION BASE

72532

HOOK, PASSENGER SEAT CUSHION STOP

9016740011

Крепеж

9020704010

Крепеж

9111140620

Крепеж

9165140820

Крепеж

9165640820

Крепеж

9321915030

Крепеж

9331515012

Крепеж

9353014020

Крепеж

9411040600

Крепеж

9411540500

Крепеж

9451200500

Крепеж

9451200600

Крепеж

9461210500

Крепеж

9461310600

Крепеж
