Каталог
ЕвропаМодель
LAND CRUISERДвигатель
4,2 литраКузов
DECELERATION CONTROL SYSTEMФрейм
FJ40Трансмиссия
МКПП, 4 ступениОпции
правый руль TARPAULIN CANVAS TOP STANDARD SPECIFICATION WITHOUT ROLL BAR Австралия COMPLETED VEHICLE

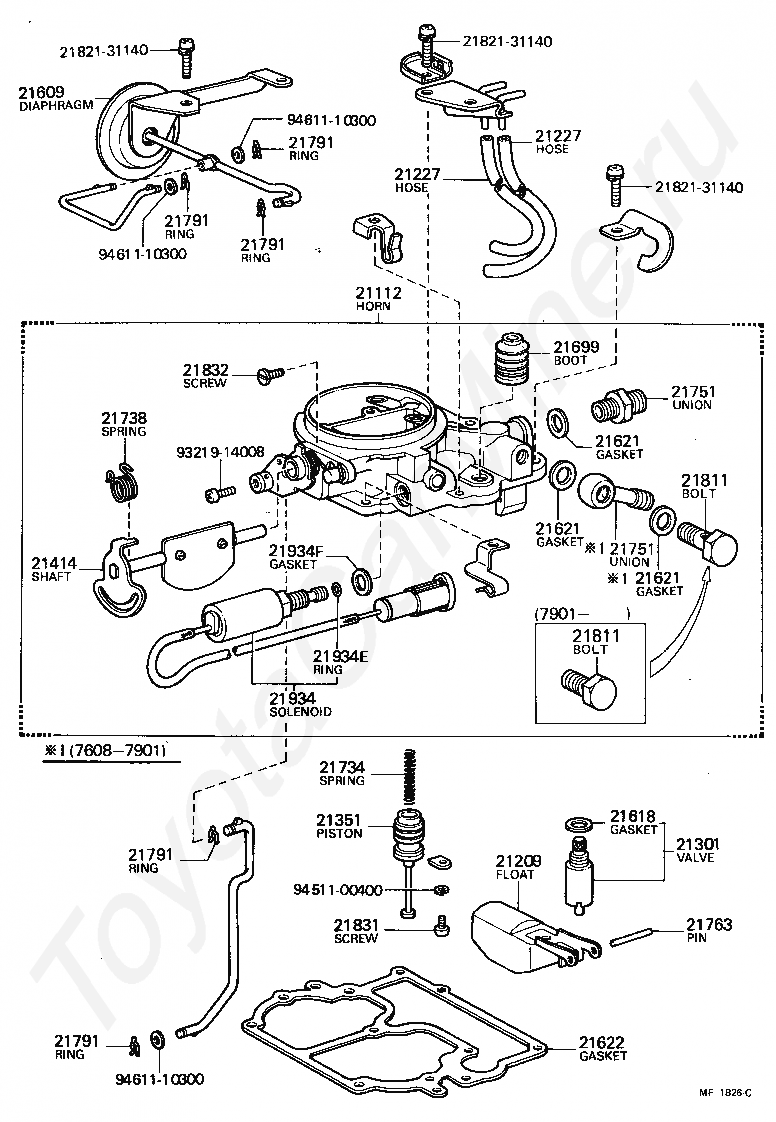

Код
Описание
21112
HORN, AIR
21209
FLOAT SUB-ASSY
21227
TUBE, AIR VENT
21301
VALVE SUB-ASSY, NEEDLE
21351
PISTON, POWER
21414
SHAFT, CHOKE
2152424230
Крепеж
21609
DIAPHRAGM SUB-ASSY
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21699
BOOT(FOR PUMP PLUNGER)
21734
SPRING, POWER PISTON
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182131140
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914008
Крепеж
9451100400
Крепеж
9461110300
Крепеж

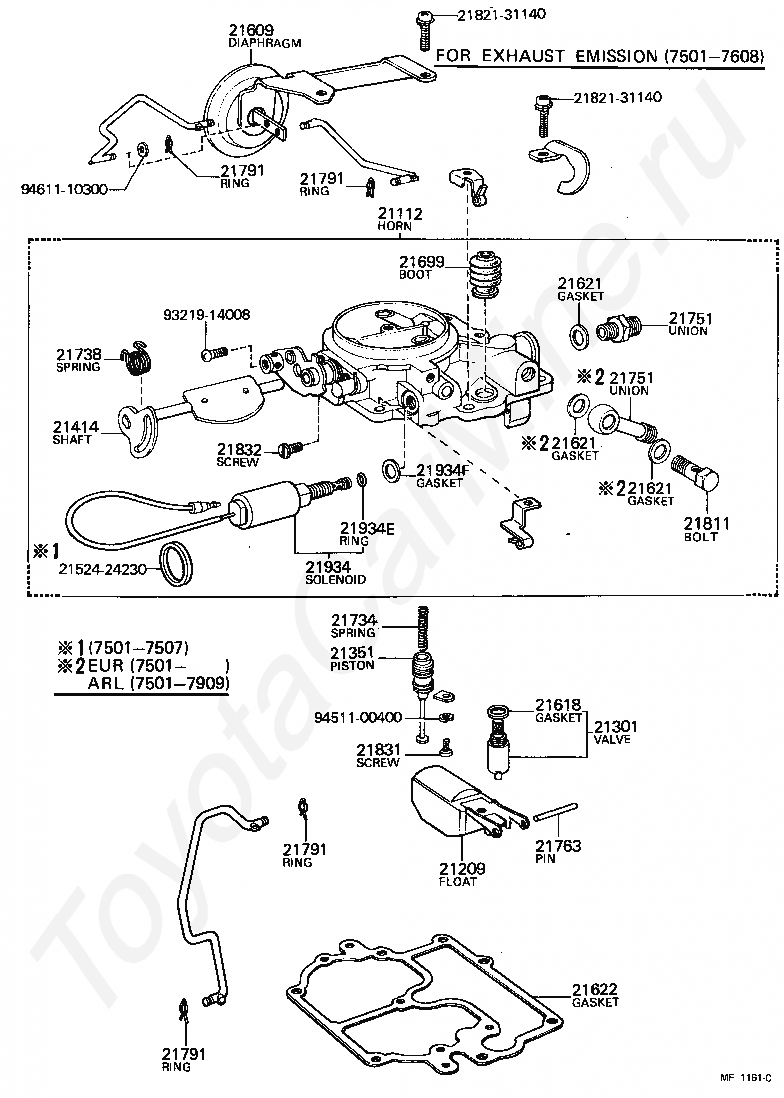

Код
Описание
21112
HORN, AIR
21209
FLOAT SUB-ASSY
21227
TUBE, AIR VENT
21301
VALVE SUB-ASSY, NEEDLE
21351
PISTON, POWER
21414
SHAFT, CHOKE
2152424230
Крепеж
21609
DIAPHRAGM SUB-ASSY
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21699
BOOT(FOR PUMP PLUNGER)
21734
SPRING, POWER PISTON
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182131140
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914008
Крепеж
9451100400
Крепеж
9461110300
Крепеж
Код
Описание
21112
HORN, AIR
21209
FLOAT SUB-ASSY
21301
VALVE SUB-ASSY, NEEDLE
21351
PISTON, POWER
21414
SHAFT, CHOKE
2152424230
Крепеж
21609
DIAPHRAGM SUB-ASSY
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21699
BOOT(FOR PUMP PLUNGER)
21734
SPRING, POWER PISTON
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182131140
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914008
Крепеж
9451100400
Крепеж
9461110300
Крепеж

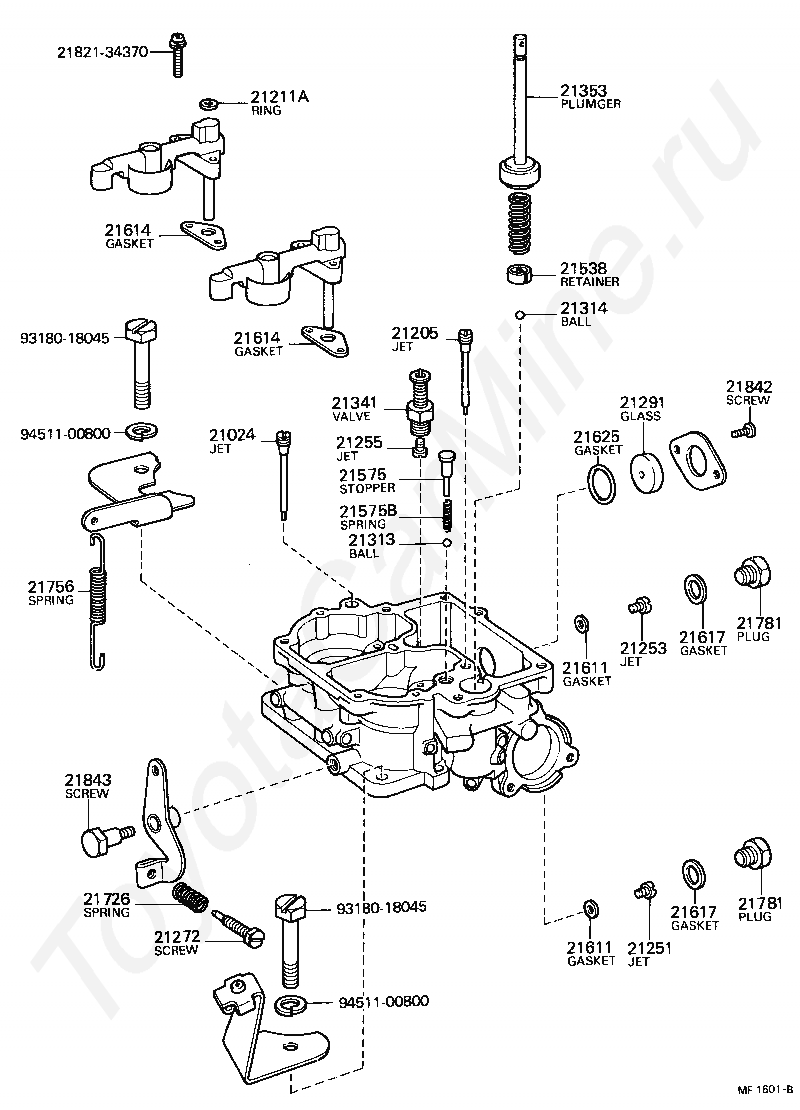

Код
Описание
21024
JET SUB-ASSY, 2ND
21205
JET SUB-ASSY, SLOW
21251
JET, 1ST MAIN
21252
JET, 1ST MAIN SPARE
21253
JET, 2ND MAIN
21255
JET, POWER
21260
JET, POWER SPARE
21272
SCREW, 1ST IDLE ADJUSTING
21291
GLASS, LEVEL GAGE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21353
PLUNGER, PUMP
21538
RETAINER, BALL CHECK
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21575B
SPRING(FOR DISCHARGE WEIGHT)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21625
GASKET, LEVEL GAGE
21726
SPRING, 1ST IDLE ADJUSTING
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
2182134370
Крепеж
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21843
SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
9318018045
Крепеж
9451100800
Крепеж

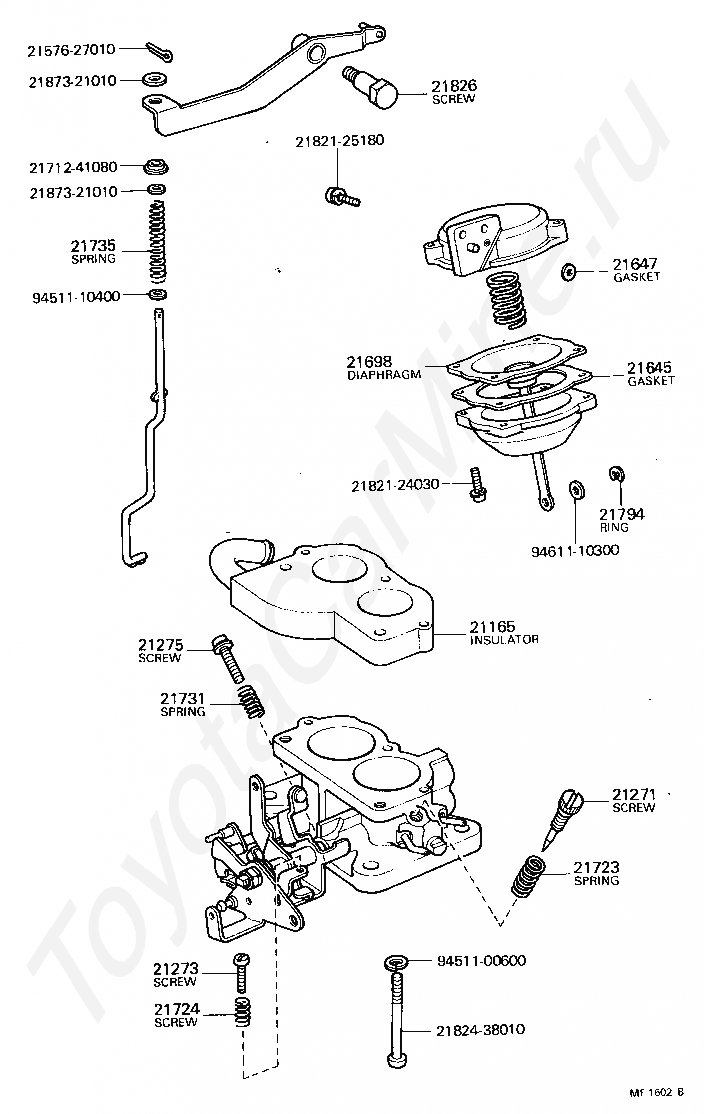

Код
Описание
21165
INSULATOR
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21698
DIAPHRAGM
2171241080
Крепеж
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21735
SPRING, PUMP ARM
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
2182124030
Крепеж
2182125180
Крепеж
2182438010
Крепеж
21826
SCREW, PUMP ARM SET
2187321010
Крепеж
9451100600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9538101610
Крепеж
Код
Описание
21112
HORN, AIR
21209
FLOAT SUB-ASSY
21227
TUBE, AIR VENT
21301
VALVE SUB-ASSY, NEEDLE
21351
PISTON, POWER
21414
SHAFT, CHOKE
21609
DIAPHRAGM SUB-ASSY
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21699
BOOT(FOR PUMP PLUNGER)
21734
SPRING, POWER PISTON
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182131140
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914008
Крепеж
9451100400
Крепеж
9461110300
Крепеж
Код
Описание
21024
JET SUB-ASSY, 2ND
21205
JET SUB-ASSY, SLOW
21211A
RING(FOR SMALL VENTURI)
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21272
SCREW, 1ST IDLE ADJUSTING
21291
GLASS, LEVEL GAGE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21353
PLUNGER, PUMP
21538
RETAINER, BALL CHECK
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21575B
SPRING(FOR DISCHARGE WEIGHT)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21625
GASKET, LEVEL GAGE
21726
SPRING, 1ST IDLE ADJUSTING
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
2182134370
Крепеж
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21843
SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
9318018045
Крепеж
9451100800
Крепеж
Код
Описание
21165
INSULATOR
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
2157627010
Крепеж
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21698
DIAPHRAGM
2171241080
Крепеж
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21735
SPRING, PUMP ARM
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
2182124030
Крепеж
2182125180
Крепеж
2182438010
Крепеж
21826
SCREW, PUMP ARM SET
2187321010
Крепеж
9451100600
Крепеж
9451110400
Крепеж
9461110300
Крепеж
