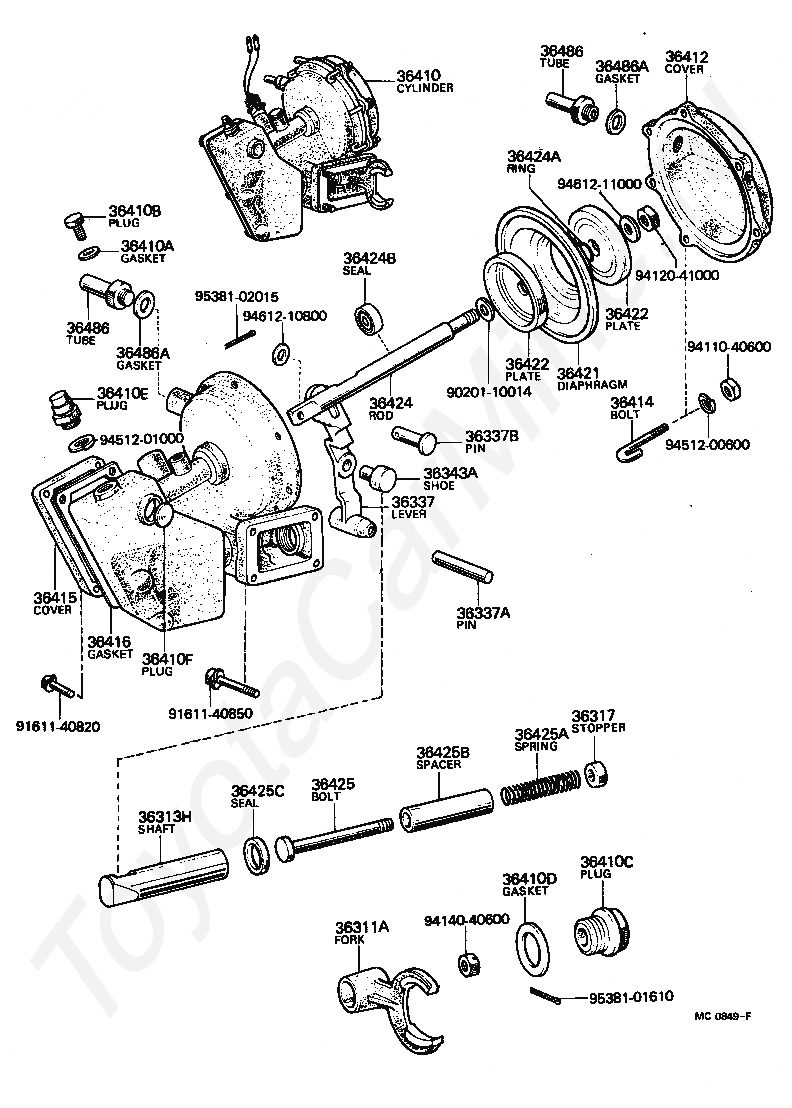

DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR TOYOTA LAND CRUISER, 1975/01 - 1980/07, 4,2 литра, DECELERATION CONTROL SYSTEM, FJ40, МКПП, 4 ступени

Каталог

Европа

Модель

LAND CRUISER

Двигатель

4,2 литра

Кузов

DECELERATION CONTROL SYSTEM

Фрейм

FJ40

Трансмиссия

МКПП, 4 ступени

Опции

правый руль TARPAULIN CANVAS TOP SPECIFICATION C ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

Код

Описание

36311A

FORK, TRANSFER GEAR SHIFT, NO.1

36313H

SHAFT, TRANSFER FRONT DRIVE SHIFT(FOR MAGNET TYPE)

36317

STOPPER, SHIFT SHAFT

36337

LEVER, FRONT DRIVE SHIFT LINK

36337A

PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)

36337B

PIN, W/HOLE (FOR FRONT DRIVE SHIFT LINK LEVER)

36343A

SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE)

36410

CYLINDER ASSY, DIAPHRAGM

36410A

GASKET (FOR DIAPHRAGM CYLINDER)

36410B

PLUG, W/HEAD STRAIGHT SCREW

36410C

PLUG, W/HEAD(FOR TRANSFER FRONT DRIVE SHIFT SHAFT)

36410D

GASKET(FOR TRANSFER FRONT DRIVE SHIFT SHAFT)

36410E

PLUG, BREATHER(FOR DIAPHRAGM CYLINDER)

36410F

PLUG, EXPANSION(FOR DIAPHRAGM CYLINDER)

36412

COVER, DIAPHRAGM CYLINDER BODY

36414

BOLT, DIAPHRAGM CYLINDER

36415

COVER, DIAPHRAGM CYLINDER

36416

GASKET, DIAPHRAGM CYLINDER

36421

DIAPHRAGM, TRANSFER

36422

PLATE, TRANSFER DIAPHRAGM

36424

ROD, DIAPHRAGM PUSH

36424A

RING, O (FOR DIAPHRAGM PUSH ROD)

36424B

SEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD)

36425

BOLT, PUSH ROD

36425A

SPRING, COMPRESSION (FOR DIAPHRAGM CYLINDER)

36425B

SPACER (FOR DIAPHRAGM CYLINDER)

36425C

SEAL, DUST (FOR DIAPHRAGM CYLINDER)

36486

TUBE, SUCTION

36486A

GASKET (FOR SUCTION TUBE)

9020110014

Крепеж

9161140820

Крепеж

9161140850

Крепеж

9411040600

Крепеж

9412041000

Крепеж

9414040600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461210800

Крепеж

9461211000

Крепеж

9538101610

Крепеж

9538102015

Крепеж
