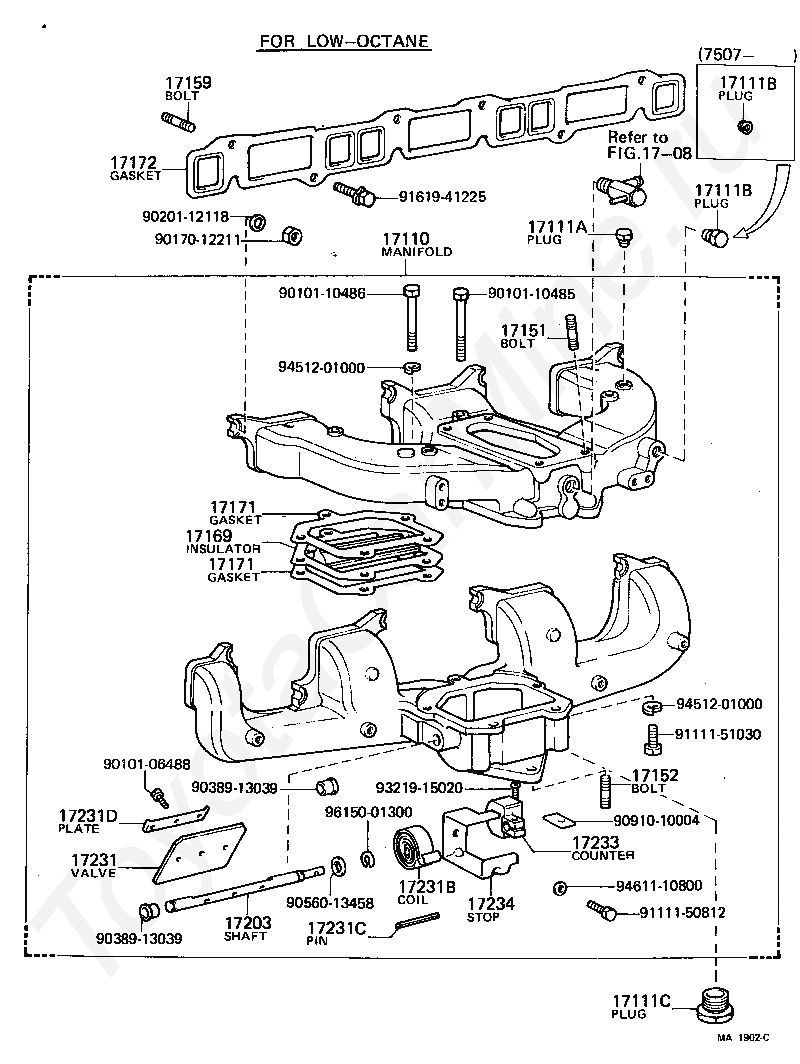

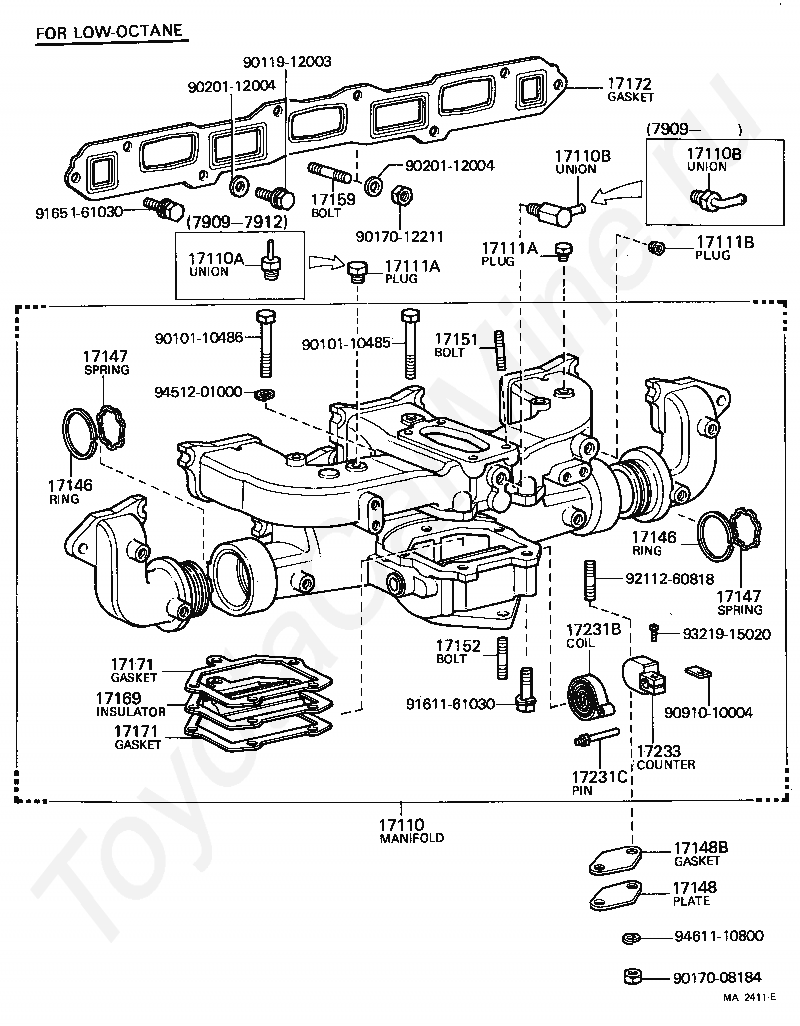

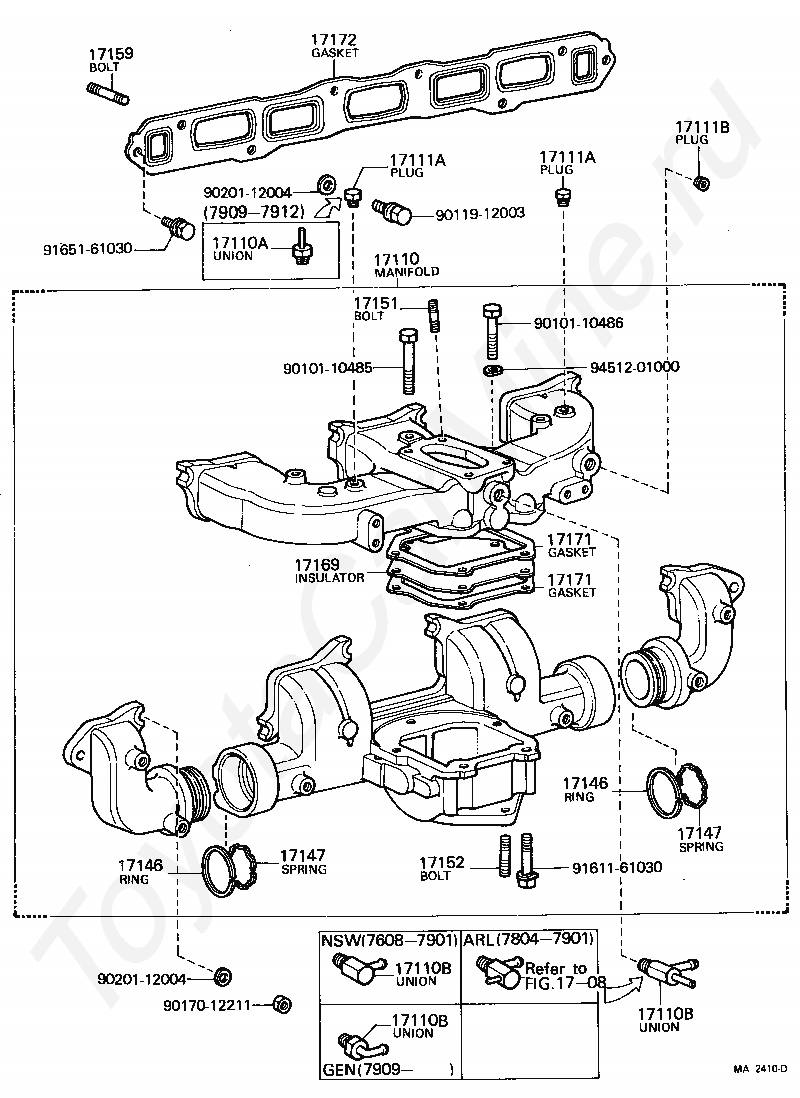

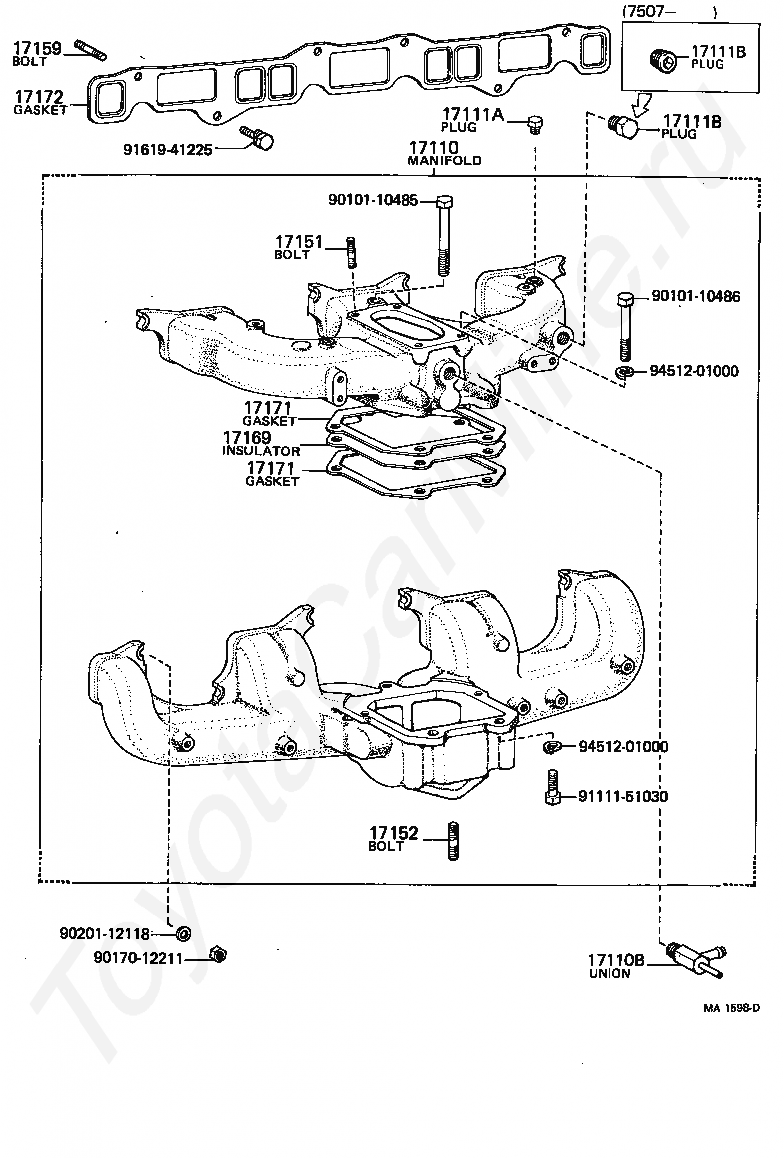

Коллекторы TOYOTA LAND CRUISER, 1975/01 - 1980/07, 4,2 литра, DECELERATION CONTROL SYSTEM, FJ40, МКПП, 4 ступени

Каталог

Европа

Модель

LAND CRUISER

Двигатель

4,2 литра

Кузов

DECELERATION CONTROL SYSTEM

Фрейм

FJ40

Трансмиссия

МКПП, 4 ступени

Опции

правый руль TARPAULIN CANVAS TOP SPECIFICATION C ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

Код

Описание

17110

MANIFOLD ASSY

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

9010110485

Крепеж

9010110486

Крепеж

9017012211

Крепеж

9020112118

Крепеж

9111151030

Крепеж

9161941225

Крепеж

9451201000

Крепеж

Код

Описание

17110

MANIFOLD ASSY

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

9010110485

Крепеж

9010110486

Крепеж

9017012211

Крепеж

9020112118

Крепеж

9111151030

Крепеж

9161941225

Крепеж

9451201000

Крепеж

Код

Описание

1708

переход к группе запчастей

17110

MANIFOLD ASSY

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17111C

PLUG, NO.3

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

17203

SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL

17231

VALVE, MANIFOLD HEAT CONTROL

17231B

COIL, HEAT CONTROL VALVE

17231C

PIN(FOR MANIFOLD HEAT CONTROL VALVE)

17231D

PLATE, LOCK(FOR MANIFOLD HEAT VALVE)

17233

COUNTER WEIGHT

17234

STOP, COUNTER WEIGHT

9010106488

Крепеж

9010110485

Крепеж

9010110486

Крепеж

9017012211

Крепеж

9020112118

Крепеж

9038913039

Крепеж

9056013458

Крепеж

9091010004

Крепеж

9111150812

Крепеж

9111151030

Крепеж

9161941225

Крепеж

9321915020

Крепеж

9451201000

Крепеж

9461110800

Крепеж

9615001300

Крепеж

Код

Описание

1708

переход к группе запчастей

17110

MANIFOLD ASSY

17110A

UNION, VACUUM HOSE

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17146

RING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

9010110485

Крепеж

9010110486

Крепеж

9011912003

Крепеж

9017012211

Крепеж

9020112004

Крепеж

9161161030

Крепеж

9165161030

Крепеж

9451201000

Крепеж

Код

Описание

1708

переход к группе запчастей

17110

MANIFOLD ASSY

17110A

UNION, VACUUM HOSE

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17146

RING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

9010110485

Крепеж

9010110486

Крепеж

9011912003

Крепеж

9017012211

Крепеж

9020112004

Крепеж

9161161030

Крепеж

9165161030

Крепеж

9451201000

Крепеж

Код

Описание

17110

MANIFOLD ASSY

17110A

UNION, VACUUM HOSE

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17146

RING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17148

PLATE, EXHAUST MANIFOLD(FOR EGR INLET)

17148B

GASKET, EGR INLET

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

17231B

COIL, HEAT CONTROL VALVE

17231C

PIN(FOR MANIFOLD HEAT CONTROL VALVE)

17233

COUNTER WEIGHT

9010110485

Крепеж

9010110486

Крепеж

9011912003

Крепеж

9017008184

Крепеж

9017012211

Крепеж

9020112004

Крепеж

9091010004

Крепеж

9161161030

Крепеж

9165161030

Крепеж

9211260818

Крепеж

9321915020

Крепеж

9451201000

Крепеж

9461110800

Крепеж
