Каталог
ЕвропаМодель
LAND CRUISERДвигатель
4,2 литраКузов
DECELERATION CONTROL SYSTEMФрейм
FJ40Трансмиссия
МКПП, 4 ступениОпции
правый руль TARPAULIN CANVAS TOP SPECIFICATION C ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

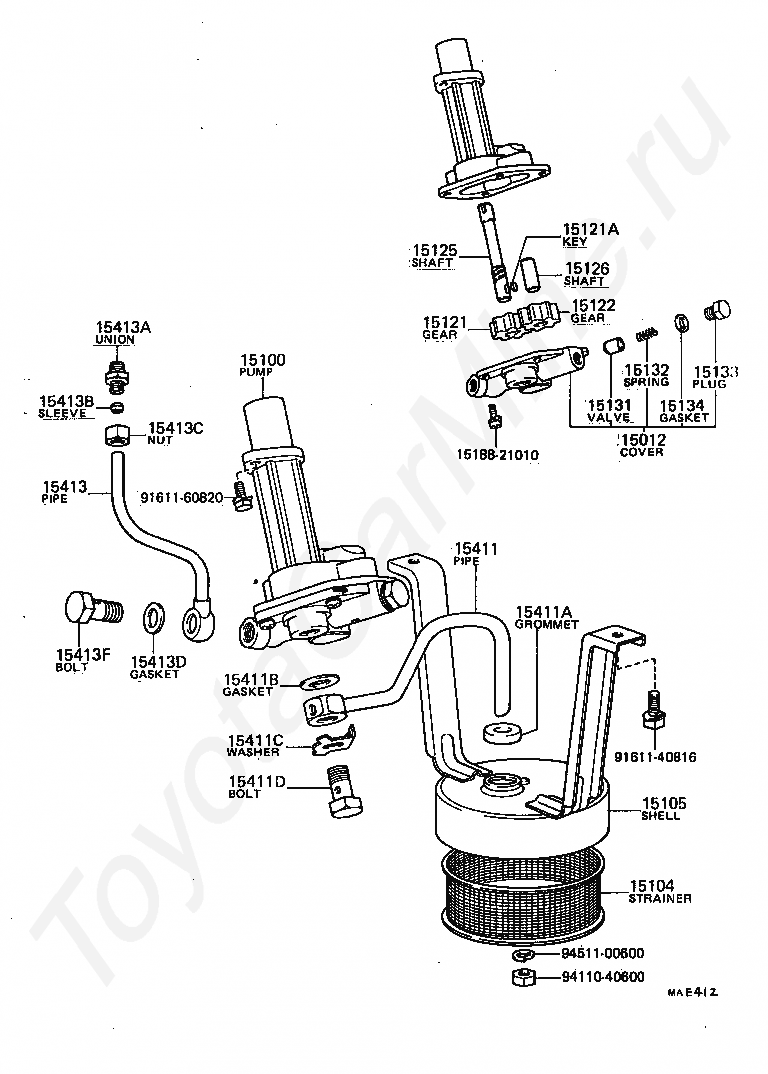

Код
Описание
15012
COVER SUB-ASSY, OIL PUMP
15100
PUMP ASSY, OIL
15104
STRAINER SUB-ASSY, OIL
15105
SHELL SUB-ASSY, OIL STRAINER
15121
GEAR, OIL PUMP DRIVE
15121A
KEY, OIL PUMP DRIVE SHAFT
15122
GEAR, OIL PUMP DRIVEN
15125
SHAFT, OIL PUMP
15126
SHAFT, OIL PUMP DRIVEN
15131
VALVE, OIL PUMP RELIEF
15132
SPRING, OIL PUMP RELIEF VALVE
15133
PLUG, OIL PUMP RELIEF VALVE
15134
GASKET, OIL PUMP RELIEF VALVE
1518821010
Крепеж
15411
PIPE, OIL PUMP INLET
15411A
GROMMET(FOR OIL PUMP INLET PIPE)
15411B
GASKET OR RING, O(FOR OIL PUMP INLET PIPE)
15411C
WASHER, LOCK(FOR OIL PUMP INLET PIPE)
15411D
BOLT, UNION(FOR OIL PUMP INLET PIPE)
15413
PIPE, OIL PUMP OUTLET
15413A
UNION(FOR OIL PUMP OUTLET PIPE)
15413B
SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
15413C
NUT, UNION(FOR OIL PUMP OUTLET PIPE)
15413D
GASKET(FOR OIL PUMP OUTLET PIPE)
15413F
BOLT, UNION(FOR OIL PUMP OUTLET PIPE)
9161140816
Крепеж
9161160820
Крепеж
9411040600
Крепеж
9451100600
Крепеж

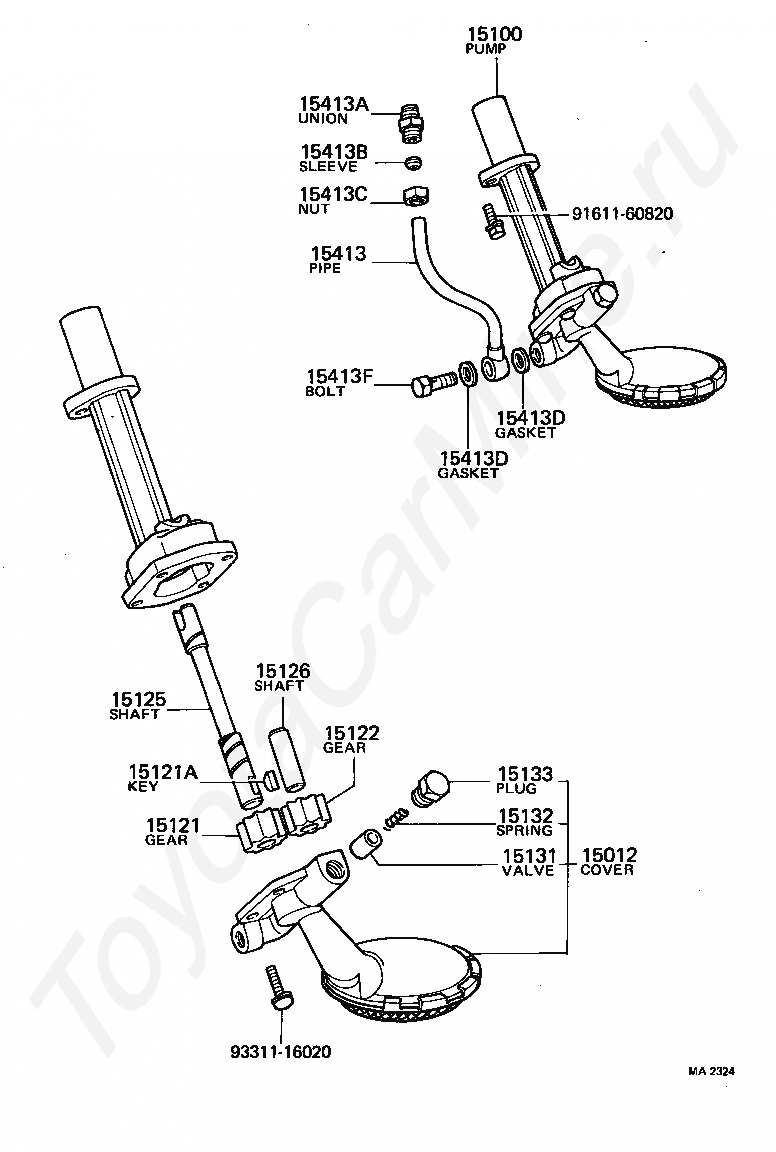

Код
Описание
15012
COVER SUB-ASSY, OIL PUMP
15100
PUMP ASSY, OIL
15121
GEAR, OIL PUMP DRIVE
15121A
KEY, OIL PUMP DRIVE SHAFT
15122
GEAR, OIL PUMP DRIVEN
15125
SHAFT, OIL PUMP
15126
SHAFT, OIL PUMP DRIVEN
15131
VALVE, OIL PUMP RELIEF
15132
SPRING, OIL PUMP RELIEF VALVE
15133
PLUG, OIL PUMP RELIEF VALVE
15413
PIPE, OIL PUMP OUTLET
15413A
UNION(FOR OIL PUMP OUTLET PIPE)
15413B
SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
15413C
NUT, UNION(FOR OIL PUMP OUTLET PIPE)
15413D
GASKET(FOR OIL PUMP OUTLET PIPE)
15413F
BOLT, UNION(FOR OIL PUMP OUTLET PIPE)
9161160820
Крепеж
9331116020
Крепеж
