Радиатор и шланги TOYOTA LAND CRUISER, 2021/07 - 2025, 3300CC 24-VALVE DOHC, GR SPORT TYPE, FJA300

Каталог

Япония

Модель

LAND CRUISER

Двигатель

3300CC 24-VALVE DOHC

Класс

GR SPORT TYPE

Фрейм

FJA300

Опции

5-местный система впрыска дизельного топлива (низкое загрязнение) 810W

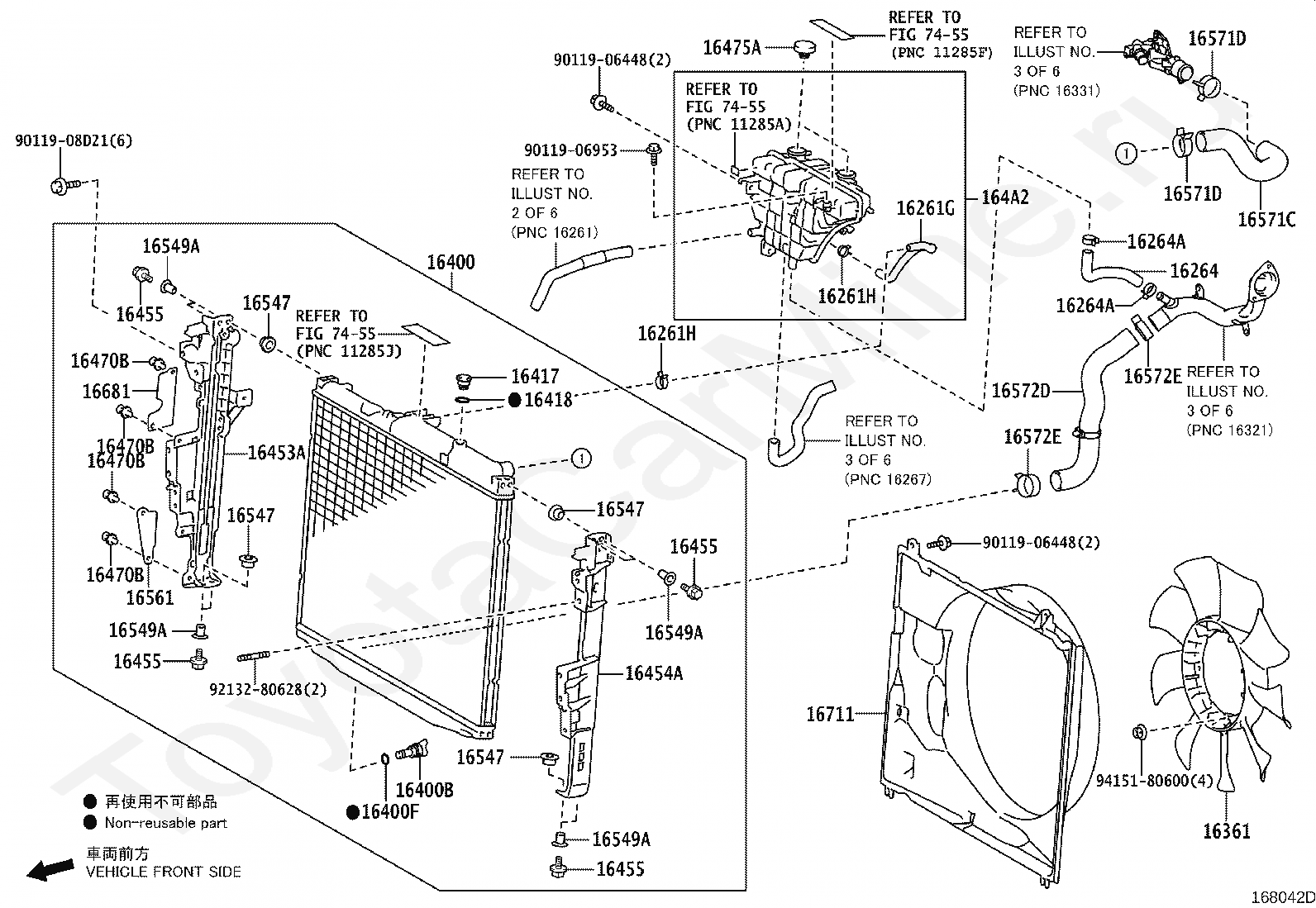

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16417

COCK

16418

PACKING

16453A

PLATE, RADIATOR SIDE SUPPORT, RH

16454A

PLATE, RADIATOR SIDE SUPPORT, LH

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16475A

CAP, RESERVE TANK

164A2

TANK, RESERVE SEALED W/O CAP

16547

BUSH, RADIATOR SUPPORT, NO.1

16549A

COLLAR, RADIATOR SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16681

PLATE, RADIATOR UPPER AIR GUIDE

16711

SHROUD, FAN

7455

переход к группе запчастей

9011906448

Крепеж

9011906953

Крепеж

9011908D21

Крепеж

9213280628

Крепеж

9415180600

Крепеж

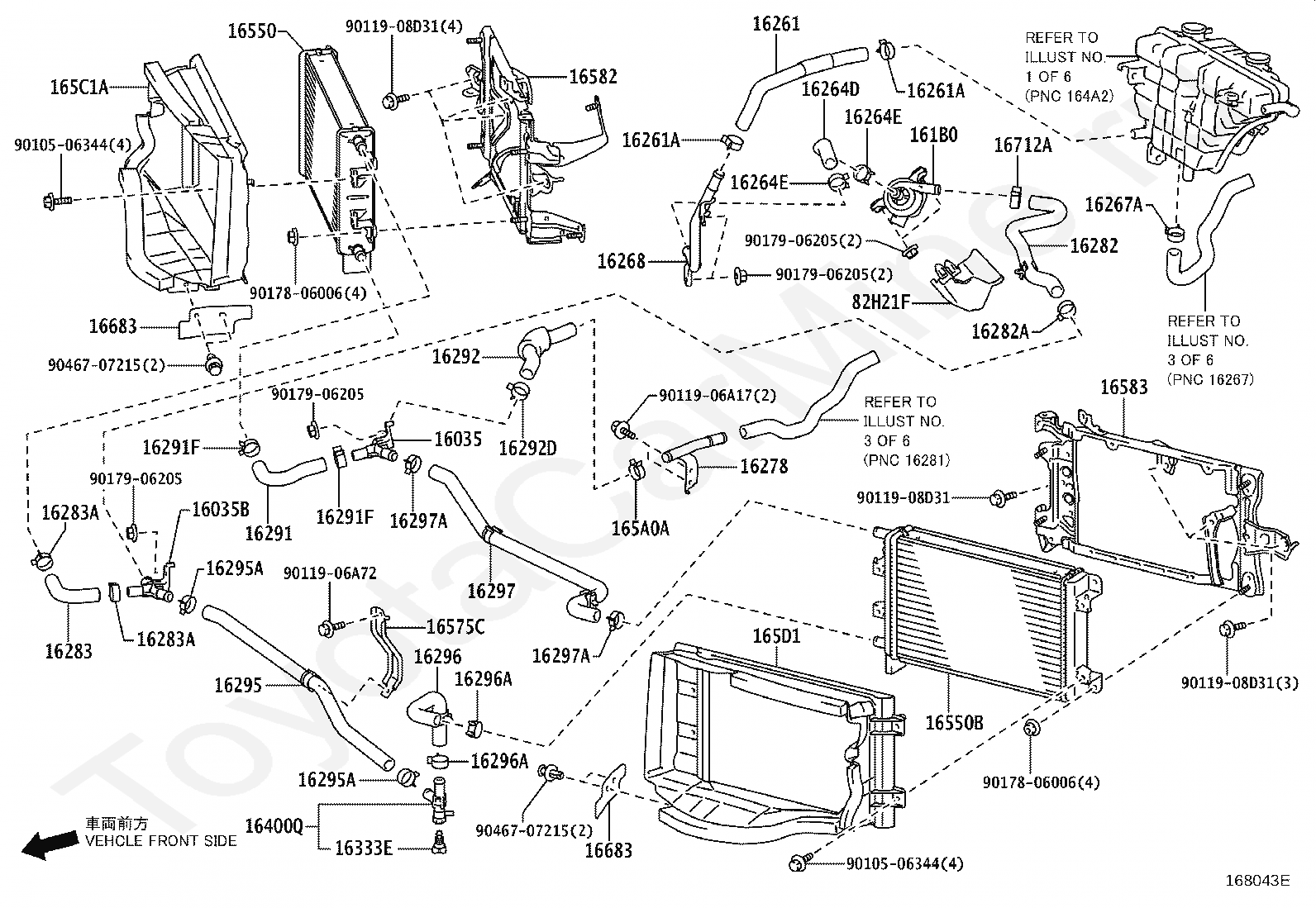

Код

Описание

16035

JOINT, WATER HOSE

16035B

JOINT SUB-ASSY, WATER BY-PASS, FRONT

161B0

PUMP ASSY, ELECTRIC WATER

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16291

JOINT, WATER HOSE

16291F

CLIP(FOR WATER HOSE JOINT NO.1)

16292

JOINT, WATER HOSE, NO.2

16292D

CLIP(FOR WATER HOSE JOINT NO.2)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16333E

PLUG, DRAIN COCK

16400Q

COCK ASSY, DRAIN

16550

RADIATOR ASSY, INTERCOOLER COOLING

16550B

RADIATOR ASSY, INTERCOOLER COOLING, NO.2

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

165A0A

CLIP, HOSE

165C1A

DUCT, SUB-RADIATOR, RH NO.1

165D1

DUCT, SUB-RADIATOR, LH NO.1

16683

PLATE, RADIATOR LOWER AIR GUIDE

16712A

CLIP

82H21F

COVER, CONNECTOR

9010506344

Крепеж

9011906A17

Крепеж

9011906A72

Крепеж

9011908D31

Крепеж

9017806006

Крепеж

9017906205

Крепеж

9046707215

Крепеж

Код

Описание

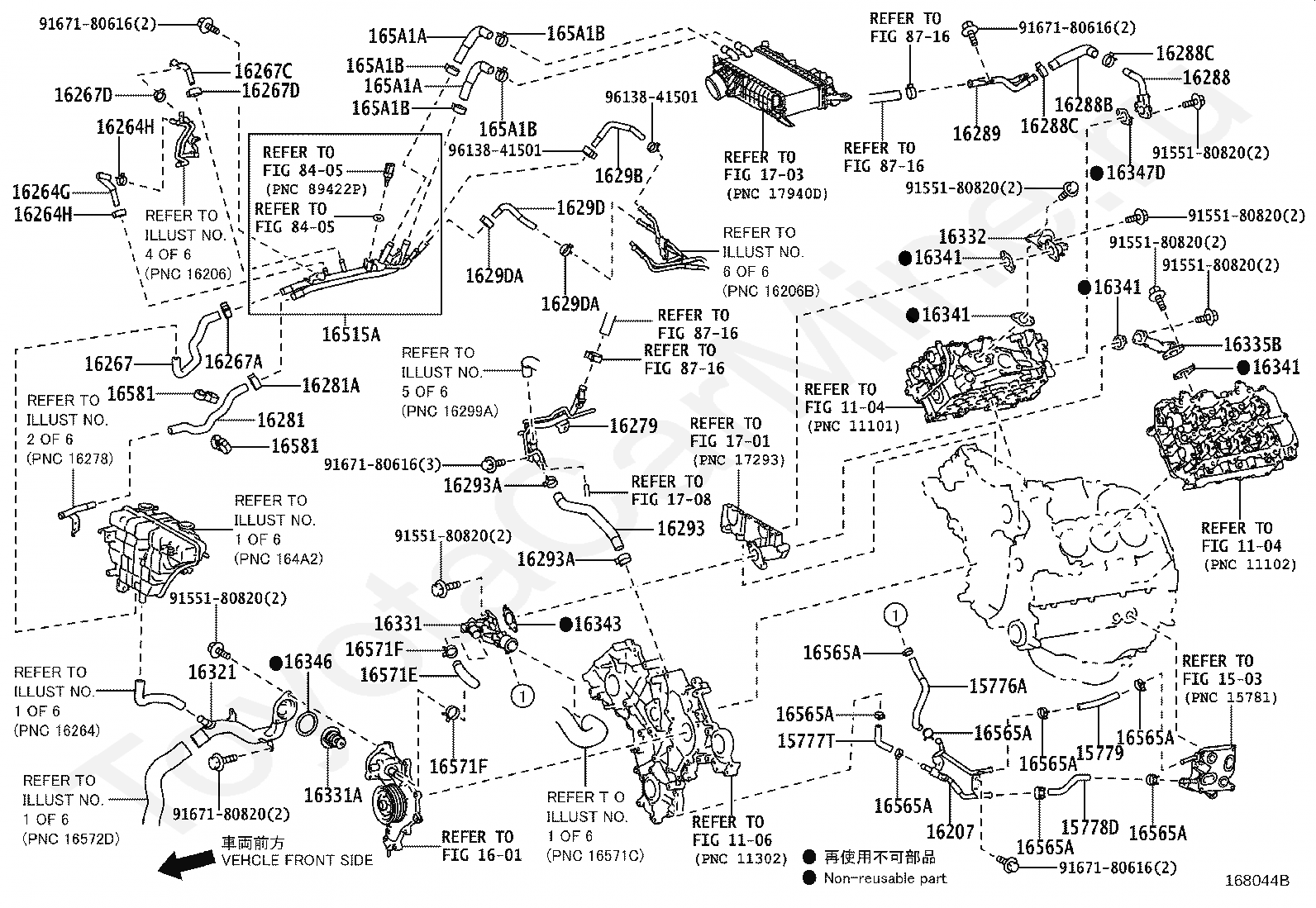

1104

переход к группе запчастей

1106

переход к группе запчастей

1503

переход к группе запчастей

15776A

HOSE, OIL COOLER, NO.4

15777T

HOSE, OIL COOLER, NO.1

15778D

HOSE, OIL COOLER, NO.2

15779

HOSE, OIL COOLER, NO.3

1601

переход к группе запчастей

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16264G

HOSE, WATER BY-PASS, NO.3

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267C

HOSE, WATER BY-PASS, NO.4

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16288

PIPE, WATER BY-PASS, NO.4

16288B

HOSE, WATER(FOR WATER BY-PASS PIPE NO.4)

16288C

CLIP(FOR WATER BY-PASS PIPE NO.4)

16289

PIPE, WATER BY-PASS, NO.5

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

1629B

HOSE, WATER BY-PASS, NO.15

1629D

HOSE, WATER BY-PASS, NO.17

1629DA

CLIP(FOR WATER BY-PASS HOSE NO.17)

16321

INLET, WATER

16331

OUTLET, WATER

16331A

THERMOSTAT

16332

PIPE, WATER OUTLET, NO.1

16335B

PIPE, WATER OUTLET, NO.2

16341

GASKET, WATER OUTLET

16343

GASKET, WATER OUTLET HOUSING

16346

GASKET, THERMOSTAT

16347D

GASKET, WATER BY-PASS

16515A

PIPE, INTERCOOLER COOLING WATER, NO.1

16565A

CLIP

16571E

HOSE, WATER

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16581

CLAMP, HOSE(FOR WATER HOSE)

165A1A

HOSE, INTERCOOLER COOLING WATER INLET

165A1B

CLIP(FOR INTERCOOLER COOLING WATER INLET HOSE)

1701

переход к группе запчастей

1703

переход к группе запчастей

1708

переход к группе запчастей

8405

переход к группе запчастей

8716

переход к группе запчастей

9155180820

Крепеж

9167180616

Крепеж

9167180820

Крепеж

9613841501

Крепеж

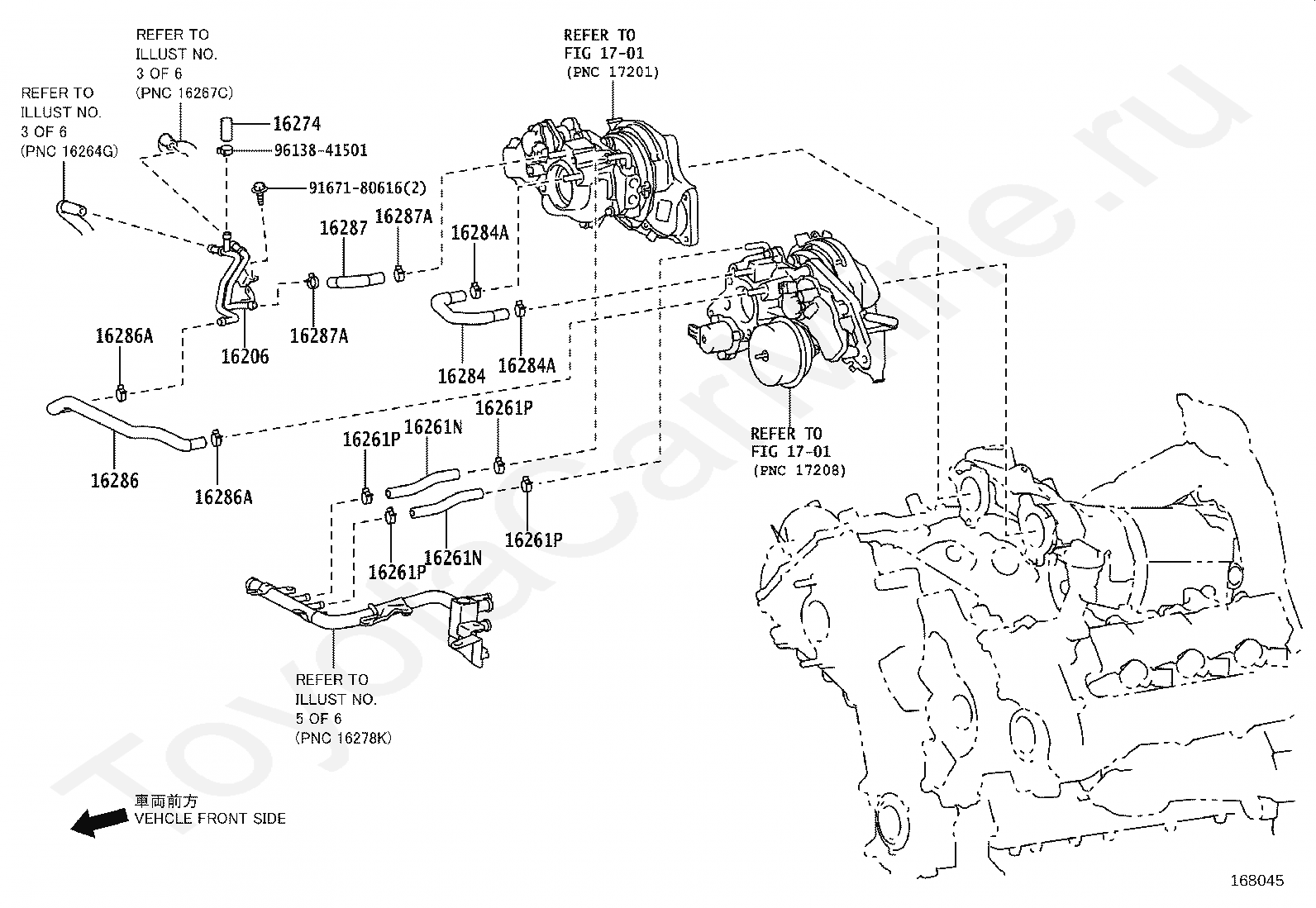

Код

Описание

16206

PIPE SUB-ASSY, WATER BY-PASS

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16274

PLUG, WATER BY-PASS

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

1701

переход к группе запчастей

9167180616

Крепеж

9613841501

Крепеж

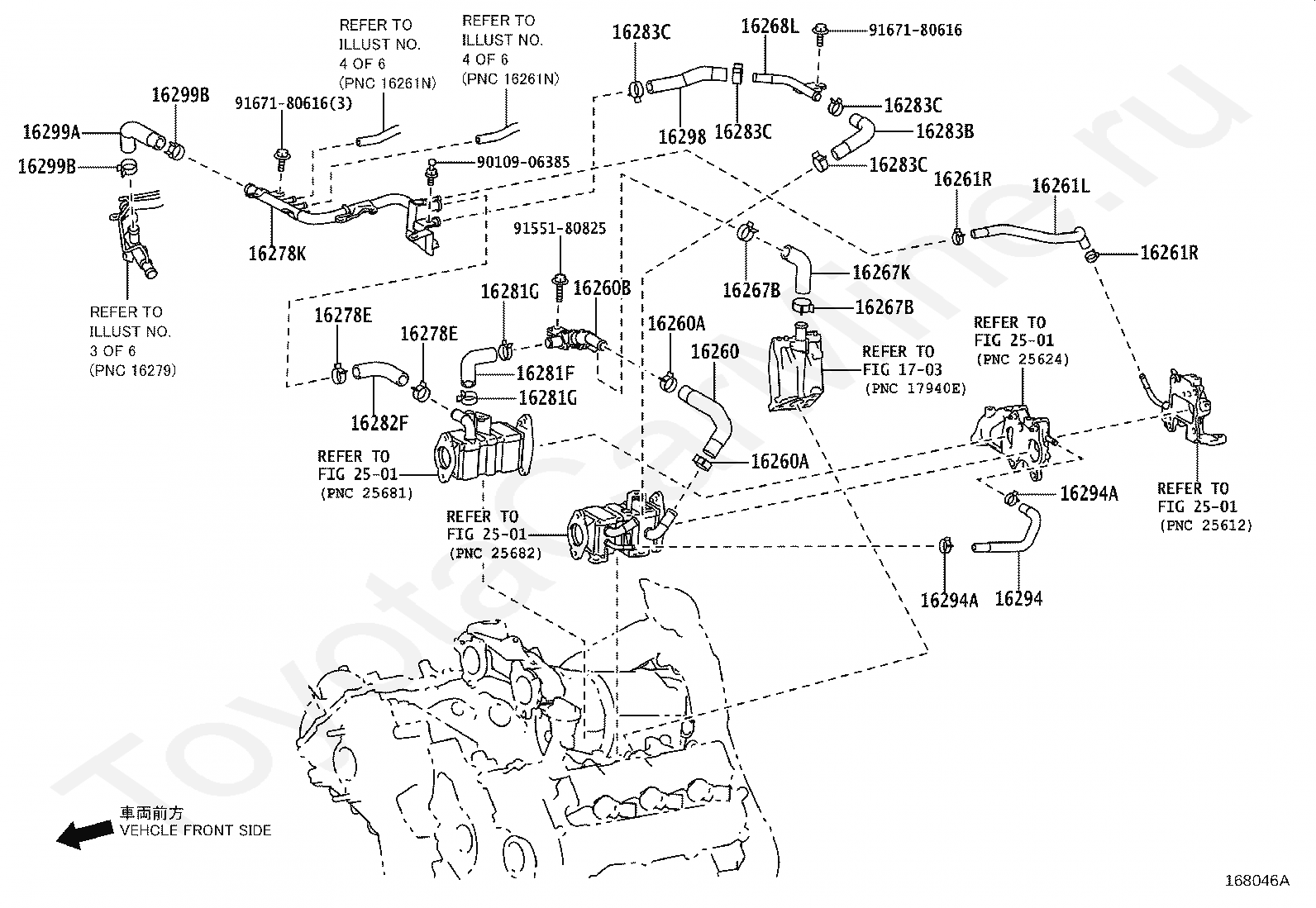

Код

Описание

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16260B

PIPE ASSY, WATER BY-PASS

16261L

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267K

HOSE, WATER BY-PASS, NO.3

16268L

PIPE, WATER BY-PASS

16278E

CLIP(FOR WATER BY-PASS HOSE)

16278K

PIPE, WATER BY-PASS, NO.2

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16282F

HOSE, WATER BY-PASS, NO.5

16283B

HOSE, WATER BY-PASS

16283C

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16294

HOSE, WATER BY-PASS, NO.11

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16298

HOSE, WATER BY-PASS, NO.12

16299A

HOSE, WATER BY-PASS, NO.13

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

1703

переход к группе запчастей

2501

переход к группе запчастей

9010906385

Крепеж

9155180825

Крепеж

9167180616

Крепеж

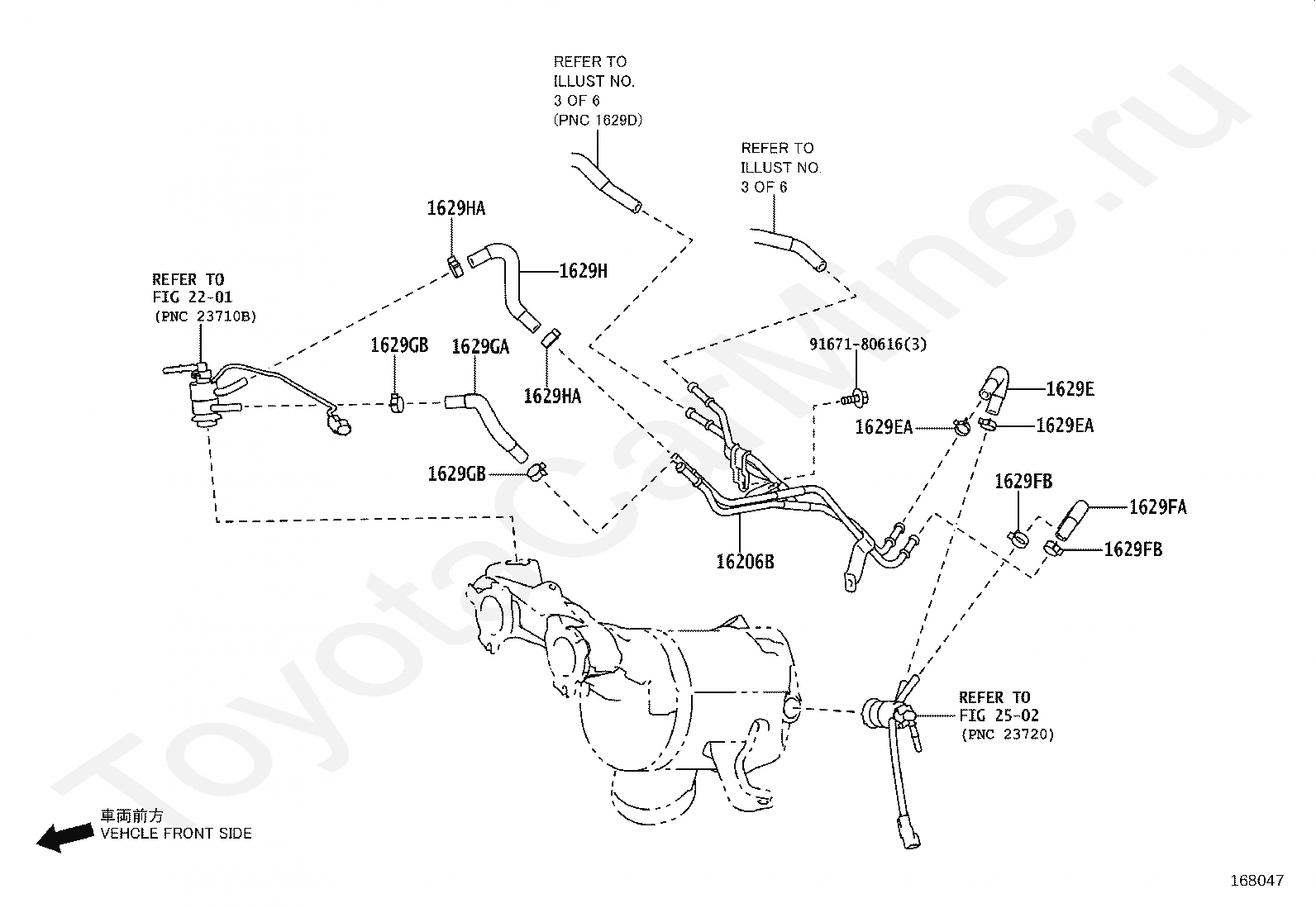

Код

Описание

16206B

PIPE SUB-ASSY, WATER BY-PASS, NO.3

1629E

HOSE, WATER BY-PASS, NO.18

1629EA

CLIP(FOR WATER BY-PASS HOSE NO.18)

1629FA

HOSE, WATER BY-PASS, NO.19

1629FB

CLIP(FOR WATER BY-PASS HOSE NO.19)

1629GA

HOSE, WATER BY-PASS, NO.20

1629GB

CLIP(FOR WATER BY-PASS HOSE NO.20)

1629H

HOSE, WATER BY-PASS, NO.21

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

2201

переход к группе запчастей

2502

переход к группе запчастей

9167180616

Крепеж

Радиатор и шланги TOYOTA LAND CRUISER, 2021/07 - 2025, 3300CC 24-VALVE DOHC, GR SPORT TYPE, FJA300
