Каталог
Ближний ВостокМодель
LAND CRUISERДвигатель
3300CC 24-VALVE DOHCФрейм
FJA300Трансмиссия
автомат ATM, 10-SPEED FLOOR SHIFTОпции
левый руль 7-местный S TYPE система впрыска дизельного топлива (низкое загрязнение) GENERAL COUNTRIES 810W

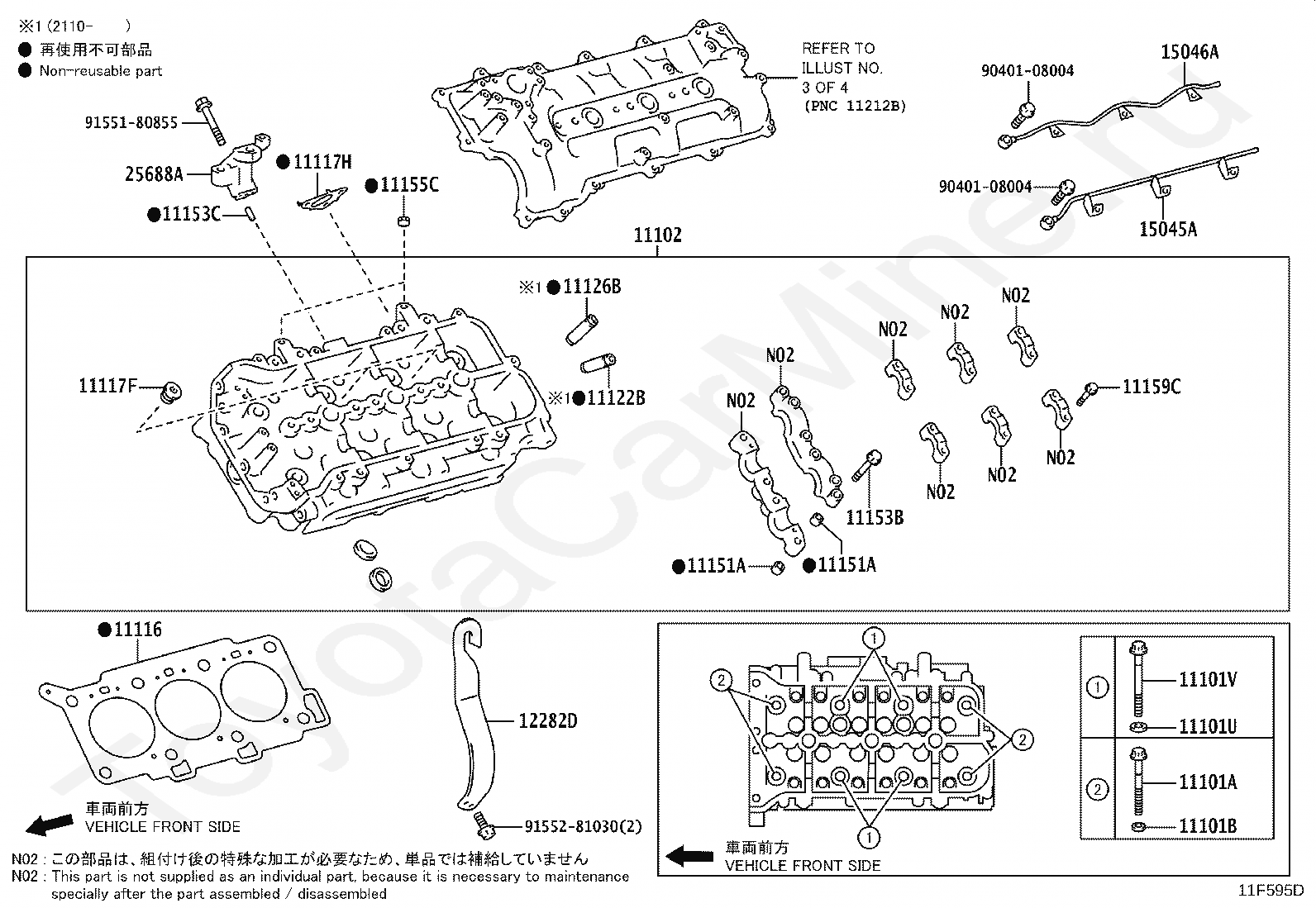

Код
Описание
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11101U
SPACER(FOR CYLINDER HEAD SET BOLT)
11101V
BOLT(FOR CYLINDER HEAD SET SUB)
11102
HEAD, CYLINDER, LH
11116
GASKET, CYLINDER HEAD, NO.2
11117F
PLUG, W/HEAD STRAIGHT SCREW, NO.2
11117H
GASKET(FOR WATER HOLE)
11122B
BUSH, INTAKE VALVE GUIDE, NO.2
11126B
BUSH, EXHAUST VALVE GUIDE, NO.2
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11153B
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
11153C
PIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
11155C
PIN, RING NO.2
11159C
BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
12282D
HANGER, ENGINE, NO.2
15045A
PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.3
15046A
PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.4
25688A
BRACKET, CLAMP STAY, NO.2
9040108004
Крепеж
9155180855
Крепеж
9155281030
Крепеж

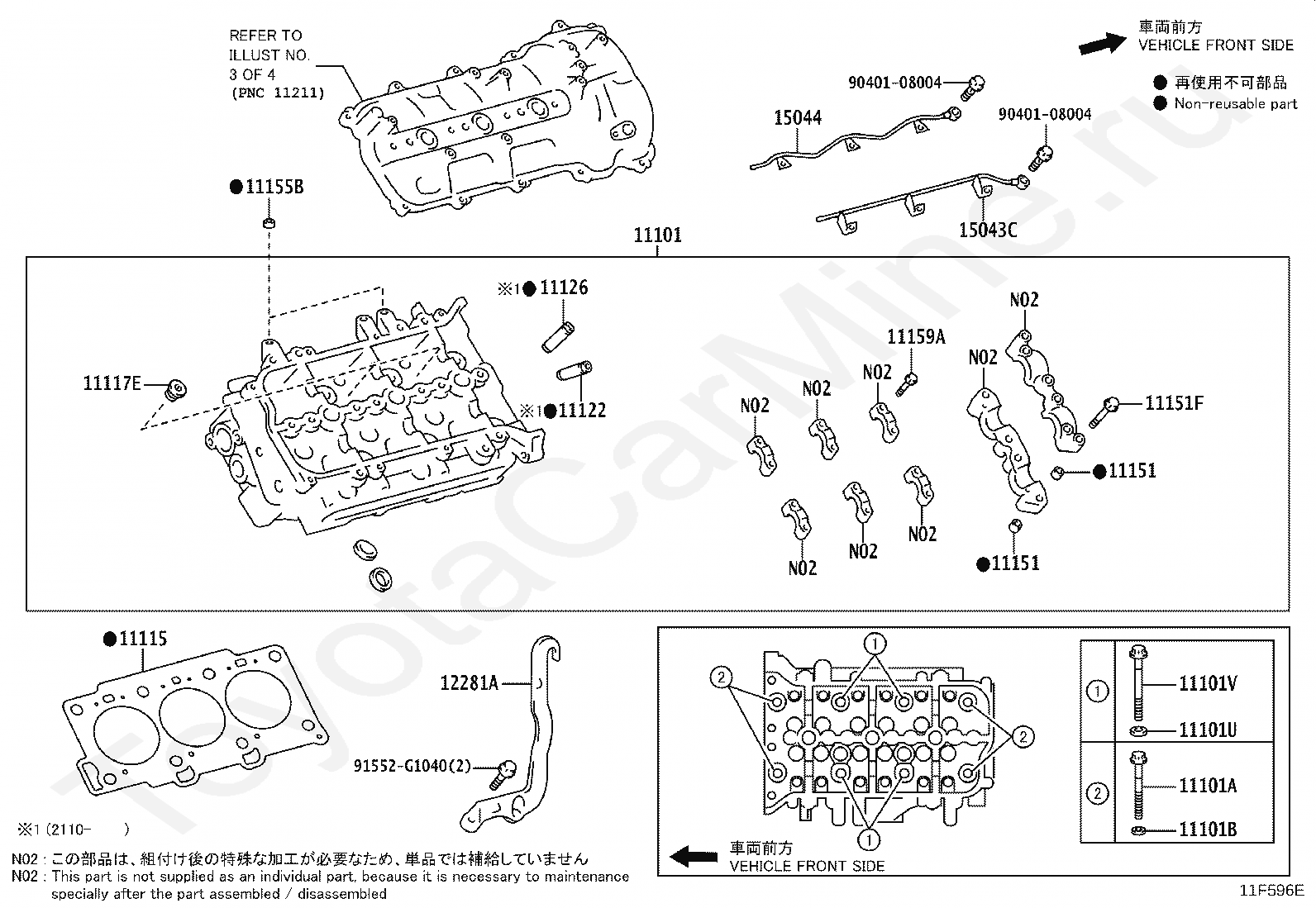

Код
Описание
11101
HEAD SUB-ASSY, CYLINDER
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11101U
SPACER(FOR CYLINDER HEAD SET BOLT)
11101V
BOLT(FOR CYLINDER HEAD SET SUB)
11115
GASKET, CYLINDER HEAD
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11122
BUSH, INTAKE VALVE GUIDE
11126
BUSH, EXHAUST VALVE GUIDE
11151
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)
11151F
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11155B
PIN, RING
11159A
BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
12281A
HANGER, ENGINE, NO.1
15043C
PIPE SUB-ASSY, CAMSHAFT OIL FEED
15044
PIPE SUB-ASSY, CAMSHAFT OIL FEED
9040108004
Крепеж
91552G1040
Крепеж

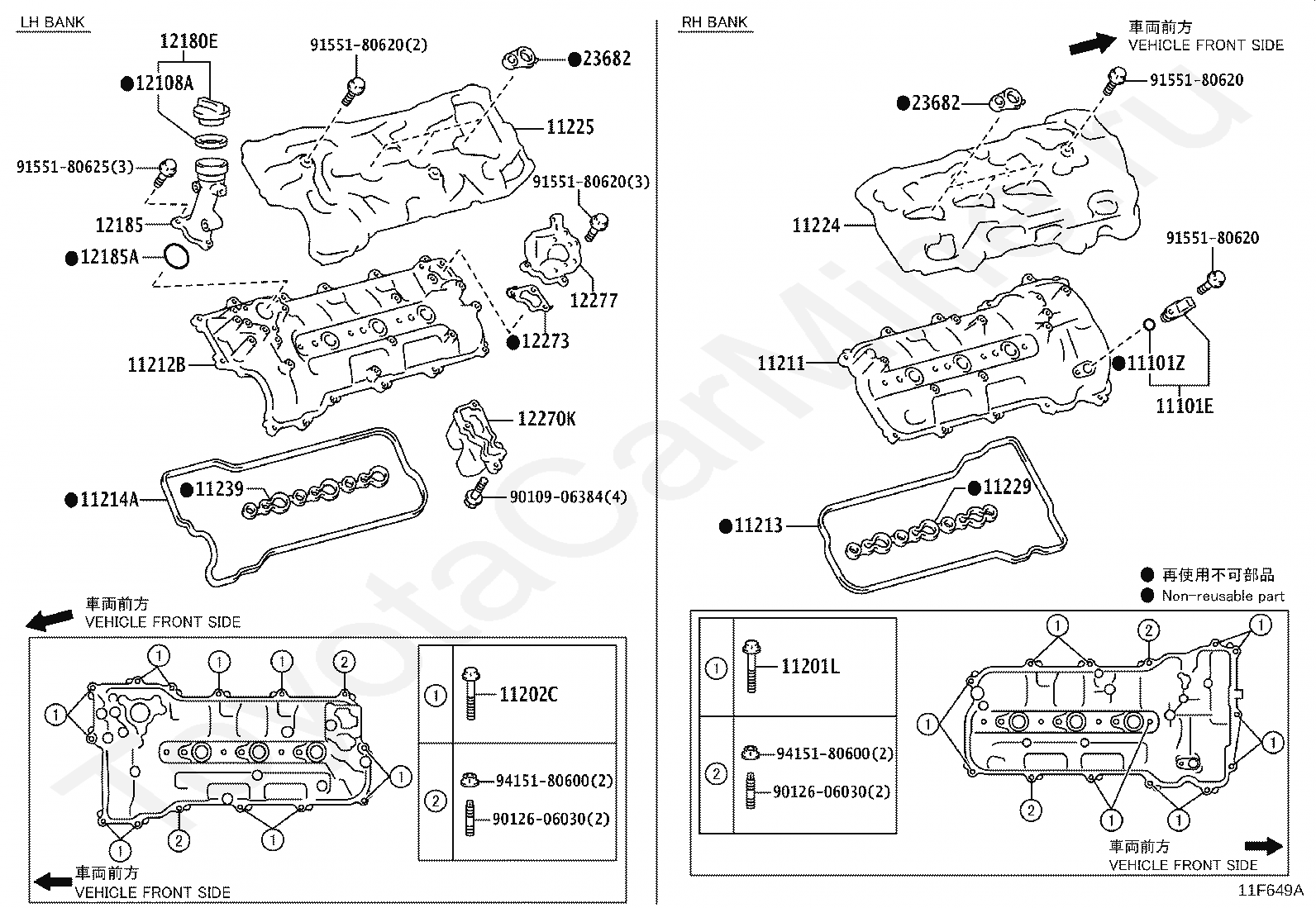

Код
Описание
11101E
SENSOR, CAM POSITION
11101Z
O RING, CAM POSITION SENSOR
11201L
BOLT(FOR CYLINDER HEAD COVER RH)
11202C
BOLT(FOR CYLINDER HEAD COVER LH)
11211
COVER, CYLINDER HEAD, RH
11212B
COVER, CYLINDER HEAD, LH
11213
GASKET, CYLINDER HEAD COVER
11214A
GASKET, CYLINDER HEAD COVER, LH NO.1
11224
SILENCER, CYLINDER HEAD COVER
11225
SILENCER, CYLINDER HEAD COVER LH
11229
GASKET, CYLINDER HEAD COVER, NO.3
11239
GASKET, CLINDER HEAD CONER, NO.4
12108A
GASKET(FOR OIL FILLER CAP)
12180E
CAP ASSY, OIL FILLER
12185
HOUSING, OIL FILLER CAP
12185A
GASKET, OIL FILLER CAP HOUSING
12270K
SEPARATOR ASSY, OIL
12273
GASKET, OIL SEPARATOR
12277
HOLDER, OIL SEPARATOR
23682
GASKET, NOZZLE HOLDER
9010906384
Крепеж
9012606030
Крепеж
9155180620
Крепеж
9155180625
Крепеж
9415180600
Крепеж

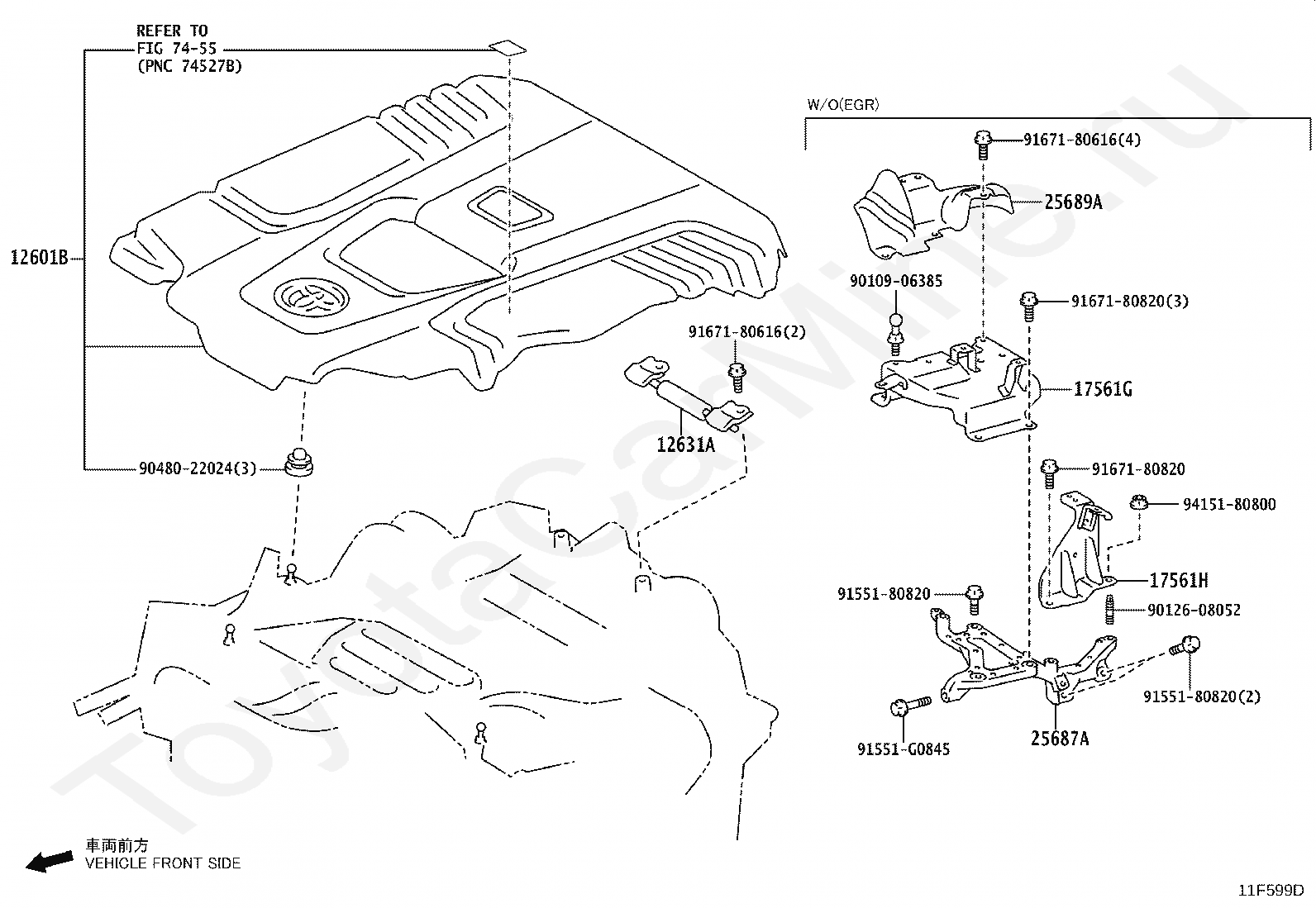

Код
Описание
12601B
COVER SUB-ASSY, ENGINE, NO.1
12631A
BRACKET, ENGINE COVER
17561G
STAY, CLAMP
17561H
STAY, CLAMP, NO.2
25687A
BRACKET, CLAMP STAY
25689A
INSULATOR
7455
переход к группе запчастей
9010906385
Крепеж
9012608052
Крепеж
9048022024
Крепеж
9155180820
Крепеж
91551G0845
Крепеж
9167180616
Крепеж
9167180820
Крепеж
9415180800
Крепеж
