Кресла TOYOTA LAND CRUISER S/T,H/T, 1992/08 - 1993/05, 2,4 литра, турбо-дизель, фургон, SX-5 SPECIFICATION, LJ78, автомат

Каталог

Япония

Модель

LAND CRUISER S/T,H/T

Двигатель

2,4 литра, турбо-дизель

Кузов

фургон

Класс

SX-5 SPECIFICATION

Фрейм

LJ78

Трансмиссия

автомат

Опции

Q TYPE обычное пассажирское авто

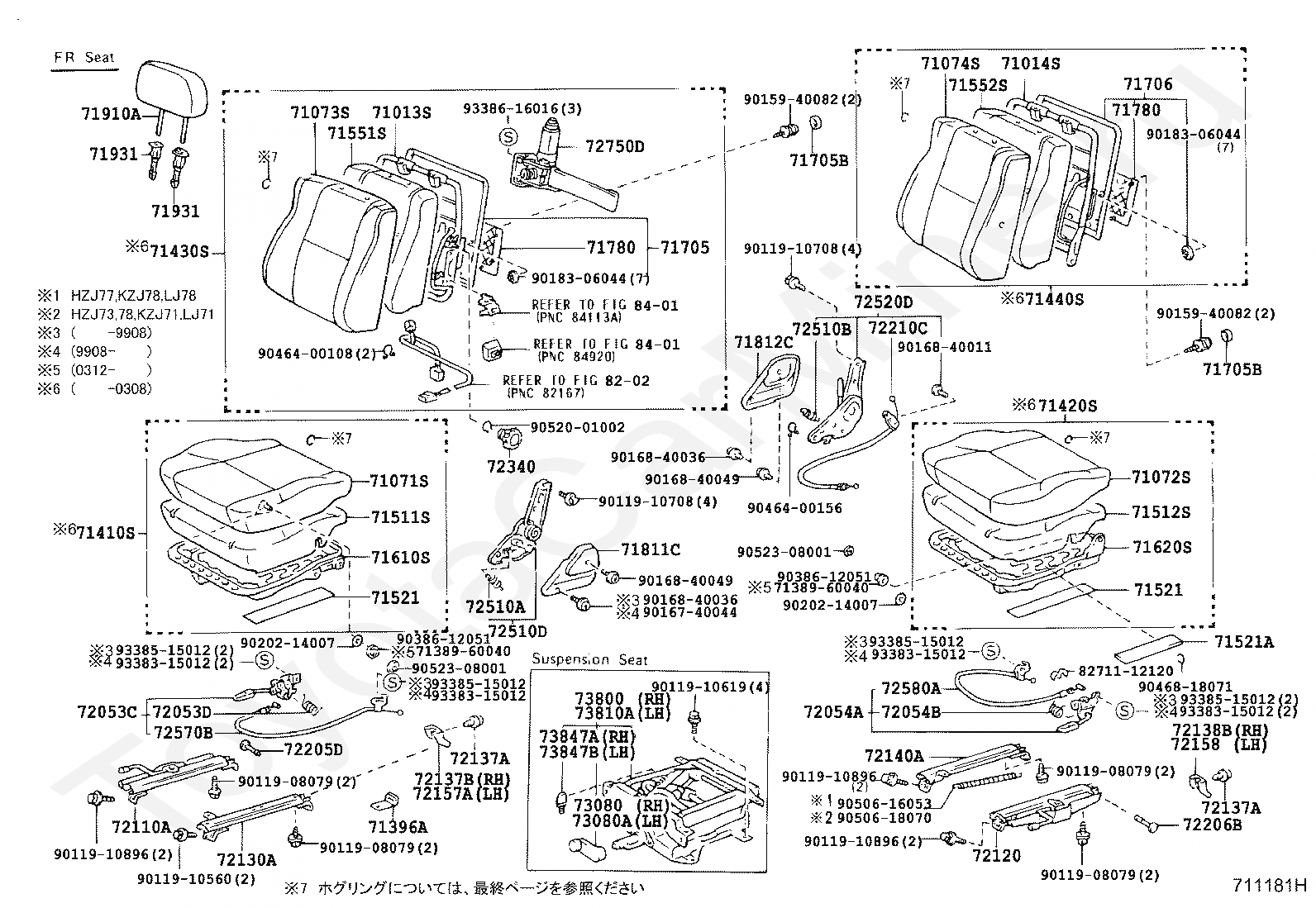

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7138960040

Крепеж

71396A

PLATE, REAR SEAT BAND HOOK

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71521

PAD, FRONT SEAT CUSHION SILENCER, A

71521A

PAD,FRONT SEAT CUSHION SILENCER

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705B

CAP(FOR FRONT SEAT BACK BOARD)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71780

POCKET ASSY, SEAT BACK BOARD

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72053C

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

72053D

SPRING(FOR RECLINING REMOTE CONTROL LEVER RH)

72054A

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

72054B

SPRING(FOR RECLINING REMOTE CONTROL LEVER LH)

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137A

CLIP (FOR SEAT TRACK COVER)

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72205D

PIN SUB-ASSY, SEAT TRACK OPEN LEVER, RH

72206B

PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72340

HANDLE ASSY, SIDE SUPPORT ADJUSTING

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72510B

SPRING, TENSION, NO.2(FOR RECLINING SEAT ADJUSTER)

72510D

ADJUSTER ASSY, RECLINING SEAT, OUTER RH

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

72570B

CABLE ASSY, RECLINING ADJUSTING, RH

72580A

CABLE ASSY, RECLINING ADJUSTING, LH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73080

HANDLE, SEAT SUSPENSION CONTROL, RH

73080A

HANDLE, SEAT SUSPENSION CONTROL, LH

73800

SUSPENSION ASSY, SEAT, RH

73810A

SUSPENSION ASSY, SEAT, LH

73847A

CUSHION, SEAT SUSPENSION STOPPER, RH

73847B

CUSHION, SEAT SUSPENSION STOPPER, LH

8202

переход к группе запчастей

8271112120

Крепеж

8401

переход к группе запчастей

9011908079

Крепеж

9011910560

Крепеж

9011910619

Крепеж

9011910708

Крепеж

9011910896

Крепеж

9015940082

Крепеж

9016740044

Крепеж

9016840011

Крепеж

9016840036

Крепеж

9016840049

Крепеж

9018306044

Крепеж

9020214007

Крепеж

9038612051

Крепеж

9046400108

Крепеж

9046400156

Крепеж

9046818071

Крепеж

9050616053

Крепеж

9050618070

Крепеж

9052001002

Крепеж

9052308001

Крепеж

9338315012

Крепеж

9338515012

Крепеж

9338616016

Крепеж

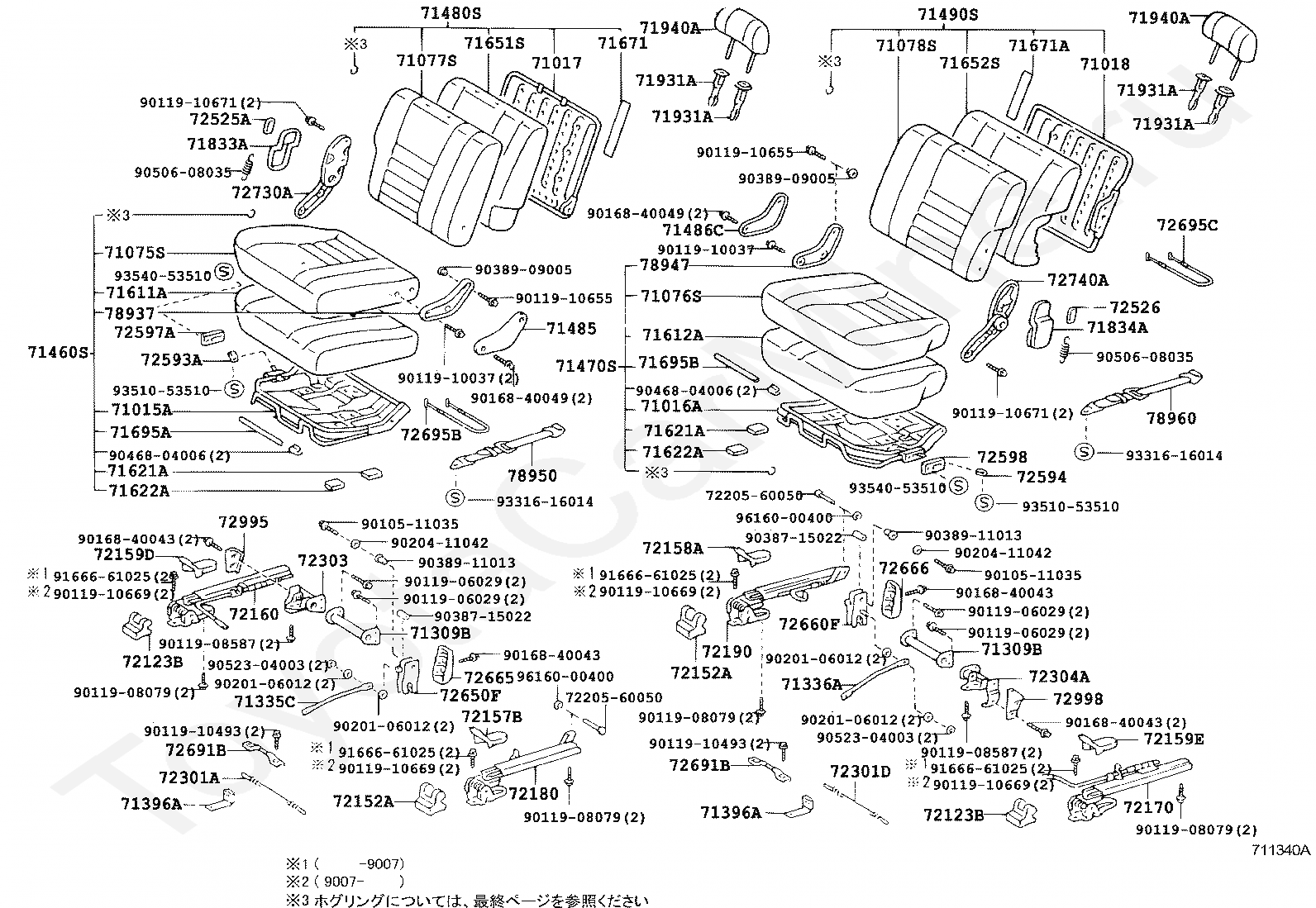

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71309B

LEG SUB-ASSY, REAR SEAT, REAR RH

71335C

STAY, REAR SEAT CUSHION LINK, RH

71336A

STAY, REAR SEAT CUSHION LINK, LH

71396A

PLATE, REAR SEAT BAND HOOK

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71485

COVER, REAR SEAT HINGE

71486C

COVER, REAR SEAT HINGE, LH

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71671

PAD, REAR SEAT BACK SILENCER, A

71671A

PAD, REAR SEAT BACK SILENCER, A

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72152A

COVER, REAR SEAT TRACK BRACKET, INNER

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72159D

COVER, REAR SEAT TRACK BRACKET, OUTER RH

72159E

COVER, REAR SEAT TRACK BRACKET, OUTER LH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

7220560050

Крепеж

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72303

STAY SUB-ASSY, SIDE SUPPORT, OUTER RH

72304A

STAY SUB-ASSY, SIDE SUPPORT, OUTER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72593A

KNOB, REMOTE CONTROL LEVER, RH

72594

KNOB, REMOTE CONTROL LEVER, LH

72597A

BEZEL, RECLINING REMOTE CONTROL LEVER, RH

72598

BEZEL, RECLINING REMOTE CONTROL LEVER, LH

72650F

LOCK ASSY, REAR SEAT, RH

72660F

LOCK ASSY, REAR SEAT, LH

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72691B

STRIKER, REAR SEAT CUSHION LOCK

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72995

COVER, REAR SEAT CUSHION, RH

72998

COVER, REAR SEAT CUSHION, LH

78937

BRACKET, FOLD SEAT BACK HINGE, RH

78947

BRACKET, FOLD SEAT BACK HINGE, LH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

9010511035

Крепеж

9011906029

Крепеж

9011908079

Крепеж

9011908587

Крепеж

9011910037

Крепеж

9011910493

Крепеж

9011910655

Крепеж

9011910669

Крепеж

9011910671

Крепеж

9016840043

Крепеж

9016840049

Крепеж

9020106012

Крепеж

9020411042

Крепеж

9038715022

Крепеж

9038909005

Крепеж

9038911013

Крепеж

9046804006

Крепеж

9050608035

Крепеж

9052304003

Крепеж

9166661025

Крепеж

9331616014

Крепеж

9351053510

Крепеж

9354053510

Крепеж

9616000400

Крепеж

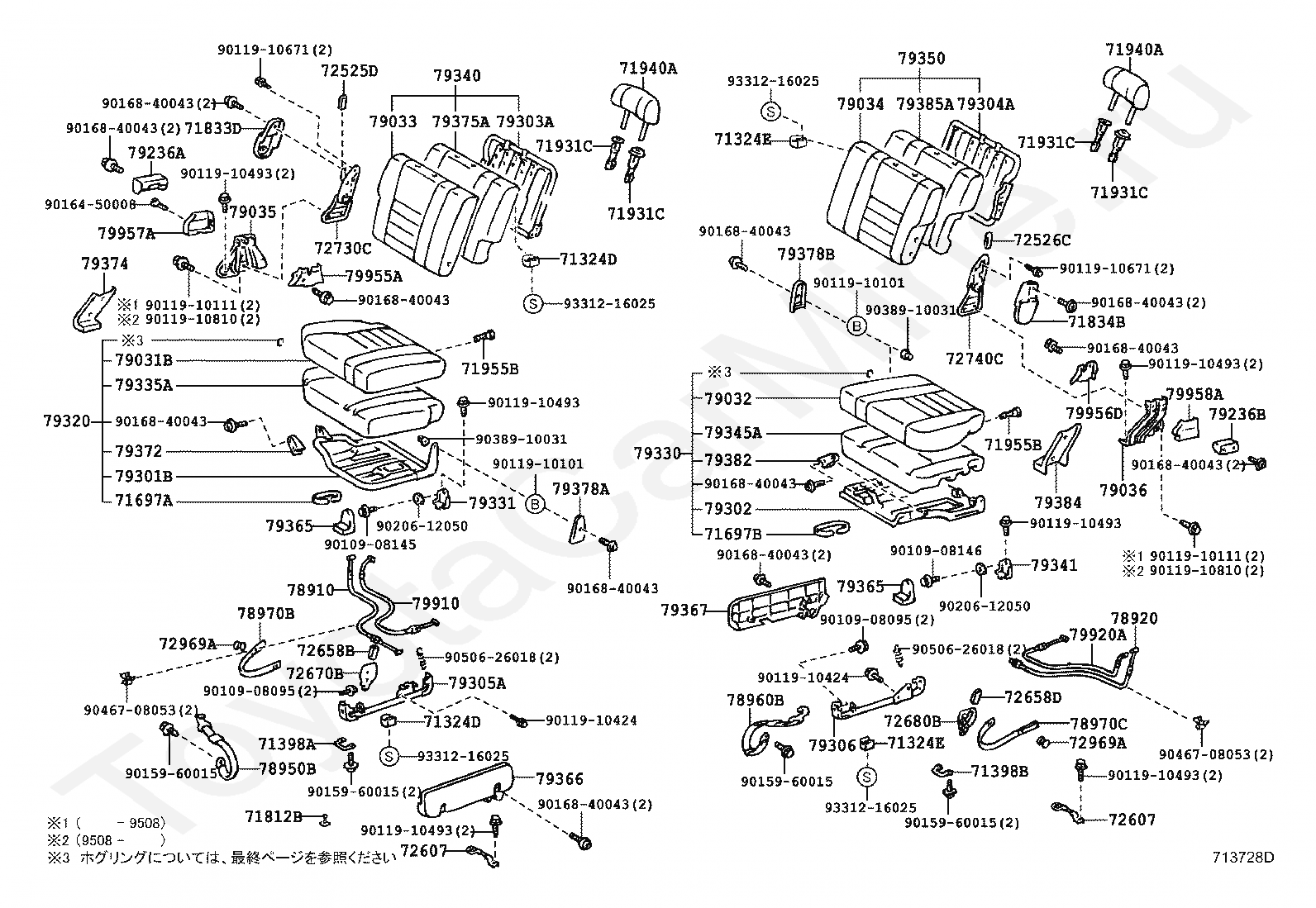

Код

Описание

71324D

CUSHION, REAR SEAT, RH

71324E

CUSHION, REAR SEAT, LH

71398A

HOLDER, REAR SEAT BACK

71398B

HOLDER, REAR SEAT BACK, LH

71697A

PROTECTOR, REAR SEAT, NO.3 RH

71697B

PROTECTOR, REAR SEAT, NO.3 LH

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833D

COVER REAR SEAT RECLINING, RH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71955B

SUPPORT, REAR SEAT HEADREST

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72658B

KNOB, REAR SEAT LOCK HANDLE

72658D

KNOB, REAR SEAT LOCK HANDLE

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72969A

PIN, SEAT TURN LOCK GUIDE

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78950B

BAND ASSY, FOLD SEAT STOPPER, NO.3

78960B

BAND ASSY, FOLD SEAT STOPPER, NO.4

78970B

BAND ASSY, SEAT LOCK, LH

78970C

BAND ASSY, SEAT LOCK, LH

79031B

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79035

LEG SUB ASSY, NO.3 SEAT OUTER REAR, RH

79036

LEG SUB ASSY, NO.3 SEAT OUTER REAR, LH

79236A

COVER, NO.2 SEAT LEG

79236B

COVER, NO.2 SEAT LEG, LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79302

FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79365

COVER, NO.3 SEAT LEG BRACKET

79366

COVER, NO.3 SEAT LEG, NO.1

79367

COVER, NO.3 SEAT LEG, NO.2

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79378A

COVER, NO.3 SEAT CUSHION HINGE, RH

79378B

COVER, NO.3 SEAT CUSHION HINGE, LH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79910

CABLE ASSY, REAR SEAT TURN, NO.1

79920A

CABLE ASSY, REAR SEAT TURN, NO.2

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956D

COVER, REAR SEAT FRONT BRACKET, LH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958A

COVER, REAR SEAT REAR BRACKET, LH

9010908095

Крепеж

9010908145

Крепеж

9010908146

Крепеж

9011910101

Крепеж

9011910111

Крепеж

9011910424

Крепеж

9011910493

Крепеж

9011910671

Крепеж

9011910810

Крепеж

9015960015

Крепеж

9016450008

Крепеж

9016840043

Крепеж

9020612050

Крепеж

9038910031

Крепеж

9046708053

Крепеж

9050626018

Крепеж

9331216025

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
