Задний мост TOYOTA LAND CRUISER S/T,H/T, 1992/08 - 1993/05, 2,4 литра, турбо-дизель, фургон, SX-5 SPECIFICATION, LJ78, автомат

Каталог

Япония

Модель

LAND CRUISER S/T,H/T

Двигатель

2,4 литра, турбо-дизель

Кузов

фургон

Класс

SX-5 SPECIFICATION

Фрейм

LJ78

Трансмиссия

автомат

Опции

Q TYPE обычное пассажирское авто

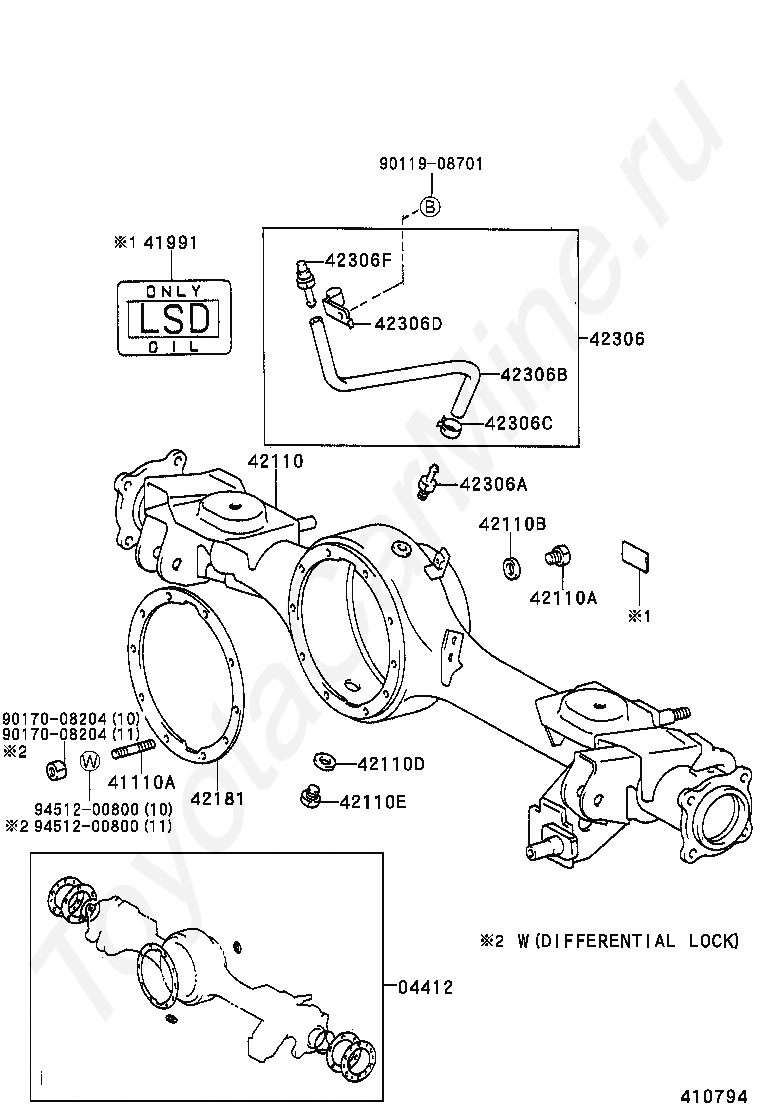

Код

Описание

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

41991

CAUTION PLATE, REAR DIFFERENTIAL

42110

HOUSING ASSY, REAR AXLE

42110A

PLUG (FOR REAR AXLE HOUSING FILLER)

42110B

GASKET (FOR REAR AXLE HOUSING FILLER PLUG)

42110D

GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

42110E

PLUG (FOR REAR AXLE HOUSING DRAIN)

42181

GASKET, REAR DIFFERENTIAL CARRIER

42306

HOSE SUB-ASSY, REAR AXLE BREATHER

42306A

UNION (FOR REAR AXLE BREATHER HOUSE)

42306B

HOSE (FOR REAR AXLE BREATHER)

42306C

CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306F

PLUG, BREATHER (FOR REAR AXLE)

9011908701

Крепеж

9017008204

Крепеж

9451200800

Крепеж

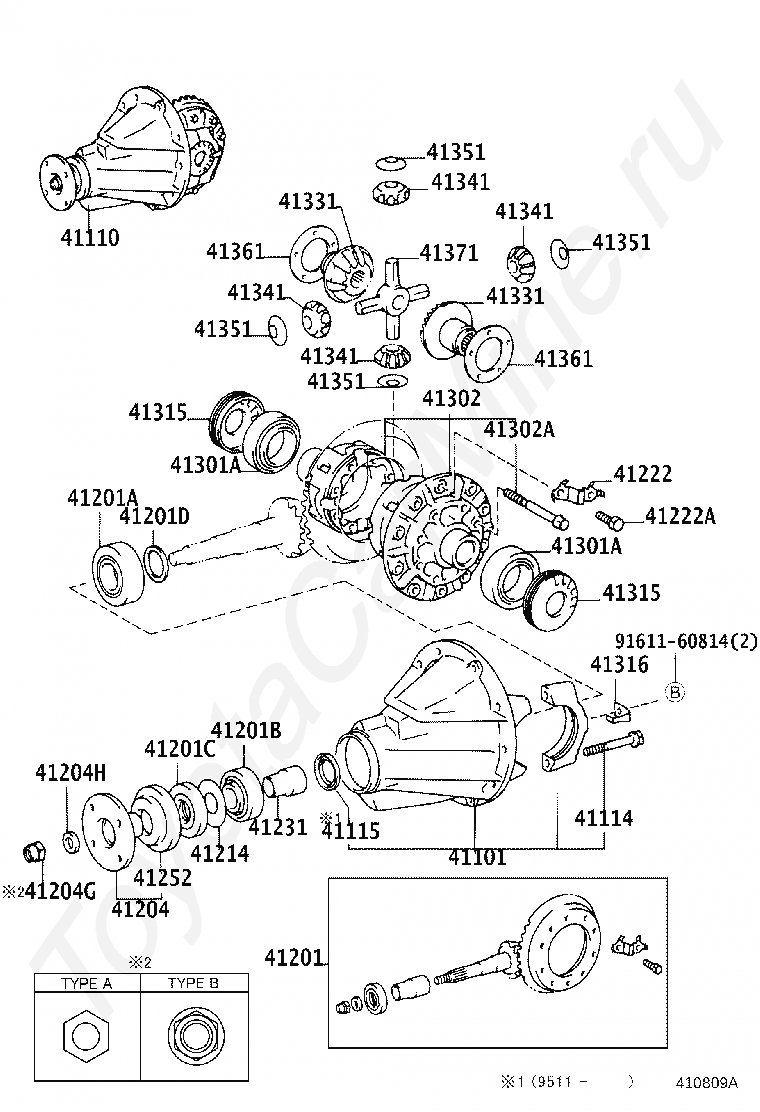

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41115

RING, DIFFERENTIAL OIL STORAGE

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204G

NUT (FOR DRIVE PINION COMPANION FLANGE REAR)

41204H

WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222

PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41371

SPIDER, REAR DIFFERENTIAL

9161160814

Крепеж

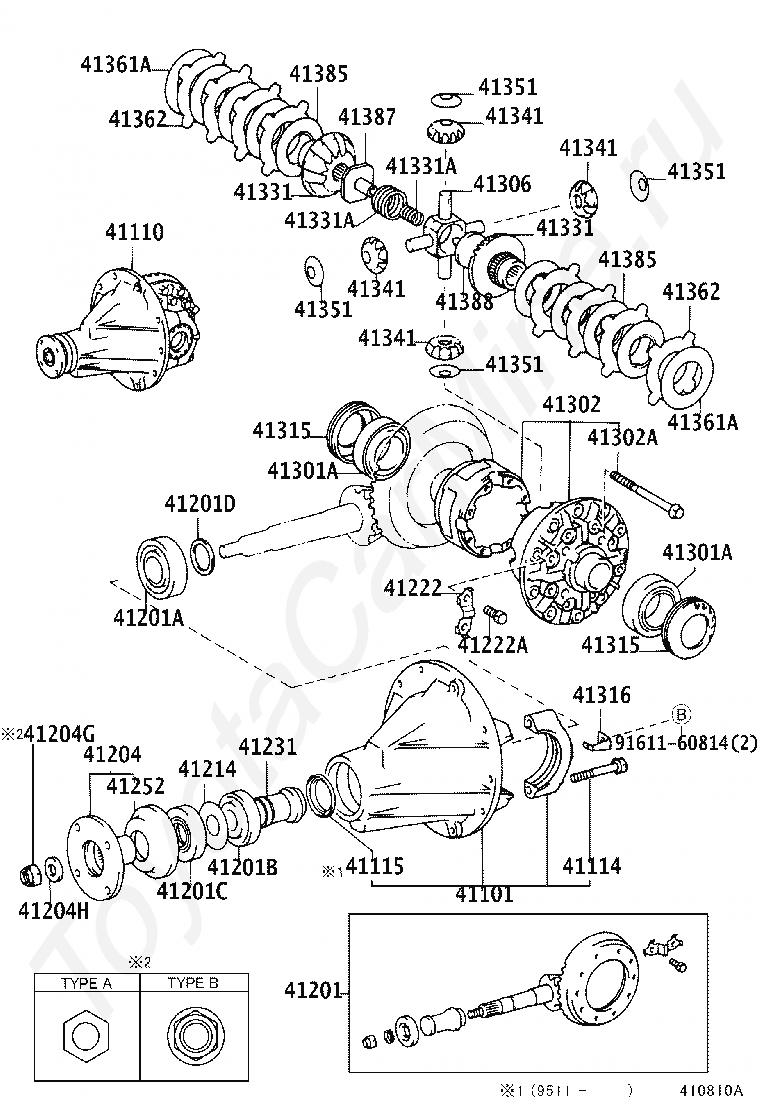

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41115

RING, DIFFERENTIAL OIL STORAGE

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204G

NUT (FOR DRIVE PINION COMPANION FLANGE REAR)

41204H

WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222

PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41306

SPIDER SUB-ASSY, FRONT DIFFERENTIAL

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41331A

SPRING, COMPRESSION

41341

PINION, REAR DIFFERENTIAL

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361A

SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41385

PLATE, CLUTCH

41387

RETAINER, SPRING, RH

41388

RETAINER, SPRING, LH

9161160814

Крепеж

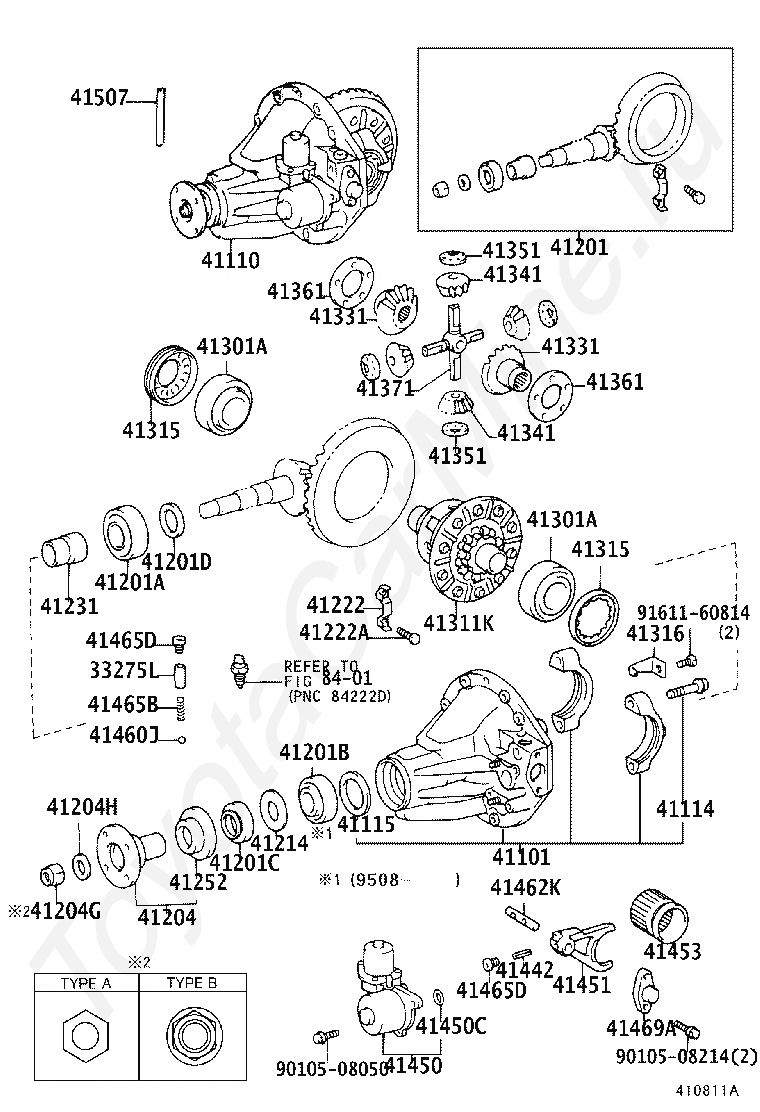

Код

Описание

33275L

SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41115

RING, DIFFERENTIAL OIL STORAGE

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204G

NUT (FOR DRIVE PINION COMPANION FLANGE REAR)

41204H

WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222

PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41311K

CASE, REAR DIFFERENTIAL

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41371

SPIDER, REAR DIFFERENTIAL

41442

BOLT OR PIN, SHIFT FORK LOCK

41450

ACTUATOR, DIFFERENTIAL LOCK SHIFT

41450C

RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)

41451

FORK, REAR DIFFERENTIAL LOCK SHIFT

41453

SLEEVE, REAR DIFFERENTIAL LOCK

41460J

BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER)

41462K

SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK

41465B

SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER)

41465D

PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER)

41469A

RETAINER, REAR DIFFERENTIAL LOCK SHAFT

41507

TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER

8401

переход к группе запчастей

9010508050

Крепеж

9010508214

Крепеж

9161160814

Крепеж

Задний мост TOYOTA LAND CRUISER S/T,H/T, 1992/08 - 1993/05, 2,4 литра, турбо-дизель, фургон, SX-5 SPECIFICATION, LJ78, автомат
