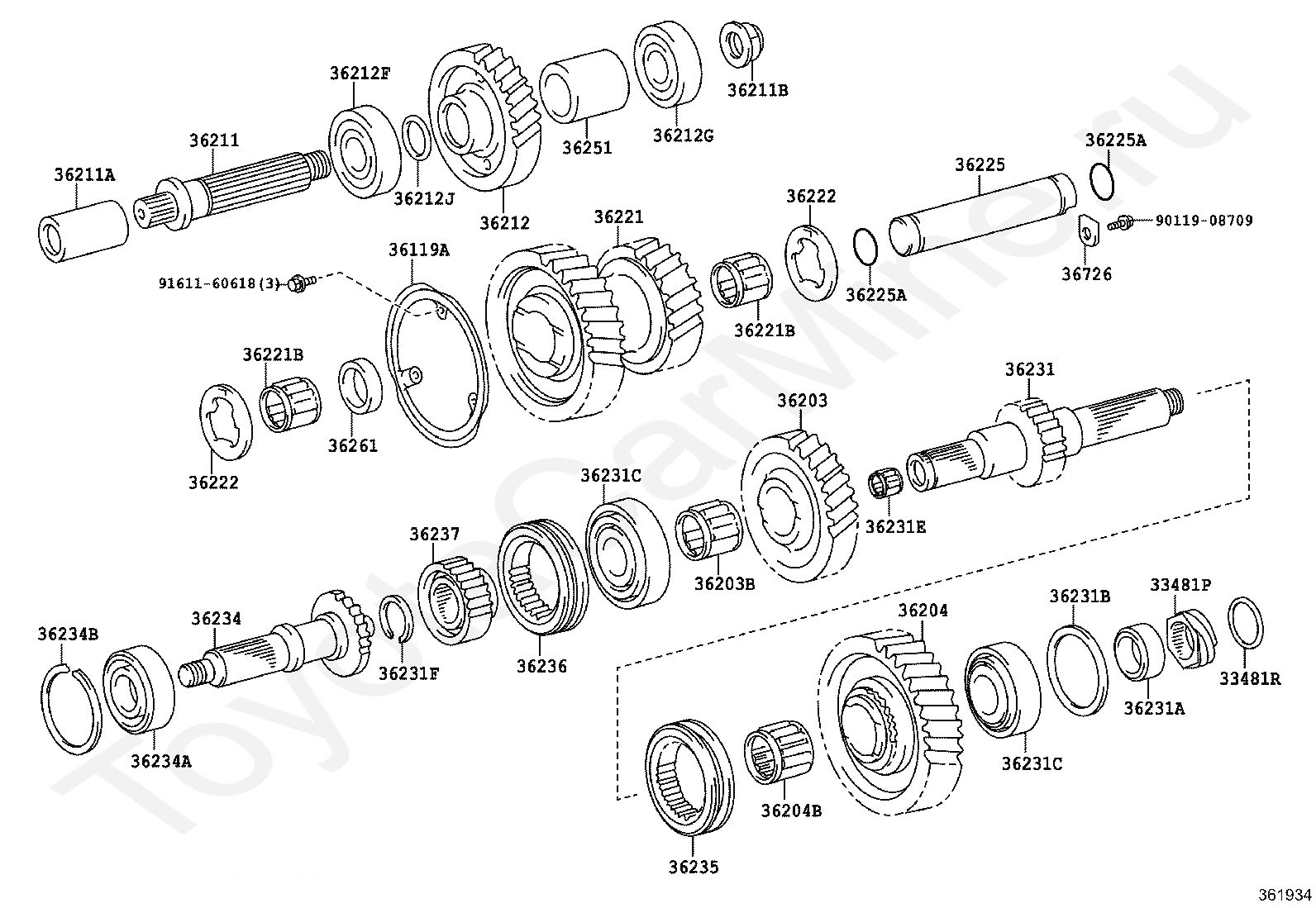

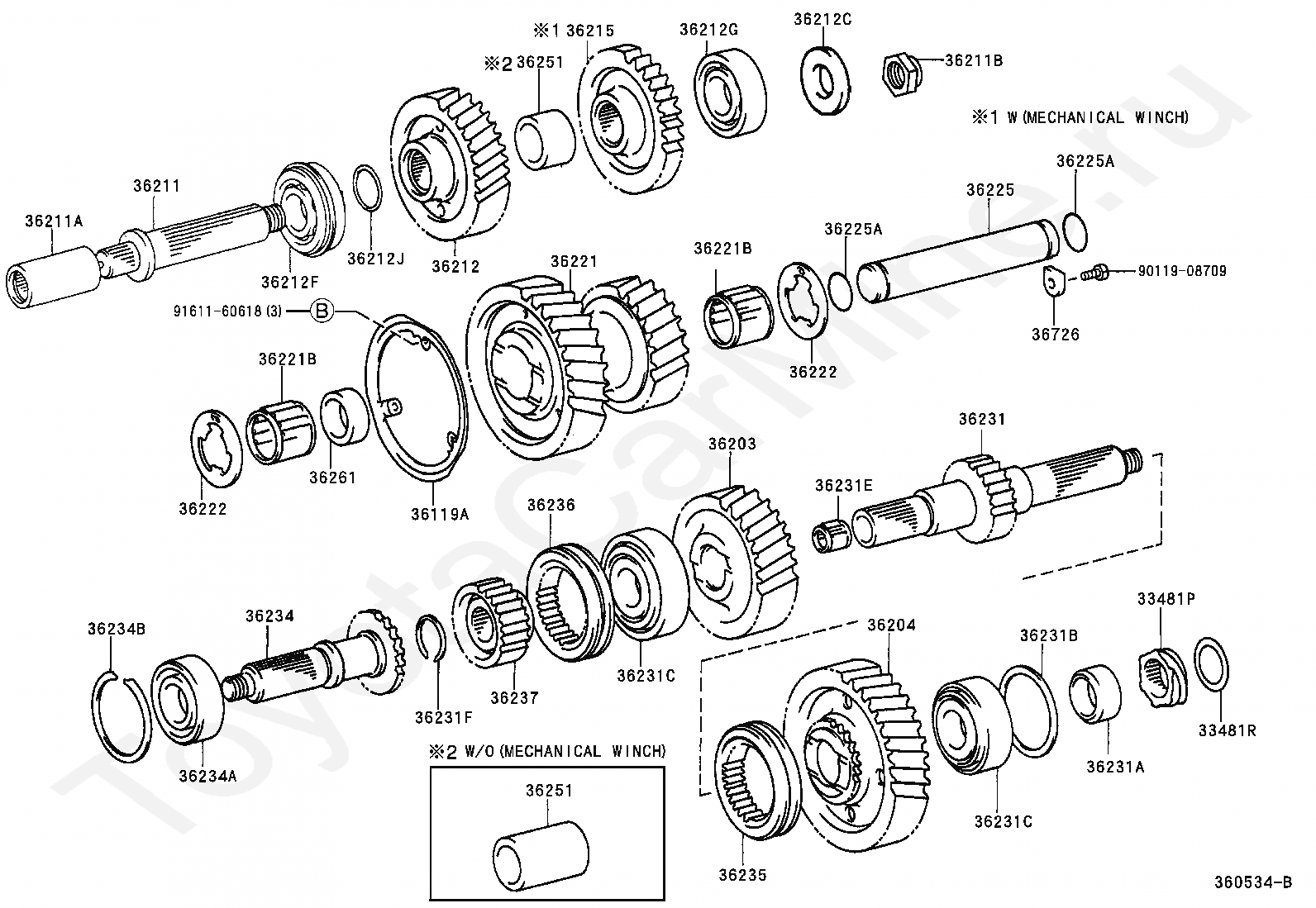

TRANSFER GEAR TOYOTA LAND CRUISER S/T,H/T, 1992/08 - 1993/05, 2,4 литра, турбо-дизель, фургон, SX-5 SPECIFICATION, LJ78, автомат

Каталог

Япония

Модель

LAND CRUISER S/T,H/T

Двигатель

2,4 литра, турбо-дизель

Кузов

фургон

Класс

SX-5 SPECIFICATION

Фрейм

LJ78

Трансмиссия

автомат

Опции

Q TYPE обычное пассажирское авто

Код

Описание

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

33481R

WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)

36119A

RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)

36203

GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT

36204

GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT

36211

SHAFT, TRANSFER INPUT

36211A

YOKE, TRANSMISSION SLEEVE

36211B

NUT (FOR TRANSFER INPUT SHAFT)

36212

GEAR, TRANSFER INPUT

36212C

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

36212F

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

36212G

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)

36212J

RING, O (FOR TRANSFER INPUT GEAR)

36215

GEAR, POWER TAKE-OFF DRIVE

36221

GEAR, TRANSFER IDLER

36221B

BEARING (FOR TRANSFER IDLER GEAR)

36222

WASHER, TRANSFER IDLER GEAR SIDE THRUST

36225

SHAFT, TRANSFER IDLER GEAR

36225A

RING, O (FOR TRANSFER IDLER SHAFT)

36231

SHAFT, TRANSFER OUTPUT, REAR

36231A

SPACER (FOR TRANSFER OUTPUT SHAFT)

36231B

SHIM (FOR TRANSFER OUTPUT SHAFT)

36231C

BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36234

SHAFT, TRANSFER OUTPUT, FRONT

36234A

BEARING (FOR TRANSFER OUTPUT FRONT SHAFT)

36234B

RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)

36235

SLEEVE, TRANSFER HIGH & LOW CLUTCH

36236

SLEEVE, FRONT DRIVE CLUTCH

36237

HUB, TRANSFER CLUTCH

36251

SPACER, TRANSFER INPUT SHAFT

36261

SPACER, TRANSFER IDLER GEAR

36726

PLATE, LOCK (FOR TRANSFER GEAR)

9011908709

Крепеж

9161160618

Крепеж

Код

Описание

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

33481R

WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)

36119A

RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)

36203

GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT

36203B

BEARING (FOR TRANSFER HIGH SPEED OUTPUT GEAR)

36204

GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT

36204B

BEARING (FOR TRANSFER LOW SPEED OUTPUT GEAR)

36211

SHAFT, TRANSFER INPUT

36211A

YOKE, TRANSMISSION SLEEVE

36211B

NUT (FOR TRANSFER INPUT SHAFT)

36212

GEAR, TRANSFER INPUT

36212F

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

36212G

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)

36212J

RING, O (FOR TRANSFER INPUT GEAR)

36221

GEAR, TRANSFER IDLER

36221B

BEARING (FOR TRANSFER IDLER GEAR)

36222

WASHER, TRANSFER IDLER GEAR SIDE THRUST

36225

SHAFT, TRANSFER IDLER GEAR

36225A

RING, O (FOR TRANSFER IDLER SHAFT)

36231

SHAFT, TRANSFER OUTPUT, REAR

36231A

SPACER (FOR TRANSFER OUTPUT SHAFT)

36231B

SHIM (FOR TRANSFER OUTPUT SHAFT)

36231C

BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36234

SHAFT, TRANSFER OUTPUT, FRONT

36234A

BEARING (FOR TRANSFER OUTPUT FRONT SHAFT)

36234B

RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)

36235

SLEEVE, TRANSFER HIGH & LOW CLUTCH

36236

SLEEVE, FRONT DRIVE CLUTCH

36237

HUB, TRANSFER CLUTCH

36251

SPACER, TRANSFER INPUT SHAFT

36261

SPACER, TRANSFER IDLER GEAR

36726

PLATE, LOCK (FOR TRANSFER GEAR)

9011908709

Крепеж

9161160618

Крепеж

TRANSFER GEAR TOYOTA LAND CRUISER S/T,H/T, 1992/08 - 1993/05, 2,4 литра, турбо-дизель, фургон, SX-5 SPECIFICATION, LJ78, автомат
