Задние амортизаторы TOYOTA LAND CRUISER S/T,H/T, 1994/01 - 1999/08, 4,2 литра, дизель, HARD TOP SERIES, LX SPECIFICATION, HZJ77, механика

Каталог

Япония

Модель

LAND CRUISER S/T,H/T

Двигатель

4,2 литра, дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

HZJ77

Трансмиссия

механика

Опции

EMISSION REGULATION легкий грузовик

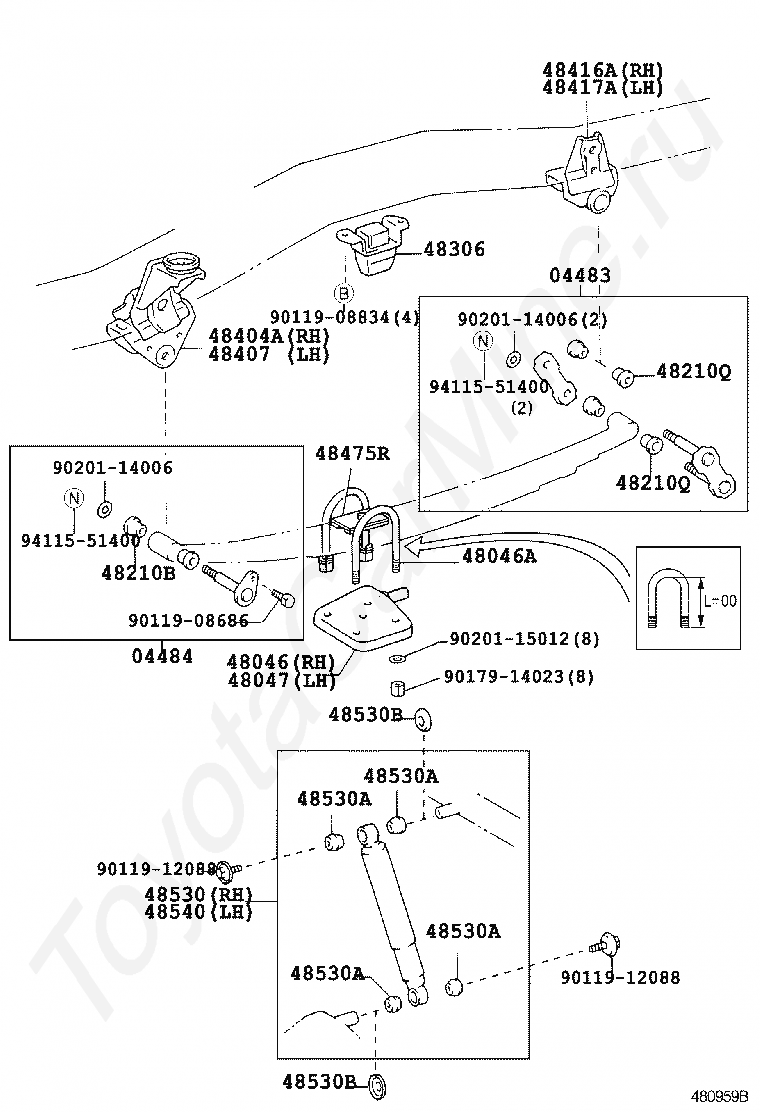

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210B

BUSH(FOR REAR SPRING PIN)

48210Q

BUSH(FOR REAR SPRING SHACKLE)

48306

BUMPER SUB-ASSY, REAR SPRING

48404A

BRACKET SUB-ASSY, SPRING, NO.3 RH

48407

BRACKET SUB-ASSY, SPRING, NO.3 LH

48416A

BRACKET, SPRING, NO.4 RH

48417A

BRACKET, SPRING, NO.4 LH

48475R

PLATE, DISTANCE(FOR REAR)

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48540

ABSORBER ASSY, SHOCK, REAR LH

9011908686

Крепеж

9011908834

Крепеж

9011912088

Крепеж

9017914023

Крепеж

9020114006

Крепеж

9020115012

Крепеж

9411551400

Крепеж

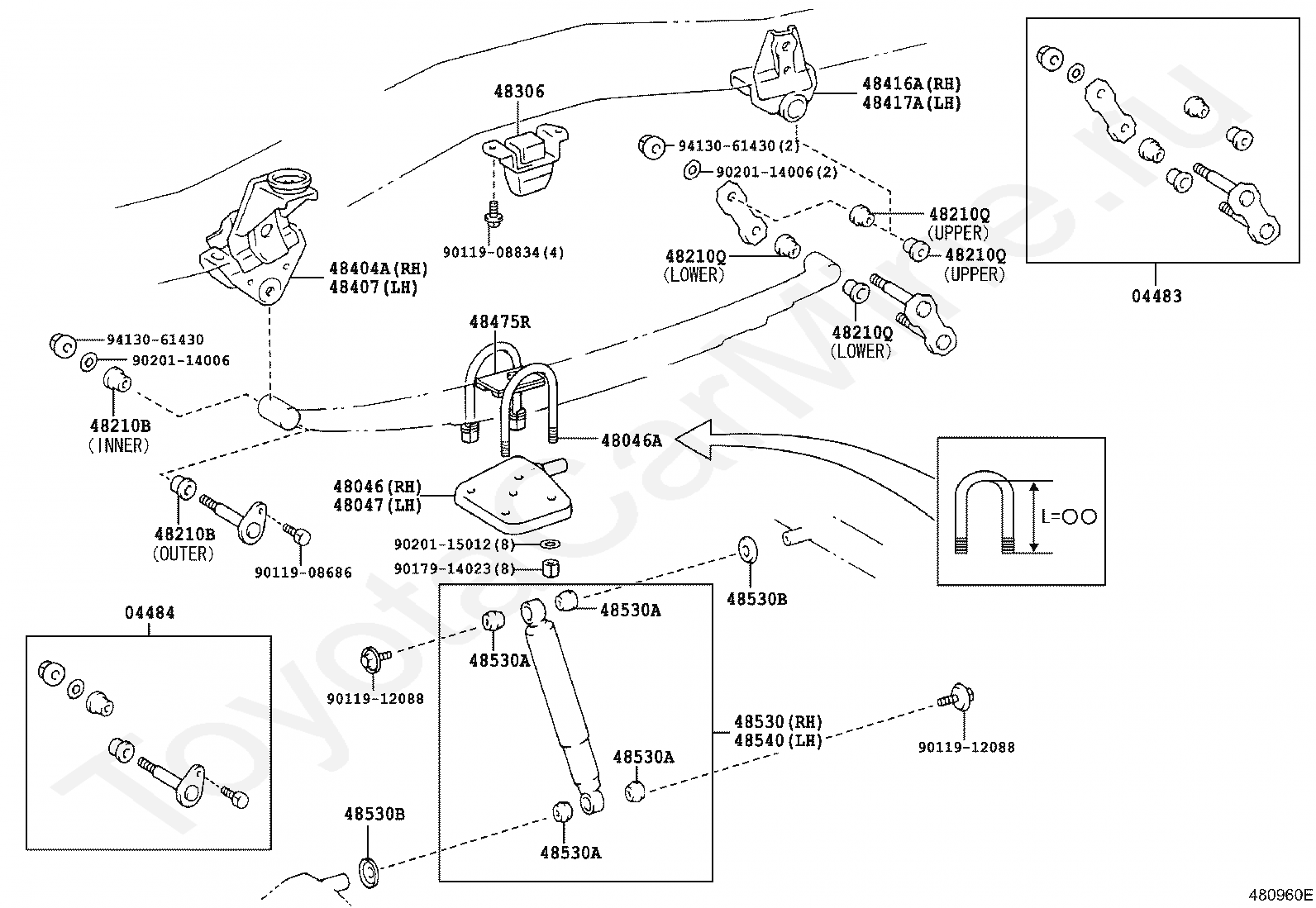

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210B

BUSH(FOR REAR SPRING PIN)

48210Q

BUSH(FOR REAR SPRING SHACKLE)

48306

BUMPER SUB-ASSY, REAR SPRING

48404A

BRACKET SUB-ASSY, SPRING, NO.3 RH

48407

BRACKET SUB-ASSY, SPRING, NO.3 LH

48416A

BRACKET, SPRING, NO.4 RH

48417A

BRACKET, SPRING, NO.4 LH

48475R

PLATE, DISTANCE(FOR REAR)

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48540

ABSORBER ASSY, SHOCK, REAR LH

9011908686

Крепеж

9011908834

Крепеж

9011912088

Крепеж

9017914023

Крепеж

9020114006

Крепеж

9020115012

Крепеж

9413061430

Крепеж

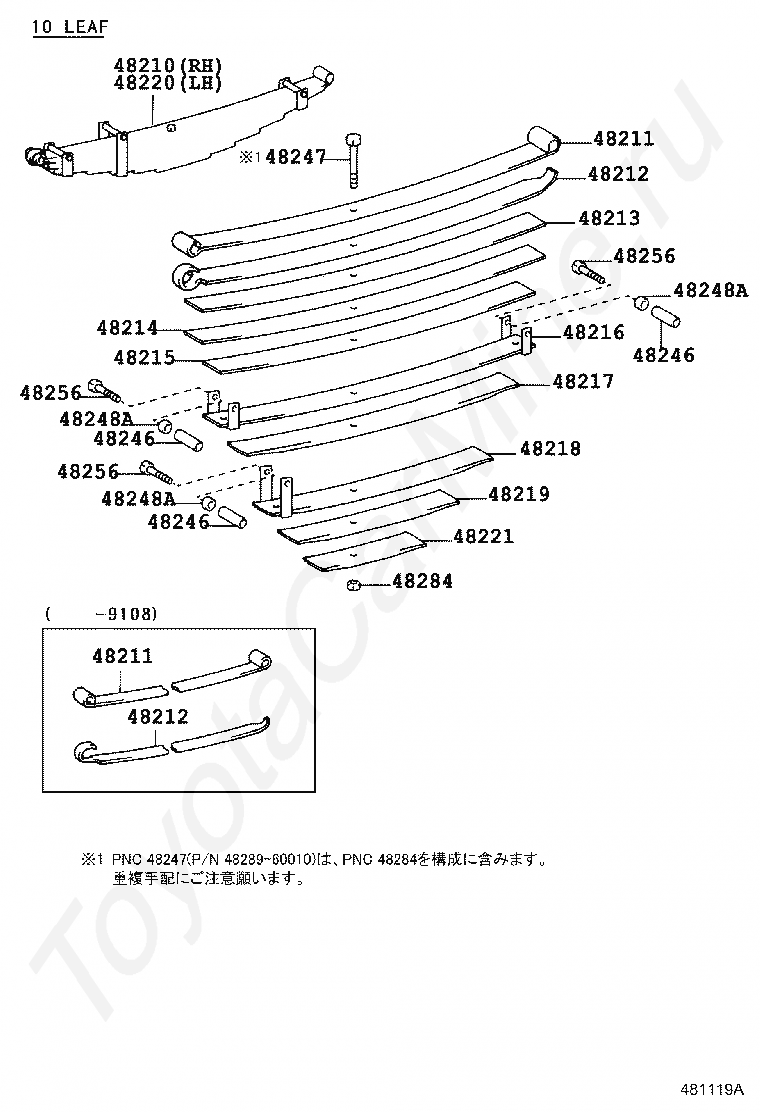

Код

Описание

48210

SPRING ASSY, REAR RH

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48217

LEAF, REAR SPRING, NO.7

48218

LEAF, REAR SPRING, NO.8

48219

LEAF, REAR SPRING, NO.9

48220

SPRING ASSY, REAR LH

48221

LEAF, REAR SPRING, NO.10

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48248A

WASHER(FOR REAR SPRING CLIP BOLT)

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48284

NUT, REAR SPRING CENTER BOLT

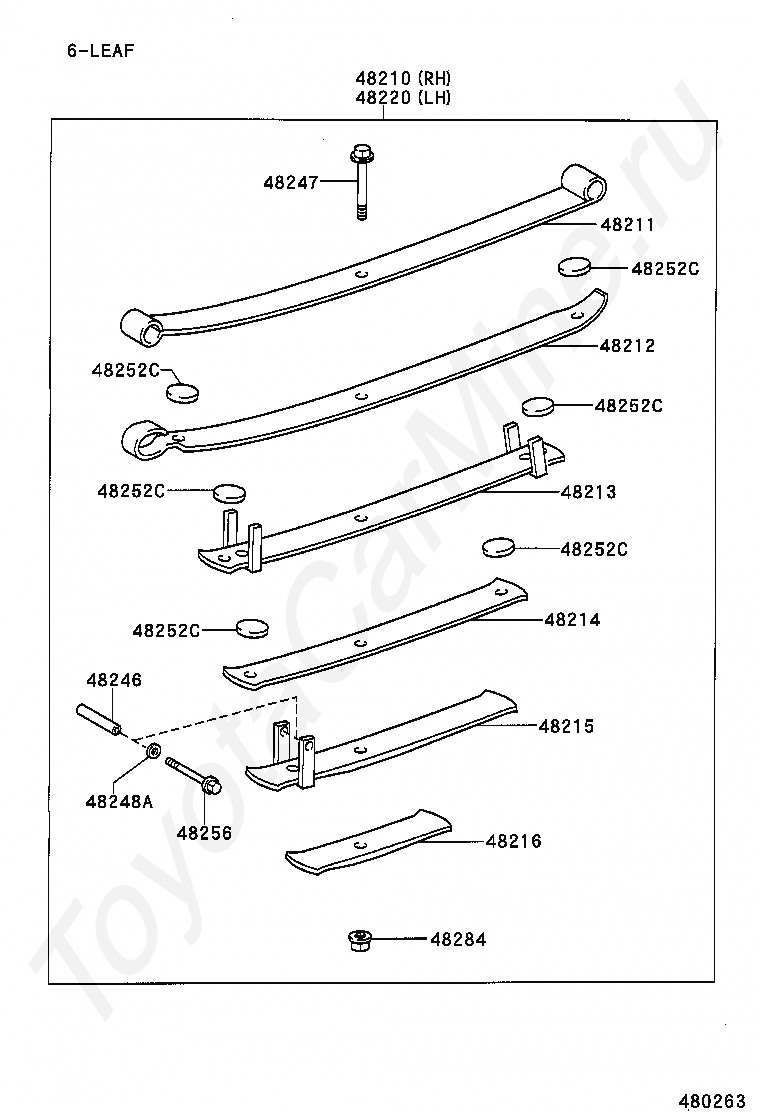

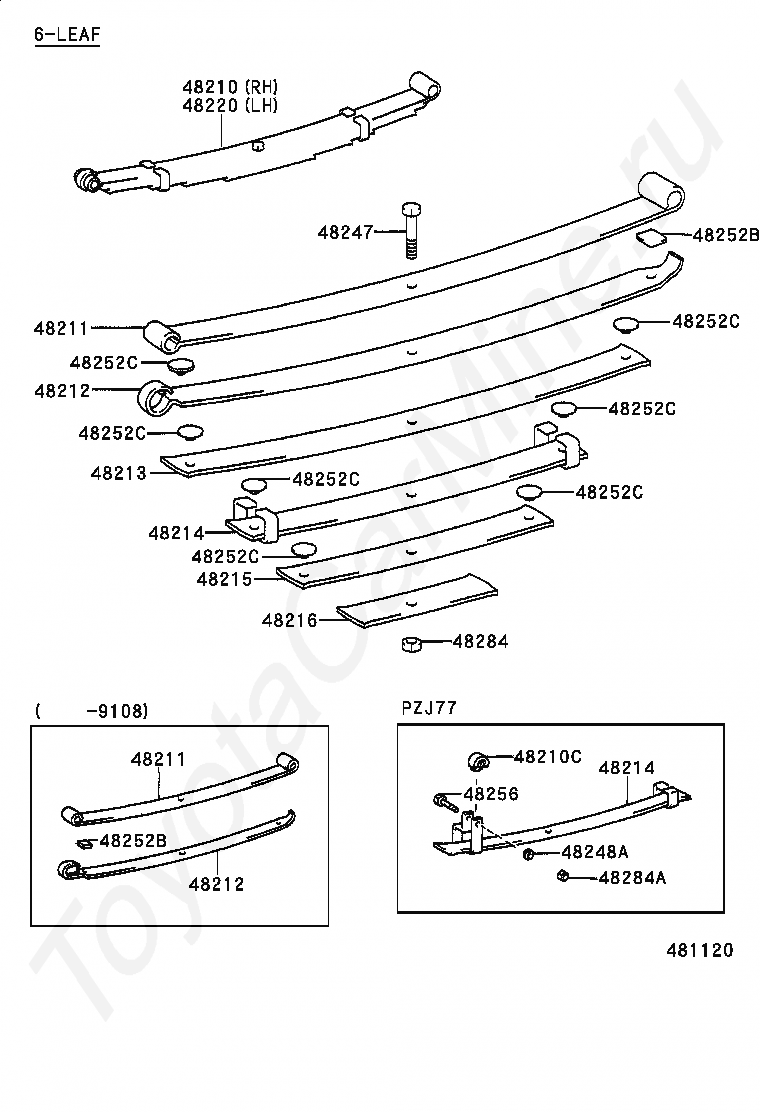

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48248A

WASHER(FOR REAR SPRING CLIP BOLT)

48252B

SILENCER, REAR SPRING, NO.1

48252C

SILENCER, REAR SPRING, NO.2

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48284

NUT, REAR SPRING CENTER BOLT

48284A

NUT, REAR SPRING CLIP

Код

Описание

48210

SPRING ASSY, REAR RH

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48248A

WASHER(FOR REAR SPRING CLIP BOLT)

48252C

SILENCER, REAR SPRING, NO.2

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48284

NUT, REAR SPRING CENTER BOLT
