Кресла TOYOTA LAND CRUISER VAN, 1984/11 - 1987/08, 4 литра, дизель, LAND CRUISER VAN, HJ60, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4 литра, дизель

Кузов

LAND CRUISER VAN

Фрейм

HJ60

Трансмиссия

автомат АКПП, 4 ступени

Опции

VAN (HARDTOP),WITH LIFT UP BACK DOOR AND SWING OUT GATE высокая крыша COMPLETED VEHICLE дизель

Код

Описание

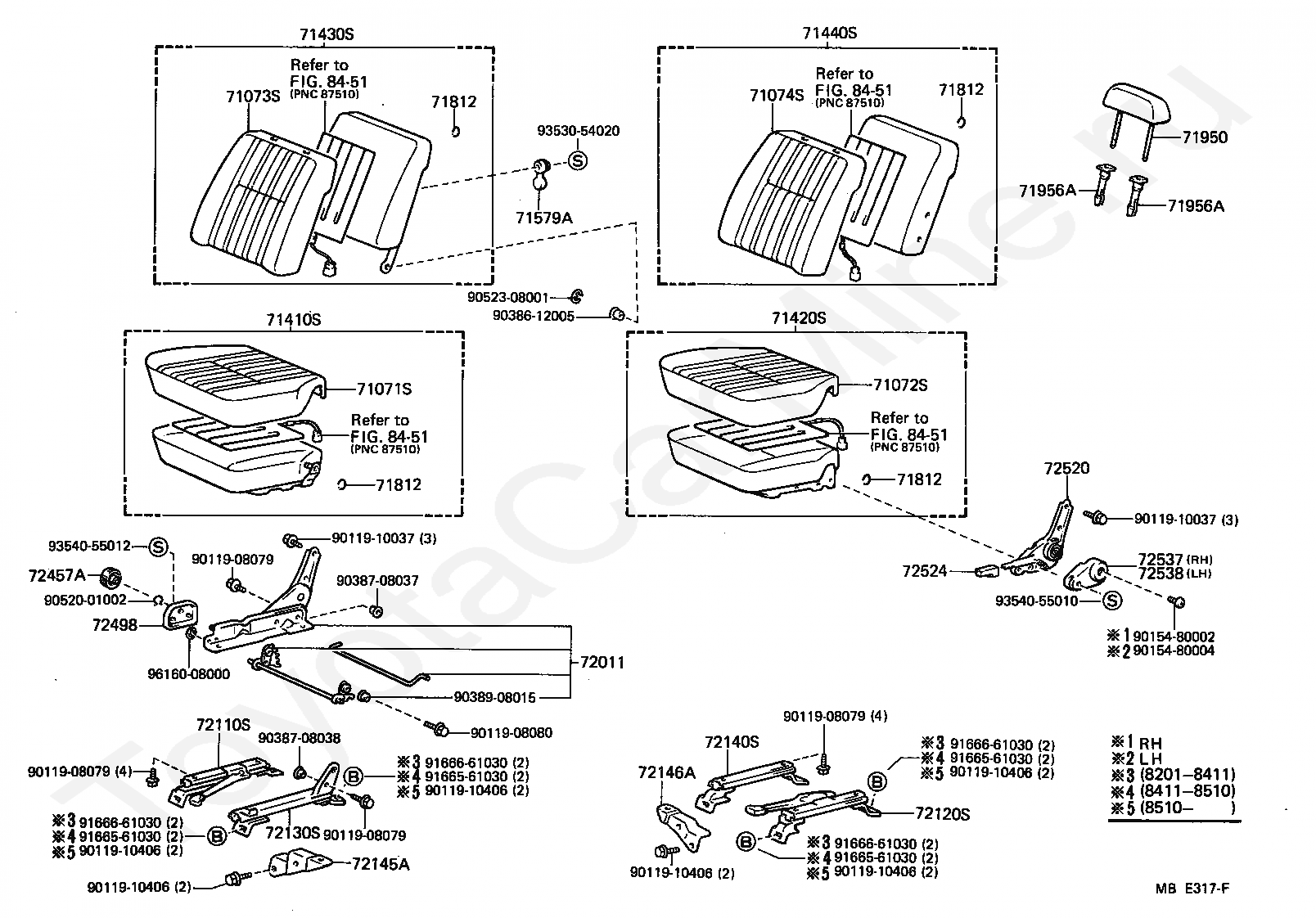

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71579A

WASHER, FRONT SEAT BACK BOARD SETTING

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72130S

TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT)

72140S

TRACK ASSY, LH SEAT, INNER (FOR SEPARATE SEAT)

72145A

BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH

72146A

BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH

72457A

KNOB, SEAT ADJUSTER

72498

COVER, VERTICAL ADJUSTER BRACKET

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

72537

COVER, RECLINING HINGE OUTER, RH

72538

COVER, RECLINING HINGE OUTER, LH

8451

переход к группе запчастей

9011908079

Крепеж

9011908080

Крепеж

9011910037

Крепеж

9011910406

Крепеж

9015480002

Крепеж

9015480004

Крепеж

9038612005

Крепеж

9038708037

Крепеж

9038708038

Крепеж

9038908015

Крепеж

9052001002

Крепеж

9052308001

Крепеж

9166561030

Крепеж

9166661030

Крепеж

9353054020

Крепеж

9354055010

Крепеж

9354055012

Крепеж

9616008000

Крепеж

Код

Описание

71394A

PLATE, REAR SEAT CUSHION BAND SUPPORT, LOWER

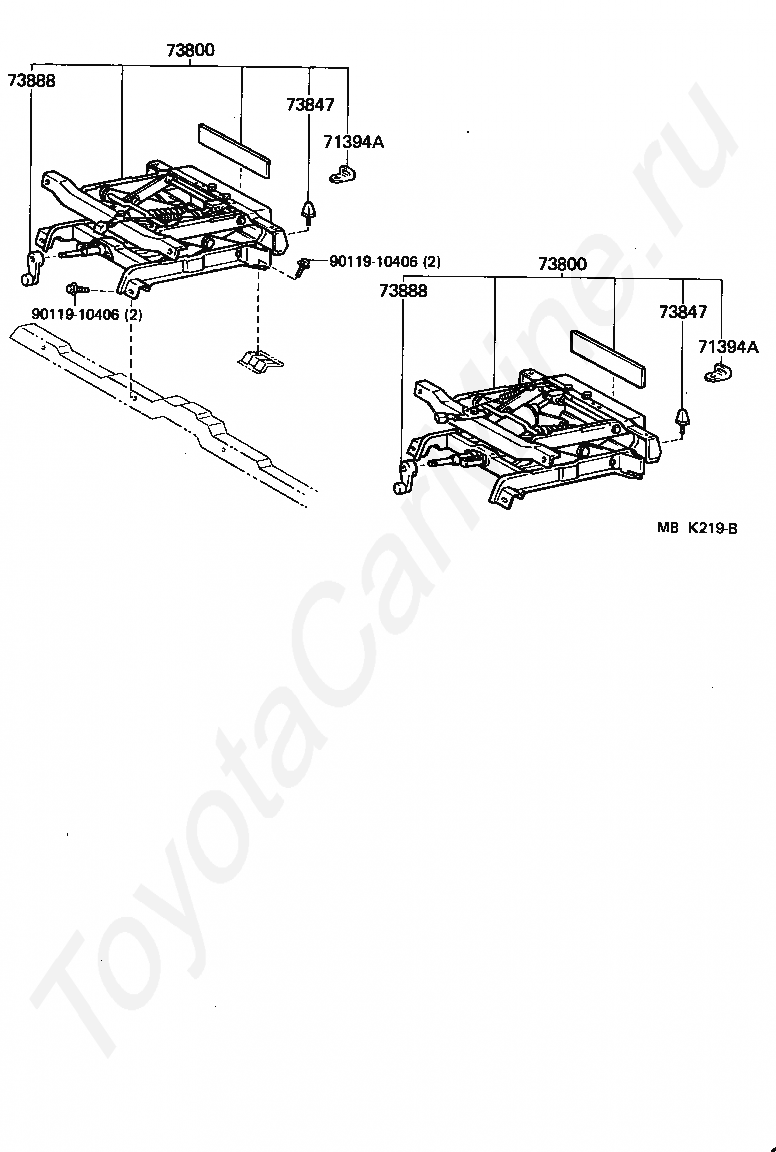

73800

SUSPENSION ASSY, SEAT, RH

73847

CUSHION, SEAT SUSPENSION STOPPER

73888

HANDLE, SEAT SUSPENSION CONTROL

9011910406

Крепеж

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71354A

PLATE, REAR SEAT BACK SET

71370

BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER

71390

BRACKET SUB-ASSY, REAR SEAT BACK HOLDER

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71739

CUSHION, SEAT SUPPORT

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71825B

MOULDING, REAR SEAT CUSHION, RH

71826B

MOULDING, REAR SEAT CUSHION, LH

71827B

MOULDING, REAR SEAT CUSHION, FRONT

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71835C

MOULDING, REAR SEAT BACK, RH

71836C

MOULDING, REAR SEAT BACK, LH

71837C

MOULDING, REAR SEAT BACK, UPPER

71887B

MAT, REAR SEAT CUSHION

71956

SUPPORT, HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72610

LOCK ASSY, REAR SEAT CUSHION

72651

ROD, REAR SEAT BACK LOCK

72670A

STRIKER ASSY, REAR SEAT BACK LOCK, RH

72680A

STRIKER ASSY, REAR SEAT BACK LOCK, LH

72694

COVER, REAR SEAT CUSHION LOCK

8271112200

Крепеж

9015980016

Крепеж

9038609006

Крепеж

9038616005

Крепеж

9165140614

Крепеж

9165160816

Крепеж

9321018020

Крепеж

9331216016

Крепеж

9331216025

Крепеж

9331218020

Крепеж

9331516020

Крепеж

9353024014

Крепеж

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71354A

PLATE, REAR SEAT BACK SET

71370

BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER

71390

BRACKET SUB-ASSY, REAR SEAT BACK HOLDER

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71739

CUSHION, SEAT SUPPORT

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71825B

MOULDING, REAR SEAT CUSHION, RH

71826B

MOULDING, REAR SEAT CUSHION, LH

71827B

MOULDING, REAR SEAT CUSHION, FRONT

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71835C

MOULDING, REAR SEAT BACK, RH

71836C

MOULDING, REAR SEAT BACK, LH

71837C

MOULDING, REAR SEAT BACK, UPPER

71887B

MAT, REAR SEAT CUSHION

71956

SUPPORT, HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72610

LOCK ASSY, REAR SEAT CUSHION

72651

ROD, REAR SEAT BACK LOCK

72670A

STRIKER ASSY, REAR SEAT BACK LOCK, RH

72680A

STRIKER ASSY, REAR SEAT BACK LOCK, LH

72694

COVER, REAR SEAT CUSHION LOCK

8271112200

Крепеж

9015980016

Крепеж

9038609006

Крепеж

9038616005

Крепеж

904670900803

Крепеж

904670900806

Крепеж

9165140614

Крепеж

9165160816

Крепеж

9321018020

Крепеж

9331216016

Крепеж

9331216025

Крепеж

9331218020

Крепеж

9331516020

Крепеж

9353024014

Крепеж

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71354A

PLATE, REAR SEAT BACK SET

71370

BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER

71390

BRACKET SUB-ASSY, REAR SEAT BACK HOLDER

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71739

CUSHION, SEAT SUPPORT

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71825B

MOULDING, REAR SEAT CUSHION, RH

71826B

MOULDING, REAR SEAT CUSHION, LH

71827B

MOULDING, REAR SEAT CUSHION, FRONT

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71835C

MOULDING, REAR SEAT BACK, RH

71836C

MOULDING, REAR SEAT BACK, LH

71837C

MOULDING, REAR SEAT BACK, UPPER

71887B

MAT, REAR SEAT CUSHION

71956

SUPPORT, HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72610

LOCK ASSY, REAR SEAT CUSHION

72645

CUSHION, REAR SEAT BACK LOCK

72651

ROD, REAR SEAT BACK LOCK

72670A

STRIKER ASSY, REAR SEAT BACK LOCK, RH

72680A

STRIKER ASSY, REAR SEAT BACK LOCK, LH

72694

COVER, REAR SEAT CUSHION LOCK

8271112200

Крепеж

9015980016

Крепеж

9038609006

Крепеж

9038616005

Крепеж

904670900803

Крепеж

904670900806

Крепеж

9165140614

Крепеж

9165160816

Крепеж

9321018020

Крепеж

9331216016

Крепеж

9331216025

Крепеж

9331218020

Крепеж

9331516020

Крепеж

9353024014

Крепеж

Код

Описание

6777112010

Крепеж

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71305C

STAY SUB-ASSY, REAR SEAT

71349B

COVER, REAR SEAT BACK STAY, RH

71379B

COVER, REAR SEAT BACK HINGE, LH

71393

BAND, REAR SEAT CUSHION

71394A

PLATE, REAR SEAT CUSHION BAND SUPPORT, LOWER

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

71803C

BOARD SUB-ASSY, REAR RH SEAT BACK(FOR SEPARATE SEAT)

71804C

BOARD SUB-ASSY, REAR LH SEAT BACK(FOR SEPARATE SEAT)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71877

ORNAMENT, REAR SEAT CUSHION PANEL

71956

SUPPORT, HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72610

LOCK ASSY, REAR SEAT CUSHION

72660A

SUPPORT ASSY, REAR SEAT CUSHION

72681

HOOK, REAR SEAT BACK LOCK, LOWER

72694

COVER, REAR SEAT CUSHION LOCK

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

9011908086

Крепеж

9011910136

Крепеж

9011911006

Крепеж

9015950047

Крепеж

9015950131

Крепеж

9015980025

Крепеж

9038710058

Крепеж

9165160820

Крепеж

9321955012

Крепеж

9331216020

Крепеж

9331516020

Крепеж

Кресла TOYOTA LAND CRUISER VAN, 1984/11 - 1987/08, 4 литра, дизель, LAND CRUISER VAN, HJ60, автомат, АКПП, 4 ступени
