VALVE BODY & OIL STRAINER (ATM) TOYOTA LAND CRUISER VAN, 1990/01 - 1995/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, автомат

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

автомат

Опции

LIFT UP BACK DOOR TURBO DIESEL 2 VALVE

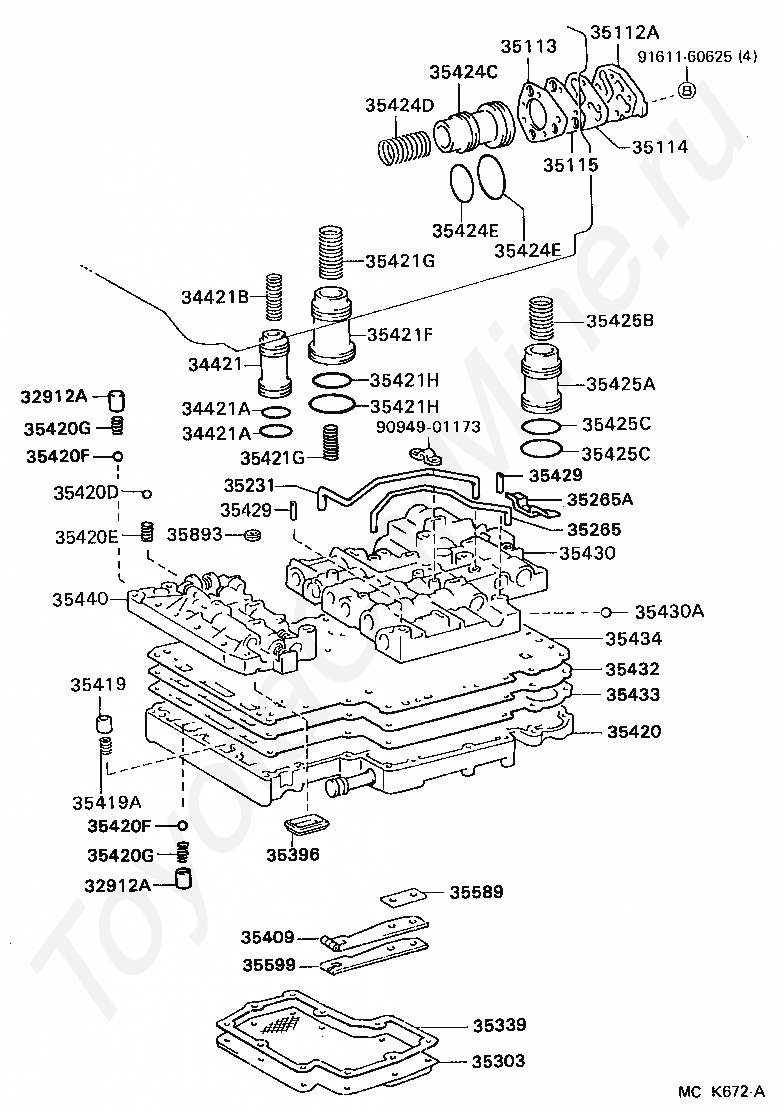

Код

Описание

32912A

CAGE, CHECK VALVE(FOR VALVE BODY)

34421

PISTON, OVERDRIVE BRAKE ACCUMULATOR

34421A

RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

34421B

SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

35112A

COVER, FRONT CLUTCH ACCUMULATOR

35113

GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

35114

GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

35115

PLATE, FRONT CLUTCH ACCUMULATOR

35231

TUBE, LOCK UP SIGNAL VALVE APPLY

35265

TUBE, CLUTCH PRESSURE APPLY

35265A

BRACKET (FOR CLUTCH PRESSURE APPLY TUBE)

35303

STRAINER SUB-ASSY, OIL

35339

GASKET, OIL STRAINER

35396

STRAINER, THROTTLE OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420

BODY ASSY, LOWER VALVE

35420D

BALL (FOR LOWER VALVE BODY)

35420E

SPRING (FOR LOWER VALVE BODY)

35420F

BALL, CHECK, NO.1

35420G

SPRING, BARREL SHAPED

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35429

TUBE, LINE PRESSURE

35430

BODY ASSY, REAR UPPER VALVE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35440

BODY ASSY, FRONT UPPER VALVE

35589

SPACER, MANUAL DETENT SPRING

35599

COVER, MANUAL DETENT SPRING

35893

GASKET, CENTER SUPPORT APPLY

9094901173

Крепеж

9161160625

Крепеж

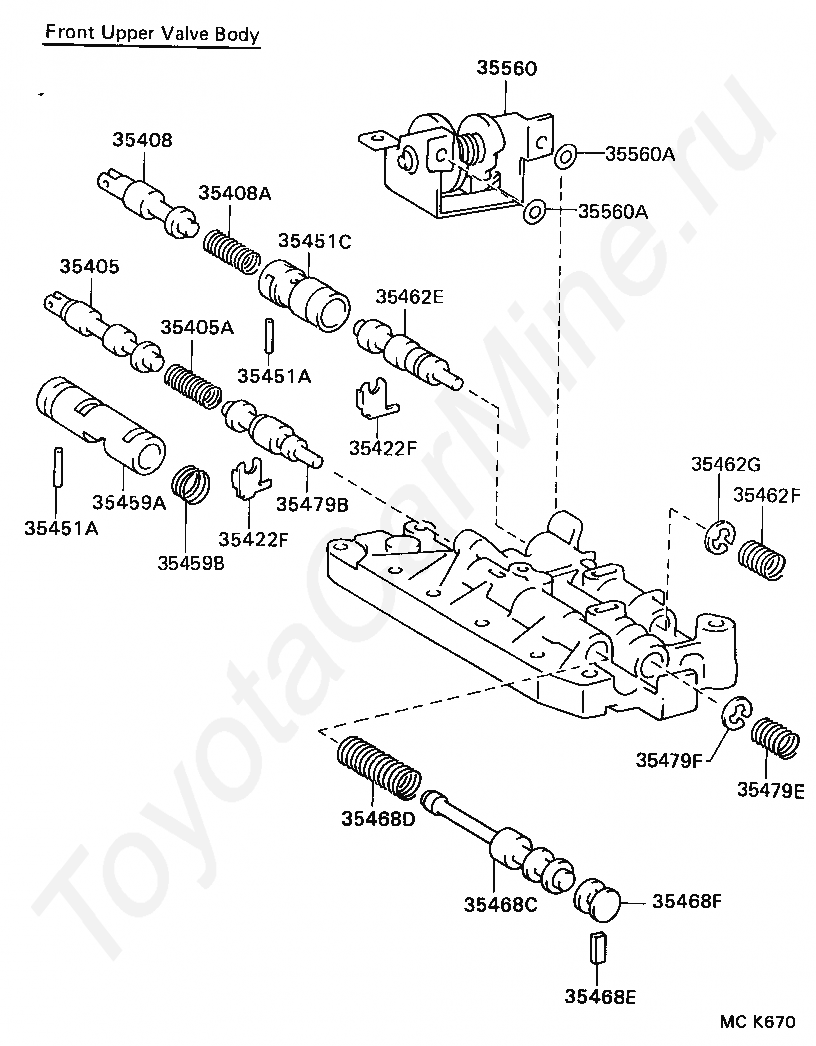

Код

Описание

35405

PLUG SUB-ASSY, SECONDARY DOWN SHIFT

35405A

SPRING, COMPRESSION(FOR SECONDARY DOWN SHIFT PLUG)

35408

PLUG SUB-ASSY, PRIMARY DOWN SHIFT

35408A

SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG)

35422F

STOPPER, VALVE VIBRATING

35451A

PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)

35451C

SLEEVE, THROTTLE VALVE, NO.1

35459A

SLEEVE, THROTTLE VALVE, NO.2

35459B

SPRING (FOR THROTTLE VALVE SLEEVE)

35462E

VALVE, PRIMARY THROTTLE

35462F

SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE)

35462G

RING, E (FOR PRIMARY THROTTLE VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35479B

VALVE, SECONDARY THROTTLE

35479E

SPRING, COMPRESSION (FOR SECONDARY THROTTLE VALVE)

35479F

RING, E (FOR SECONDARY THROTTLE VALVE)

35560

CAM ASSY, THROTTLE VALVE

35560A

SHIM (FOR THROTTLE VALVE CAM)

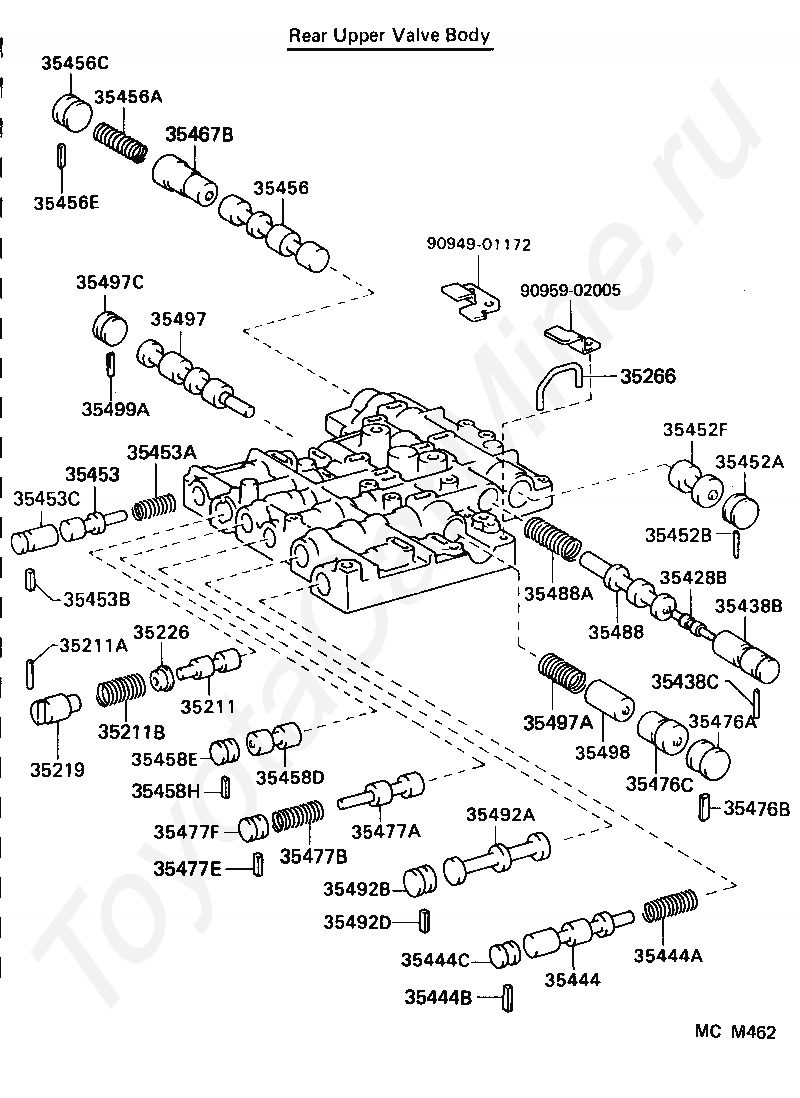

Код

Описание

35211

VALVE, LOCK UP SIGNAL

35211A

PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35219

PLUG, LOCK UP SIGNAL VALVE

35226

SEAT, LOCK UP SIGNAL VALVE SPRING

35266

CLAMP, CLUTCH PRESSURE APPLY TUBE

35428B

PLUG, 2-3 SHIFT TIMING VALVE

35438B

SLEEVE, 2-3 SHIFT TIMING VALVE PLUG

35438C

PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)

35444

VALVE, INTERMEDIATE MODULATOR

35444A

SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

35444B

KEY, STRAIGHT (FOR INTERMEDIATE MODULATOR VALVE)

35444C

PLUG (FOR INTERMEDIATE MODULATOR VALVE)

35452A

PLUG (FOR 2-3 SHIFT VALVE PLUG)

35452B

PIN, STRAIGHT (FOR 2-3 SHIFT VALVE PLUG)

35452F

PLUG, 2-3 SHIFT VALVE

35453

VALVE, DETENT REGULATOR

35453A

SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

35453B

KEY, STRAIGHT (FOR DETENT REGULATOR VALVE)

35453C

PLUG (FOR DETENT REGULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456E

PIN, STRAIGHT (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35467B

VALVE, INTERMEDIATE COAST SHIFT

35476A

PLUG, STRAIGHT (FOR 3RD COAST SHIFT)

35476B

PIN, LOCATING (FOR 3RD COAST SHIFT)

35476C

VALVE, 3RD COAST

35477A

VALVE, OVERDRIVE CLUTCH EXHAUST

35477B

SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477E

KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477F

PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35488

VALVE, 2-3 SHIFT TIMING

35488A

SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE)

35492A

VALVE, MANUAL DOWN TIMING

35492B

PLUG (FOR MANUAL DOWN TIMING VALVE)

35492D

KEY, STRAIGHT (FOR MANUAL DOWN TIMING VALVE)

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35498

VALVE, 3-4 COAST SHIFT

35499A

PIN, STRAIGHT (FOR 3-4 SHIFT VALVE)

9094901172

Крепеж

9095902005

Крепеж

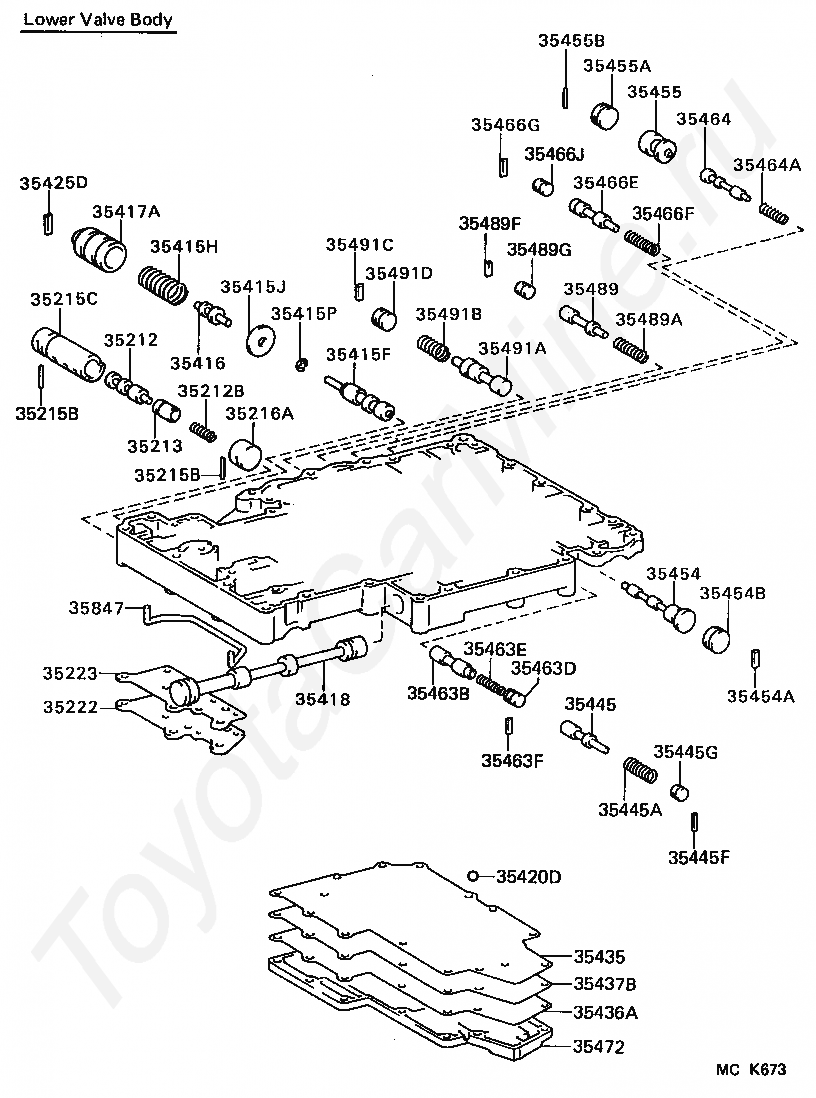

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213

VALVE, LOCK UP RELAY CONTROL

35215B

PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35216A

SLEEVE, LOCK UP RELAY VALVE, NO.2

35222

PLATE, LOCK UP RELAY VALVE BODY

35223

GASKET, LOCK UP RELAY VALVE BODY

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35415P

RING, E (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35418

VALVE, MANUAL

35420D

BALL (FOR LOWER VALVE BODY)

35425D

SEAT, PRIMARY REGULATOR VALVE SLEEVE

35435

GASKET, VALVE BODY PLATE, NO.3

35436A

GASKET, VALVE BODY PLATE, NO.4

35437B

PLATE, VALVE BODY COVER

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35445F

KEY, STRAIGHT (FOR LOW MODULATOR VALVE)

35445G

PLUG (FOR LOW MODULATOR VALVE)

35454

VALVE, LOW COAST SHIFT

35454A

KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)

35454B

PLUG (FOR LOW COAST SHIFT VALVE)

35455

PLUG, 1-2 SHIFT VALVE LOW

35455A

PLUG (FOR 1-2 SHIFT VALVE LOW PLUG)

35455B

PIN, STRAIGHT (FOR 1-2 SHIFT VALVE LOW PLUG)

35463B

VALVE, 1-2 RELAY

35463D

PLUG (FOR 1-2 RELAY VALVE)

35463E

SPRING, COMPRESSION (FOR 1-2 RELAY VALVE)

35463F

PIN, STRAIGHT (FOR 1-2 SHIFT VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35466E

VALVE, 2ND LOCK

35466F

SPRING, COMPRESSION (FOR 2ND LOCK VALVE)

35466G

KEY, STRAIGHT (FOR 2ND LOCK VALVE)

35466J

PLUG (FOR 2ND LOCK VALVE)

35472

COVER, VALVE BODY, NO.2

35489

VALVE, 3-2 KICK DOWN ORIFICE CONTROL

35489A

SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489F

KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489G

PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491D

PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)

35847

TUBE, TRANSMISSION LUBE APPLY

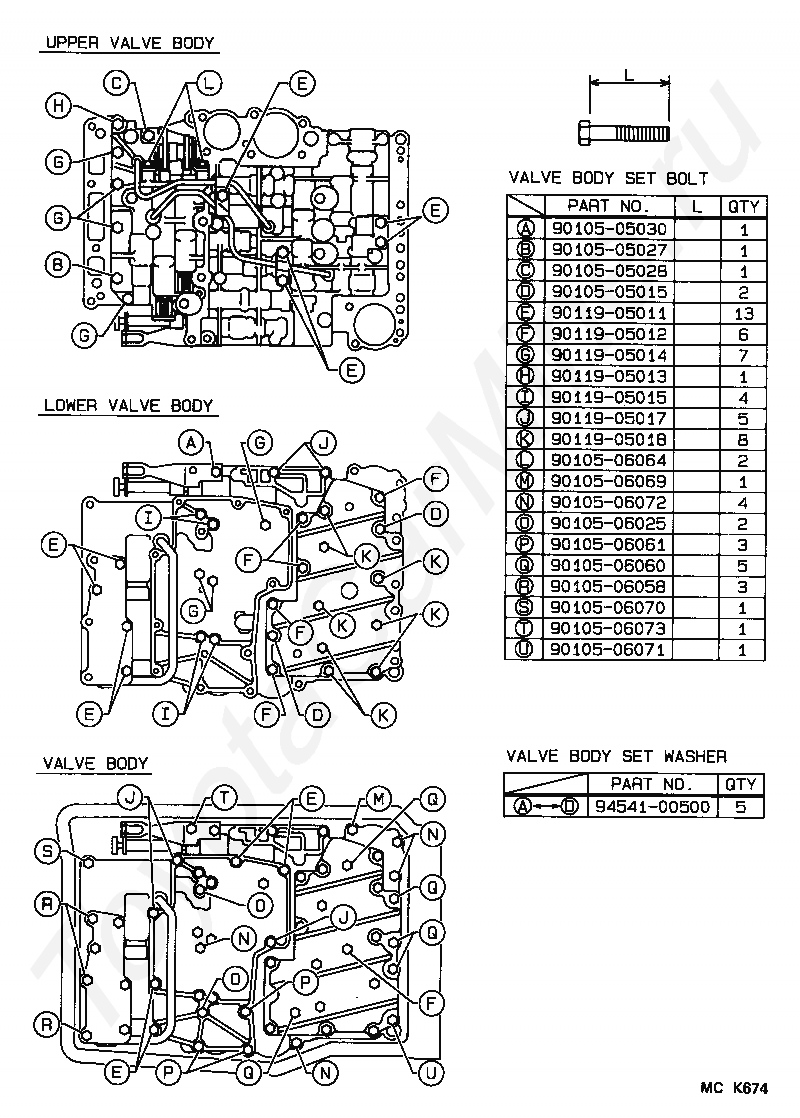

Код

Описание

9010505015

Крепеж

9010505027

Крепеж

9010505028

Крепеж

9010505030

Крепеж

9010506025

Крепеж

9010506058

Крепеж

9010506060

Крепеж

9010506061

Крепеж

9010506064

Крепеж

9010506069

Крепеж

9010506070

Крепеж

9010506071

Крепеж

9010506072

Крепеж

9010506073

Крепеж

9011905011

Крепеж

9011905012

Крепеж

9011905013

Крепеж

9011905014

Крепеж

9011905015

Крепеж

9011905017

Крепеж

9011905018

Крепеж

9454100500

Крепеж

Код

Описание

32912A

CAGE, CHECK VALVE(FOR VALVE BODY)

34421

PISTON, OVERDRIVE BRAKE ACCUMULATOR

34421A

RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

34421B

SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

35112A

COVER, FRONT CLUTCH ACCUMULATOR

35113

GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

35114

GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

35115

PLATE, FRONT CLUTCH ACCUMULATOR

35330

STRAINER ASSY, VALVE BODY OIL

35396

STRAINER, THROTTLE OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420

BODY ASSY, LOWER VALVE

35420F

BALL, CHECK, NO.1

35420G

SPRING, BARREL SHAPED

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35429

TUBE, LINE PRESSURE

35429A

TUBE, LINE PRESSURE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35448

TUBE, 2-3 SHIFT VALVE APPLY

35450D

BODY ASSY, UPPER VALVE

35599

COVER, MANUAL DETENT SPRING

35844A

TUBE, ACCUMULATOR BACK PRESSURE, NO.1

35891

TUBE, OVERDRIVE DIRECT CLUTCH

35893

GASKET, CENTER SUPPORT APPLY

9094902065

Крепеж

9094902066

Крепеж

9094902096

Крепеж

9094902097

Крепеж

9161160625

Крепеж

Код

Описание

35211

VALVE, LOCK UP SIGNAL

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35211C

KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35211E

PLUG (FOR LOCK UP SIGNAL VALVE)

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35252

PLUNGER, REVERSE CONTROL VALVE

35253

SLEEVE, REVERSE CONTROL VALVE PLUNGER

35408

PLUG SUB-ASSY, PRIMARY DOWN SHIFT

35408A

SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG)

35419D

VALVE, CHECK, NO.2

35422F

STOPPER, VALVE VIBRATING

35441

VALVE, LOW COAST SHIFT CONTROL

35441A

SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE)

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35445F

KEY, STRAIGHT (FOR LOW MODULATOR VALVE)

35445G

PLUG (FOR LOW MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35450E

BALL (FOR UPPER VALVE BODY)

35451A

PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)

35451C

SLEEVE, THROTTLE VALVE, NO.1

35454A

KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)

35454B

PLUG (FOR LOW COAST SHIFT VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456E

PIN, STRAIGHT (FOR 2-3 SHIFT VALVE)

35456G

PLUG (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35462E

VALVE, PRIMARY THROTTLE

35462F

SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE)

35462G

RING, E (FOR PRIMARY THROTTLE VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35489

VALVE, 3-2 KICK DOWN ORIFICE CONTROL

35489A

SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489D

KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35489E

PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491D

PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493

SEAT, SHIFT VALVE SPRING

35521

CAM, THROTTLE VALVE

35522

PIN, THROTTLE VALVE CAM

9095903017

Крепеж

9112170628

Крепеж

9454200600

Крепеж

9461210601

Крепеж

Код

Описание

35214

VALVE, LOCK UP CONTROL

35214A

KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE)

35214B

PLUG (FOR LOCK UP CONTROL VALVE)

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35415F

VALVE, PRIMARY REGULATOR

35415G

KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE)

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35415P

RING, E (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35418

VALVE, MANUAL

35428B

PLUG, 2-3 SHIFT TIMING VALVE

35435

GASKET, VALVE BODY PLATE, NO.3

35437B

PLATE, VALVE BODY COVER

35438B

SLEEVE, 2-3 SHIFT TIMING VALVE PLUG

35438C

PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)

35441C

STRAINER, SOLENOID OIL

35455

PLUG, 1-2 SHIFT VALVE LOW

35455A

PLUG (FOR 1-2 SHIFT VALVE LOW PLUG)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464D

KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)

35472

COVER, VALVE BODY, NO.2

35477A

VALVE, OVERDRIVE CLUTCH EXHAUST

35477B

SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477E

KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477F

PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35488

VALVE, 2-3 SHIFT TIMING

35488A

SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE)

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497F

KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)

Код

Описание

9010505030

Крепеж

9010505044

Крепеж

9010505045

Крепеж

9010506035

Крепеж

9010506069

Крепеж

9010506070

Крепеж

9010506072

Крепеж

9010506073

Крепеж

9010506079

Крепеж

9010506117

Крепеж

9010506209

Крепеж

9010506210

Крепеж

9010506212

Крепеж

9011905012

Крепеж

9011905013

Крепеж

9090119010

Крепеж

9090119011

Крепеж

9090119012

Крепеж

9090119013

Крепеж

9090119014

Крепеж

9090119015

Крепеж

9090119016

Крепеж

9161160612

Крепеж

9454100500

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA LAND CRUISER VAN, 1990/01 - 1995/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, автомат

Товар добавлен в корзину!

Заполните форму
