> Запчасти CRUISER > Поиск по каталогу
Запчасти Аксессуары Масло Расходники Каталог Шины, Диски

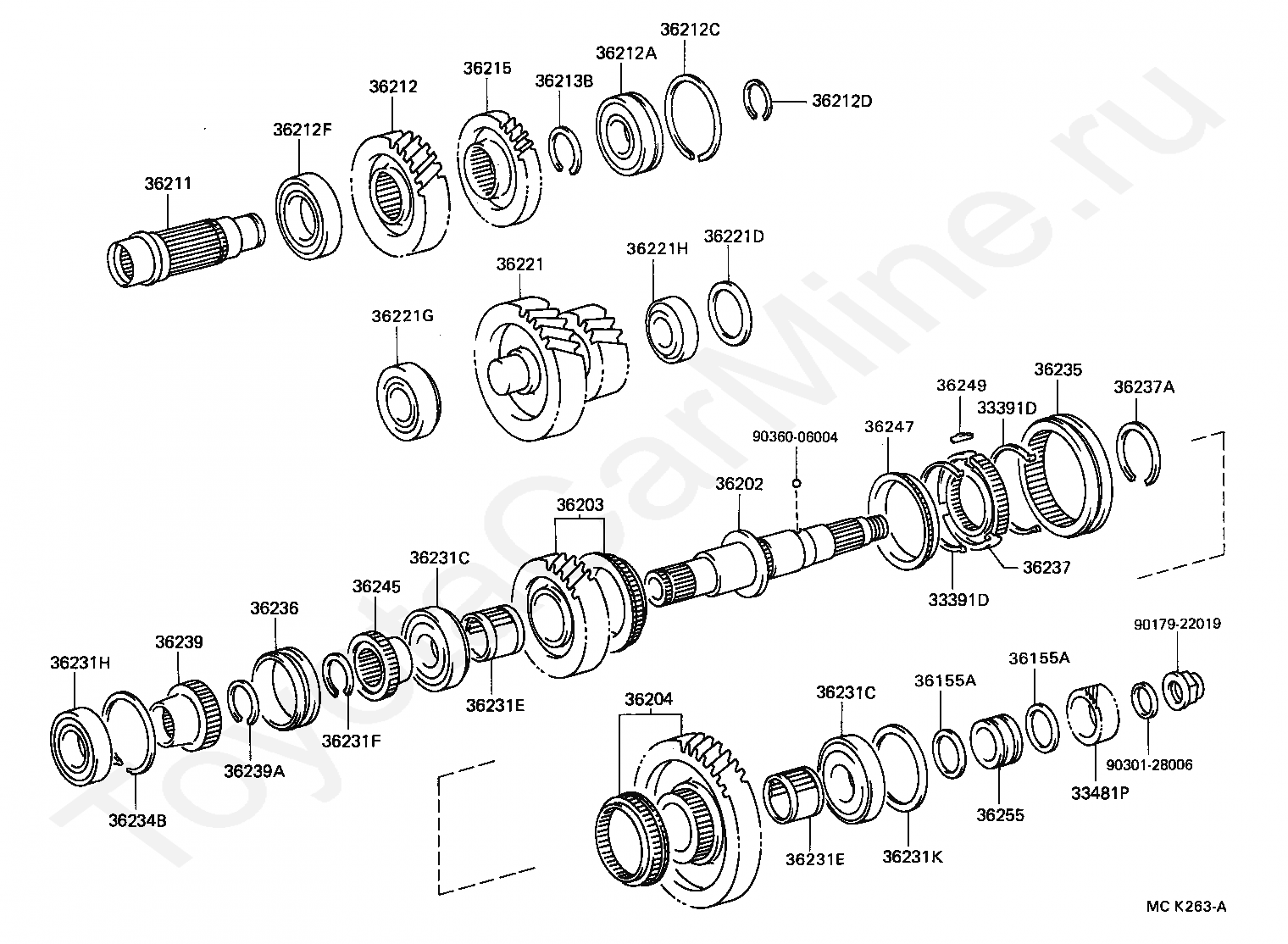

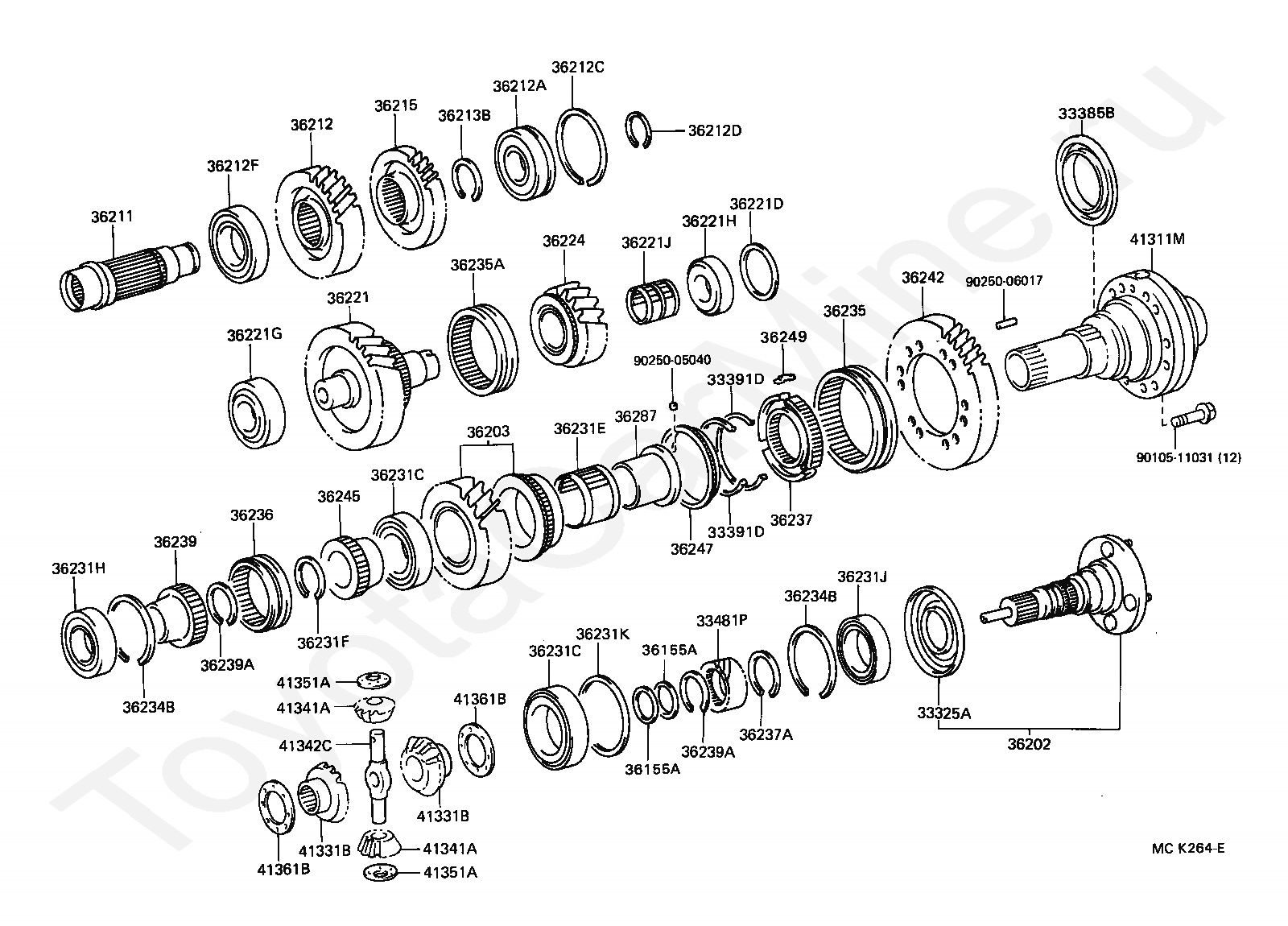

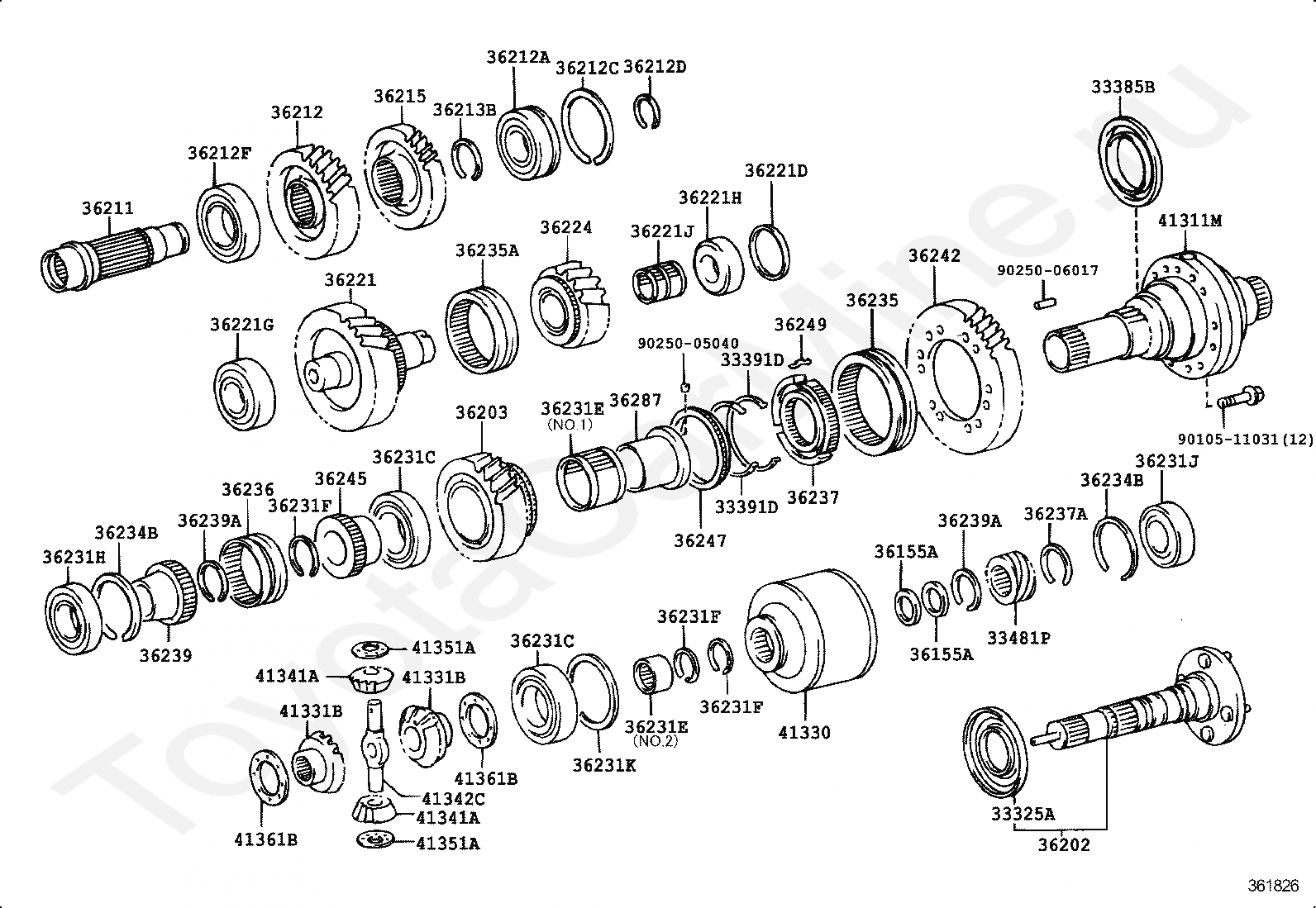

TRANSFER GEAR TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33391D

SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER)

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

36155A

RING, TRANSFER OIL SEAL

36202

SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR

36203

GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT

36204

GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT

36211

SHAFT, TRANSFER INPUT

36212

GEAR, TRANSFER INPUT

36212A

BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

36212C

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

36212D

RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

36212F

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

36213B

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

36215

GEAR, POWER TAKE-OFF DRIVE

36221

GEAR, TRANSFER IDLER

36221D

WASHER, PLATE(FOR TRANSFER IDLER GEAR)

36221G

BEARING (FOR TRANSFER ILDER GEAR), FRONT

36221H

BEARING (FOR TRANSFER ILDER GEAR), REAR

36231C

BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36231H

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

36231K

WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)

36234B

RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)

36235

SLEEVE, TRANSFER HIGH & LOW CLUTCH

36236

SLEEVE, FRONT DRIVE CLUTCH

36237

HUB, TRANSFER CLUTCH

36237A

RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

36239

HUB, TRANSFER DRIVE CLUTCH

36239A

RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)

36245

PIECE, TRANSFER FRONT DRIVE GEAR

36247

RING, TRANSFER SYNCHRONIZER

36249

KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2

36255

SPACER, TRANSFER OUTPUT SHAFT, NO.1

9017922019

Крепеж

9030128006

Крепеж

9036006004

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33325A

DEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)

33385B

RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)

33391D

SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER)

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

36155A

RING, TRANSFER OIL SEAL

36202

SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR

36203

GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT

36211

SHAFT, TRANSFER INPUT

36212

GEAR, TRANSFER INPUT

36212A

BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

36212C

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

36212D

RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

36212F

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

36213B

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

36215

GEAR, POWER TAKE-OFF DRIVE

36221

GEAR, TRANSFER IDLER

36221D

WASHER, PLATE(FOR TRANSFER IDLER GEAR)

36221G

BEARING (FOR TRANSFER ILDER GEAR), FRONT

36221H

BEARING (FOR TRANSFER ILDER GEAR), REAR

36221J

BEARING (FOR TRANSFER IDLER GEAR LOWER)

36224

GEAR, TRANSFER IDLER LOWER

36231C

BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36231H

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

36231J

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

36231K

WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)

36234B

RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)

36235

SLEEVE, TRANSFER HIGH & LOW CLUTCH

36235A

SLEEVE (FOR TRANSFER IDLER GEAR)

36236

SLEEVE, FRONT DRIVE CLUTCH

36237

HUB, TRANSFER CLUTCH

36237A

RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

36239

HUB, TRANSFER DRIVE CLUTCH

36239A

RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)

36242

GEAR, TRANSFER LOW

36245

PIECE, TRANSFER FRONT DRIVE GEAR

36247

RING, TRANSFER SYNCHRONIZER

36249

KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2

36287

BUSH, TRANSFER HIGH SPEED OUTPUT GEAR

41311M

CASE, CENTER DIFFERENTIAL

41331B

GEAR, CENTER DIFFERENTIAL SIDE

41341A

PINION, CENTER DIFFERENTIAL

41342C

SHAFT, CENTER DIFFERENTIAL PINION

41351A

WASHER, CENTER DIFFERENTIAL PINION TRUST

41361B

WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1

9010511031

Крепеж

9025005040

Крепеж

9025006017

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33325A

DEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)

33385B

RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)

33391D

SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER)

33481P

GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

36155A

RING, TRANSFER OIL SEAL

36202

SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR

36203

GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT

36211

SHAFT, TRANSFER INPUT

36212

GEAR, TRANSFER INPUT

36212A

BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

36212C

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

36212D

RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

36212F

BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

36213B

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

36215

GEAR, POWER TAKE-OFF DRIVE

36221

GEAR, TRANSFER IDLER

36221D

WASHER, PLATE(FOR TRANSFER IDLER GEAR)

36221G

BEARING (FOR TRANSFER ILDER GEAR), FRONT

36221H

BEARING (FOR TRANSFER ILDER GEAR), REAR

36221J

BEARING (FOR TRANSFER IDLER GEAR LOWER)

36224

GEAR, TRANSFER IDLER LOWER

36231C

BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36231H

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

36231J

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

36231K

WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)

36234B

RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)

36235

SLEEVE, TRANSFER HIGH & LOW CLUTCH

36235A

SLEEVE (FOR TRANSFER IDLER GEAR)

36236

SLEEVE, FRONT DRIVE CLUTCH

36237

HUB, TRANSFER CLUTCH

36237A

RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

36239

HUB, TRANSFER DRIVE CLUTCH

36239A

RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)

36242

GEAR, TRANSFER LOW

36245

PIECE, TRANSFER FRONT DRIVE GEAR

36247

RING, TRANSFER SYNCHRONIZER

36249

KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2

36287

BUSH, TRANSFER HIGH SPEED OUTPUT GEAR

41311M

CASE, CENTER DIFFERENTIAL

41330

COUPLING ASSY, CENTER DIFFERENTIAL CONTROL

41331B

GEAR, CENTER DIFFERENTIAL SIDE

41341A

PINION, CENTER DIFFERENTIAL

41342C

SHAFT, CENTER DIFFERENTIAL PINION

41351A

WASHER, CENTER DIFFERENTIAL PINION TRUST

41361B

WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1

9010511031

Крепеж

9025005040

Крепеж

9025006017

Крепеж
