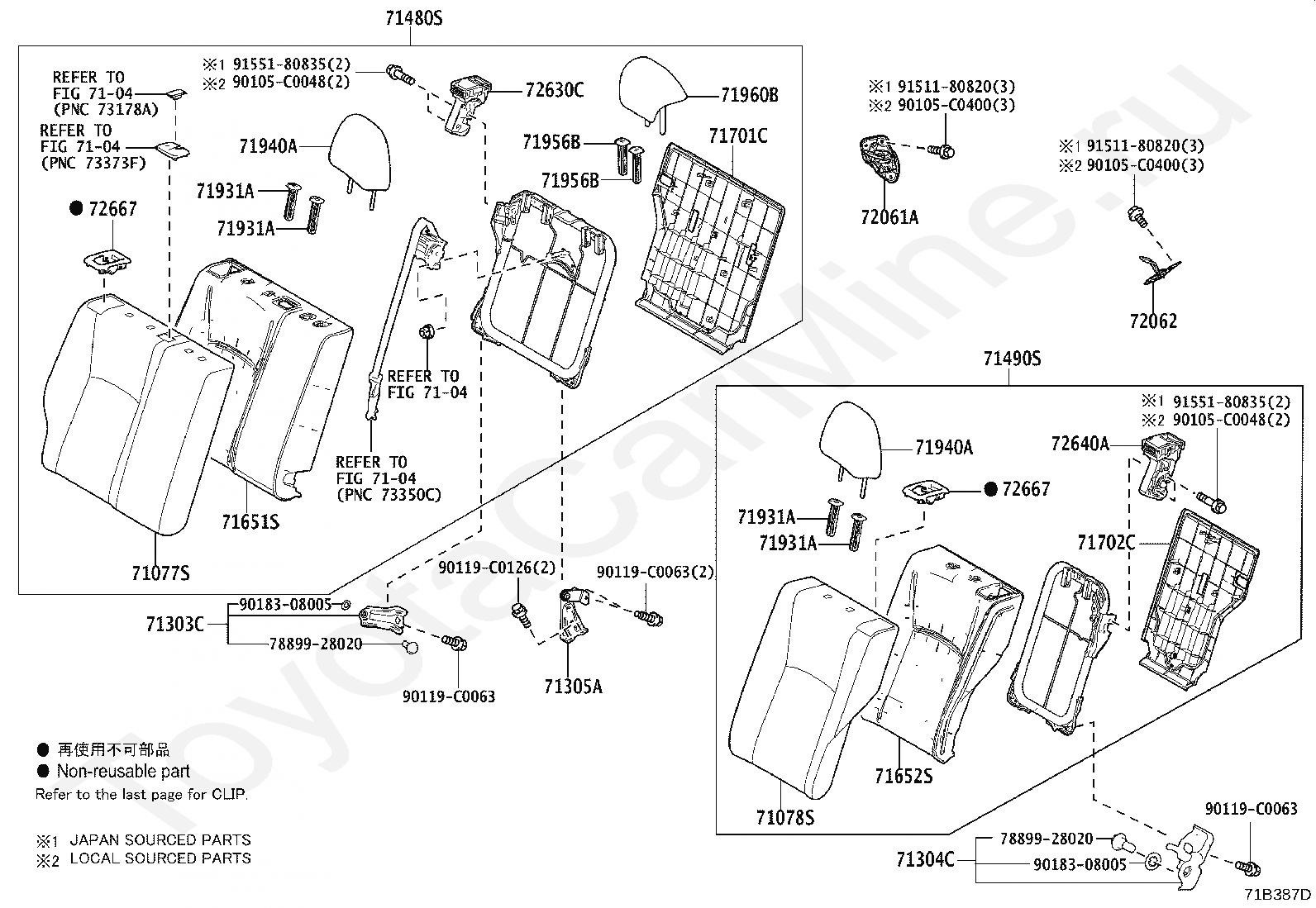

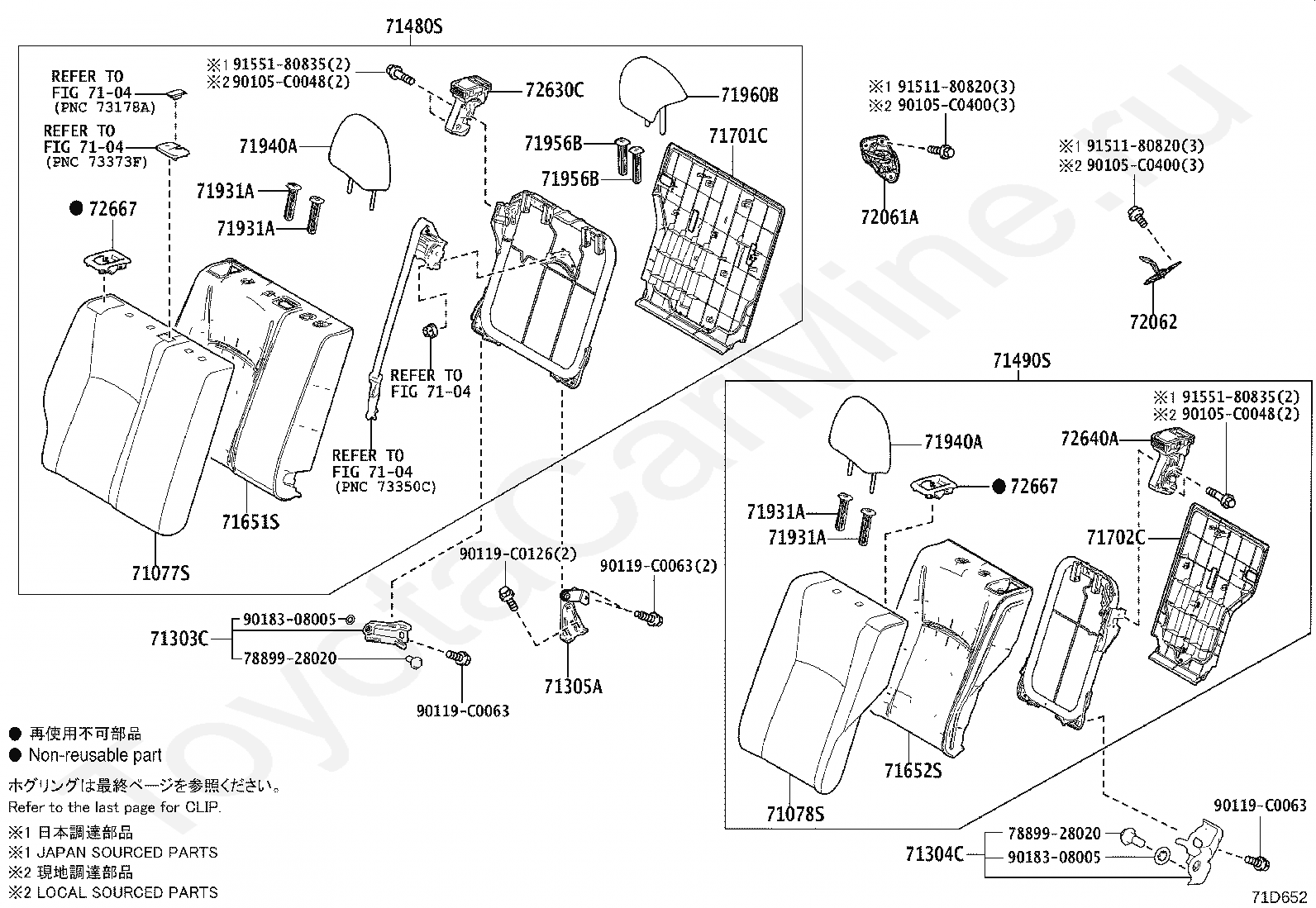

Задние кресла TOYOTA IZOA, 2021/05 - 2025, 2000CC 16-VALVE DOHC, MAXA10, вариатор

Каталог

Ближний Восток

Модель

IZOA

Двигатель

2000CC 16-VALVE DOHC

Фрейм

MAXA10

Трансмиссия

вариатор

Опции

левый руль 5 дверей N(MODEL MARK) Китай 843W

Код

Описание

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72061A

BASE SUB-ASSY, REAR SEAT BACK LOCK, RH

72062

BASE SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

7889928020

Крепеж

90105C0048

Крепеж

90105C0400

Крепеж

90119C0063

Крепеж

90119C0126

Крепеж

9018308005

Крепеж

9151180820

Крепеж

9155180835

Крепеж

Код

Описание

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72061A

BASE SUB-ASSY, REAR SEAT BACK LOCK, RH

72062

BASE SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

7889928020

Крепеж

90105C0048

Крепеж

90105C0400

Крепеж

90119C0063

Крепеж

90119C0126

Крепеж

9018308005

Крепеж

9151180820

Крепеж

9155180835

Крепеж

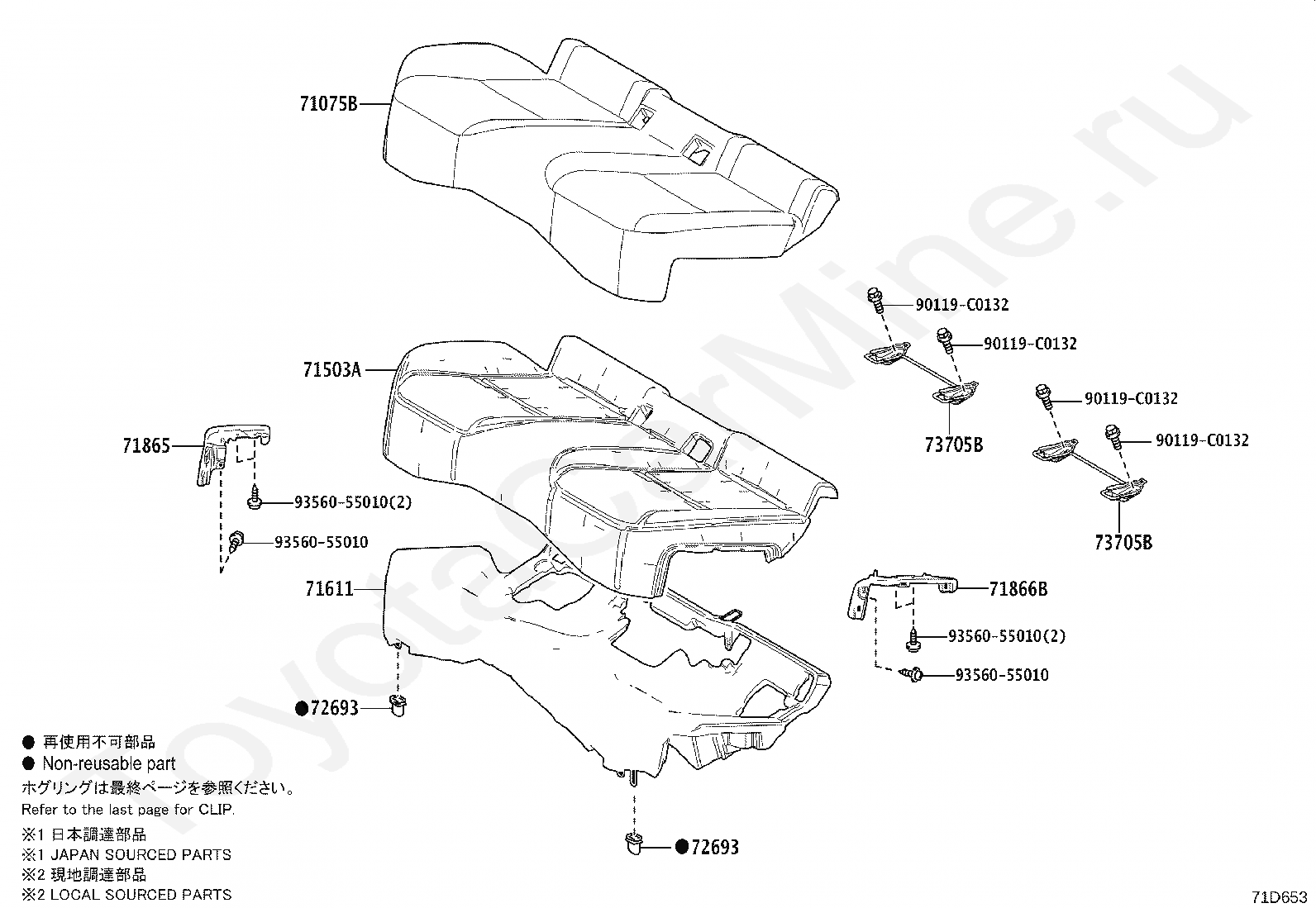

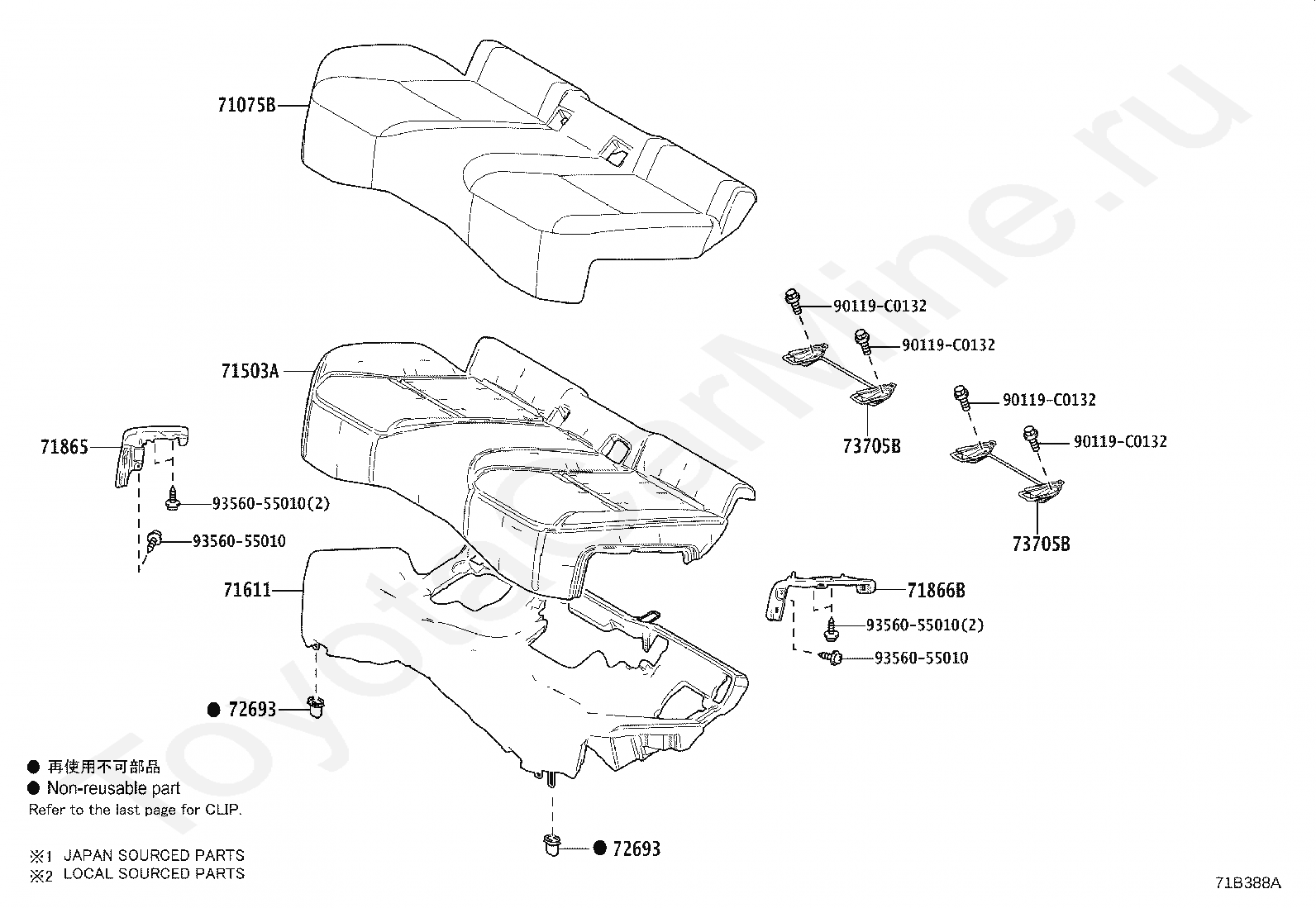

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

71611

PAD, REAR SEAT CUSHION

71865

BEZEL, REAR SEAT COVER, NO.1

71866B

BEZEL, REAR SEAT COVER, NO.2

72693

HOOK, REAR SEAT CUSHION LOCK

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

90119C0132

Крепеж

9356055010

Крепеж

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

71611

PAD, REAR SEAT CUSHION

71865

BEZEL, REAR SEAT COVER, NO.1

71866B

BEZEL, REAR SEAT COVER, NO.2

72693

HOOK, REAR SEAT CUSHION LOCK

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

90119C0132

Крепеж

9356055010

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
